Weld-On Puck with Bolt for Rotating D-Ring Anchor – 7393BP – FallTech

SKU: 7393BP
$72.00
Estimated Lead Time:3 to 5 days

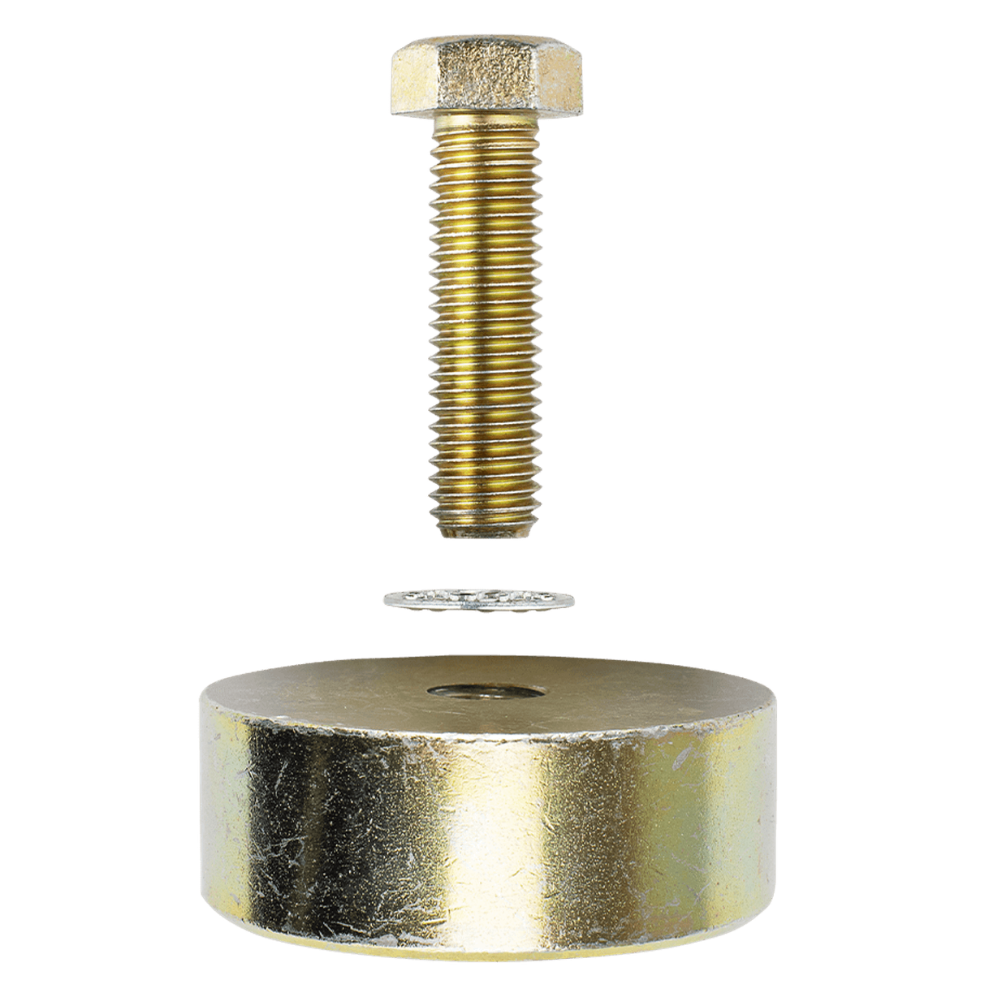

The FallTech 7393BP Weld-On Puck is designed for use with the 7393B Rotating D-Ring Anchor, providing a versatile mounting solution that allows workers to relocate the D-ring anchor across multiple preinstalled puck points. Constructed from durable unplated alloy steel, the puck serves as a permanent weld-on anchoring interface, ensuring secure attachment in demanding environments.
Each puck includes a Grade 8 installation bolt for fastening the 7393B anchor. This component supports a 5,000 lb minimum static strength and meets both ANSI and OSHA anchorage capacity requirements. The puck complies with ANSI Z359.18-2017 and OSHA 1926.502/1910.66 regulations.
  • Product Code: 7393BP
  • Material: Unplated alloy steel
  • Static Strength: 5,000 lb min
  • Includes: Grade 8 installation bolt
  • User Capacity (ANSI): 130–310 lb
  • User Capacity (OSHA): 130–425 lb
  • Compliance: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66
  • Weight: 2.2 lbs each

User Manual (PDF)
