Weld/Bolt-on Steel and Concrete Anchor - SBW01 - Frontline

SKU: SBW01
$29.99
Estimated Lead Time:

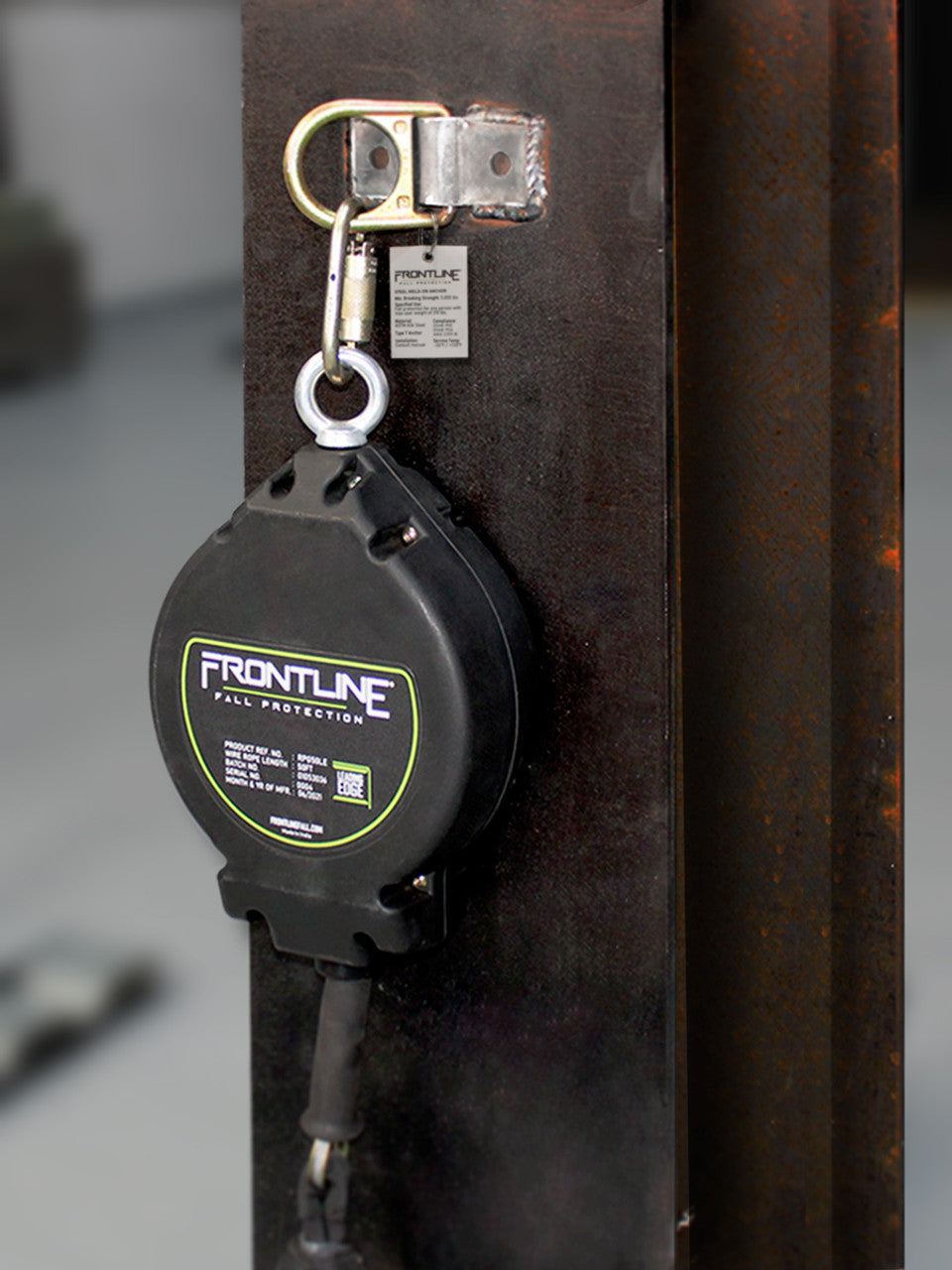

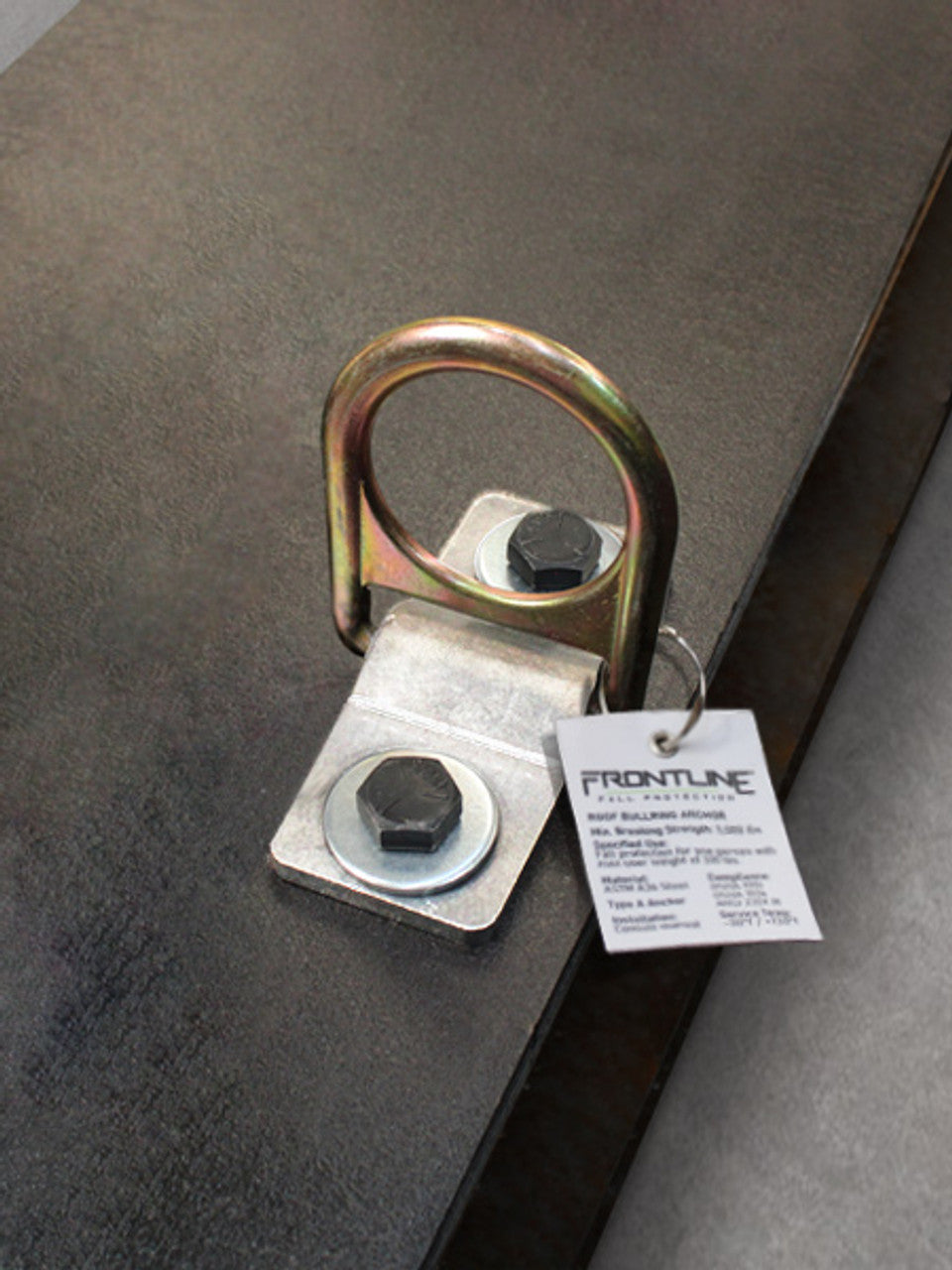

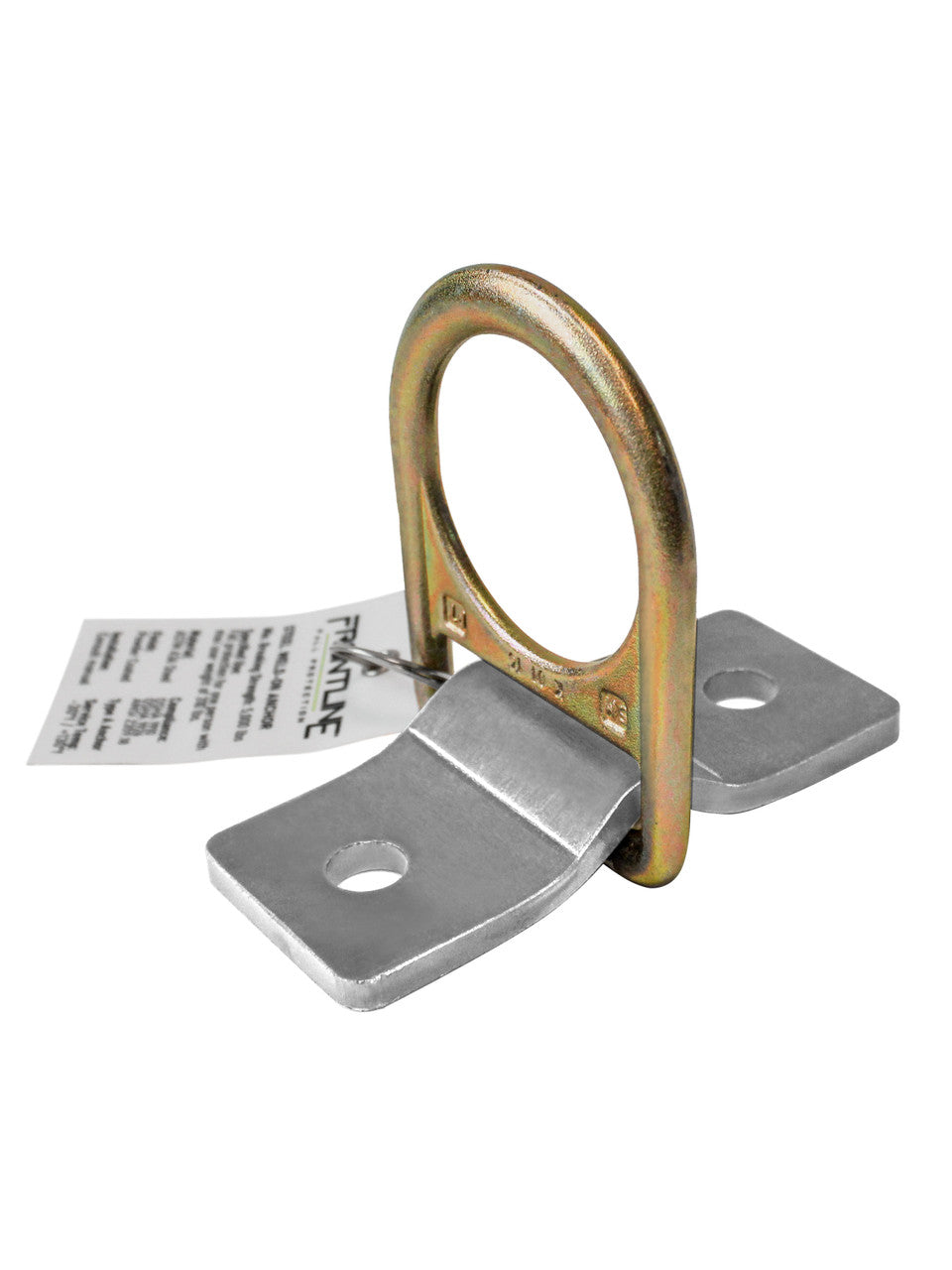

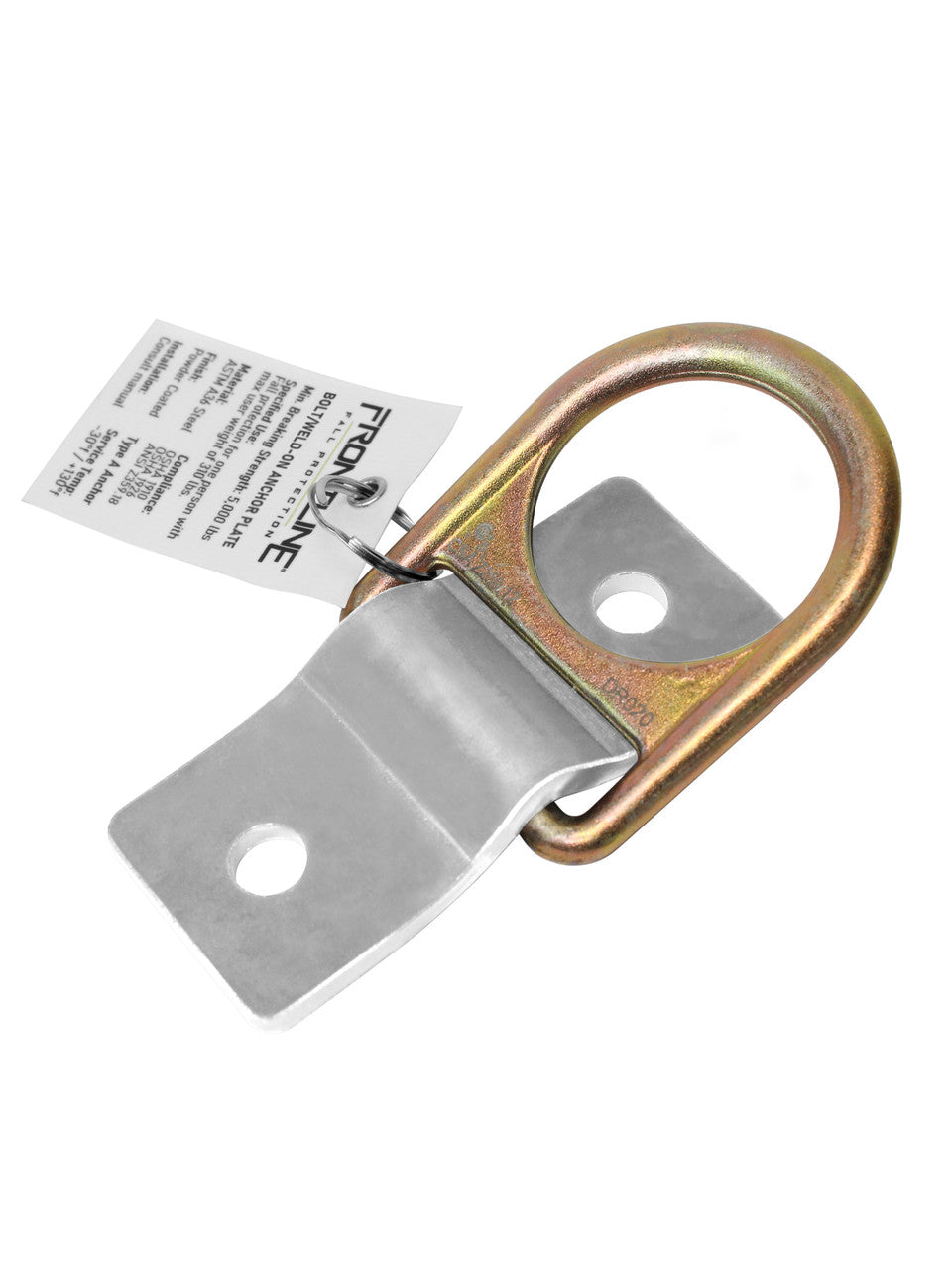

The Frontline SBW01 Weld/Bolt-on Anchor offers a versatile anchoring solution for both steel and concrete substrates. Compact and lightweight, this anchor is designed for fast installation and provides a secure, reusable tie-off point for fall protection systems.

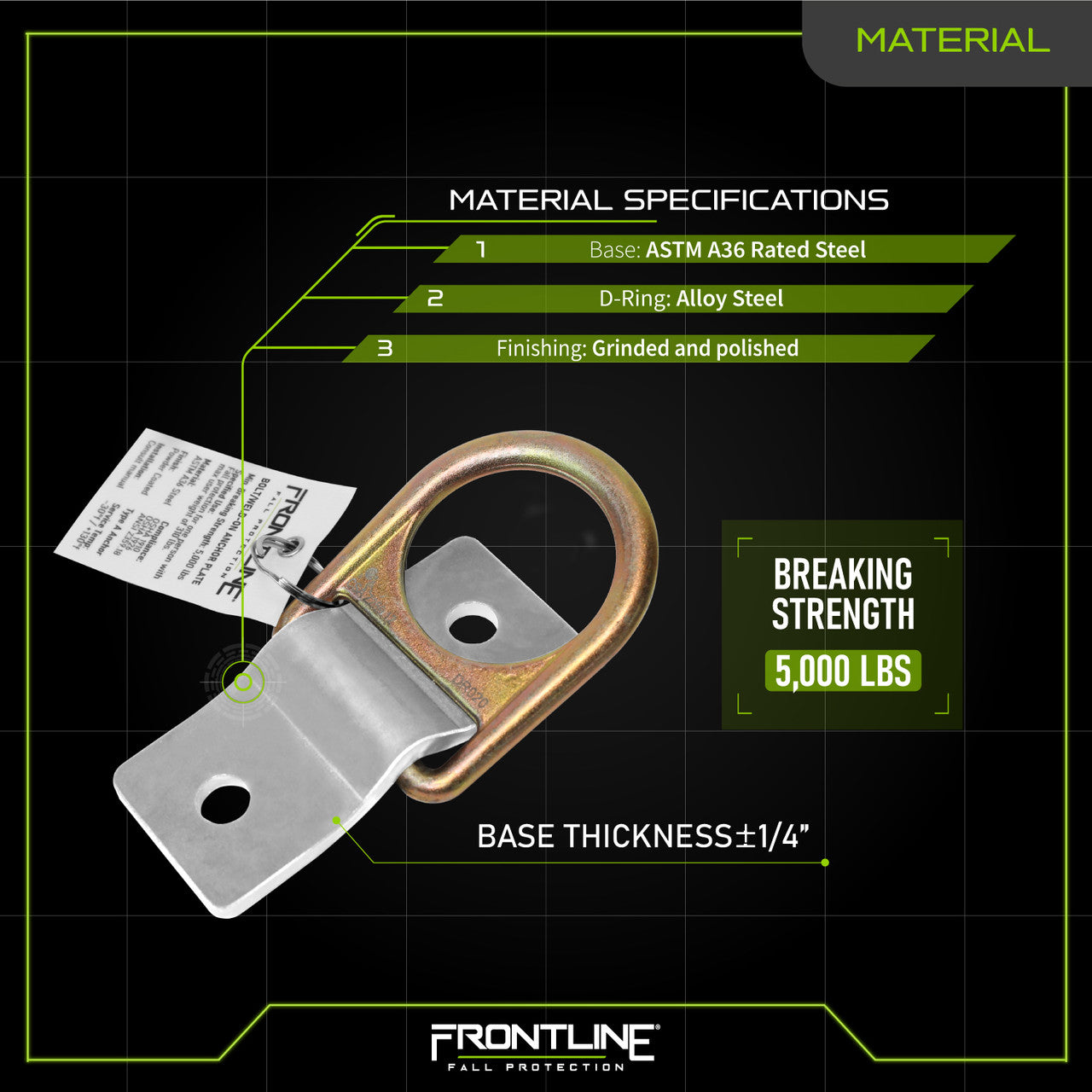

Constructed from ASTM-rated zinc-plated steel for enhanced corrosion resistance, the SBW01 is tested for multi-directional loading, allowing flexibility in placement and tie-off orientation. It installs easily with minimal tools and is ideal for permanent or temporary applications on various structural surfaces.
  • Minimum breaking strength: 5,000 lbf / 22 kN

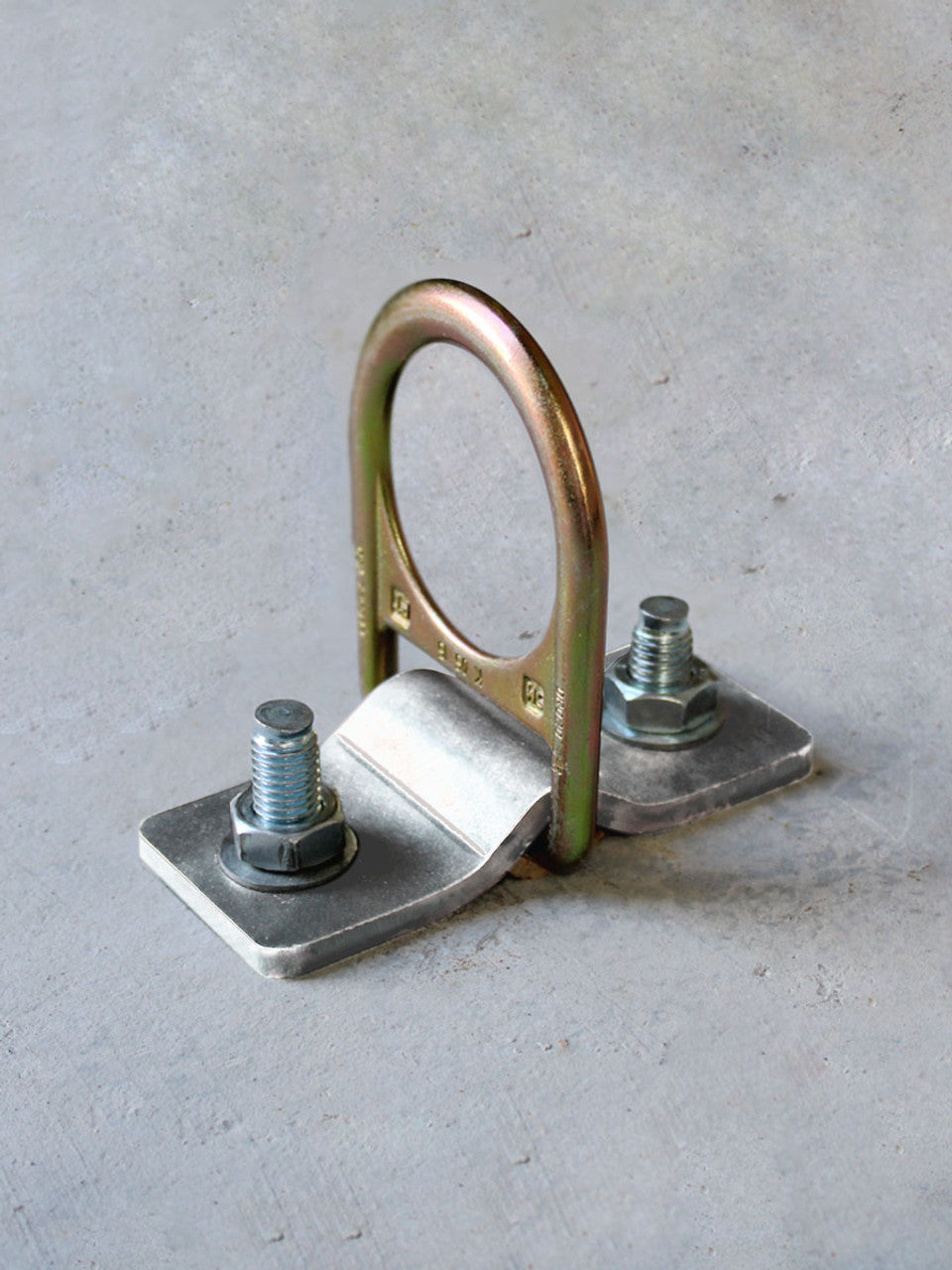

  • Application: Steel and concrete structures
  • User maximum capacity: 310 lbs
  • ASTM-rated steel construction
  • Zinc-plated for corrosion resistance
  • Tested for multi-directional loading

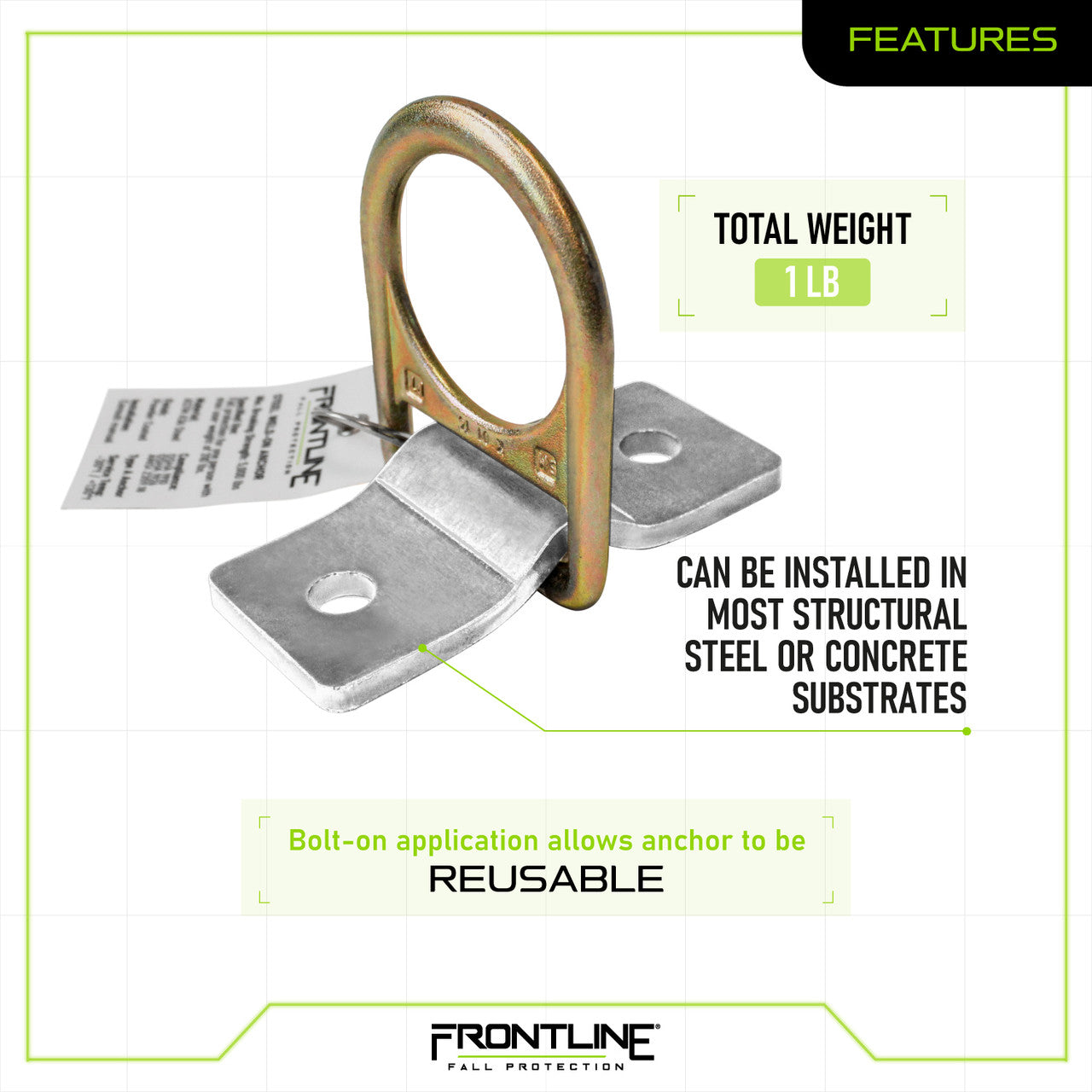

  • Reusable with bolt-on installation
  • Quick, tool-free setup

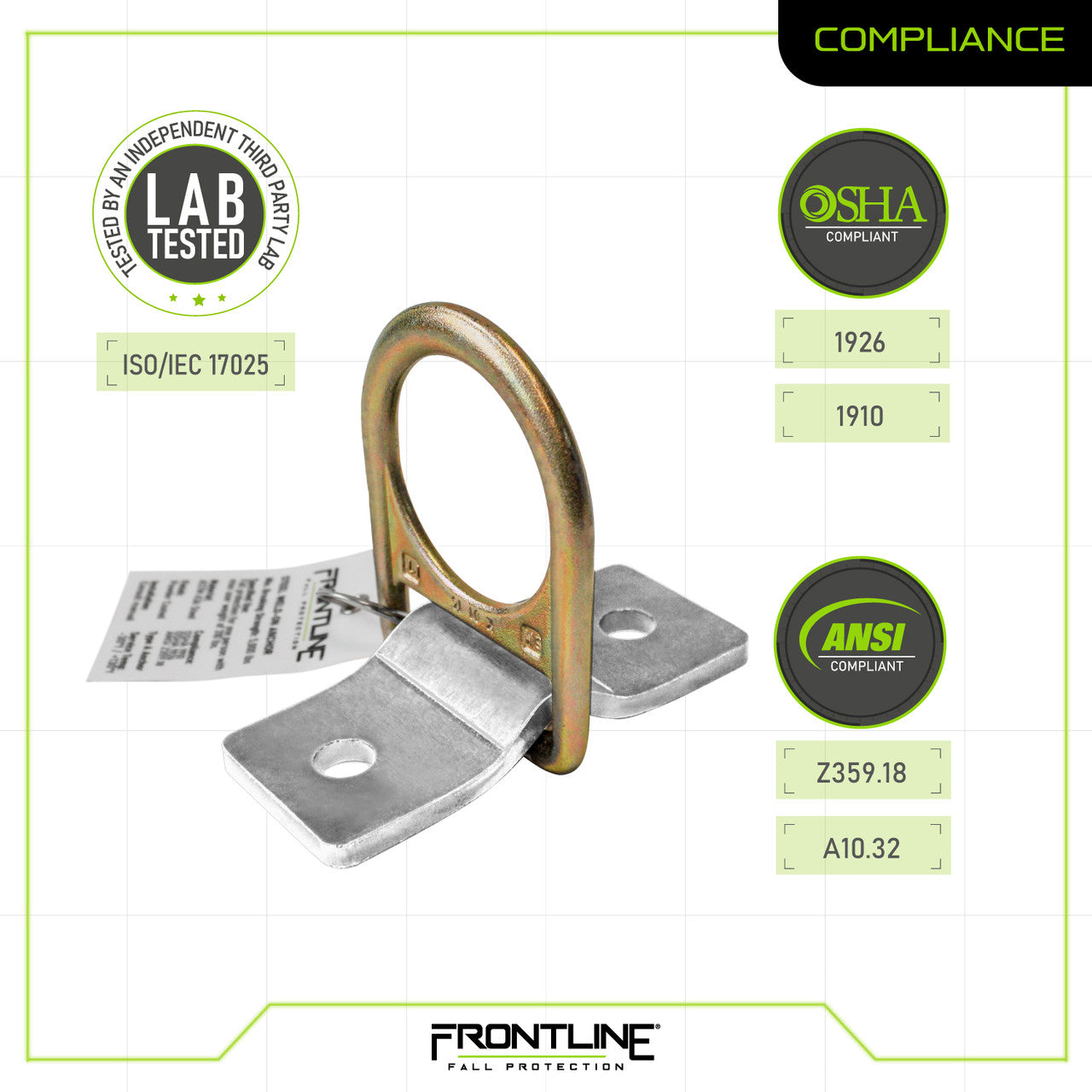

  • Meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926, OSHA 1910
  • Tested by ISO/IEC 17025 accredited 3rd party lab
