Wall-Mount Plated Steel Bolt-On Fixed Davit Base – 65070WMZ – FallTech

SKU: 65070WMZ
$552.40
Estimated Lead Time:3 to 5 Days

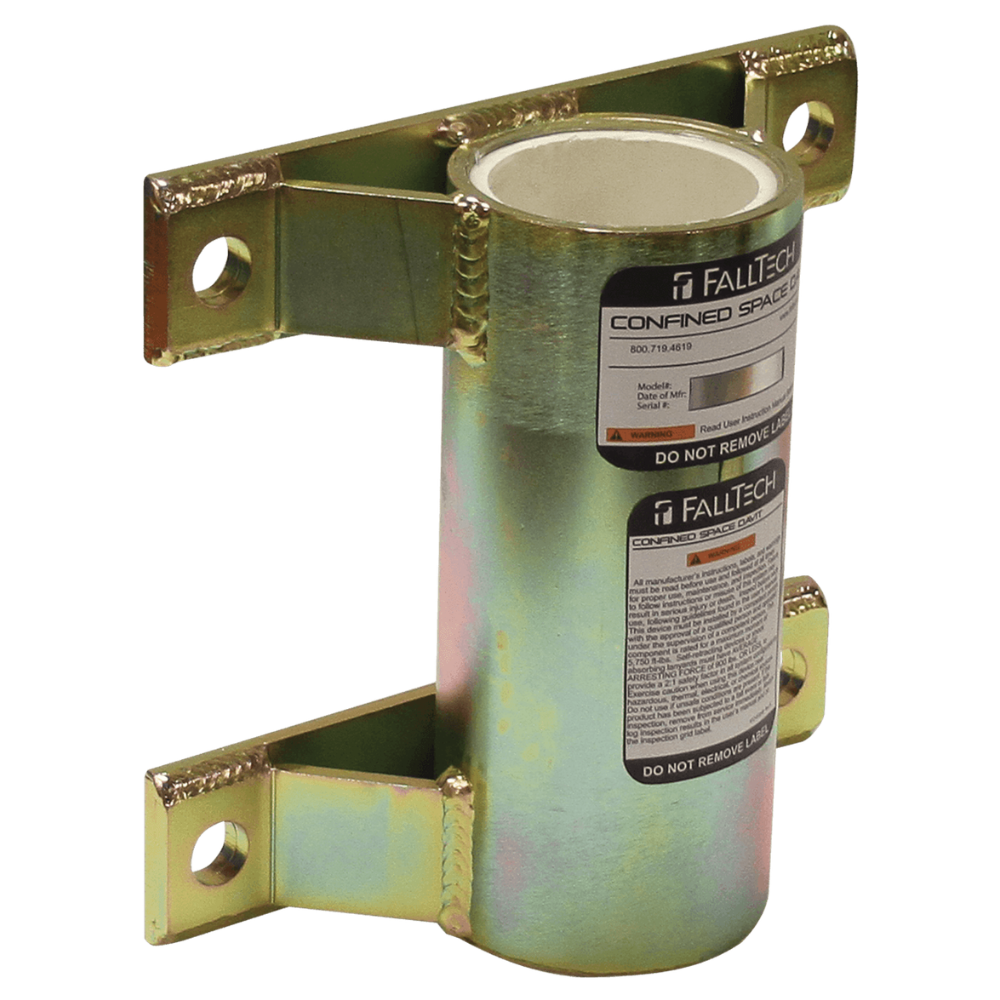

The FallTech 65070WMZ Wall-Mount Bolt-On Fixed Davit Base provides a permanent anchoring solution for recurring access locations that require wall installation. Built from plated carbon steel, the base offers long-term durability for use on existing steel or concrete surfaces. The 9-inch deep sleeve with PVC insert supports secure installation of compatible davit arms and mast extensions. This requires user-supplied fasteners for installation. When used as part of a complete system, it meets OSHA 1926.502 and 1910.66 regulations.
  • Product Code: 65070WMZ
  • Base Material: Plated carbon steel
  • Sleeve Material: PVC
  • Mount Type: Bolt-on wall installation
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 13.5 lbs

Product Brochure (PDF)
User Manual (PDF)
