Wall Flange Square - EFSQ11G - Easyfit

SKU: EFSQ11G-25
$10.50
Size
Estimated Lead Time:3 to 5 Days

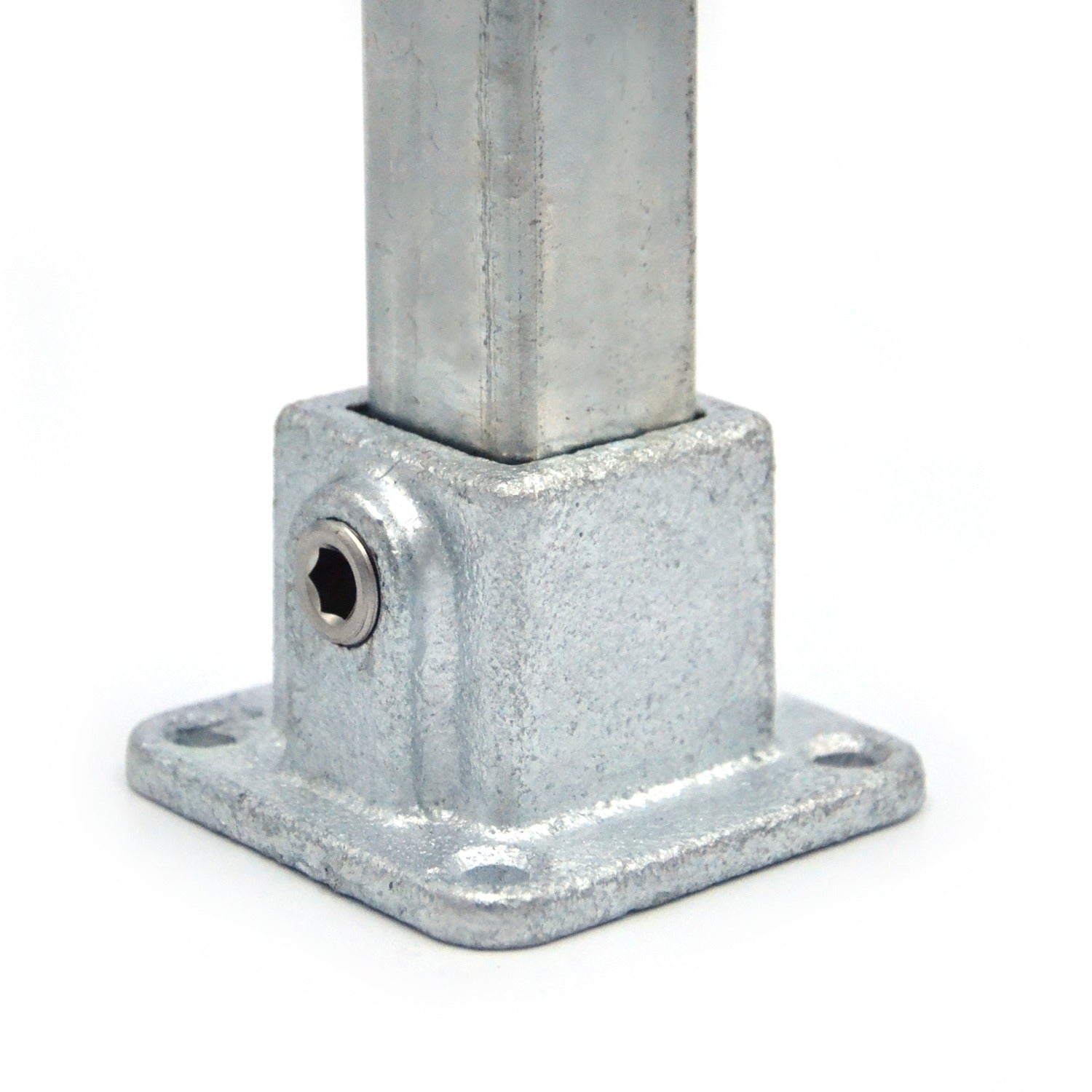

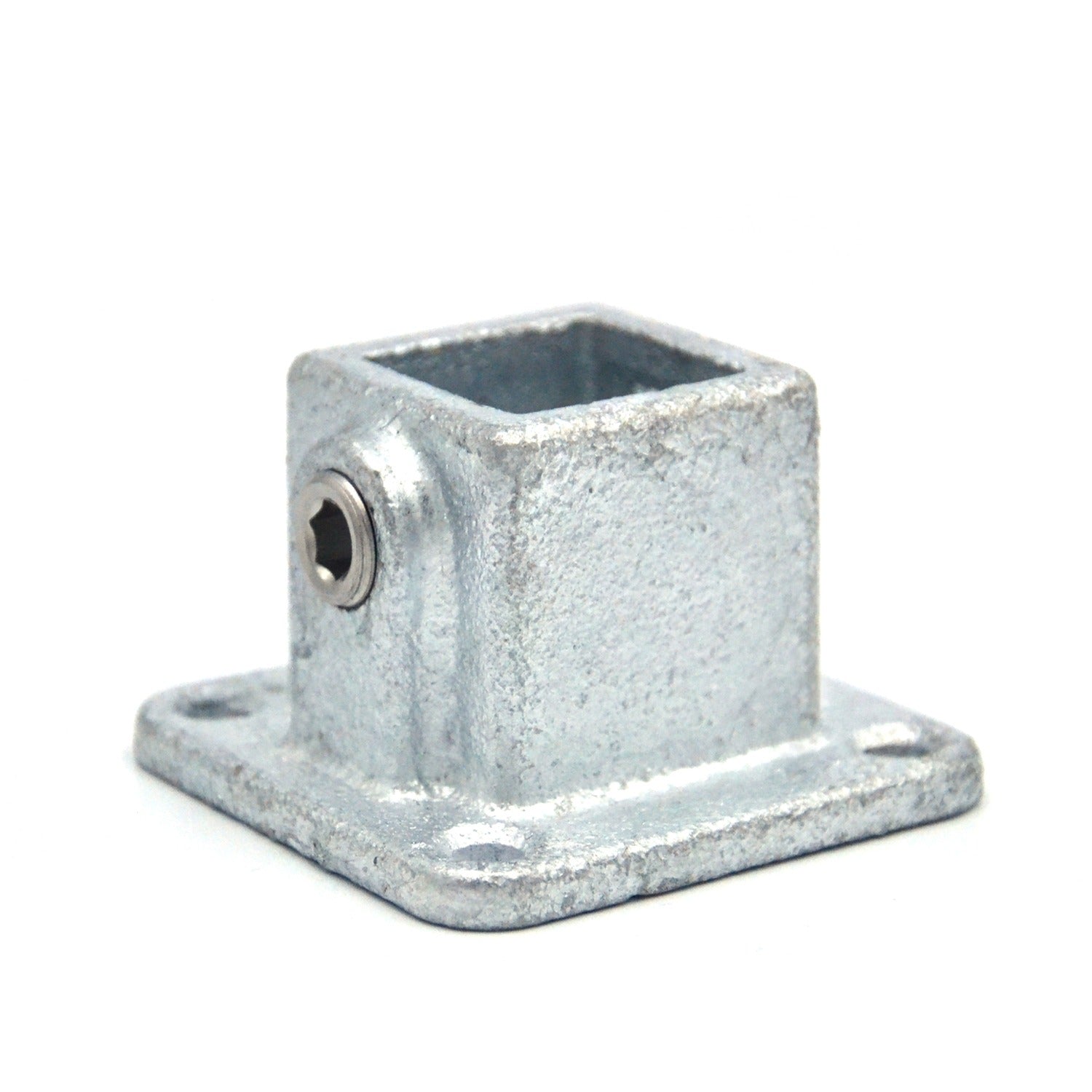

The Easyfit Wall Flange – Square is designed to securely mount a square tube perpendicular to a wall or other flat surface. Ideal for use in guardrails, parkour structures, clothing racks, and other square-tube assemblies, this fitting provides a strong anchor point with four fixing holes and one set screw for secure pipe retention.

Compatible with 25 mm or 40 mm galvanized square tubing of 2 mm wall thickness, the fitting installs easily using a standard allen wrench—no welding required. Built from galvanized cast iron, it offers long-lasting durability and corrosion resistance for both indoor and outdoor environments.
  • Mounts square tubing perpendicular to a wall or flat surface
  • Ideal for guardrails, racks, and custom square-tube structures
  • Mounting hardware size: 4 @ 1/4" diameter
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Compatible with 25 mm or 40 mm square galvanized tube (2 mm wall)
  • Includes steel set screw for secure connection
  • Galvanized cast iron for durability and corrosion resistance
