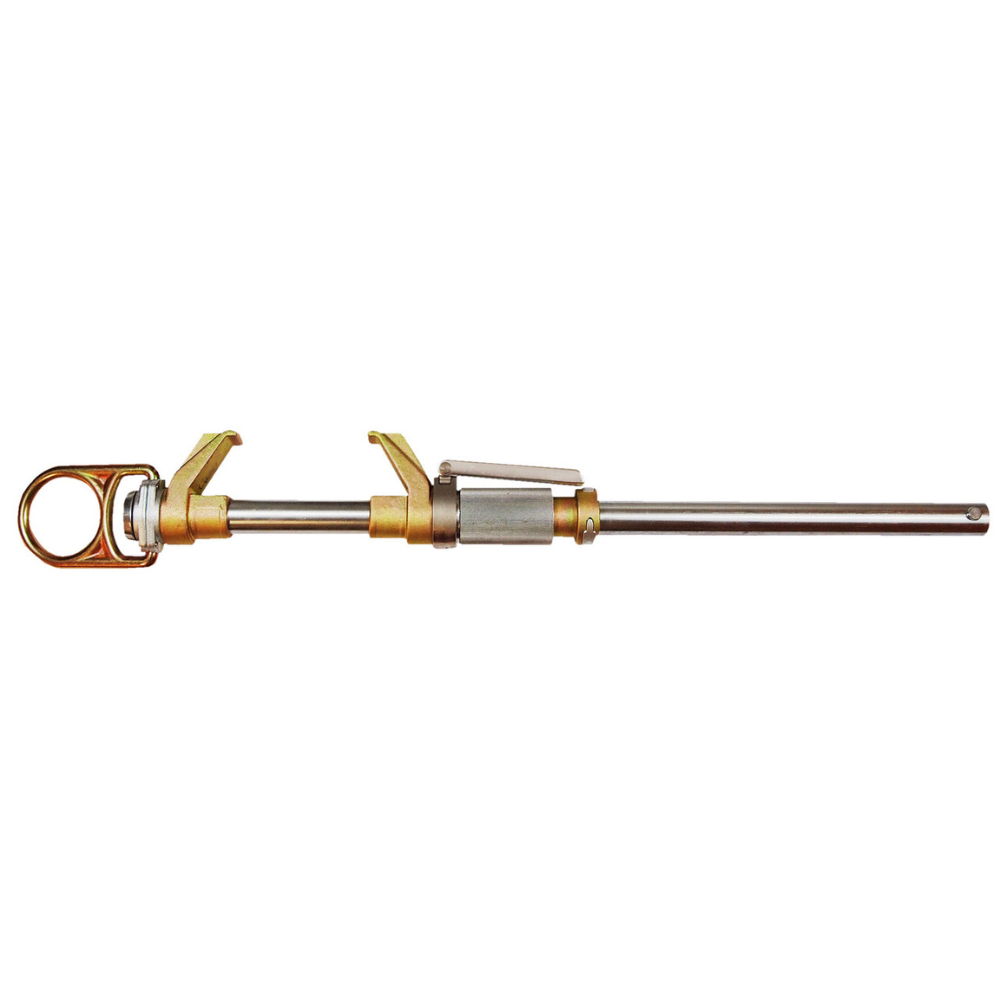

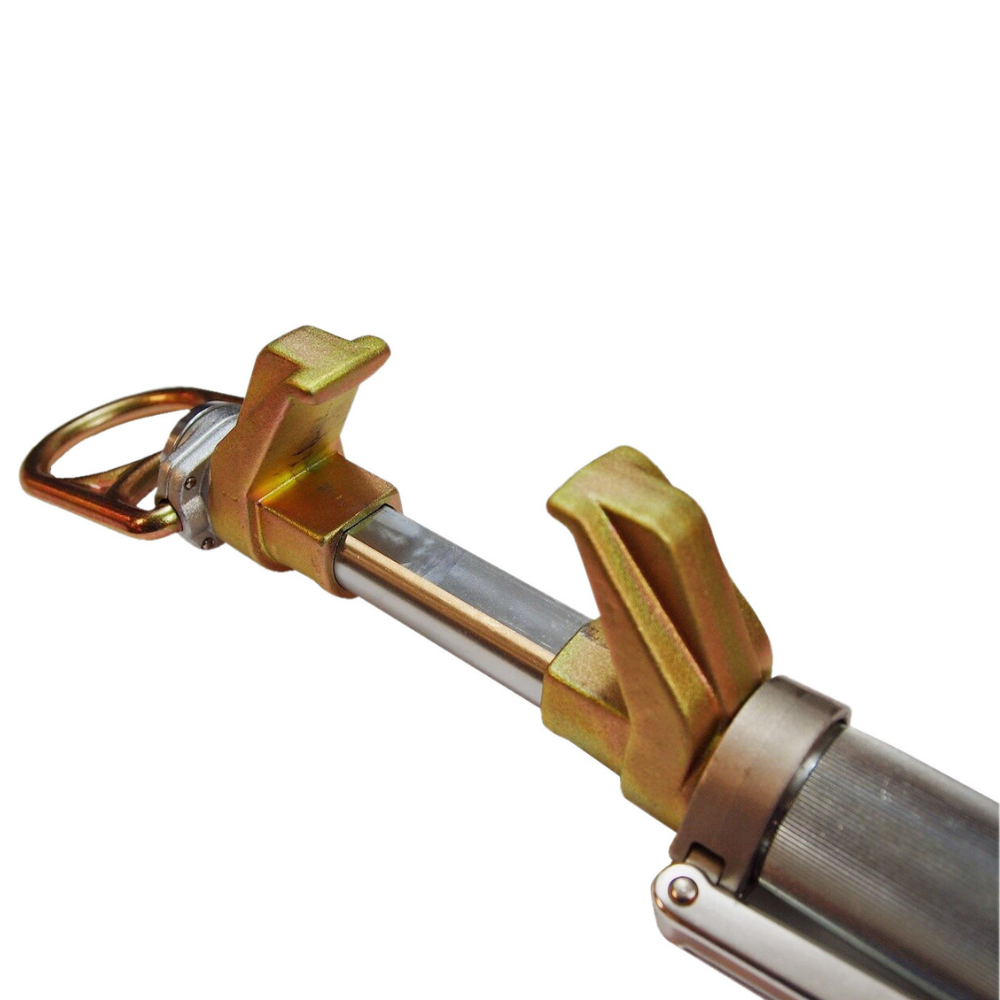

Vertical / Horizontal Fixed Beam Anchor for 4"–14" Wide I-Beams - ST14V - Frontline

SKU: ST14V
Regular price $269.99
Estimated Lead Time:1 to 2 Days

The Frontline ST14V Beam Anchor offers a rugged, easy-to-use solution for creating a fixed anchor point on steel I-beams in both vertical and horizontal orientations. Compact and lightweight, it adjusts to fit I-beam flanges from 4" to 14" wide and installs in seconds without the need for tools.

This durable anchor is ideal for single-user applications and is compatible with self-retracting lifelines or shock-absorbing lanyards. Its corrosion-resistant zinc-plated steel construction and stainless steel D-ring mount ensure long-lasting performance in demanding environments.

  • Static tensile strength: 5,000 lbf / 22 kN
  • User maximum capacity: 310 lbs
  • Product weight: 6.8 lbs
  • Fits I-beam flange widths: 4" to 14"
  • Fits flange thicknesses: 0.25" to 1.25"
  • Zinc plated steel swivel D-ring and components
  • Stainless steel D-ring mount for corrosion resistance
  • Tool-free installation in vertical or horizontal orientation
  • Compatible with SRLs and shock-absorbing lanyards
  • Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503, EN 795:2012
