Vertical Fixed Ladder & 8ft Walkway System w/ Safety Gate - RL33 Model - Kattsafe

SKU: RL33.047-WBHK.HB-LDWK.01-LD419F
$3,860.77
HEIGHT OF LADDER
WALL FIXING KIT
ROOF MOUNTING
Estimated Lead Time:3 to 5 Days

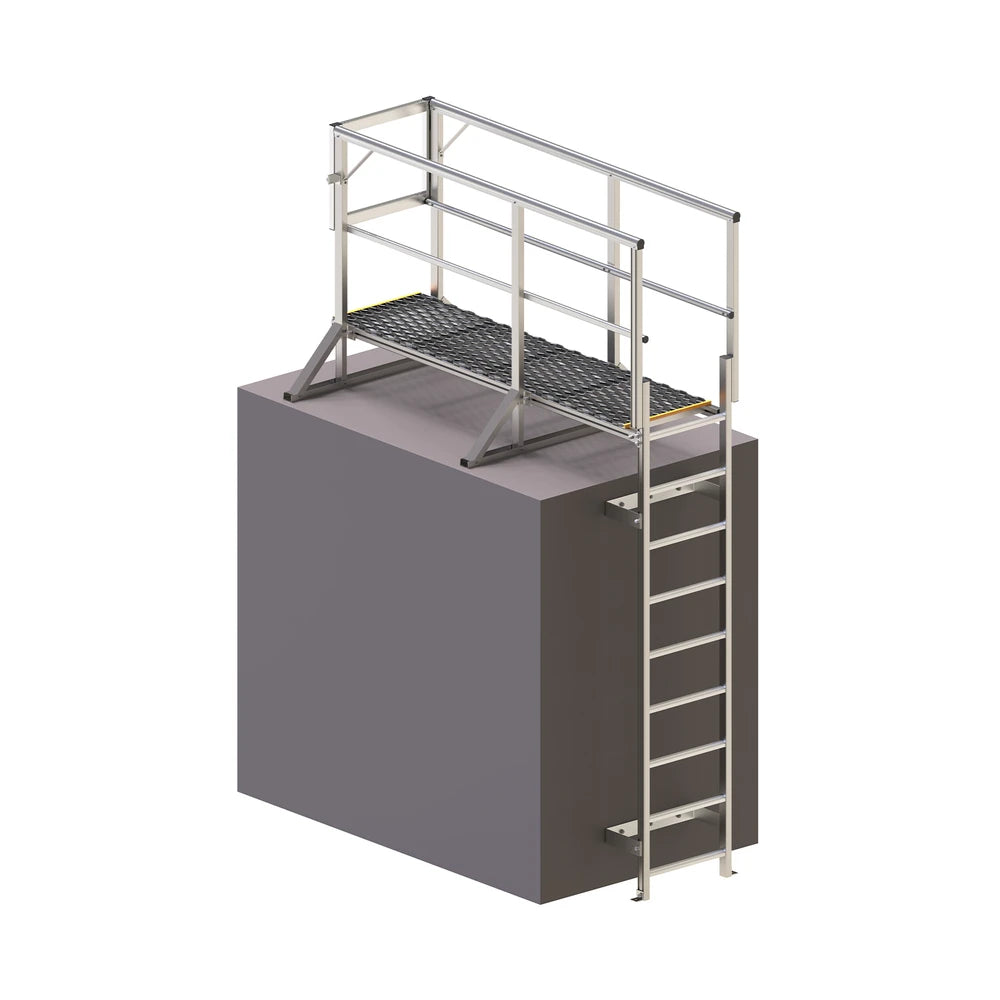

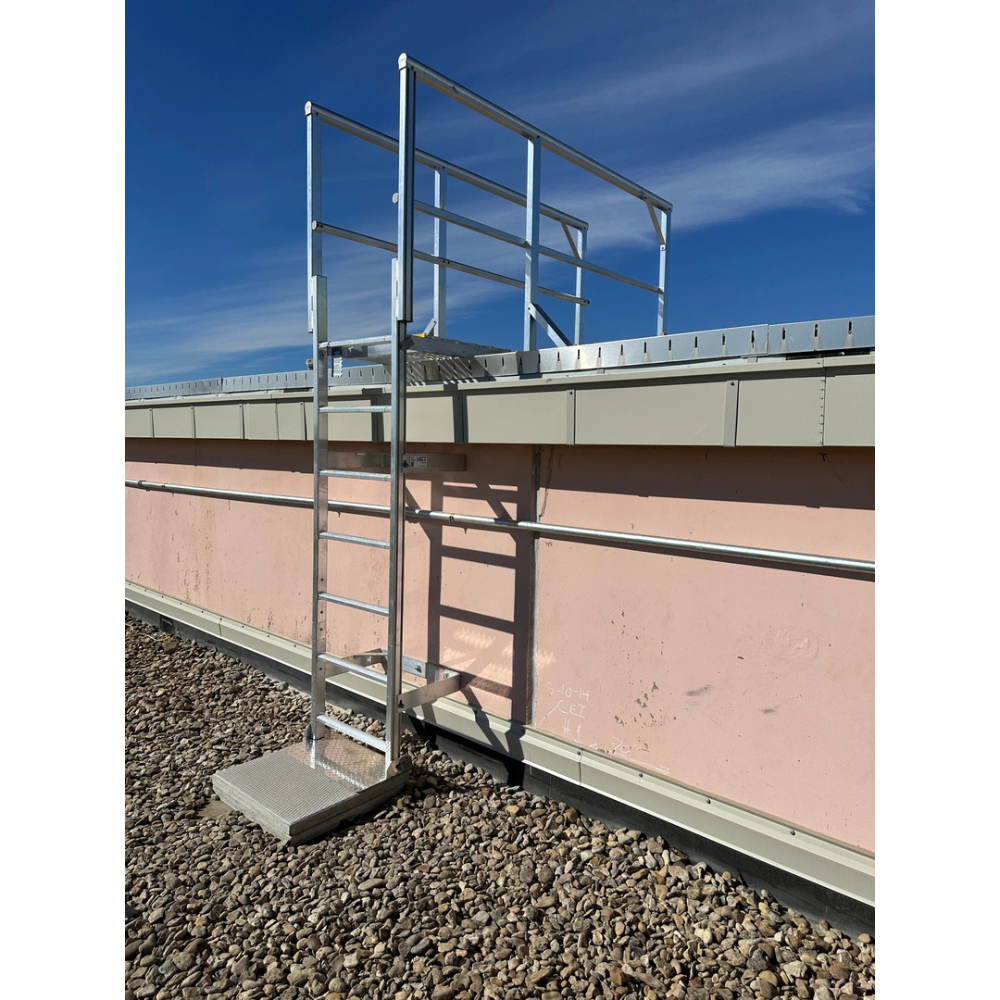

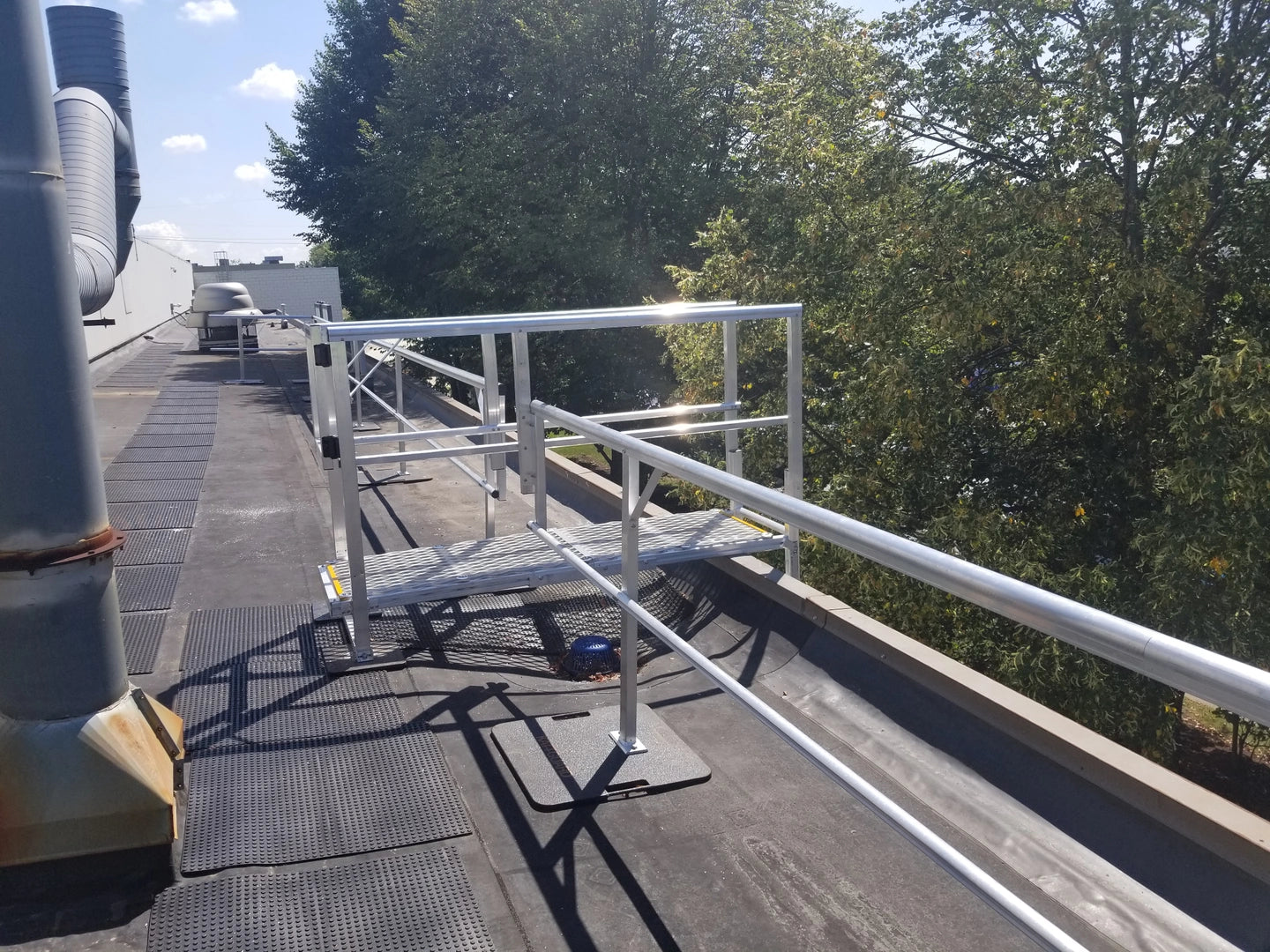

We’ve designed the RL33 fixed ladder with an 8-foot walkway at the ladder head for safer access. For extra safety and stability, mesh-style decking and round knee rails surround the platform. Attach knee rails to each post with self-tapping screws and choose from multiple mounting configurations.  The mesh-style platform deck has a ribbed finish for enhanced safety. Manufactured of lightweight, high-strength aluminum, RL33 series ladders provide a permanent OSHA & ANSI compliant solution for accessing the walking-working surface. RL33 series ladders are available in multiple configurations and can be easily customized on-site to suit your application.

Kattsafe ladder systems are designed and manufactured to meet and exceed requirements of OSHA standard 1910.23, 1910.28, and CAL-OSHA 3277 as applicable.

*Please Contact Industrial ProShop for additional Wall & Roof Types
  • 1000lb Working Load Limit
  • Overall ladder width: 23-3/4in (605mm)
  • Distance between stiles: 20-5/8in (525mm)
  • Distance between stiles at ladder head: 24in (610mm)
  • Ladder stile: Aluminum extruded stile grade 6106-T6 - 2-1/4in x 1-1/2in x 1/8in
  • Rung diameter: 1-1/4in SQ. 6106-T6 serrated rung
  • Rung spacing: 12in (300mm)
  • Stile extension above landing surface: 42in (1070mm)
  • Minimum clearance behind ladder: 7in (200mm) (vertical position)
  • Maximum clearance behind ladder before platform is required: 12in (305mm)
  • Self-Closing Safety Gate Incuded
  • Non-Penetrating Base Plate Included

Data Sheet (pdf)

Technical Drawing (pdf)

5 years from date of purchase subject to installation, use, and maintenance in accordance with manufacturer’s specifications and recommendations.
