Vertical Fixed Ladder w/ 3ft Parapet Platform - RL32 Model - Kattsafe

SKU: RL32.047-WBHK.HB-LD419F
$2,871.23
Height of Ladder
Wall Fixing Kit
Estimated Lead Time:3 to 5 Days

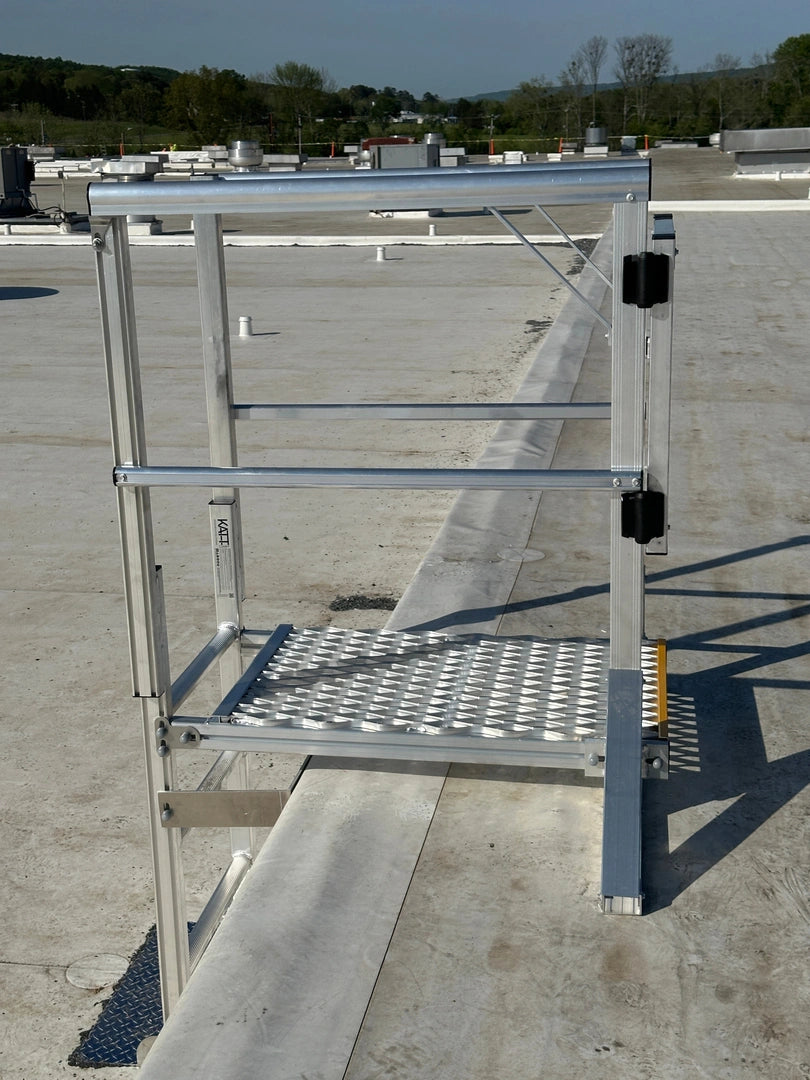

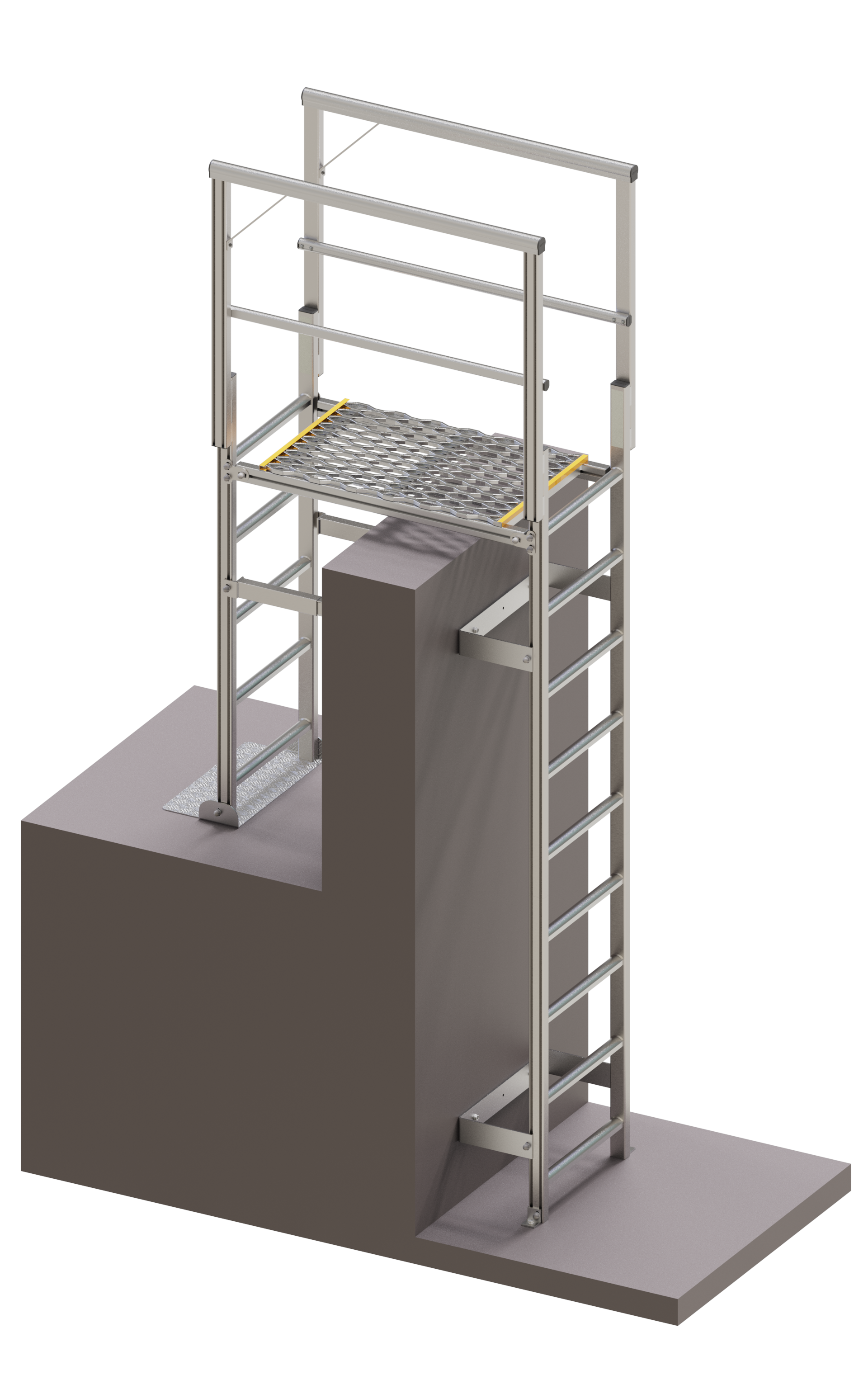

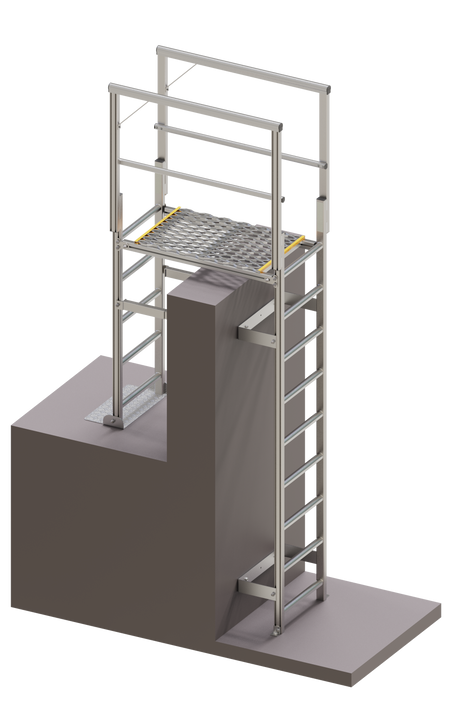

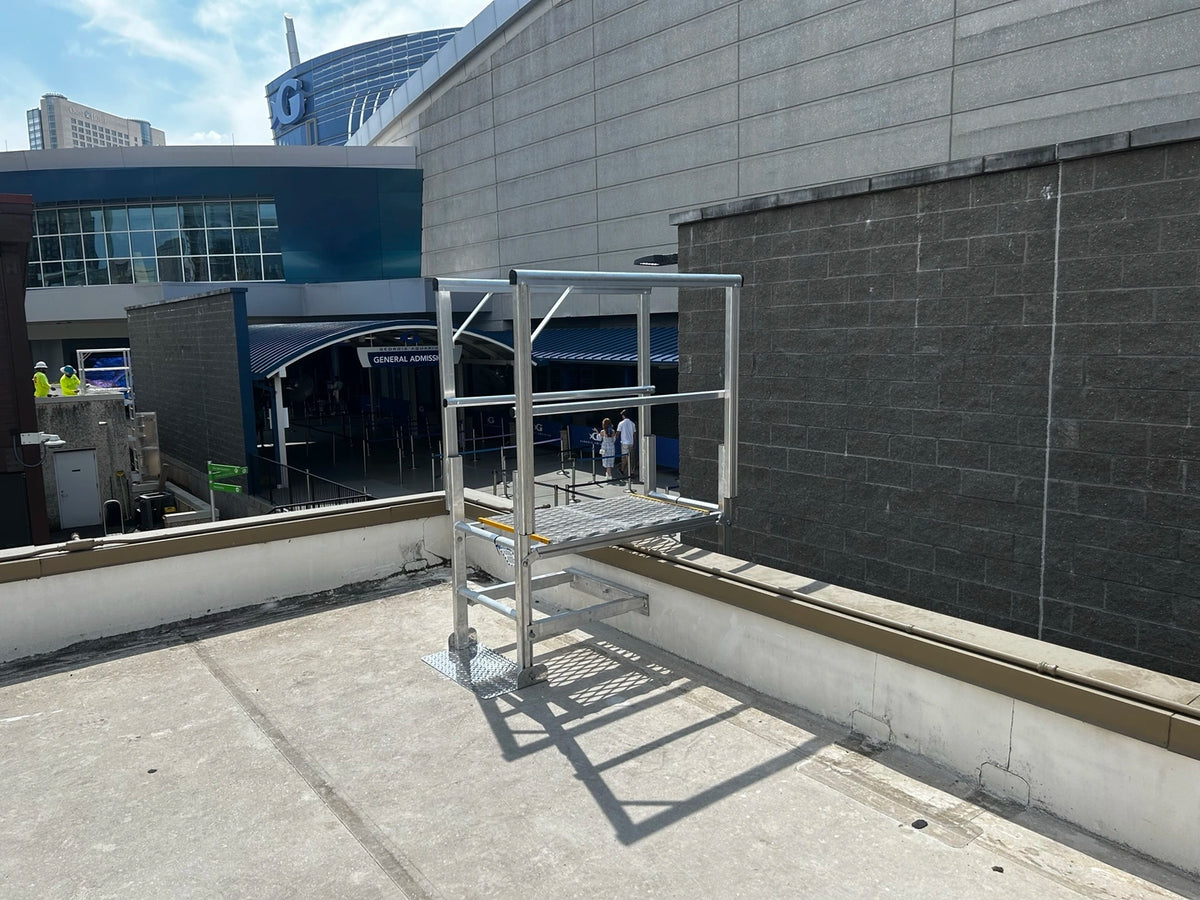

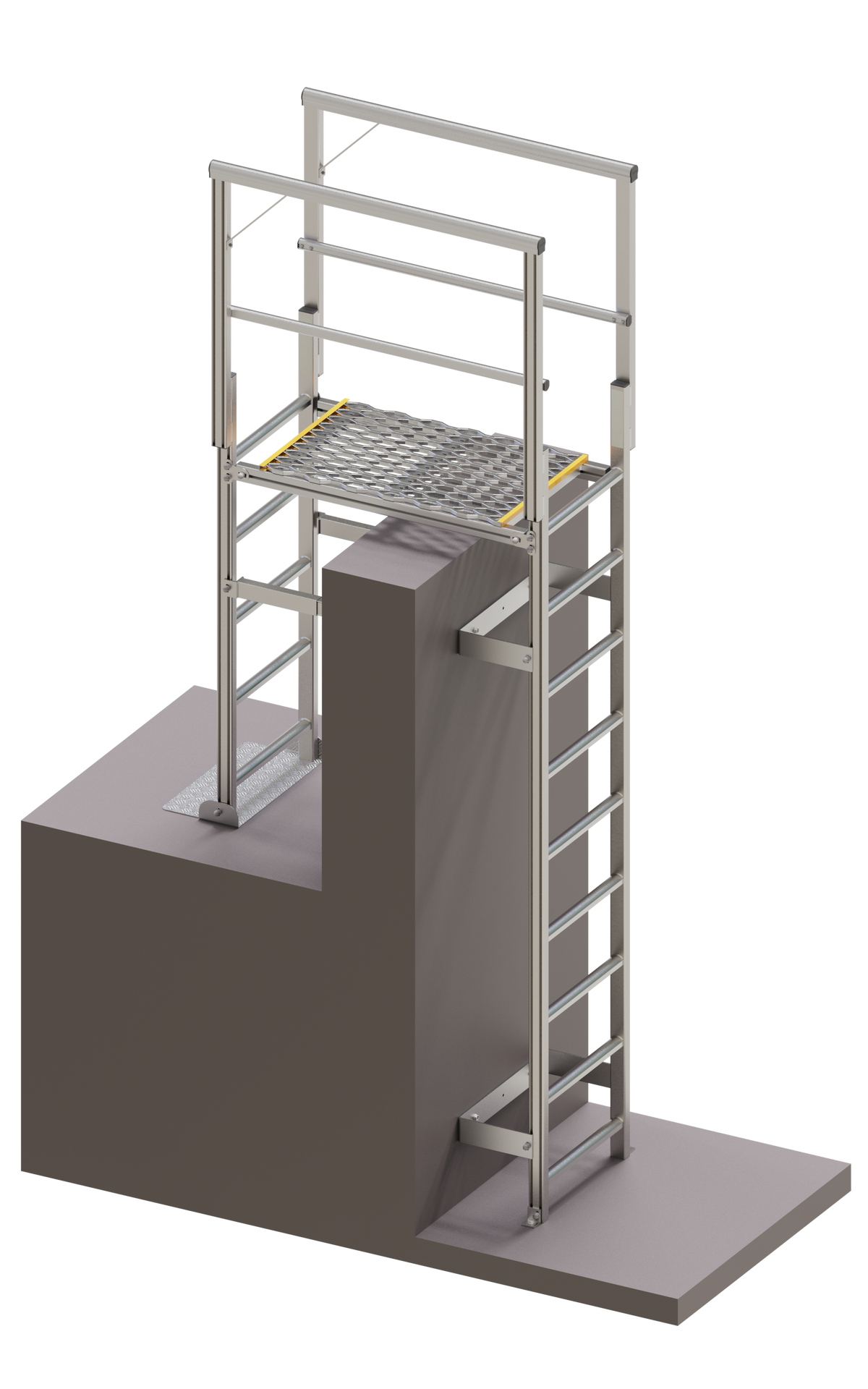

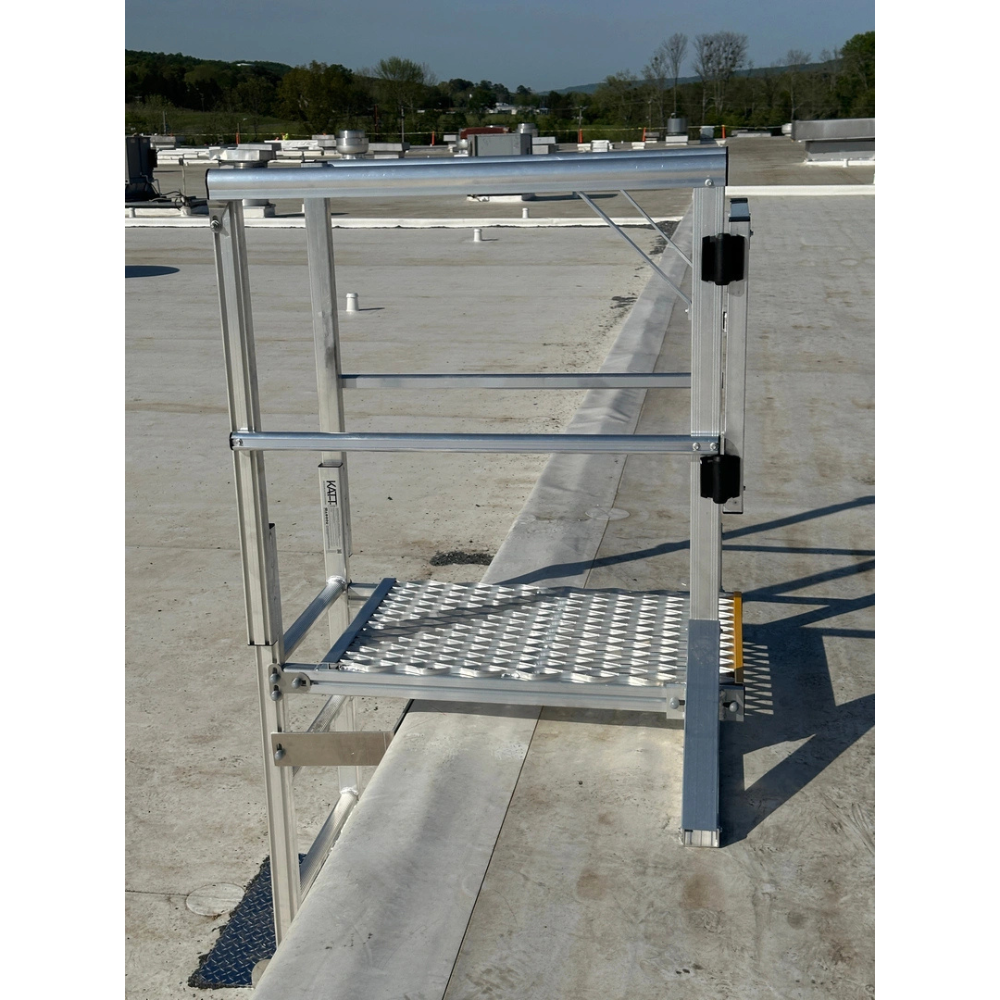

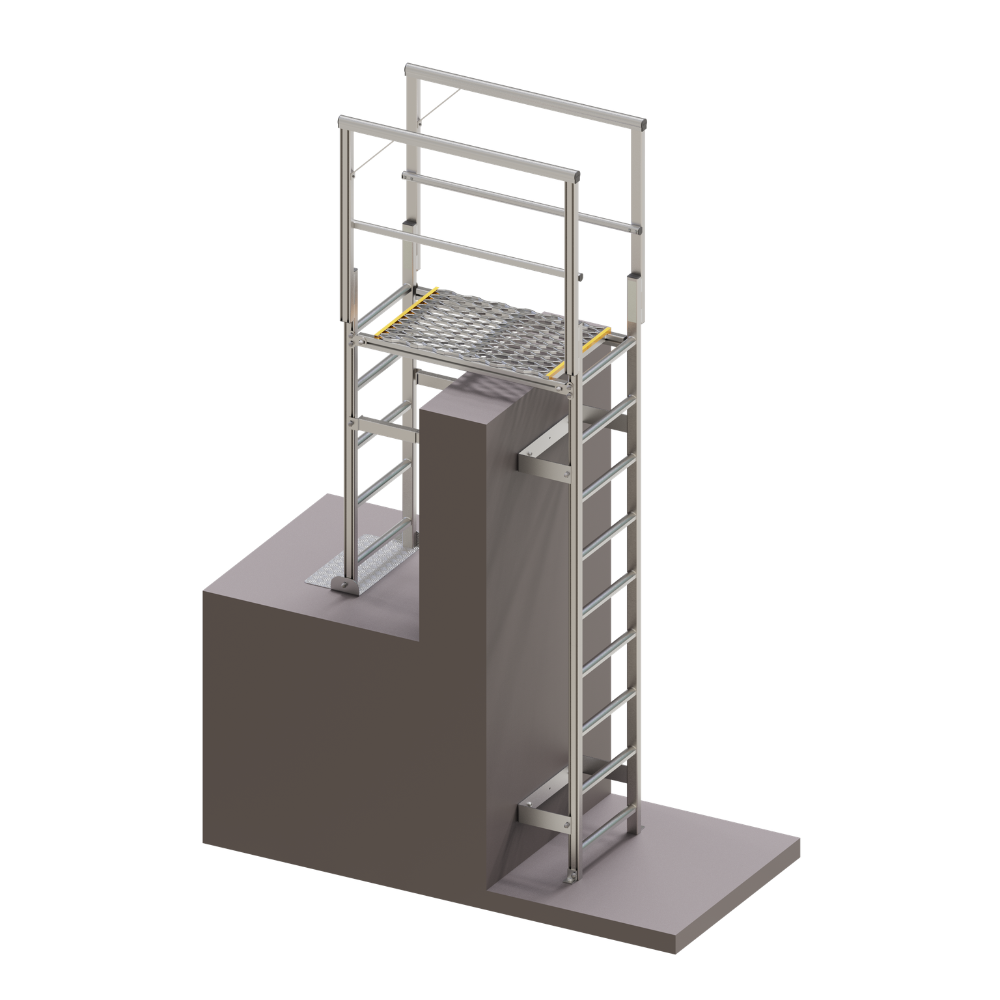

The RL32 series includes a Parapet platform. At the top, you’ll find a round knee rail constructed with the same high-tensile aluminum and mounted with screws. The mesh-style platform deck has a ribbed finish for enhanced safety. Manufactured of lightweight, high-strength aluminum, RL32 series ladders provide a permanent OSHA & ANSI compliant solution for accessing the walking-working surface. RL32 series ladders are available in multiple configurations and can be easily customized on-site to suit your application.

Kattsafe ladder systems are designed and manufactured to meet and exceed requirements of OSHA standard 1910.23, 1910.28, and CAL-OSHA 3277 as applicable.
  • 1000lb Working Load Limit
  • Overall ladder width: 23-3/4in (605mm)
  • Distance between stiles: 20-5/8in (525mm)
  • Distance between stiles at ladder head: 24in (610mm)
  • Ladder stile: Aluminum extruded stile grade 6106-T6 - 2-1/4in x 1-1/2in x 1/8in
  • Rung diameter: 1-1/4in SQ. 6106-T6 serrated rung
  • Rung spacing: 12in (300mm)
  • Stile extension above landing surface: 42in (1070mm)
  • Minimum clearance behind ladder: 7in (200mm) (vertical position)
  • Maximum clearance behind ladder before platform is required: 12in (305mm)
  • Non-Penetrating Base Plate Included

Data Sheet (pdf)

Technical Drawing (pdf)

5 years from date of purchase subject to installation, use, and maintenance in accordance with manufacturer’s specifications and recommendations.
