Home » Two Socket Cross Square - EFSQ22G - Easyfit
Easyfit

Two Socket Cross Square - EFSQ22G - Easyfit

SKU: EFSQ22G-25
$14.50
Size
Estimated Lead Time:3 to 5 Days

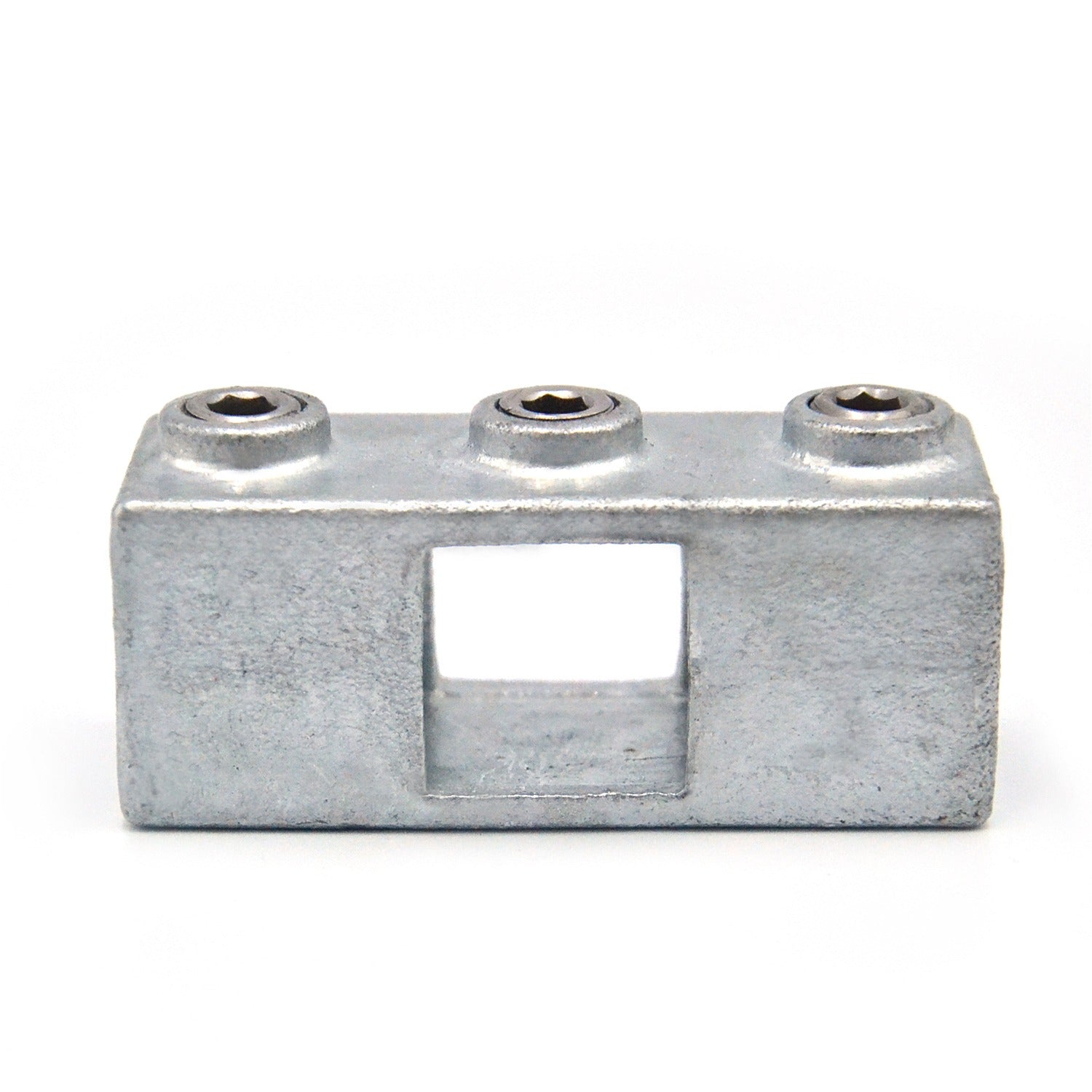

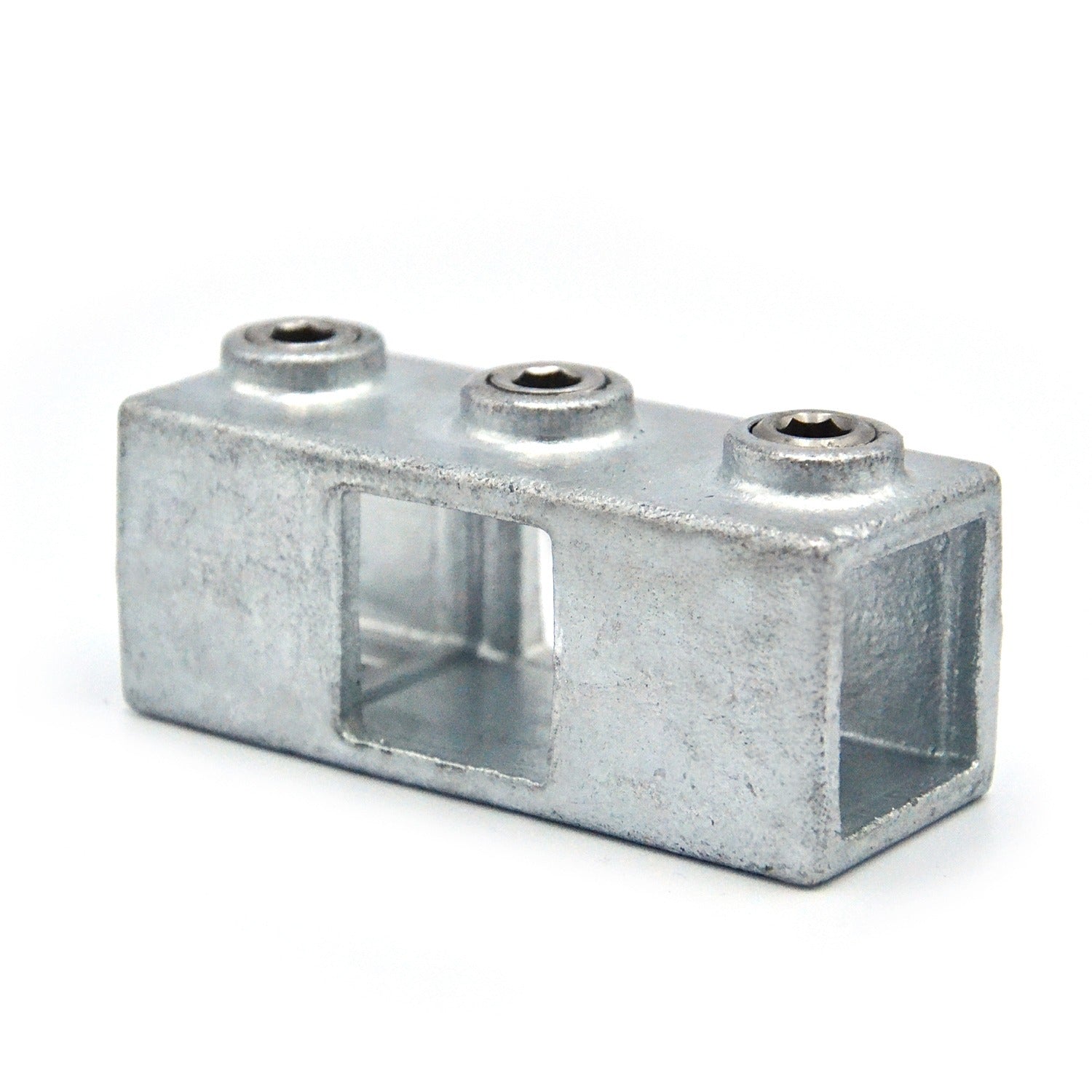

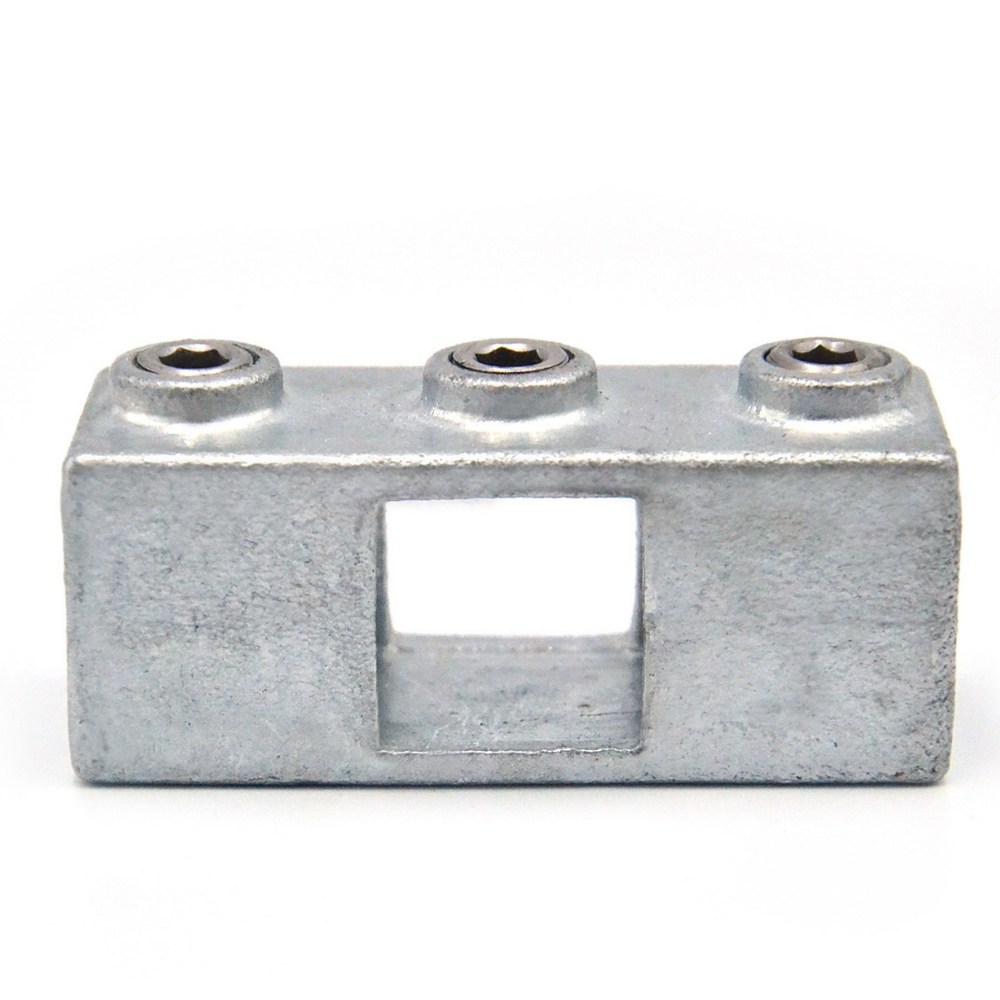

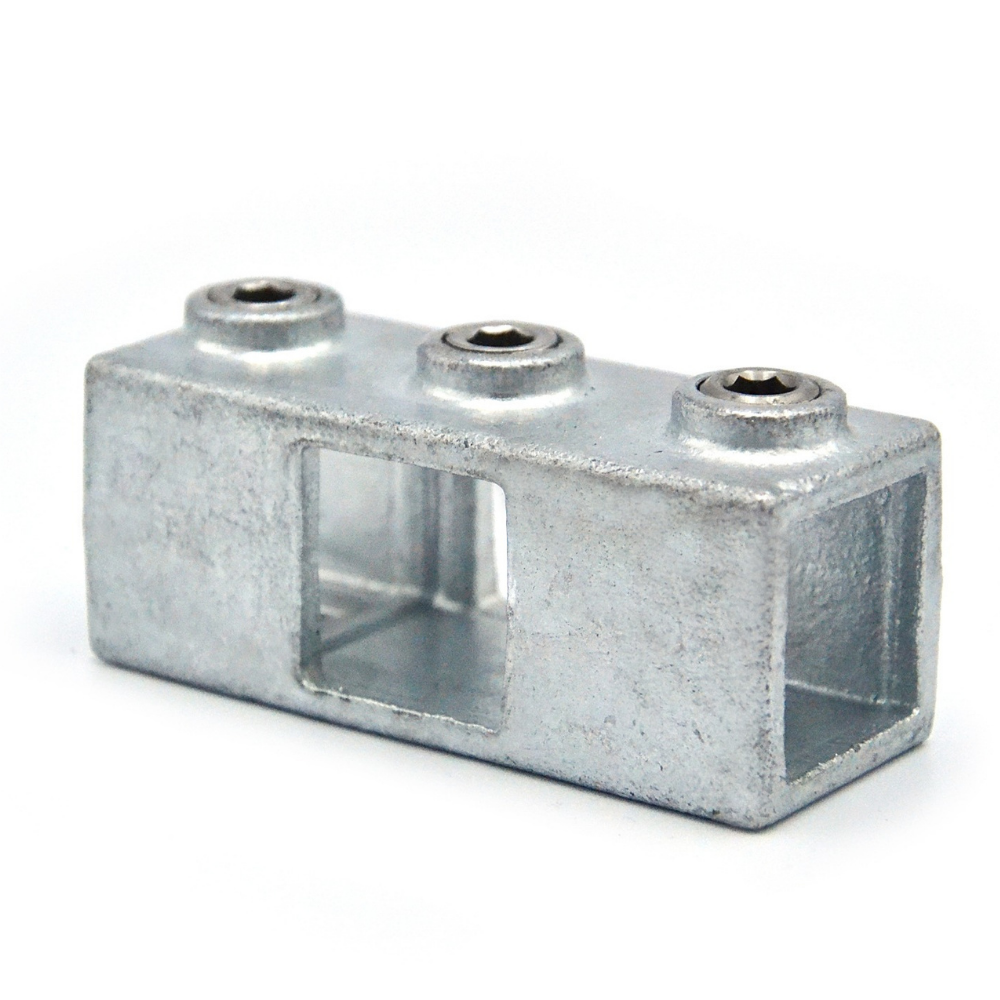

The Easyfit Two Socket Cross – Square (EFSQ22G) is designed to connect two horizontal square tubes to a vertical post in a cross configuration. Commonly used in guardrails and handrails to attach mid-rails to uprights, it’s also well-suited for a variety of square-tube structural applications.

Compatible with 25 mm or 40 mm galvanized square tubing of 2 mm wall thickness, this fitting installs easily using an allen wrench and features steel set screws for a secure and stable connection.
  • Connects two horizontal tubes to a vertical post in a cross configuration
  • Ideal for mid-rail connections in square-tube guardrails and frameworks
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Compatible with 25 mm or 40 mm square galvanized tube (2 mm wall)
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
