Toggle-Through Eyebolt Anchor for Steel – 7408 – FallTech

SKU: 7408
$76.40
Estimated Lead Time:1 to 2 Days

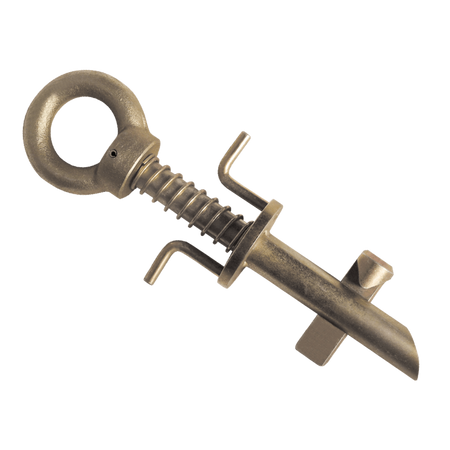

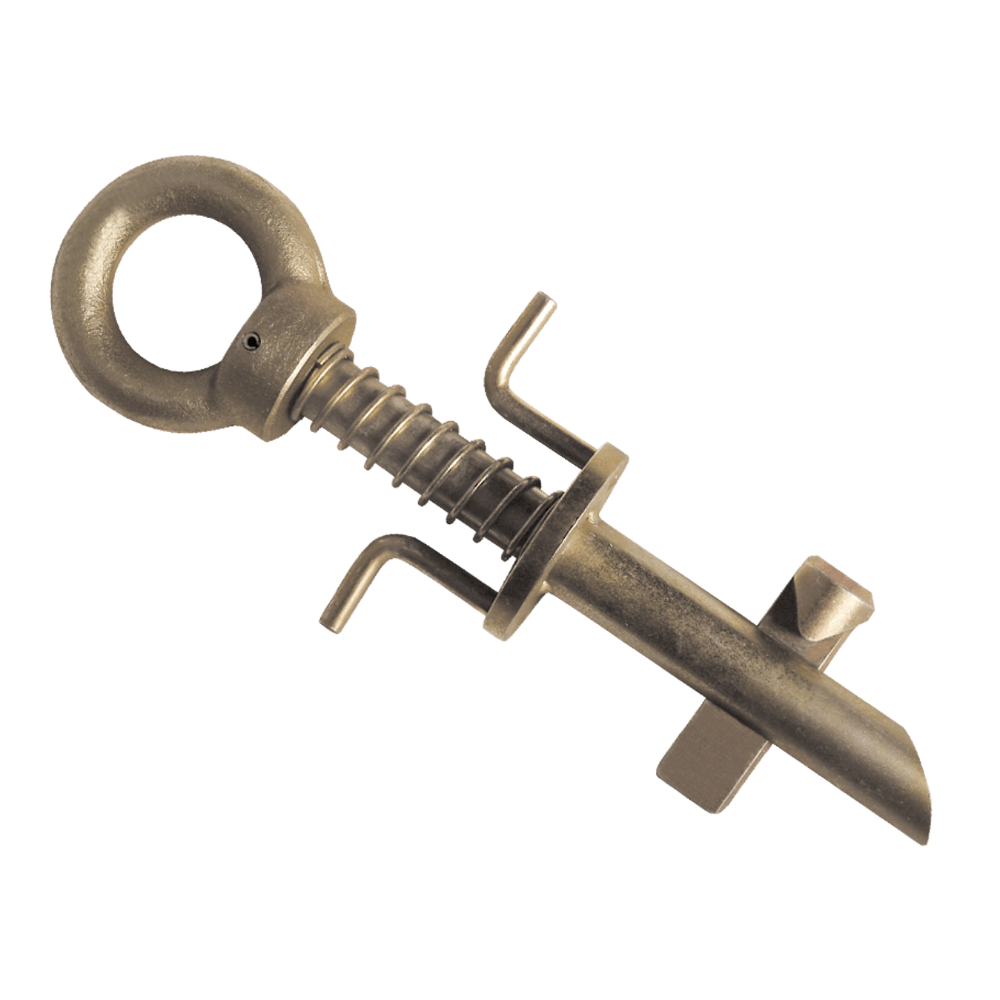

The FallTech 7408 Toggle-Through Eyebolt Anchor provides a reusable and portable anchorage solution for steel structures. It installs through steel substrates up to 1-1/4 inches thick and fits hole sizes ranging from 13/16 inch to 1-1/4 inches. Designed for fast relocation as anchor point needs change, the anchor is well-suited for temporary applications on structural steel.
  • Product Code: 7408
  • Material: Plated alloy steel
  • Max Substrate Thickness: 1-1/4 in
  • Hole Size Range: 13/16 in to 1-1/4 in
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: OSHA 1926.502 and 1910.66
  • Weight: 1.64 lbs each

User Manual (PDF)
