Suspended Cable Anchor – FallTech

SKU: 74942
$102.00
Length
Estimated Lead Time:1 to 2 Days

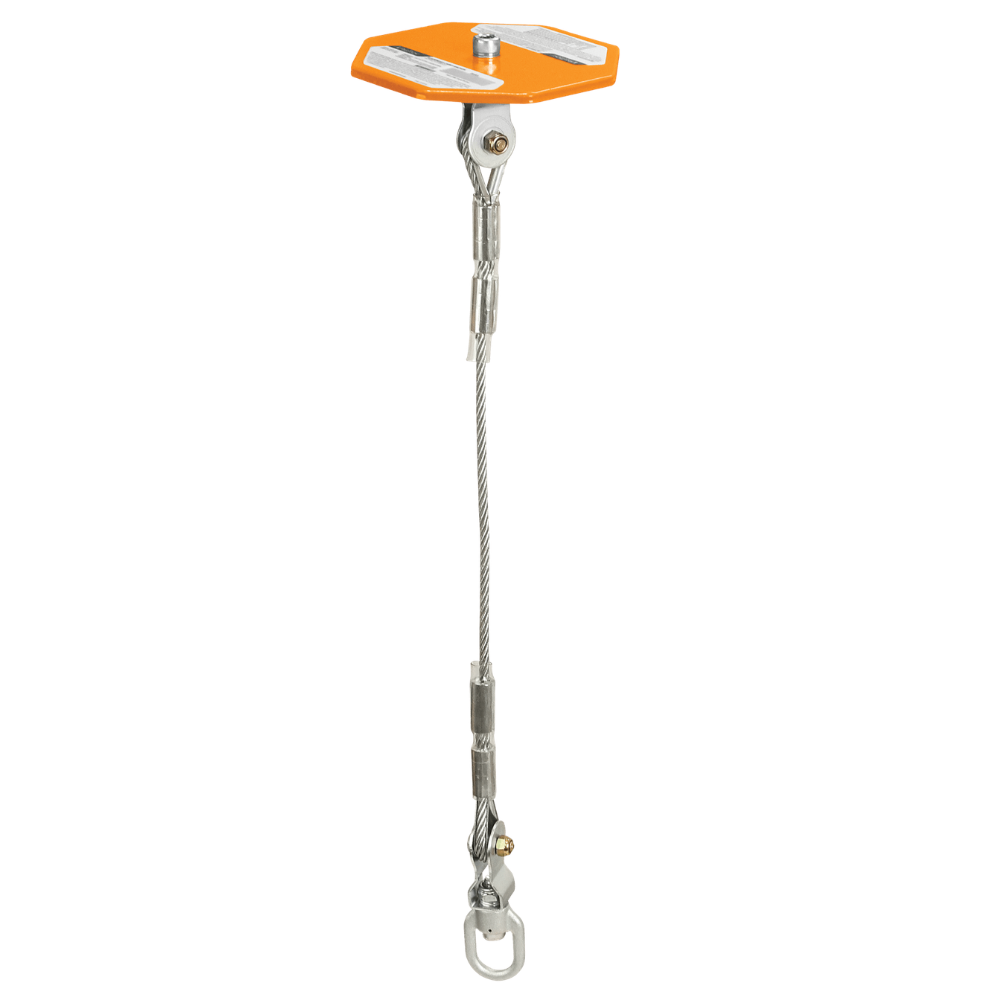

The FallTech Suspended Cable Anchor is designed for drop-through installation in overhead structures such as steel decking, concrete, or grating. It installs easily through an opening, providing a secure anchorage point where traditional anchoring methods are not feasible.

The anchor features a 6" × 6" × 1/4" high-visibility, load-bearing steel plate and a 1/4" galvanized steel cable with a swivel connection eye. The cable assembly is finished with steel thimbles and swaged aluminum ferrules for durability and long-term performance. This anchor complies with ANSI Z359.18-2017 standards.
  • Product Type: Suspended Cable Anchor
  • Cable: 1/4" galvanized steel; 5,000 lb minimum static strength
  • Plate: Powder-coated carbon steel
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 425 lb maximum
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66

User Manual (PDF)
