SteelGrip Single-Span Temporary Cable HLL Assembly – FallTech

SKU: 620030
$540.40
Length
Estimated Lead Time:3 to 5 days

The FallTech SteelGrip® Single-Span Temporary Cable HLL Assembly is designed to provide reliable horizontal lifeline protection when user-supplied end-point anchors are available. This system does not include anchors and is intended for single-span installations.

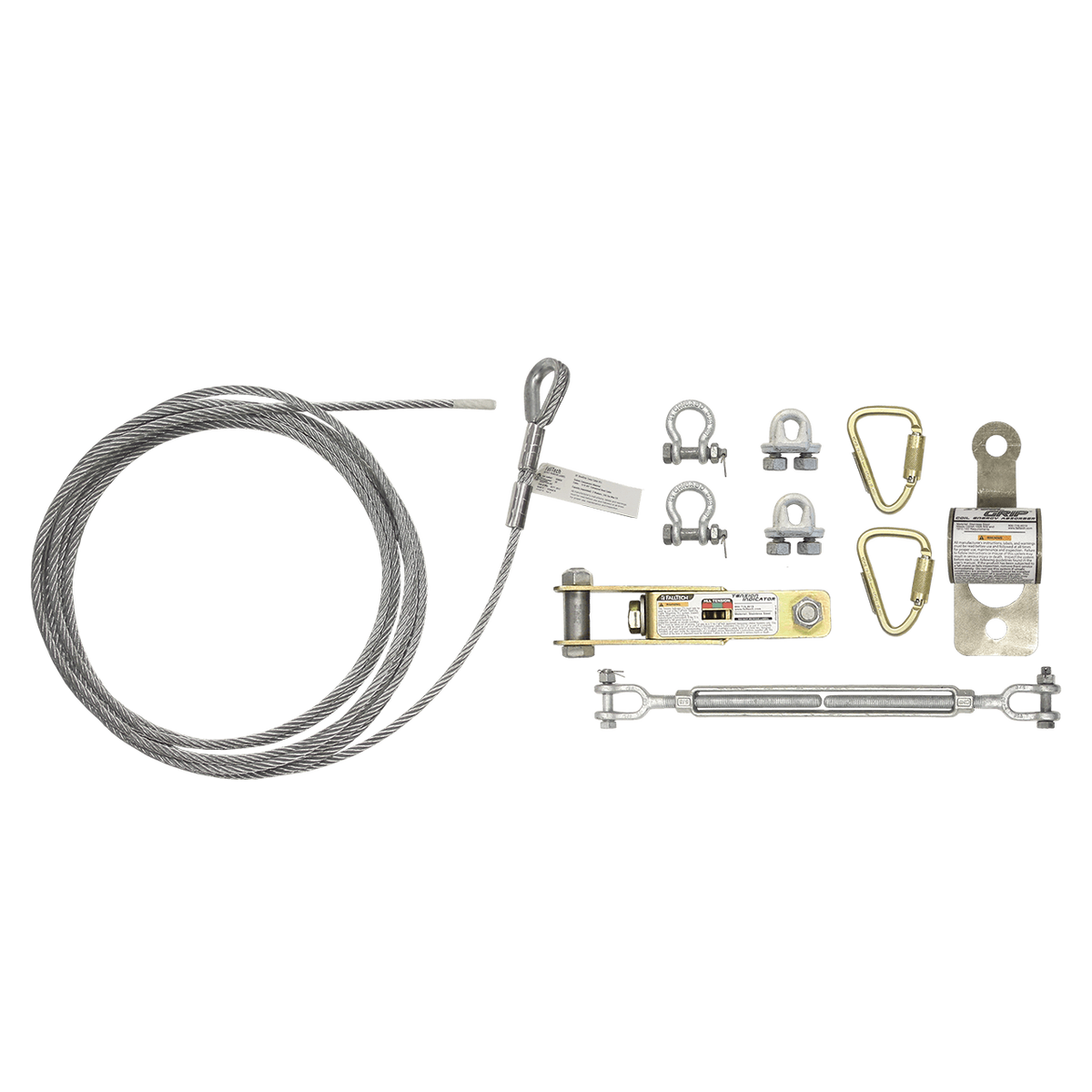

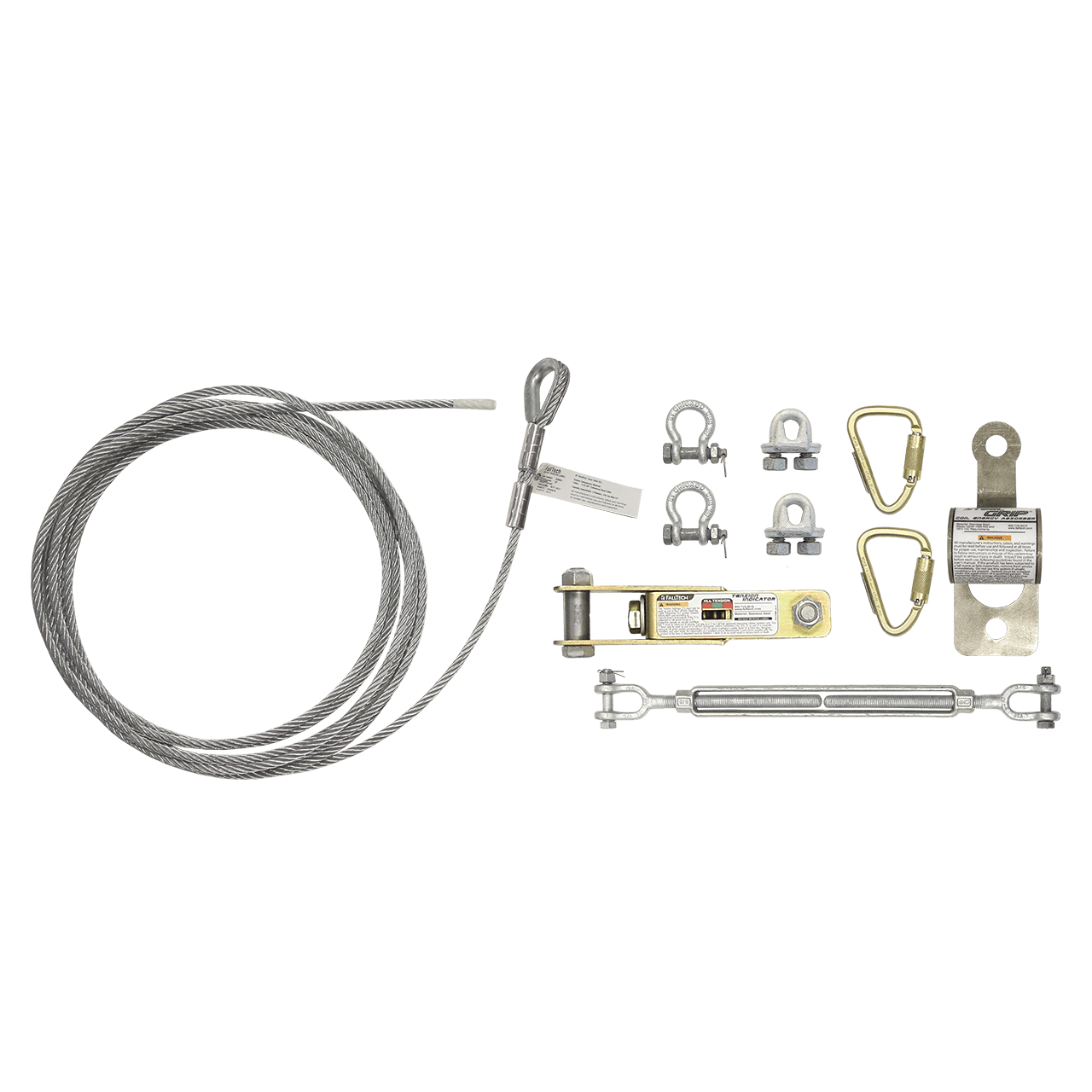

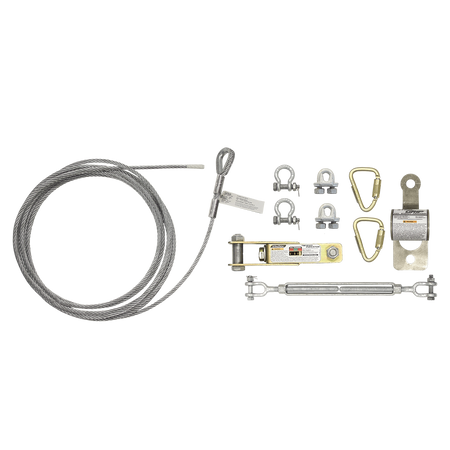

The assembly features a 3/8" galvanized steel cable with one end factory terminated and thimbled. It includes a stainless steel coil energy absorber, two connecting carabiners, an in-line tension indicator with two galvanized steel shackles, as well as wire rope clips and a tensioning turnbuckle for proper setup. The system meets OSHA regulations for horizontal lifeline use.
  • Product Type: Temporary Cable Horizontal Lifeline Assembly
  • Configuration: Single-span, without anchors
  • Cable: 3/8" galvanized steel; 5,000 lb minimum static strength
  • Energy Absorber: 304 stainless steel
  • Carabiners: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Static Strength: 5,000 lb minimum
  • OSHA User Capacity: 310 lb maximum per user; 2 users maximum per single span
  • Compliance: OSHA 1926.502 and 1910.140
