Steel Vertical Cylinder Cabinet – 5 to 10 Cylinder Capacity – CYL-V-510 – Vestil

SKU: CYL-V-510
$887.26
Estimated Lead Time:4-5 Weeks

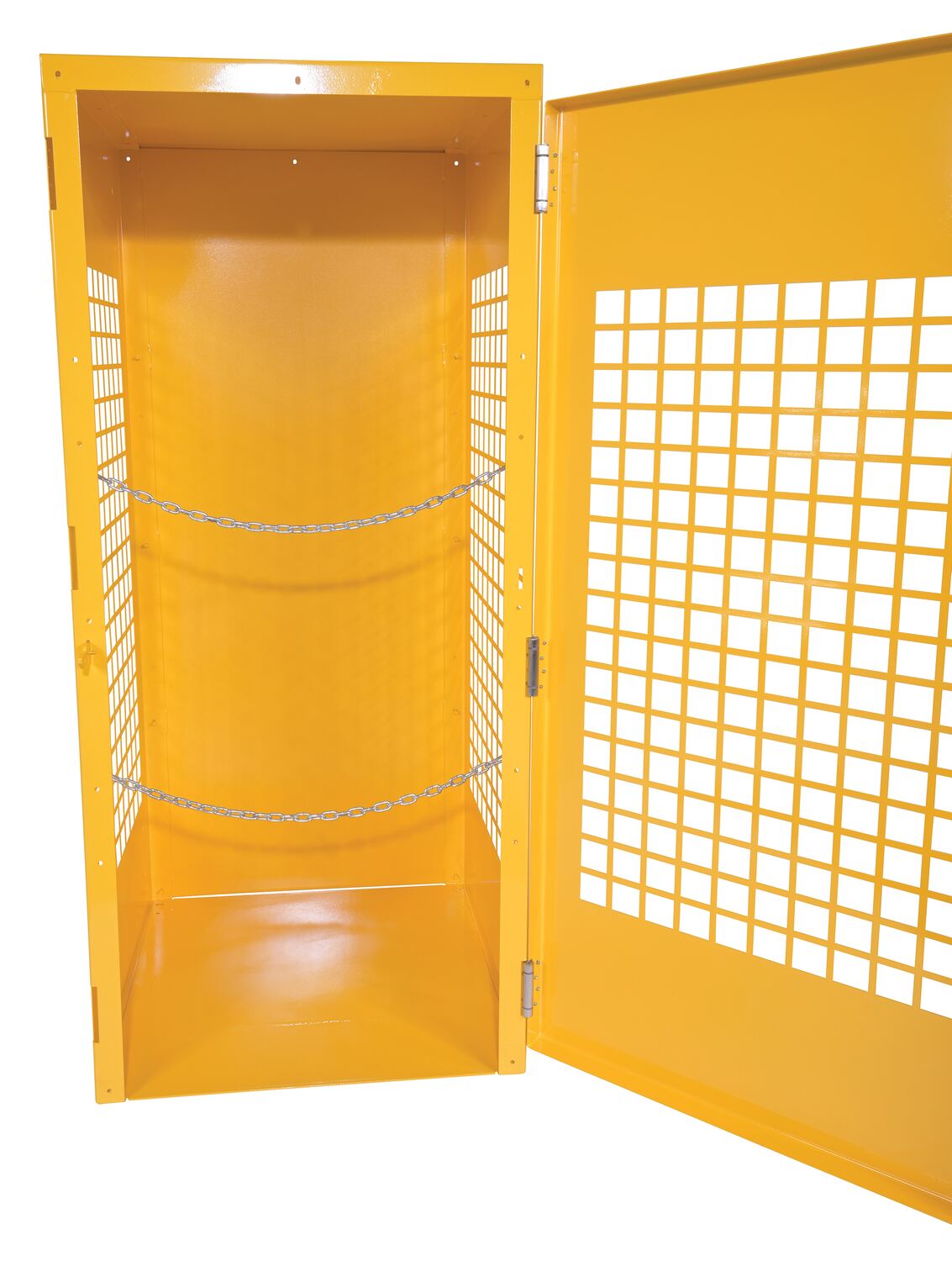

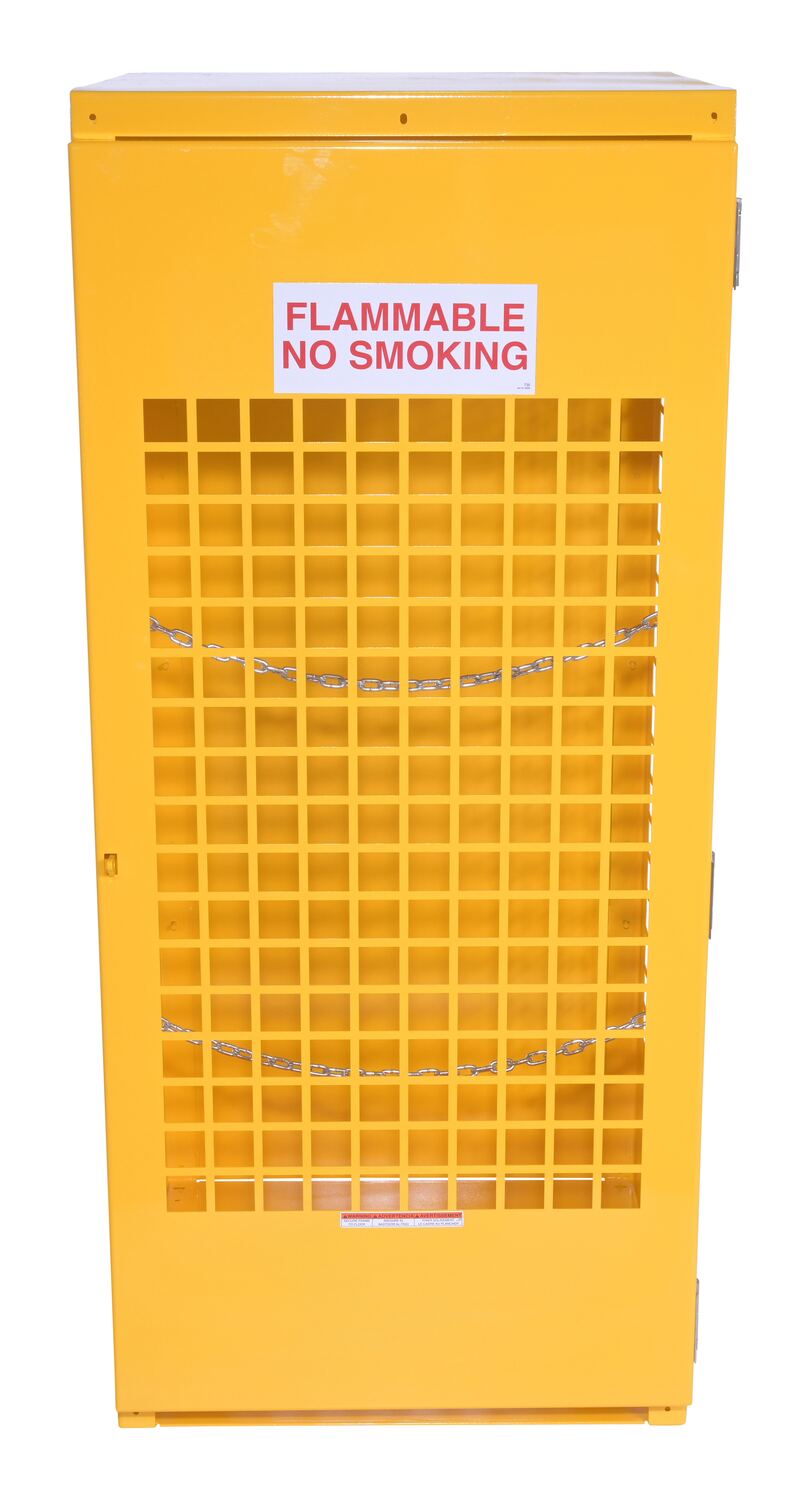

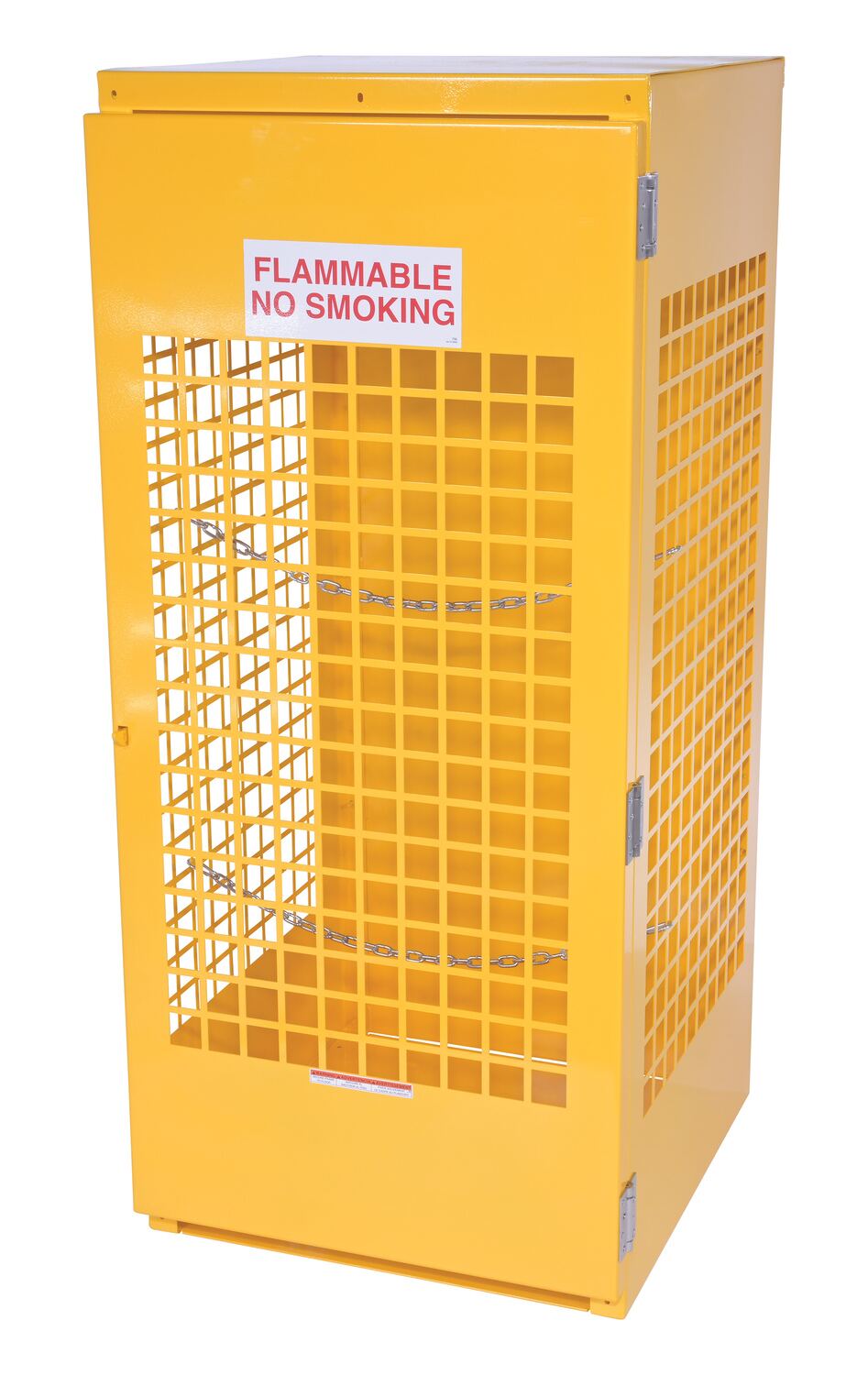

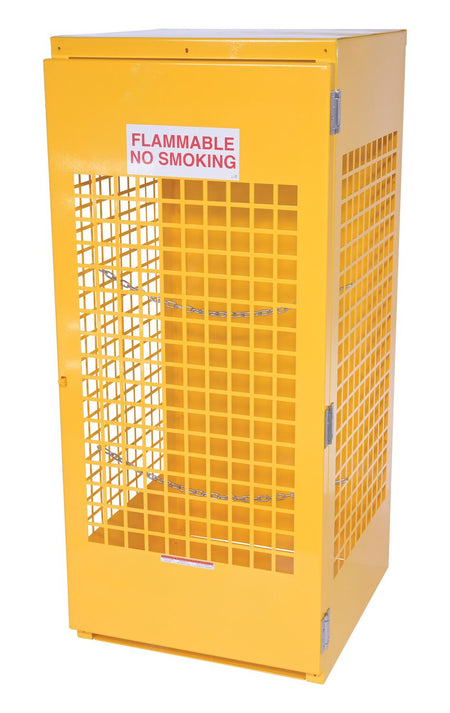

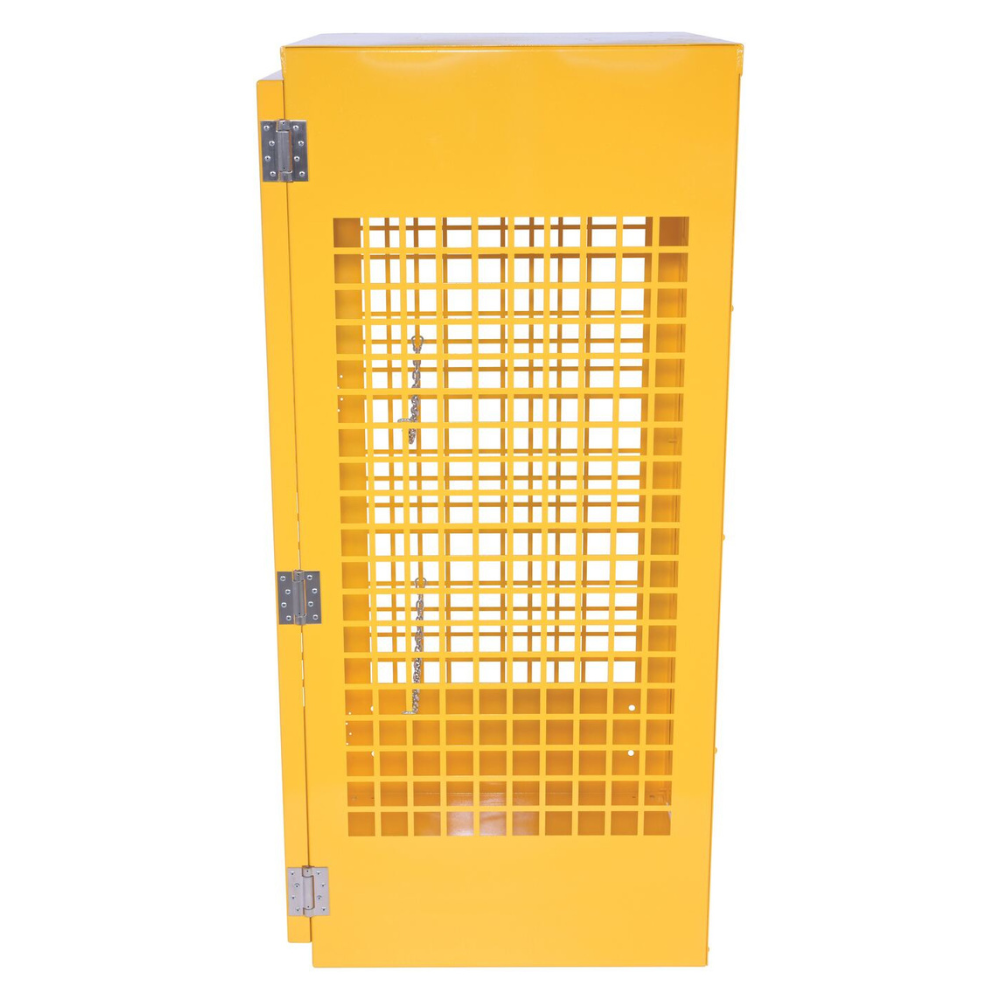

The Vestil CYL-V-510 Steel Vertical Cylinder Cabinet provides safe and compliant storage for up to ten gas cylinders, depending on size. Built from heavy-duty 10-gauge steel, the cabinet features expanded mesh sides and door for ventilation and visibility, with a solid top, back, and bottom for strength. The hinged lockable door (padlock not included) and included securing chains keep cylinders protected, while lag holes in the base allow the unit to be anchored for extra safety. Finished in safety yellow with bold “FLAMMABLE – NO SMOKING” signage, this cabinet complies with OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CGA P-1 standards.
  • Model Number: CYL-V-510
  • Cylinder Capacity: 5 to 10 (vertical)
  • Weight Capacity: 250 lbs
  • Overall Dimensions: 30 in W × 32 in D × 68.25 in H
  • Assembled Weight: 287 lbs
  • Package Dimensions: 40 in W × 48 in D × 75 in H, 287 lbs
  • Material: 10-gauge steel

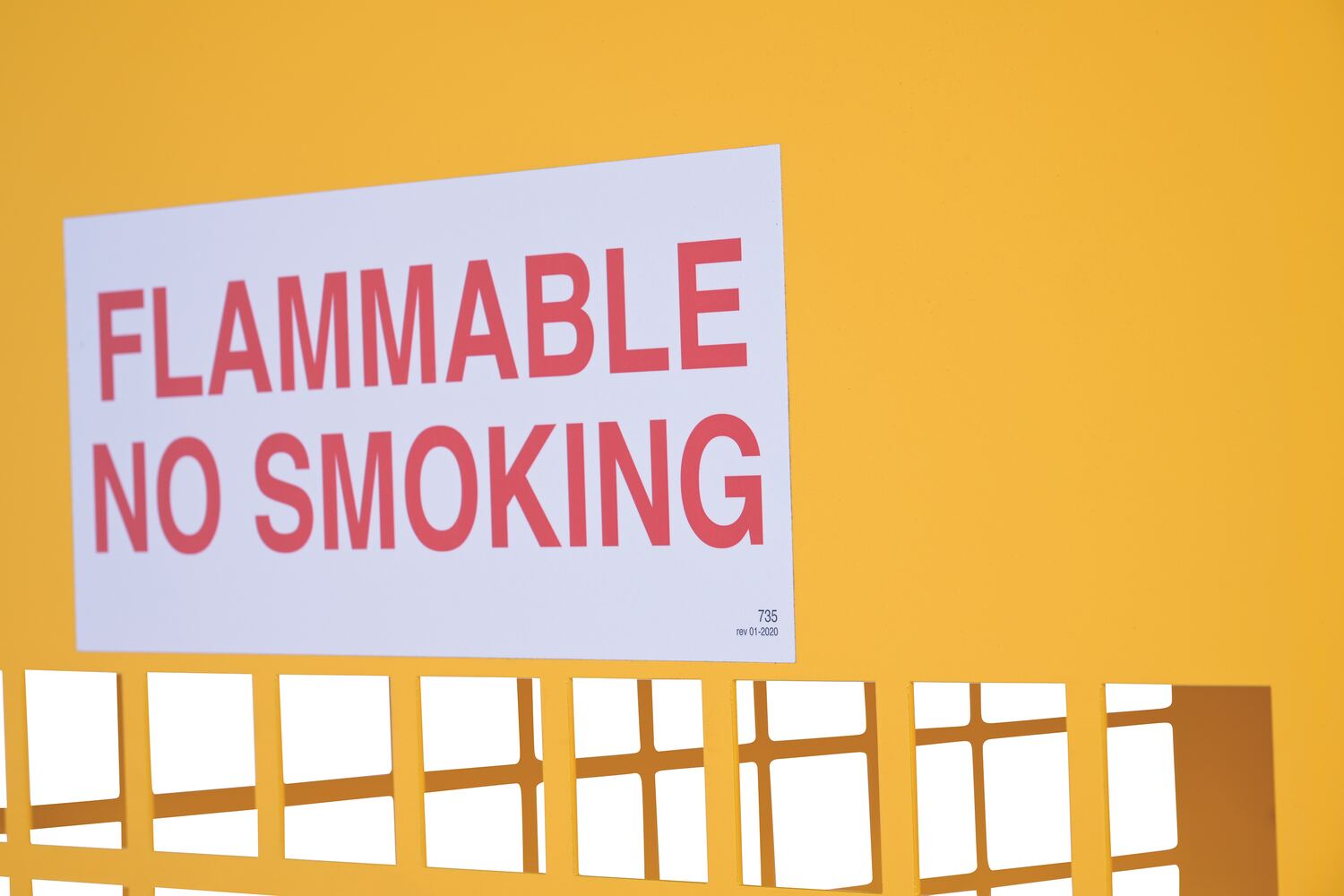

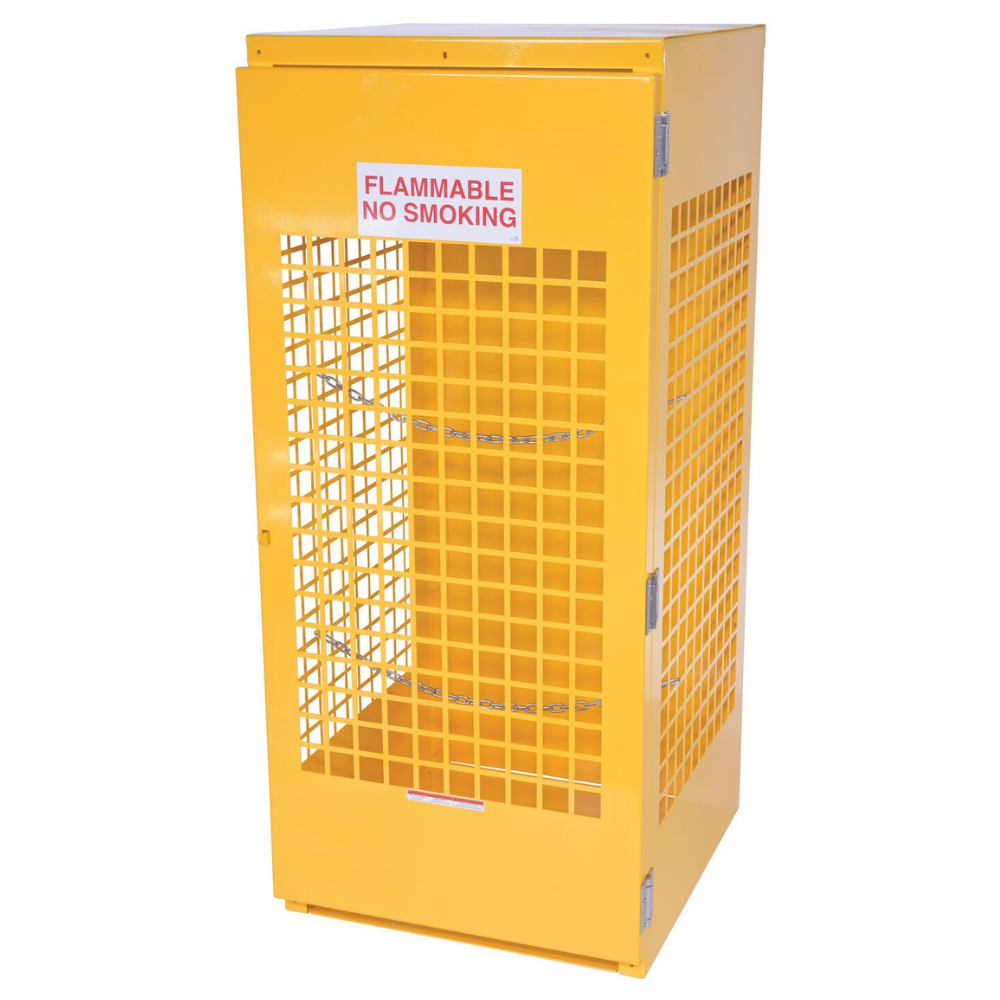

  • Finish: Safety yellow powder coat with red “FLAMMABLE – NO SMOKING” signage

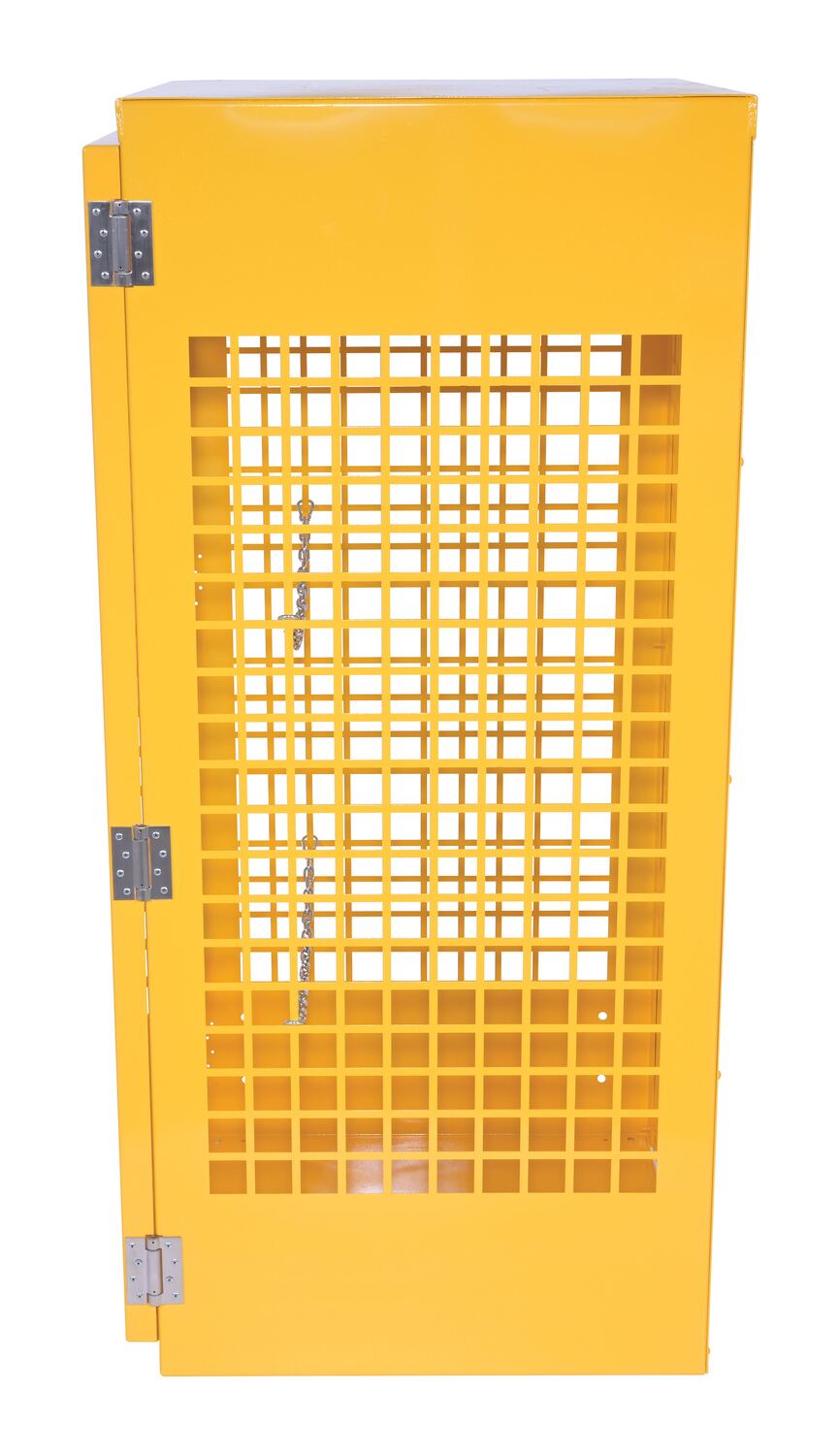

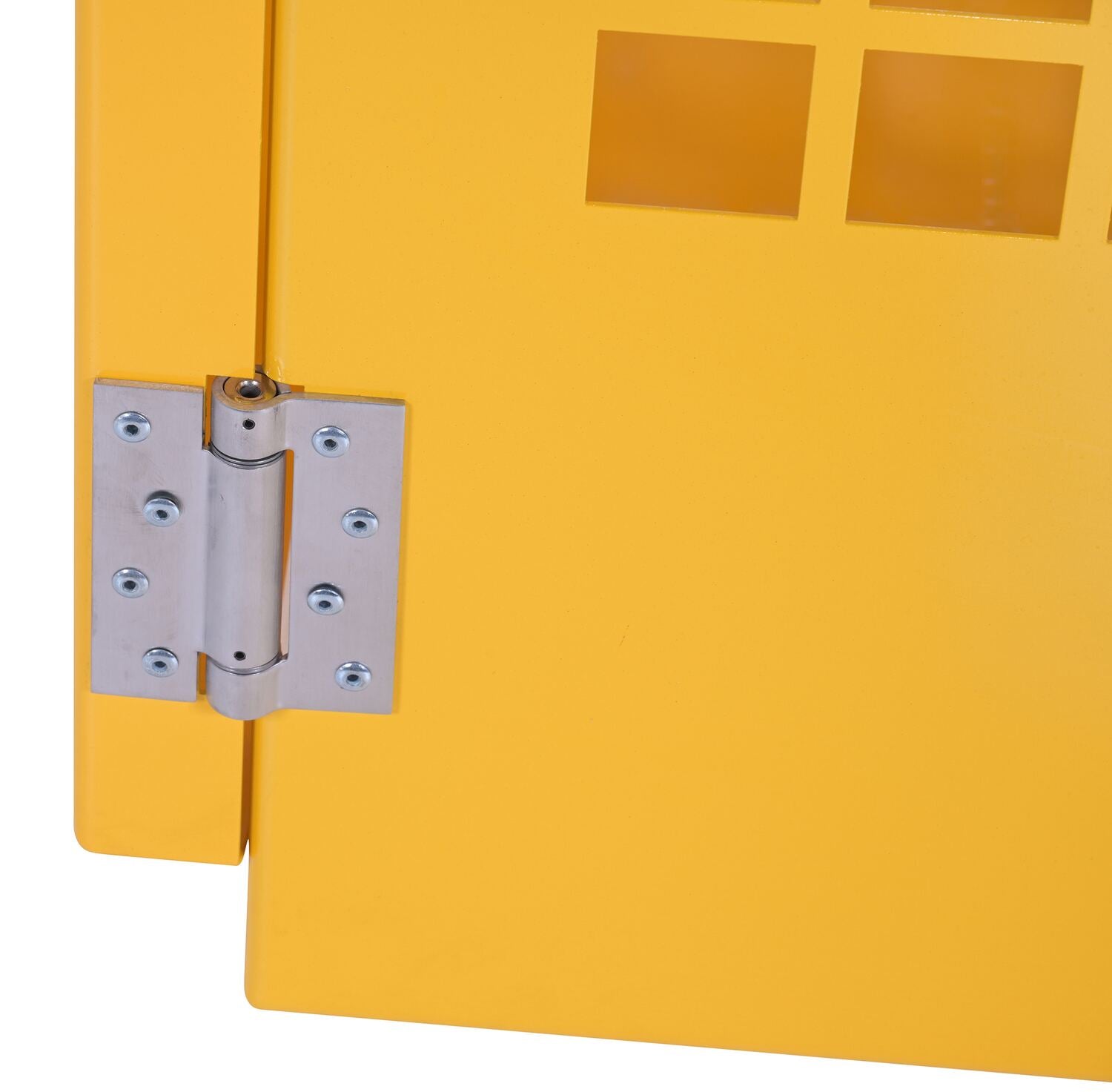

  • Door Type: Hinged, lockable (padlock not included)

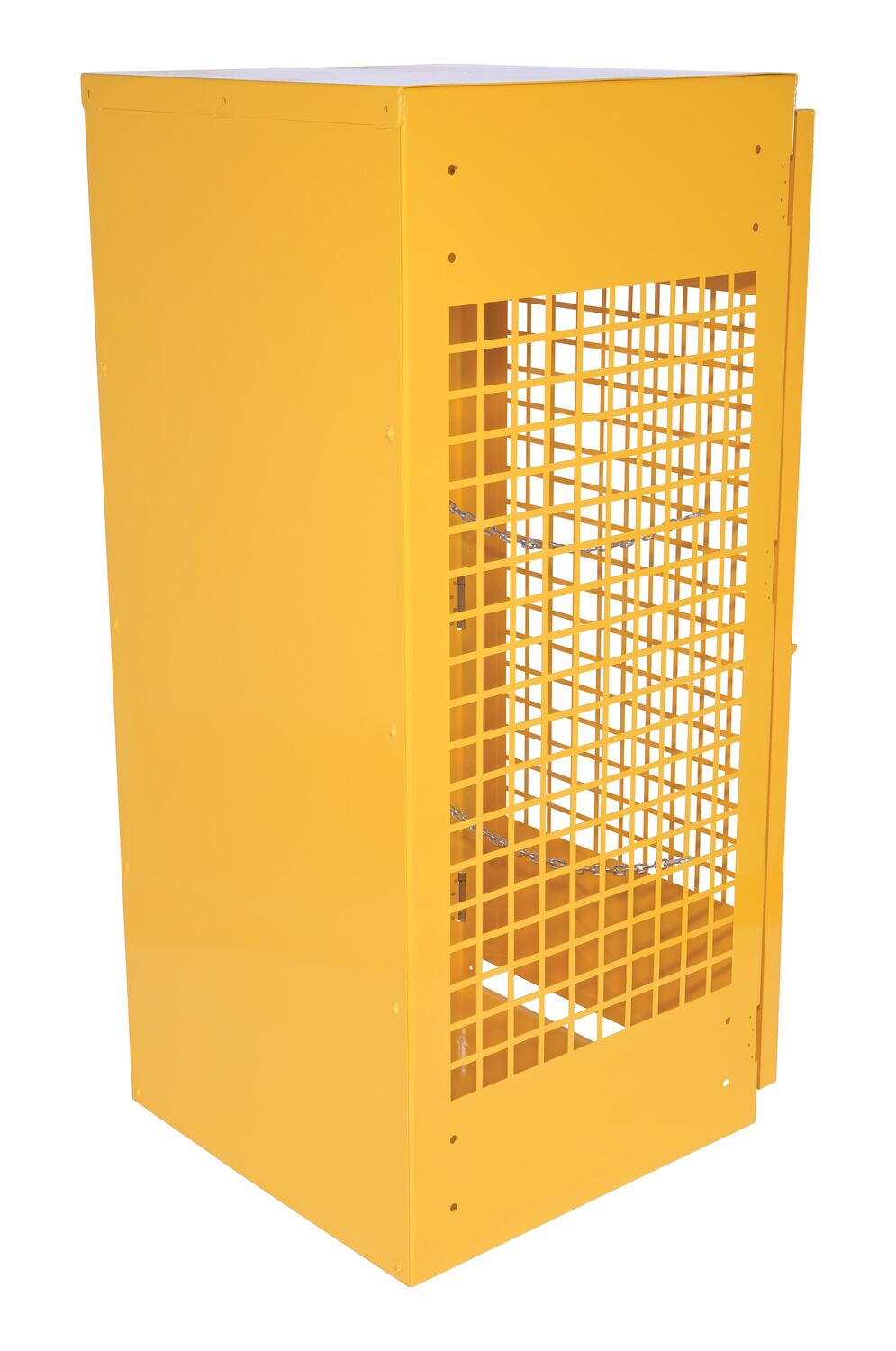

  • Construction: Expanded mesh sides/door; solid steel top, back, bottom

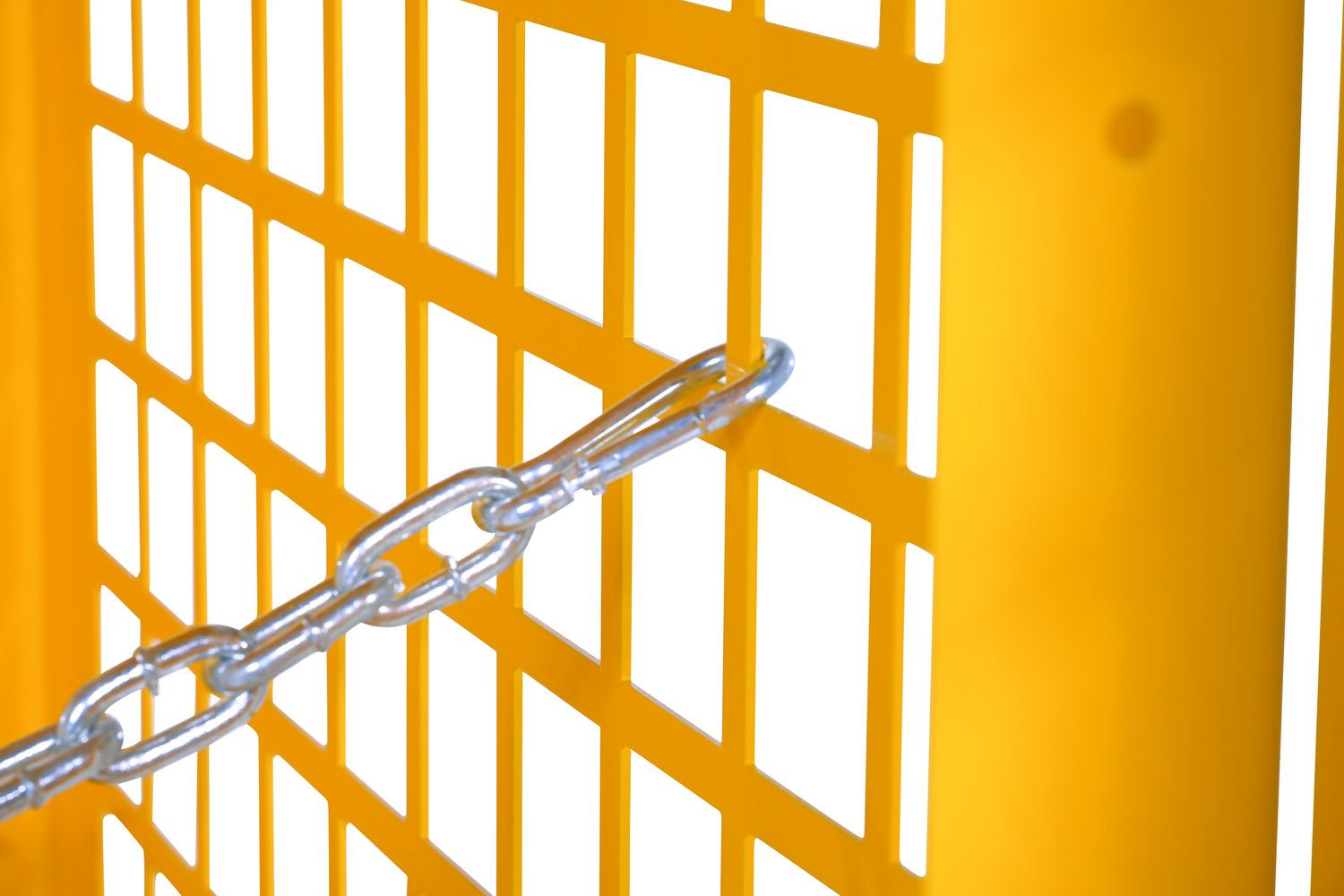

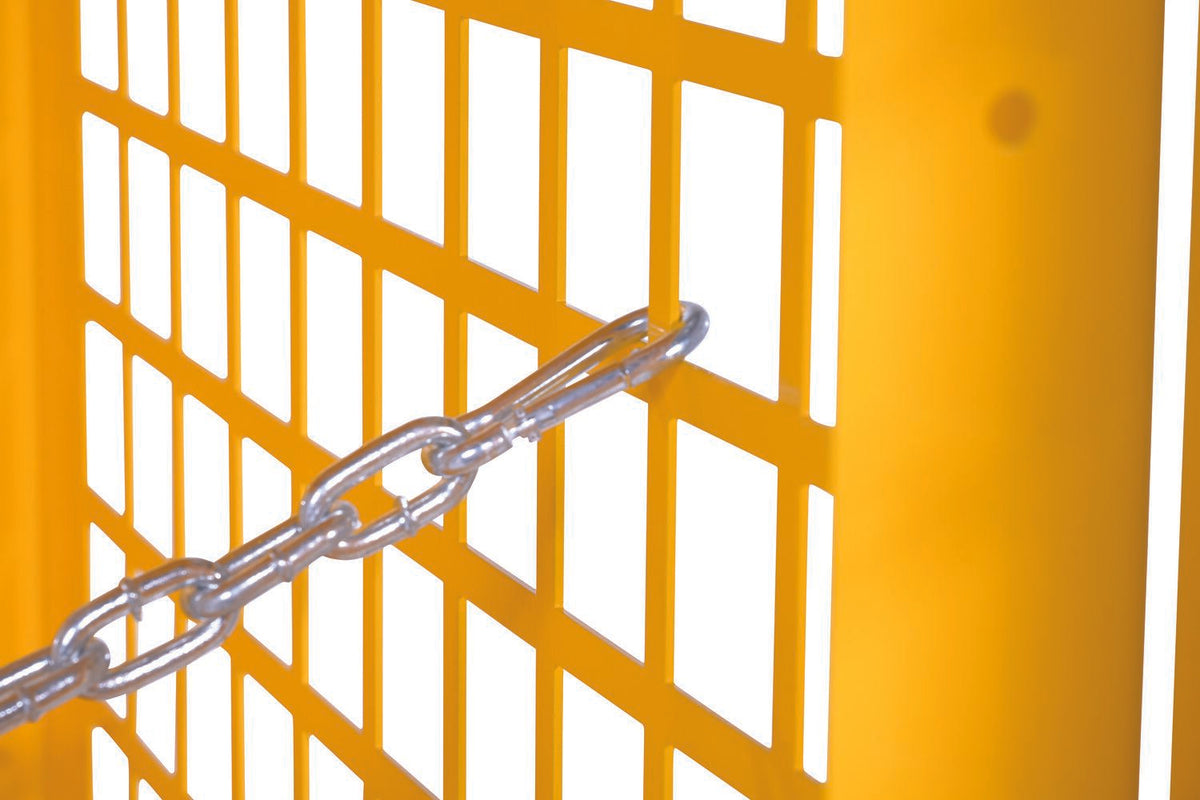

  • Features: Includes chains for securing cylinders; lag holes in base for anchoring
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2, CGA P-1
  • Assembly: Ships fully assembled

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
