Steel Vertical Cylinder Cabinet – 4 Cylinder Capacity – CYL-V-4 – Vestil

SKU: CYL-V-4
$784.43
Estimated Lead Time:4-5 Weeks

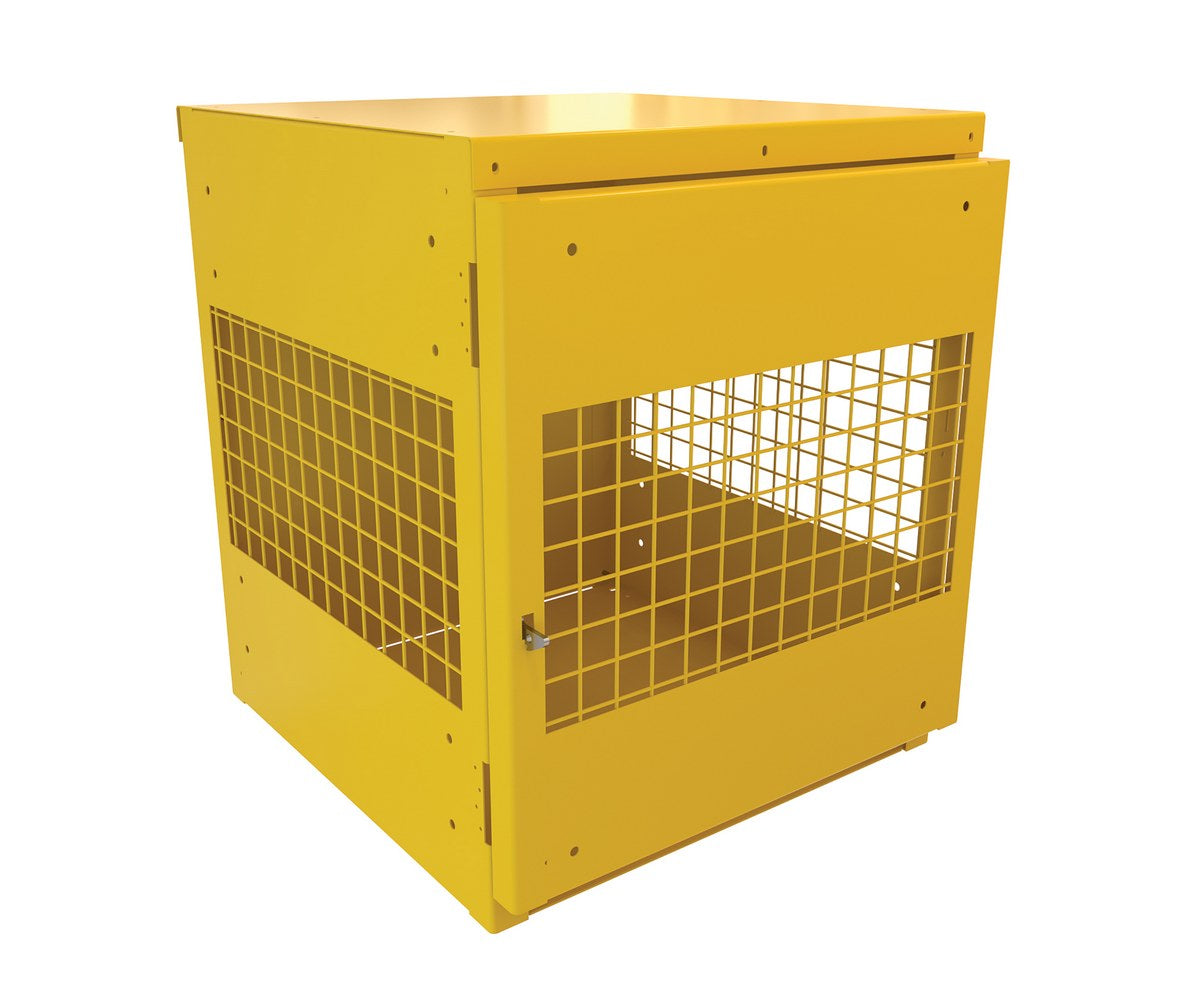

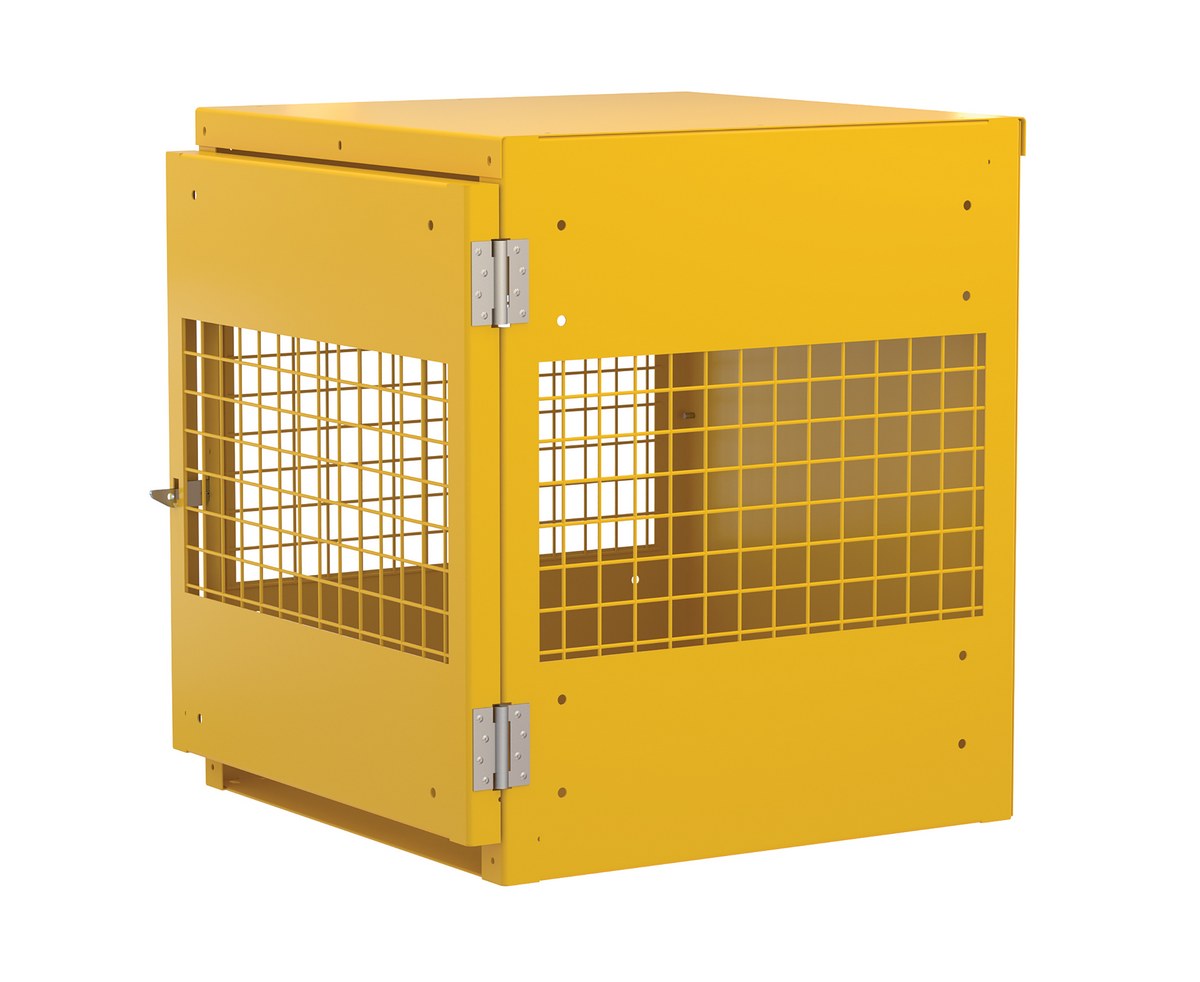

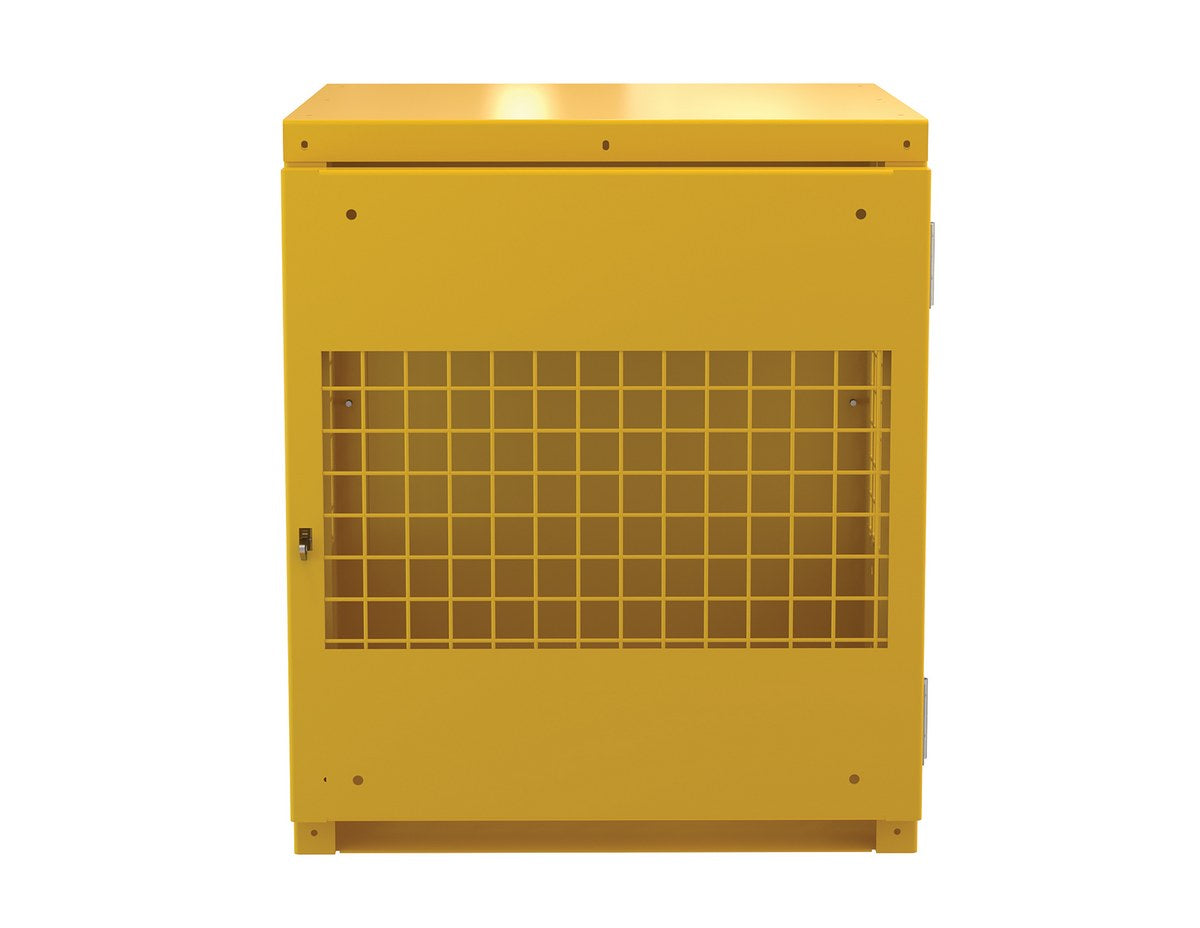

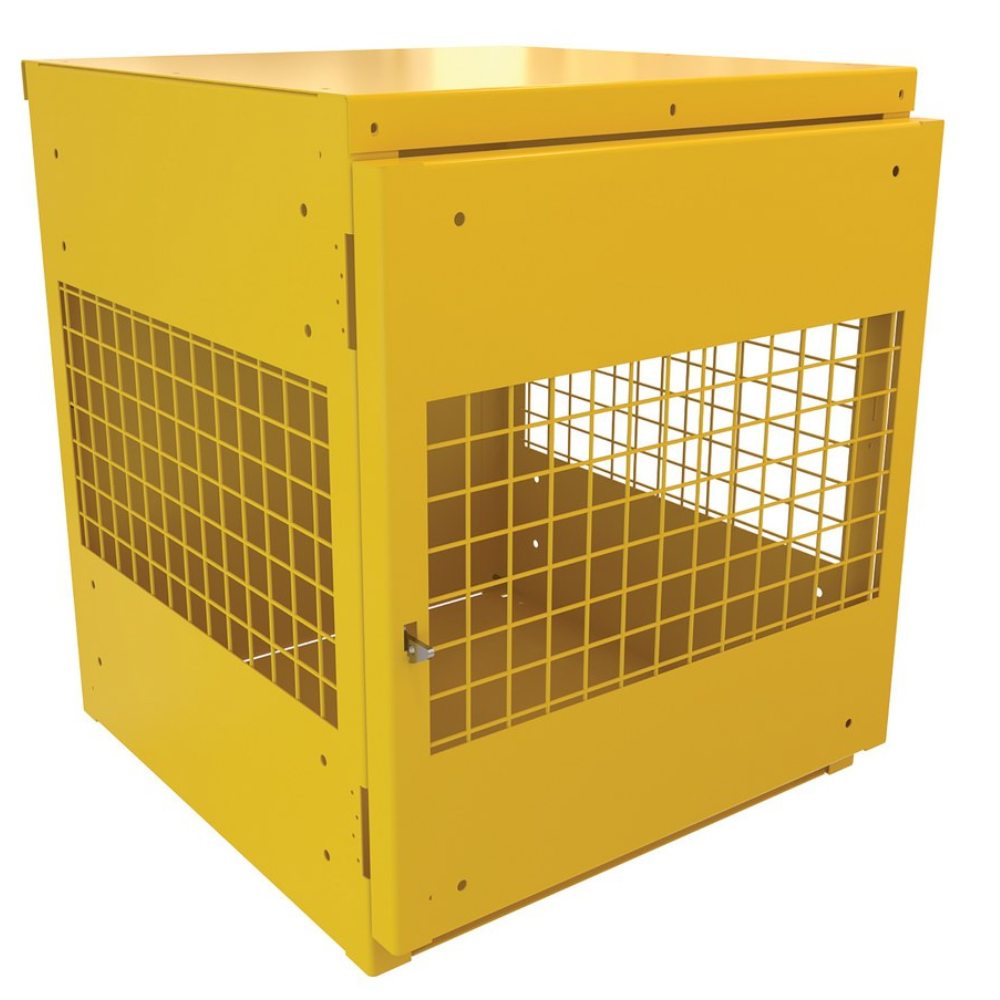

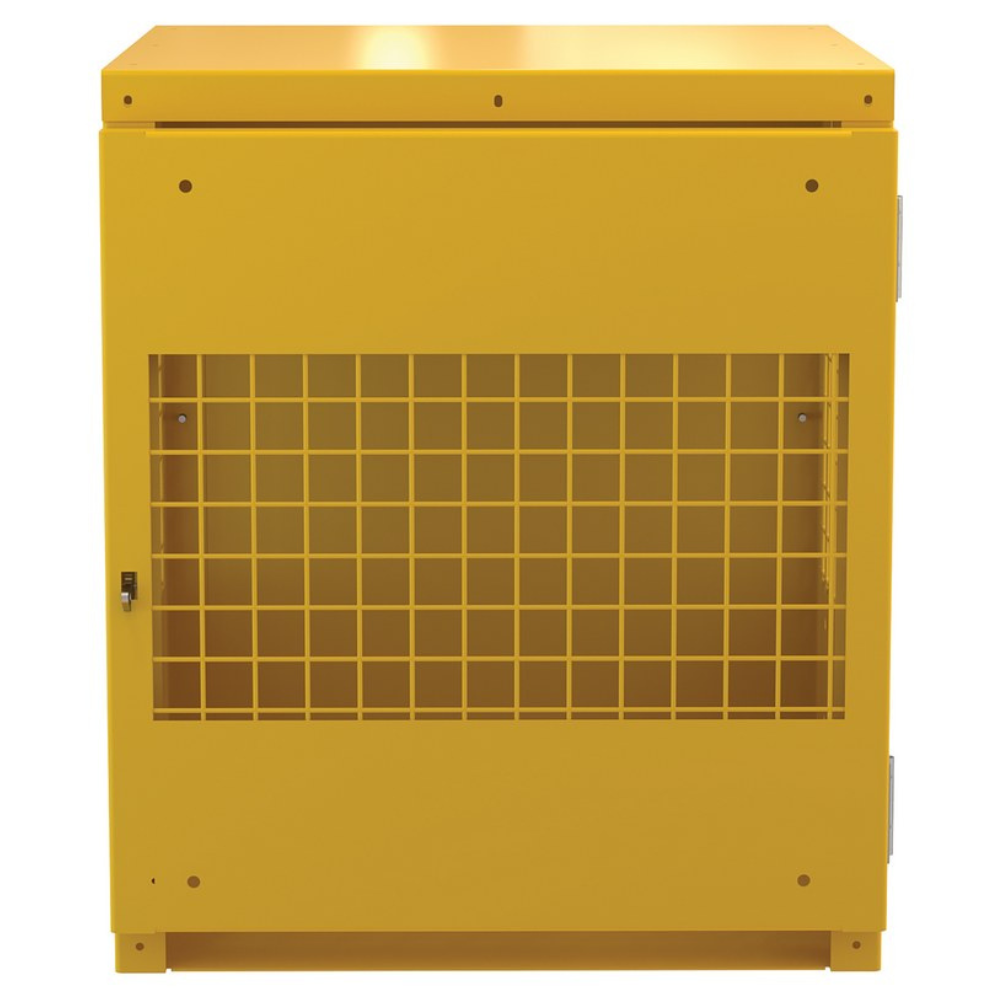

The Vestil CYL-V-4 Steel Vertical Cylinder Cabinet provides safe, compliant storage for up to four vertical gas cylinders. Built with rugged 10-gauge steel, the cabinet features expanded steel mesh sides and door for ventilation and visibility, with a solid steel top, back, and bottom for durability. The hinged lockable door (padlock not included) and included securing chains ensure cylinder safety, while lag holes in the base allow the unit to be anchored. Finished in safety yellow with bold “FLAMMABLE – NO SMOKING” signage, this cabinet meets OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CGA P-1 standards.
  • Model Number: CYL-V-4
  • Cylinder Capacity: 4 (vertical)
  • Weight Capacity: 200 lbs
  • Overall Dimensions: 30 in W × 32 in D × 35.25 in H
  • Assembled Weight: 124 lbs
  • Package Dimensions: 40 in W × 48 in D × 36 in H, 220 lbs
  • Material: 10-gauge steel
  • Finish: Safety yellow powder coat with red “FLAMMABLE – NO SMOKING” signage
  • Door Type: Hinged, lockable (padlock not included)
  • Construction: Expanded mesh sides/door; solid steel top, back, bottom
  • Features: Includes chains for securing cylinders; lag holes in base for anchoring
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2, CGA P-1

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
