Steel Variable Height Pail Dispenser – 200 lb Capacity – LLW-PAILD-200 – Vestil

SKU: LLW-PAILD-200
$1,010.30
Estimated Lead Time:1-3 Days

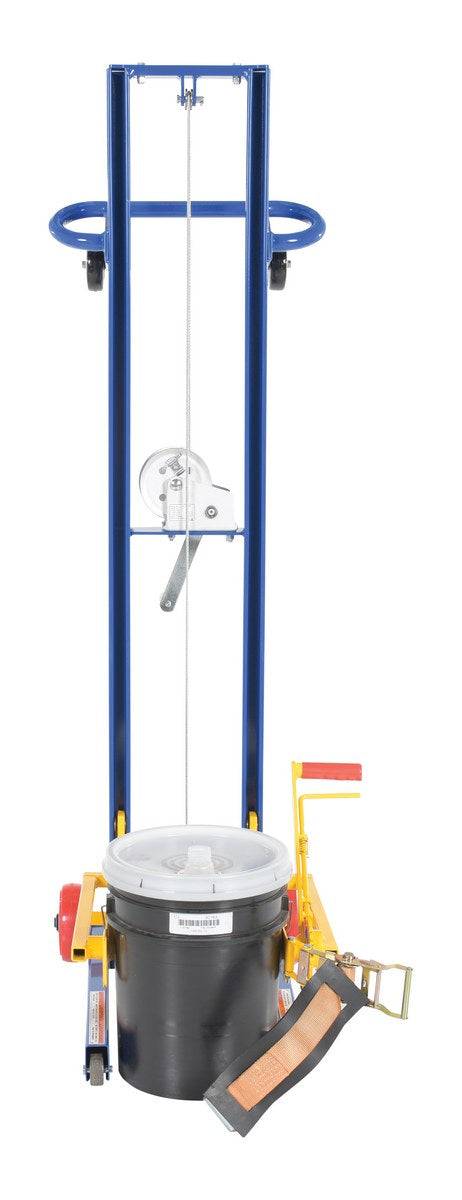

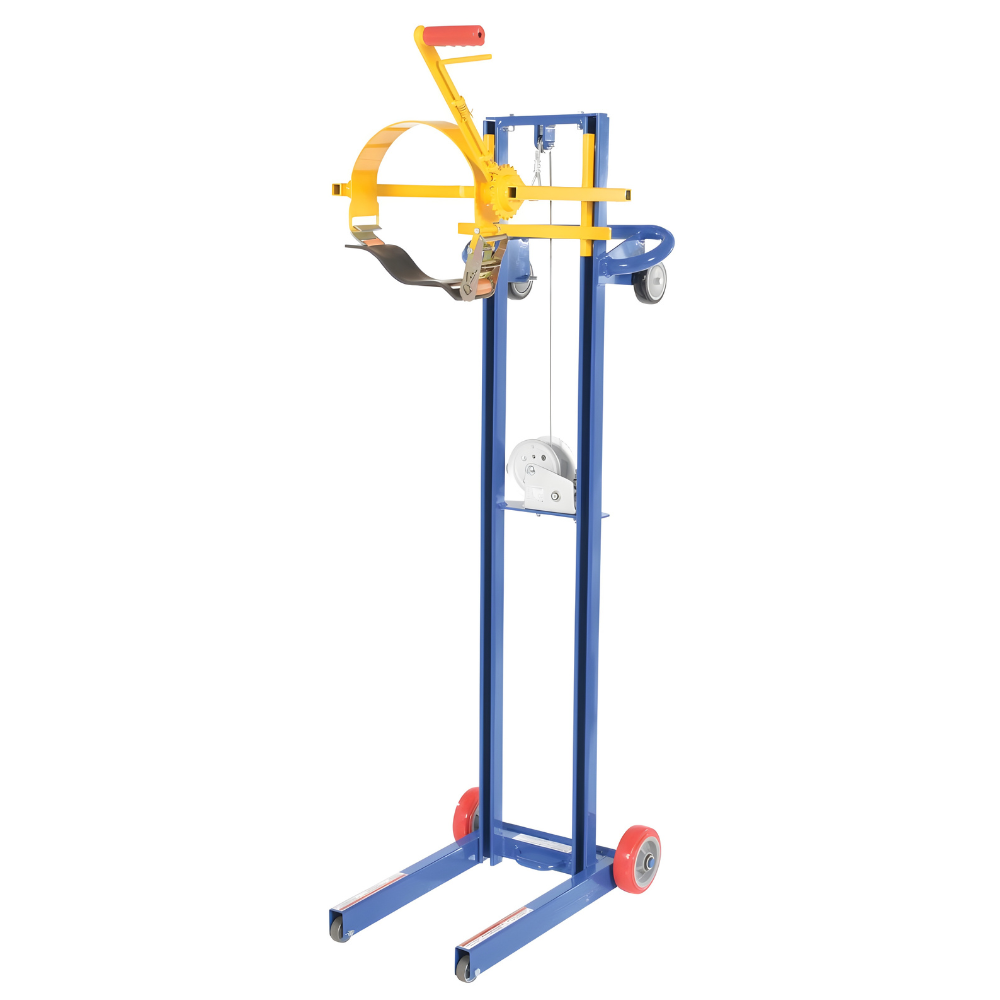

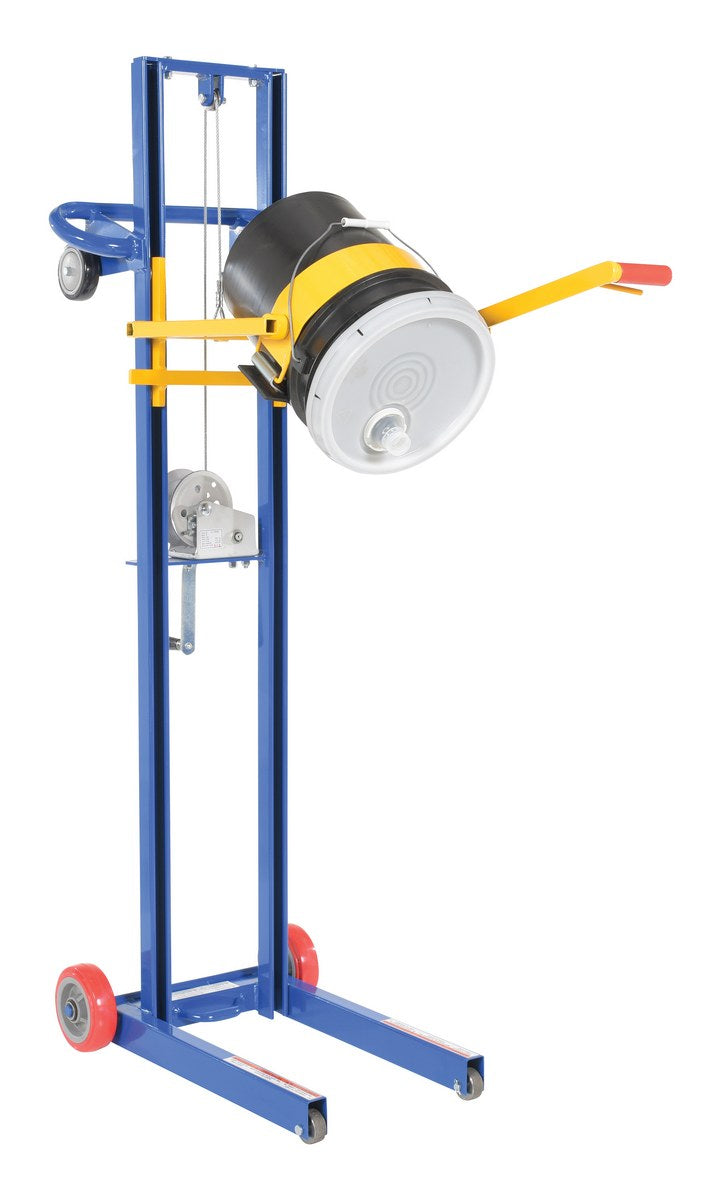

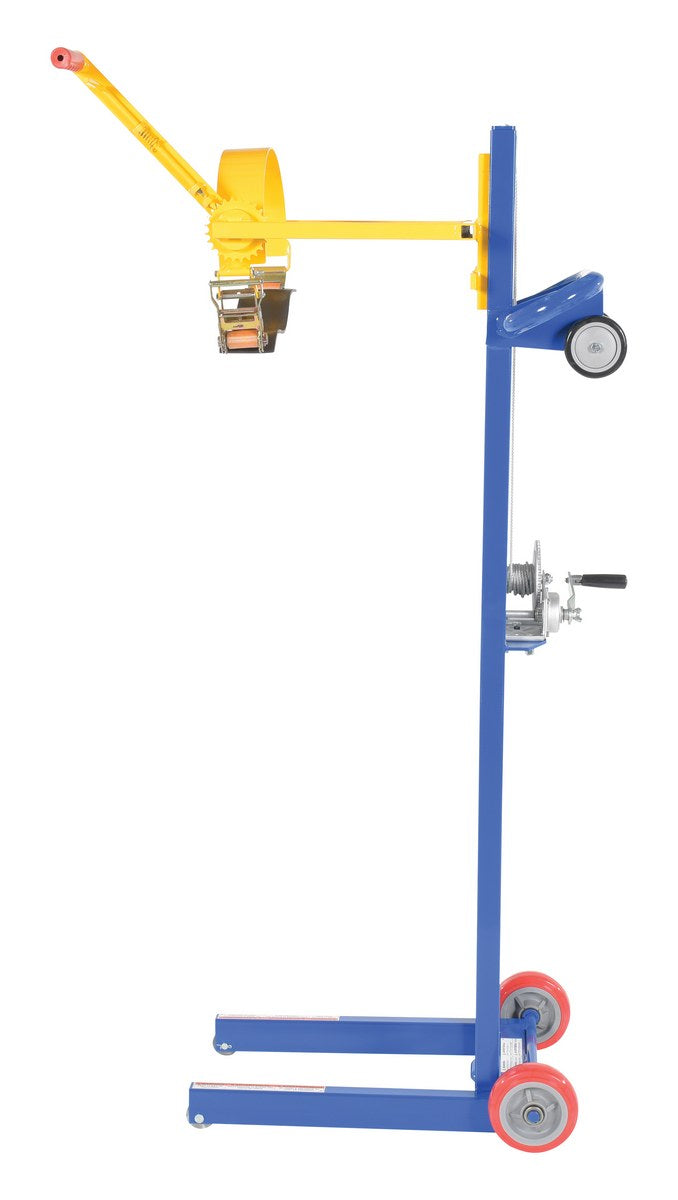

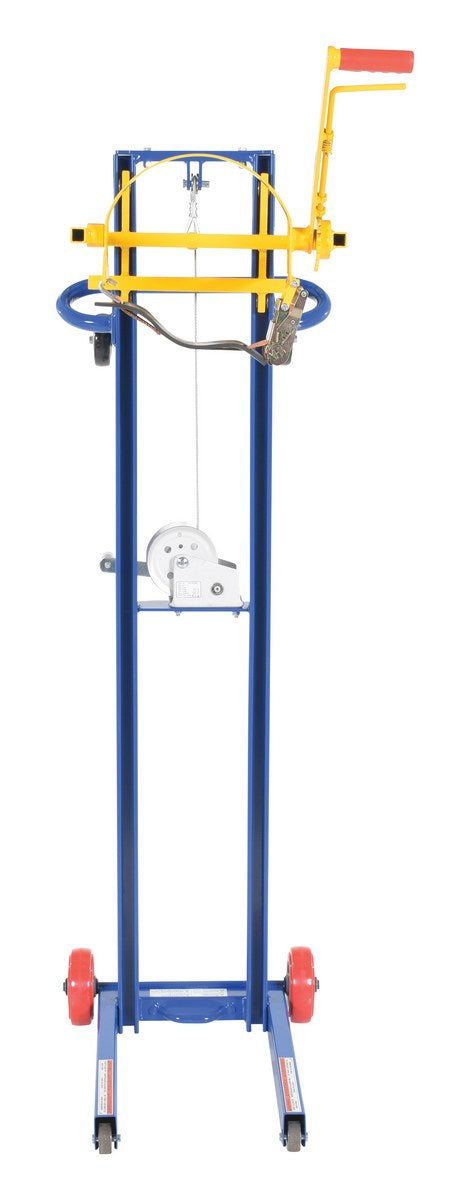

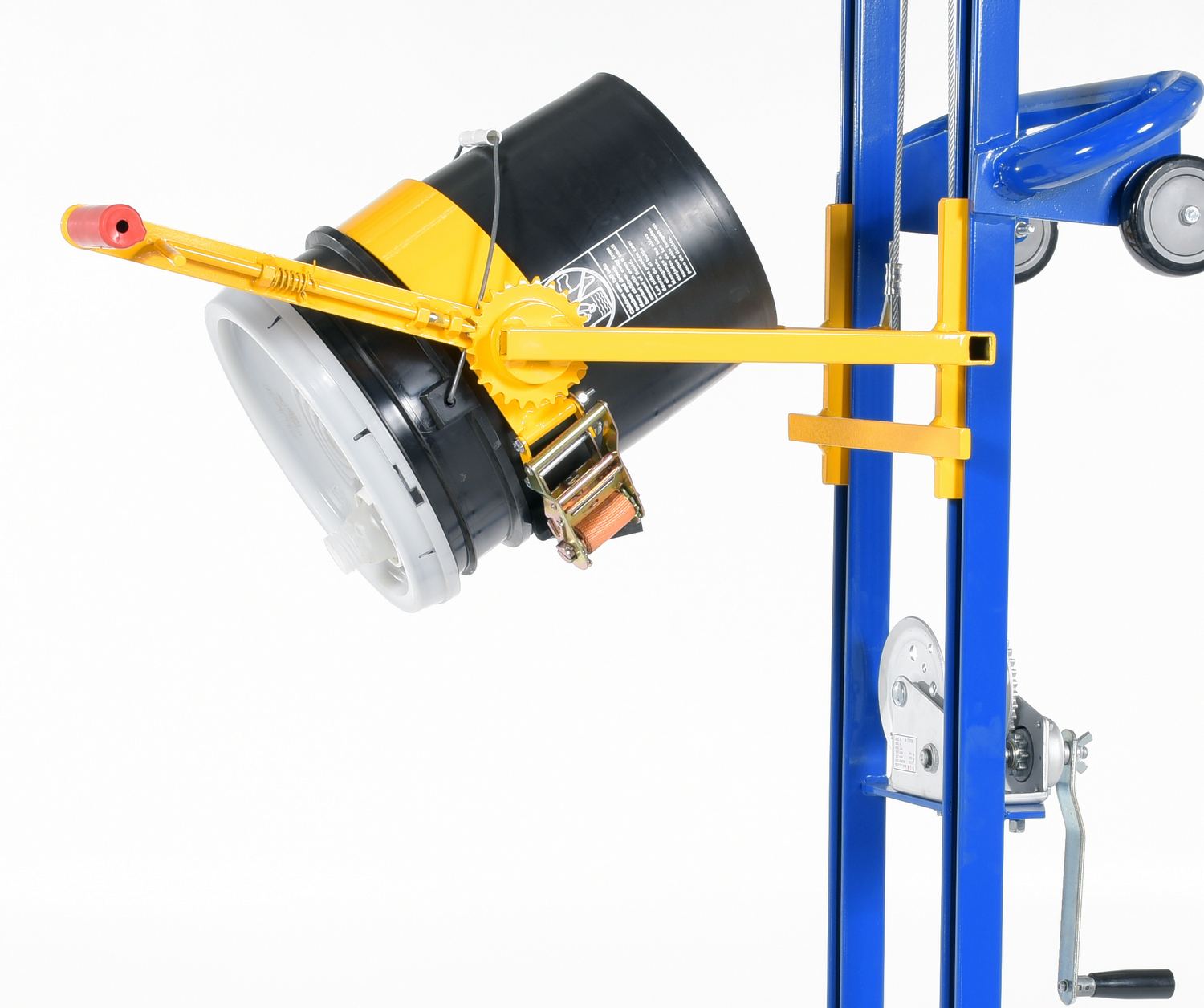

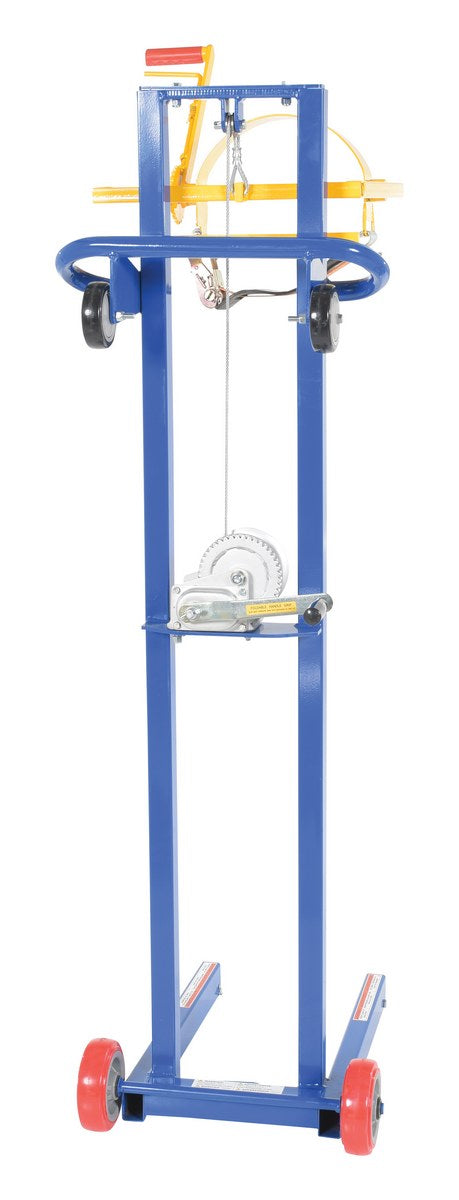

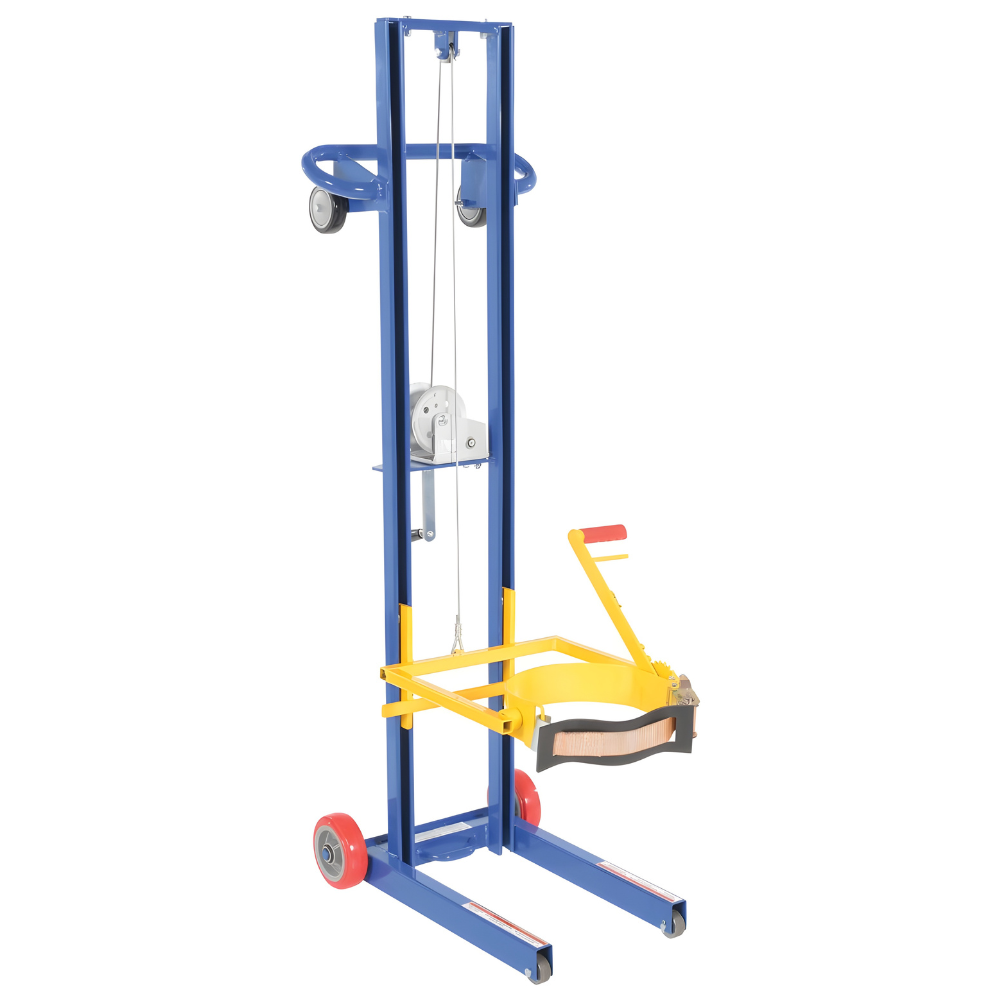

The Vestil Steel Variable Height Pail Dispenser (Model LLW-PAILD-200) is designed for efficient and ergonomic dispensing of 5-gallon plastic or steel pails. Built with a tilt-back hand truck style frame, it can be easily maneuvered throughout the facility and even loaded into trucks or vans using its built-in top wheels.

A hand cable winch allows smooth raising and lowering, with multiple height settings for controlled dispensing. Heavy-duty steel construction with a powder-coated finish ensures durability in demanding environments.
  • Model Number: LLW-PAILD-200
  • Capacity: 200 lbs
  • Compatible Pail Size: 5 gallons (plastic or steel)
  • Accepts Pail Diameter: 11 in
  • Angle Settings: 24 positions
  • Rotation Angle: 24° – 135°
  • Pour Height Range: 1 in (lowered) to 52 in (raised)
  • Cradle Height Range: 7.13 in (lowered) to 62.75 in (raised)
  • Assembled Dimensions: 20.13 in × 37.5 in × 71.75 in, 116 lbs
  • Package Dimensions: 48 in × 40 in × 71 in, 131 lbs
  • Material: Steel (blue frame, yellow cradle)
  • Rear Casters: (2) 6 in × 2 in, rigid, poly-on-poly
  • Front Rollers: (2) 2 in × 0.875 in, steel
  • Top Wheels: (2) 4 in rigid casters, poly-on-poly
  • Portable: Yes (tilt-back hand truck design)
  • Power Source: Manual
  • Assembly: Assembled

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
