Steel Top-Mount Floor Lock Height Silver - FL-LK-6EM - Vestil

SKU: FL-LK-6EM
$36.15
Estimated Lead Time:1-3 Days

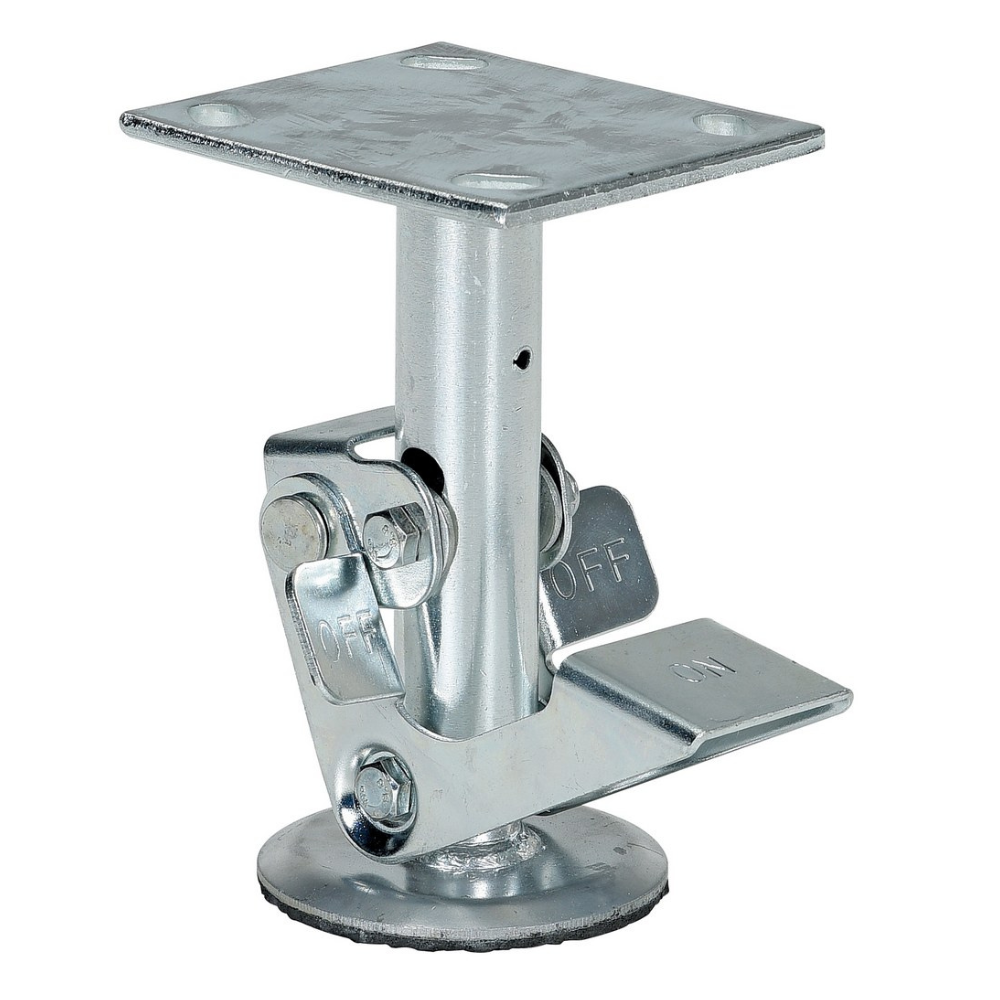

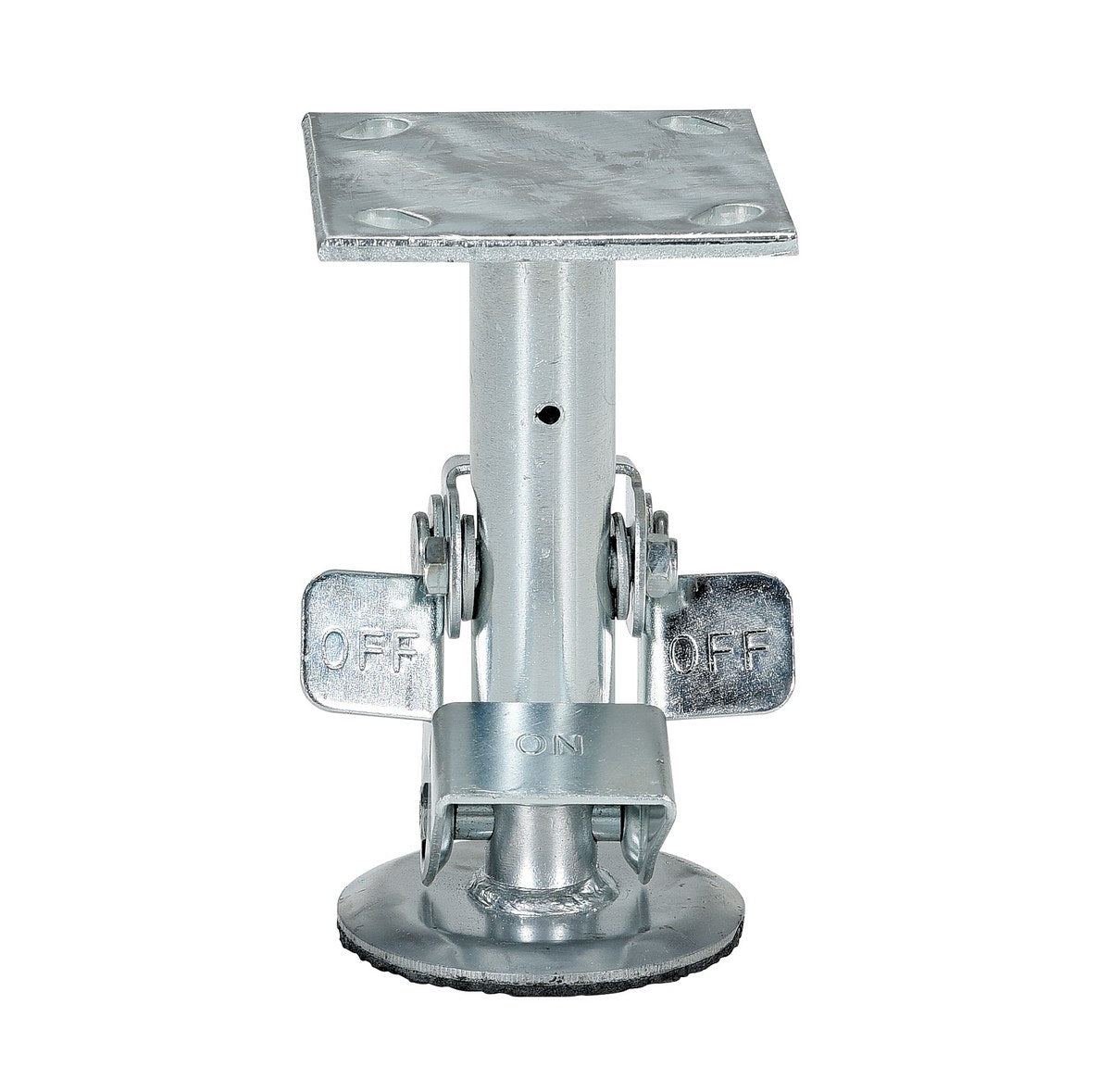

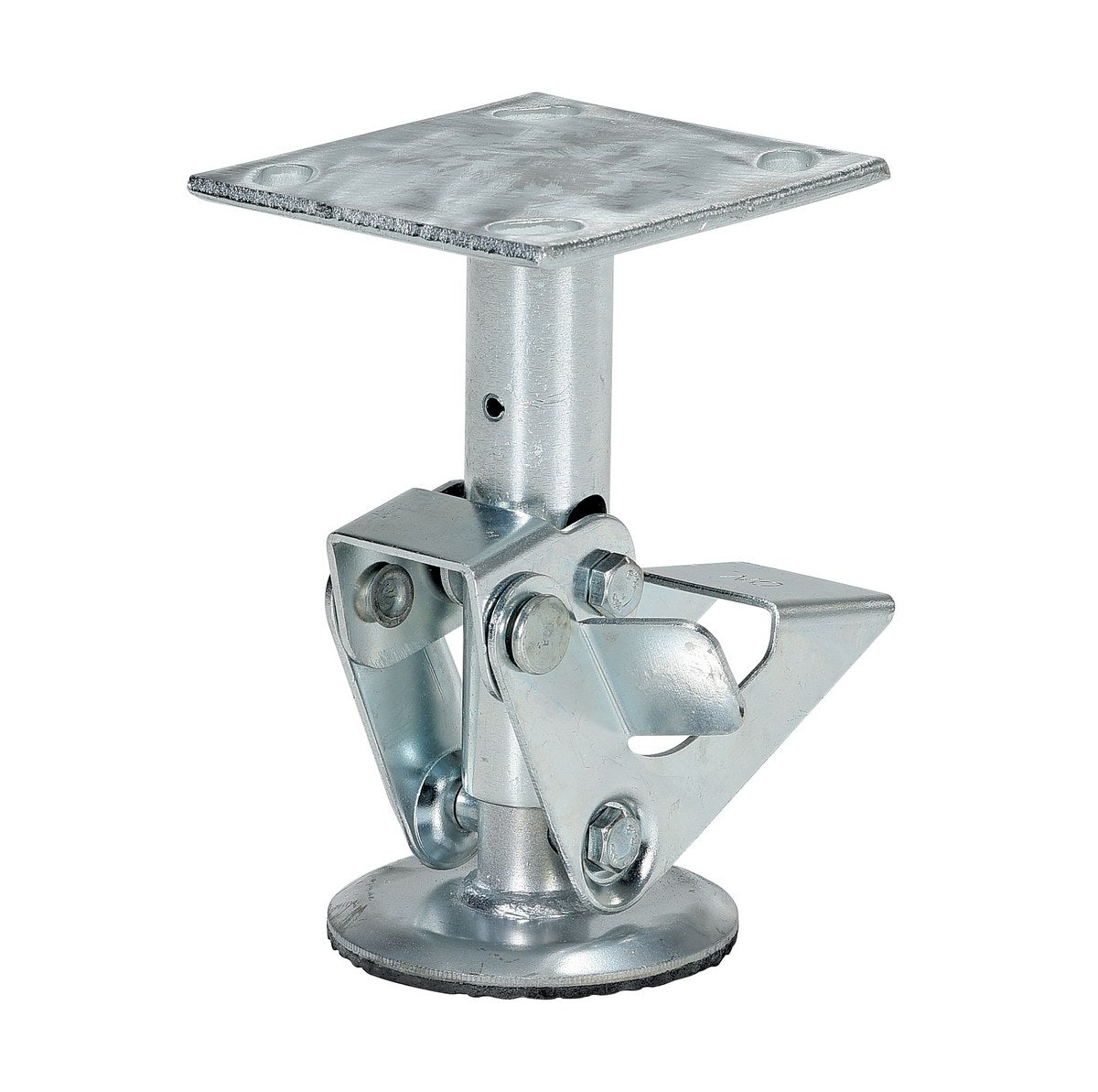

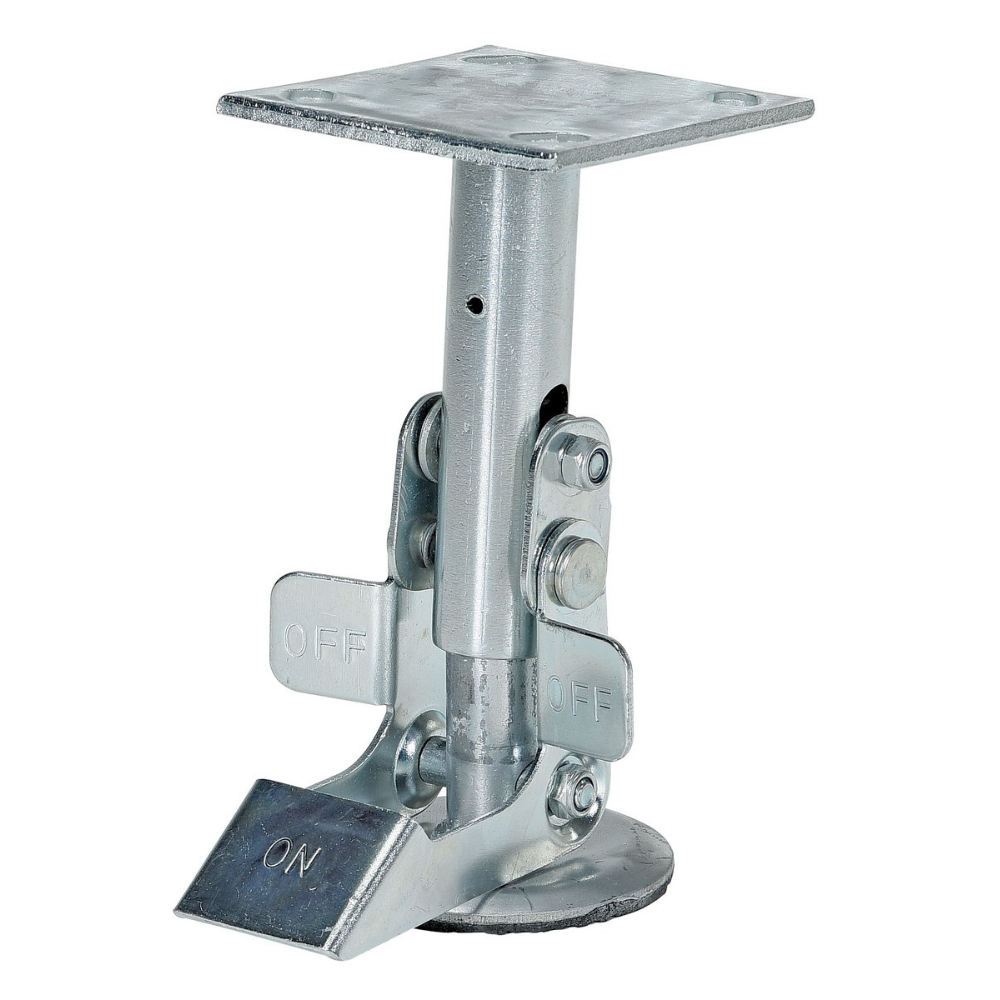

The Vestil FL-LK-6EM floor lock is designed for quick and reliable immobilization of platform trucks, dollies, and other wheeled equipment. A simple press of the foot pedal lowers a large friction pad to grip the floor, keeping equipment firmly in place—even on slightly uneven or rough surfaces. To release, just use the kick-rod for smooth, hands-free operation. The top-mount style vertical plate attaches easily to carts and stays 1 inch off the floor when retracted. Constructed from durable silver-finished steel with a robust 1/4-inch thick mounting plate for long-lasting performance.
  • Model Number: FL-LK-6EM
  • Mounting Height Range: 6-7/8" retracted to 7-1/2" extended
  • Used with Caster Size: 6"
  • Pad Mounting Height Retracted: 1-1/2" off floor
  • Base Plate Diameter: 3-3/4"
  • Slotted Mounting Holes: 7/16" × 3/4" (4 holes)
  • Inside Bolt-Hole Spacing: 2-9/16" × 3-1/4"  Outside Spacing: 3" × 3-5/8"
  • Plate Thickness: 1/4"
  • Assembled Size (W × L × H): 4.19" × 6.25" × 7.88"
  • Assembled Weight: 4 lbs
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
