Steel Top Mount Floor Lock – FL-LK-5EG - Vestil

SKU: FL-LK-5EG
$34.11
Estimated Lead Time:1-3 Days

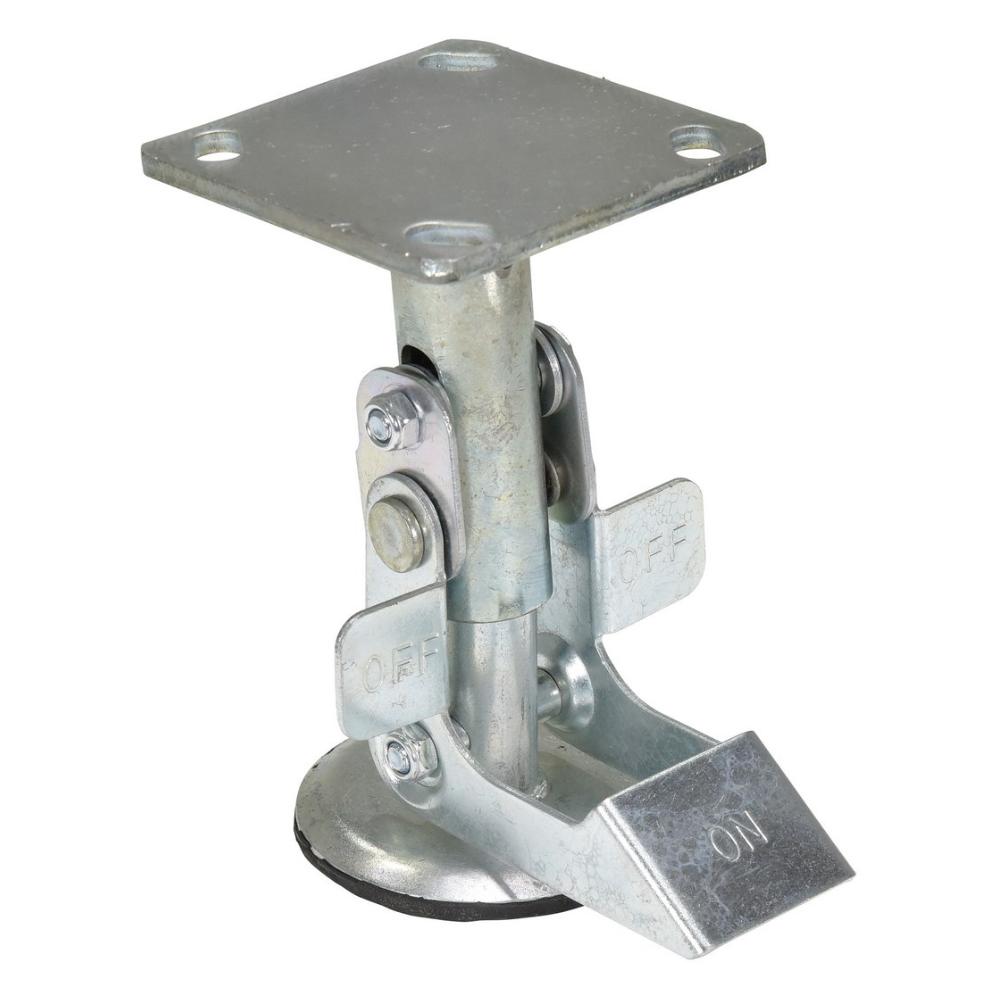

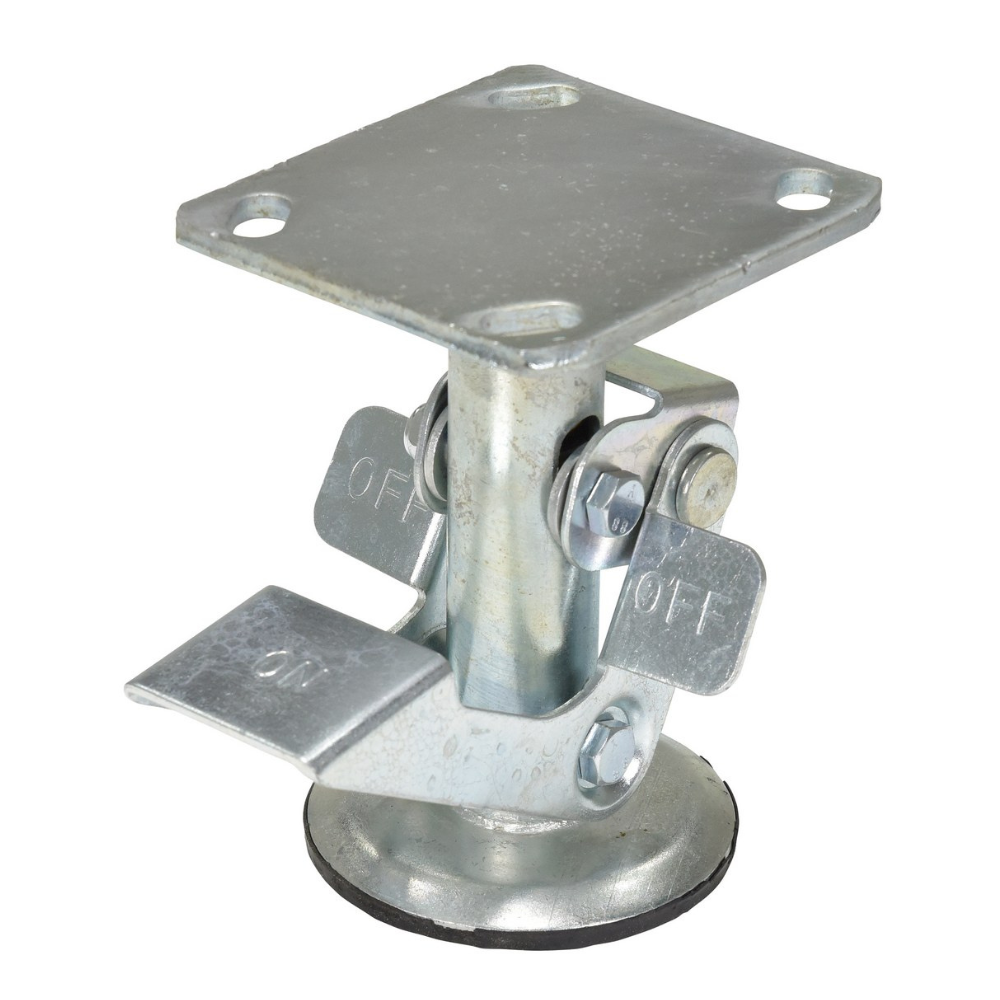

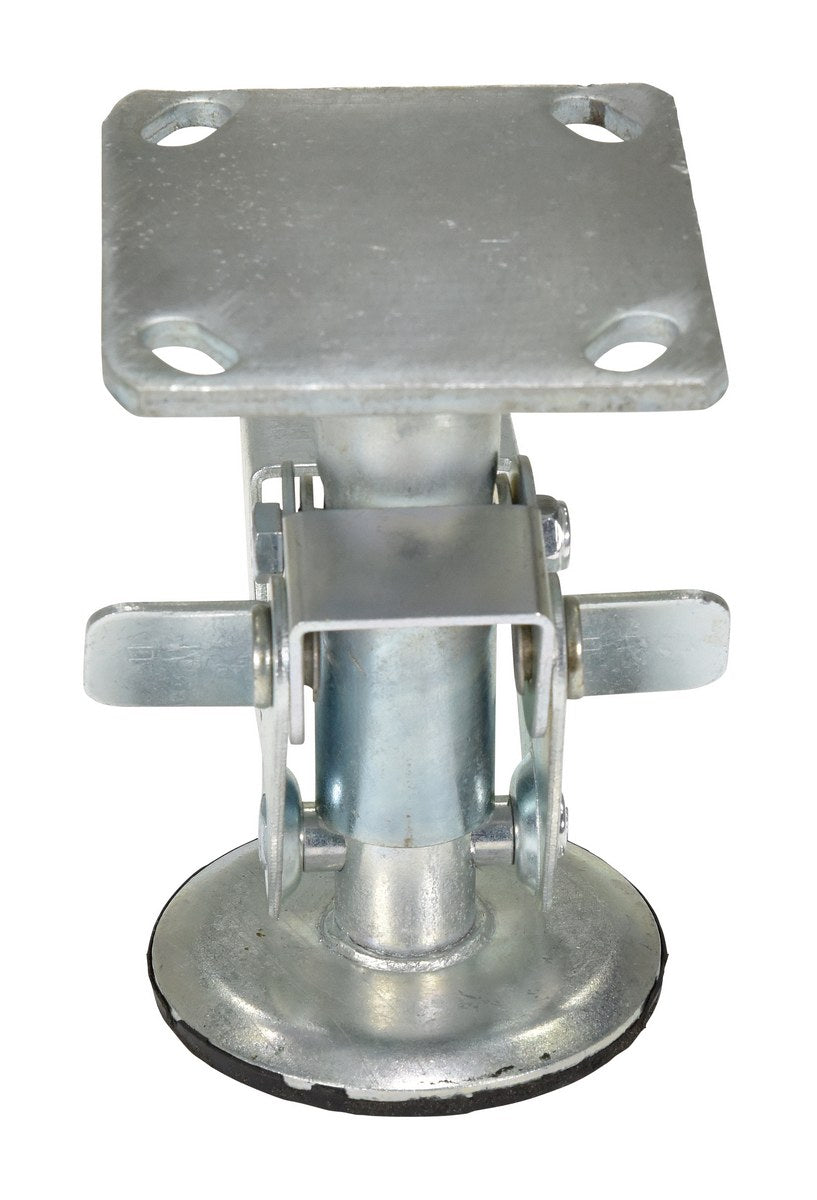

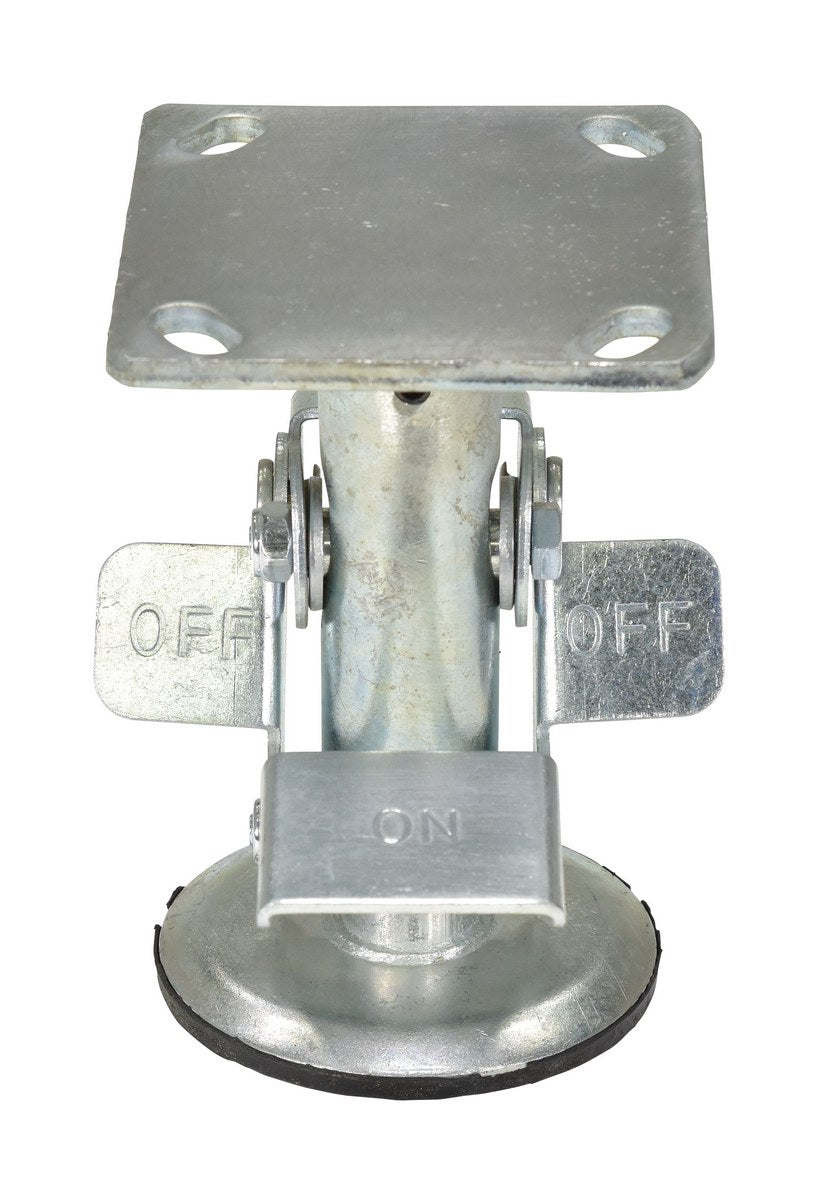

The Vestil FL-LK-5EG is a steel top mount floor lock designed for platform trucks, fixture dollies, and other castered equipment. The lock engages when foot pressure is applied to the friction pad and releases easily with a kick of the release rod. Its spring-loaded pad accommodates uneven surfaces, and the vertical mounting plate allows installation on the sides of carts or other portable products.
  • Model Number: FL-LK-5G
  • Extended Height: 7"
  • Retracted Height: 6"
  • Mounting Height: 7"
  • Used with Caster Size: 5"
  • Base Plate Width / Length: 4" × 4-1/2"
  • Mounting Holes (qty): 4
  • Mounting Bolt Diameter: 3/8"
  • Plate Thickness: 1/4"
  • Assembled Dimensions (W × D × H): 5.75" × 4" × 6"
  • Assembled Weight: 3.15 lb
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
