Steel Stationary Hydraulic Drum Dumper – 72 In. Dump Height – 750 lb Capacity – HDD-72-7-S – Vestil

SKU: HDD-72-7-S
$4,841.83
Estimated Lead Time:6-8 Weeks

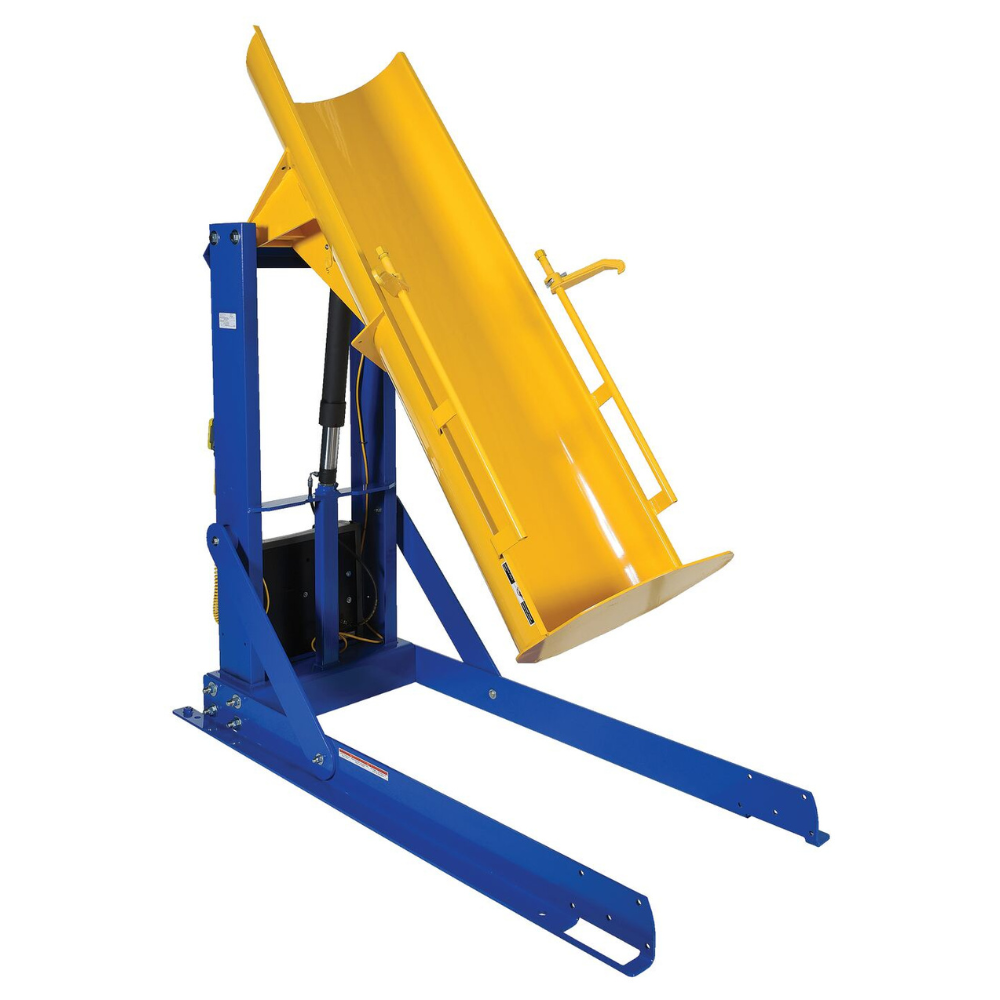

The Vestil HDD-72-7-S Stationary Hydraulic Drum Dumper is engineered for efficient and reliable dumping of heavy drums at a 72-inch height. Constructed with a solid steel chute and heavy-duty welded frame, this unit accommodates steel, plastic, and fiber drums. Standard safety features include an upper travel limit switch, a brass safety velocity fuse, and adjustable drum restraints. The dumper is controlled with a hand-held pendant on a coil cord, allowing the operator to stop drum rotation at any point for safe and precise dumping.
  • Model Number: HDD-72-7-S
  • Capacity: 750 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 72 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 34 sec
  • Chute Diameter: 24 in
  • Chute Reach: 13.5 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary
  • Assembled Dimensions: 92 in × 36 in × 95.25 in, 875 lbs
  • Package Dimensions: 96 in × 44 in × 89 in, 1,040 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
