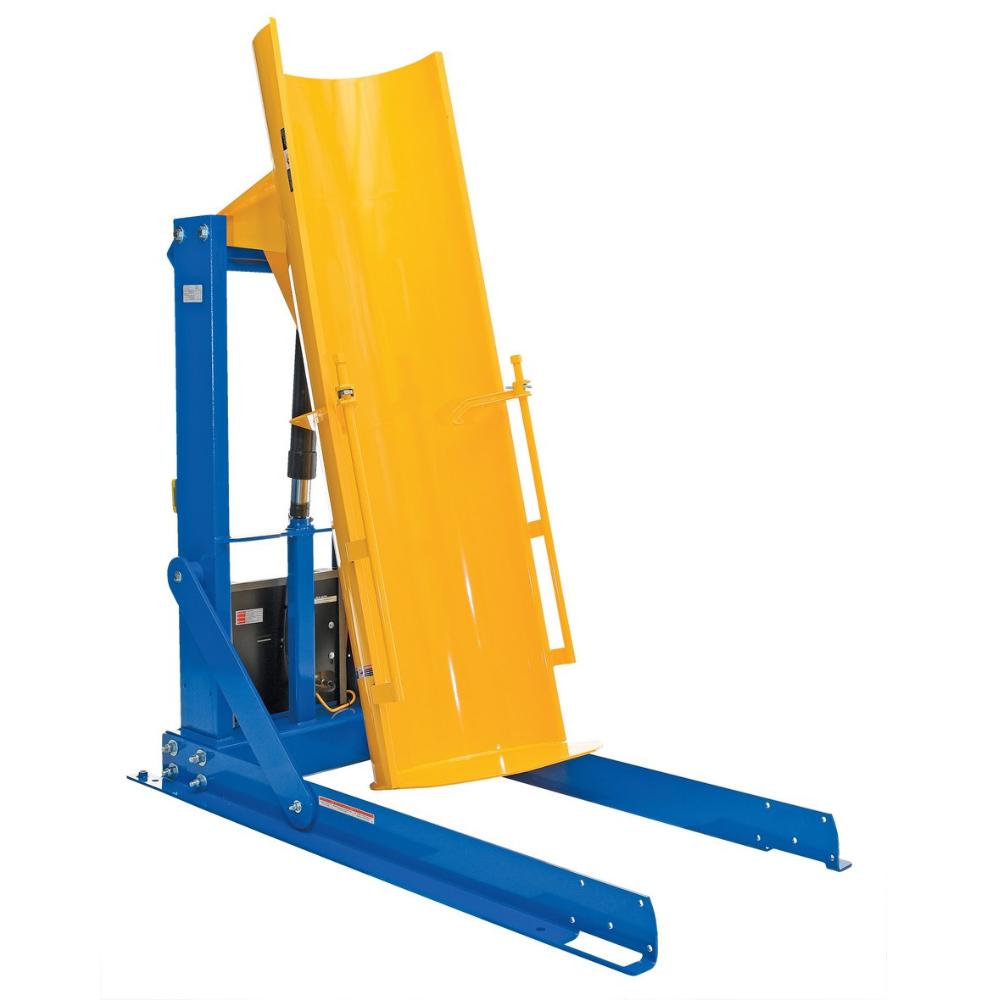

Steel Stationary Hydraulic Drum Dumper – 72 In. Dump Height – 1,000 lb Capacity – HDD-72-10-S – Vestil

SKU: HDD-72-10-S
$4,932.45
Estimated Lead Time:6-8 Weeks

The Vestil HDD-72-10-S Stationary Hydraulic Drum Dumper provides safe and reliable dumping of heavy drums at a 72-inch height. Designed for steel, plastic, and fiber drums, it features a heavy-duty all-steel frame and solid steel chute. Standard safety components include an upper travel limit switch, a brass safety velocity fuse in the cylinder, and adjustable vertical drum restraints. Operation is controlled via a hand-held control on a coil cord. The stationary design ensures maximum stability and dependable service in demanding applications.
  • Model Number: HDD-72-10-S
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 72 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 13.5 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary (fixed base)
  • Assembled Dimensions: 92 in × 36 in × 95.25 in, 900 lbs
  • Package Dimensions: 96 in × 44 in × 92 in, 1,055 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
