Steel Stationary Hydraulic Drum Dumper – 60 In. Dump Height – 750 lb Capacity – HDD-60-7-S – Vestil

SKU: HDD-60-7-S
$4,442.05
Estimated Lead Time:6-8 Weeks

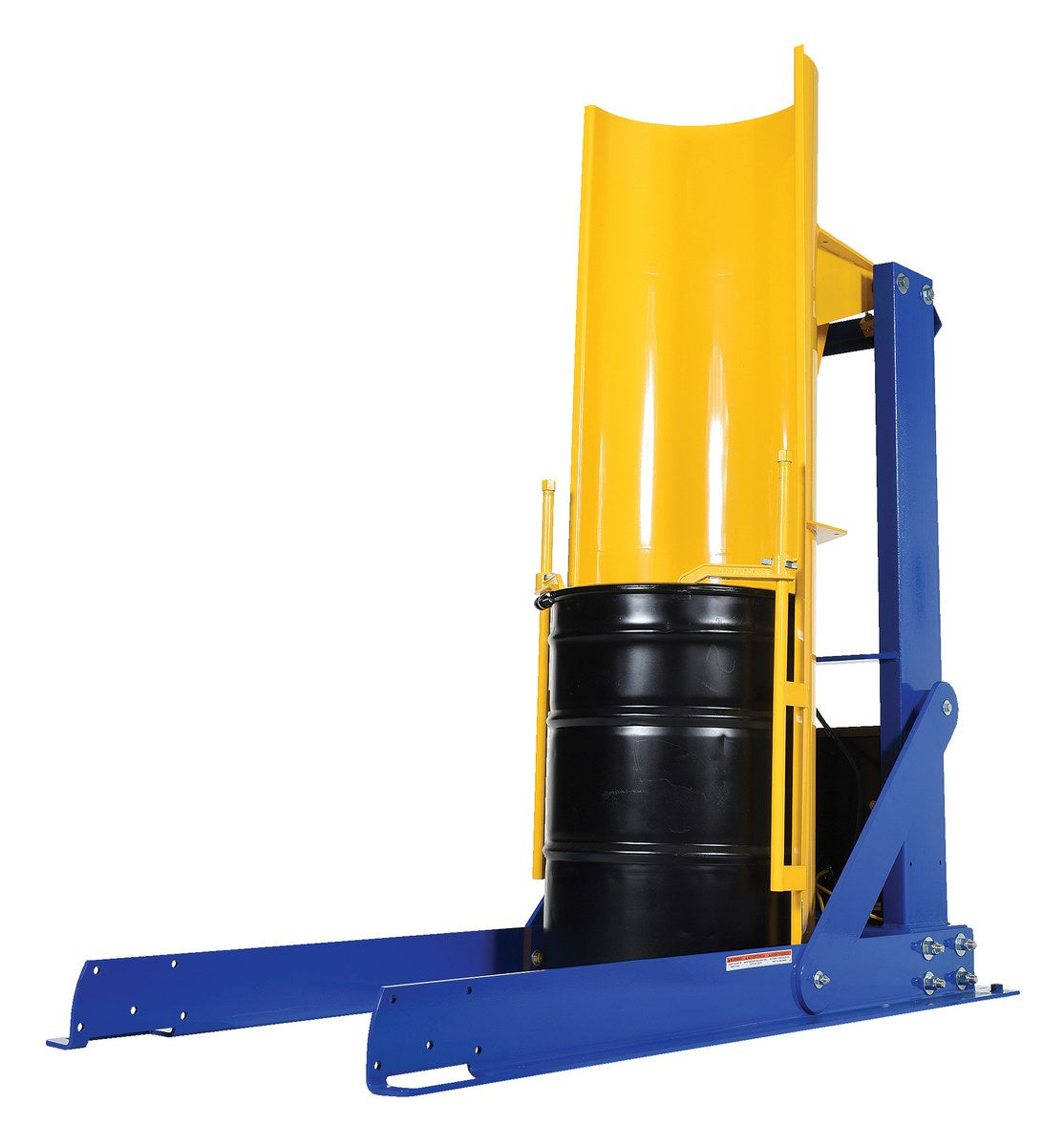

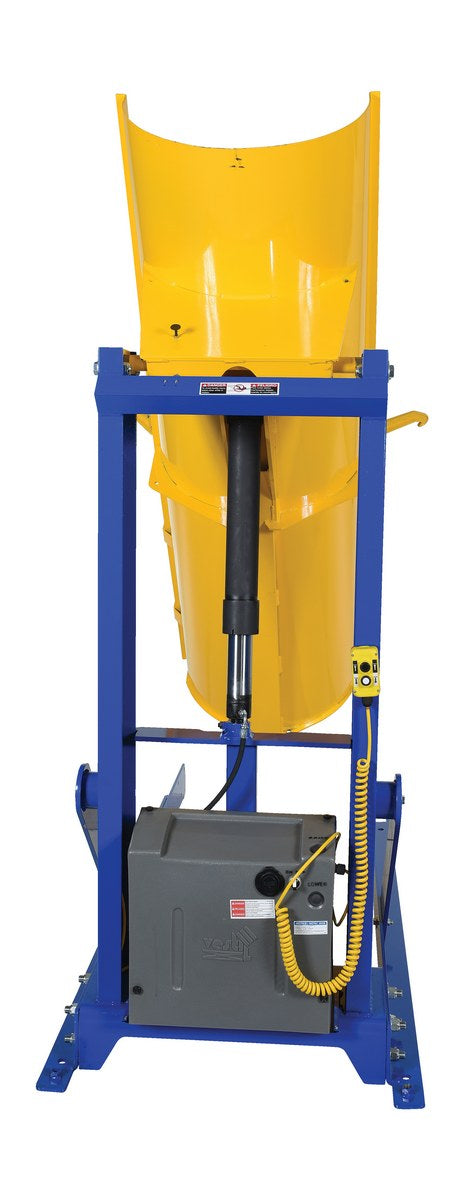

The Vestil HDD-60-7-S Stationary Hydraulic Drum Dumper provides efficient and reliable dumping of heavy drums at elevated heights. Designed for use with steel, plastic, and fiber drums, this unit is built with a solid steel chute and rugged all-steel construction for long service life. Safety features include an upper travel limit switch and a brass hydraulic velocity fuse. Vertical adjustment drum restraints keep drums secure during operation, and the hand-held pendant control on a coil cord allows simple and safe operation.
  • Model Number: HDD-60-7-S
  • Capacity: 750 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 60 in

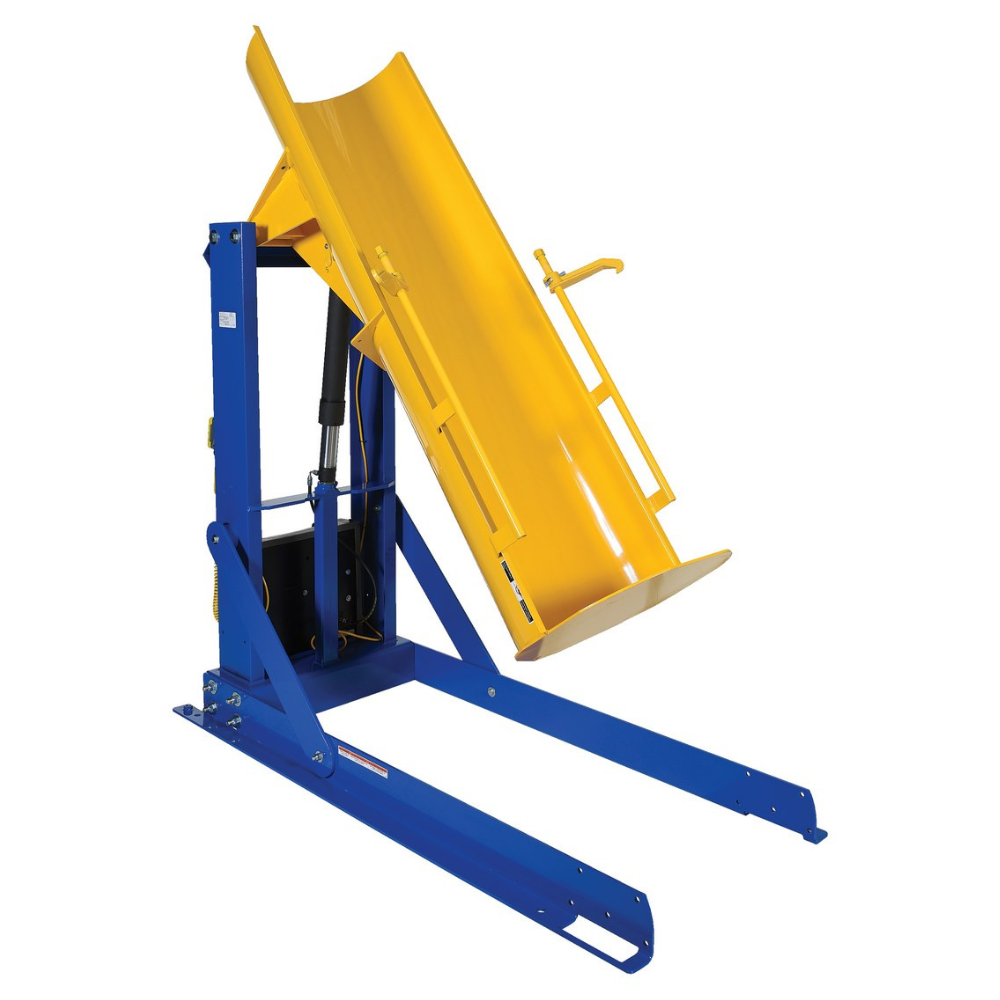

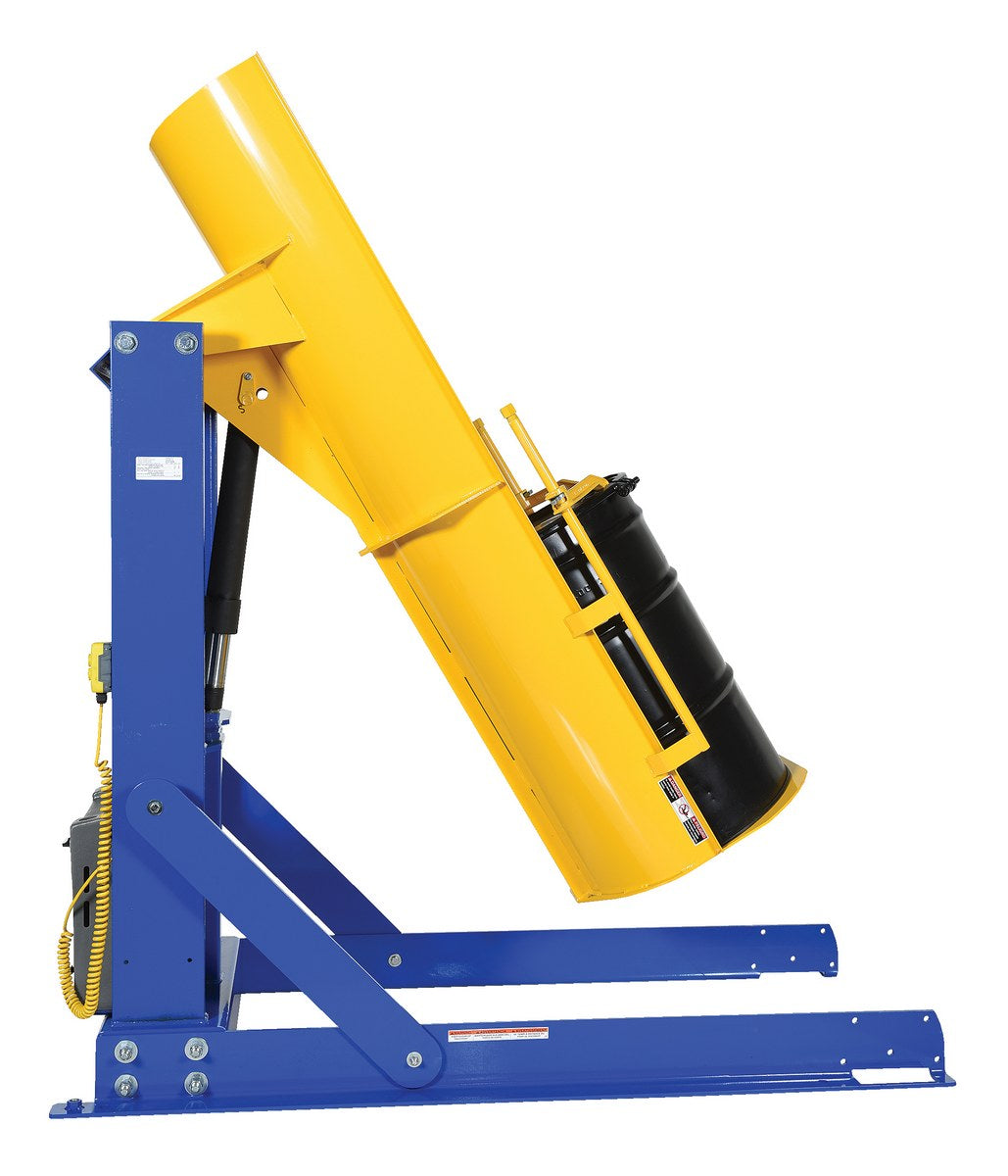

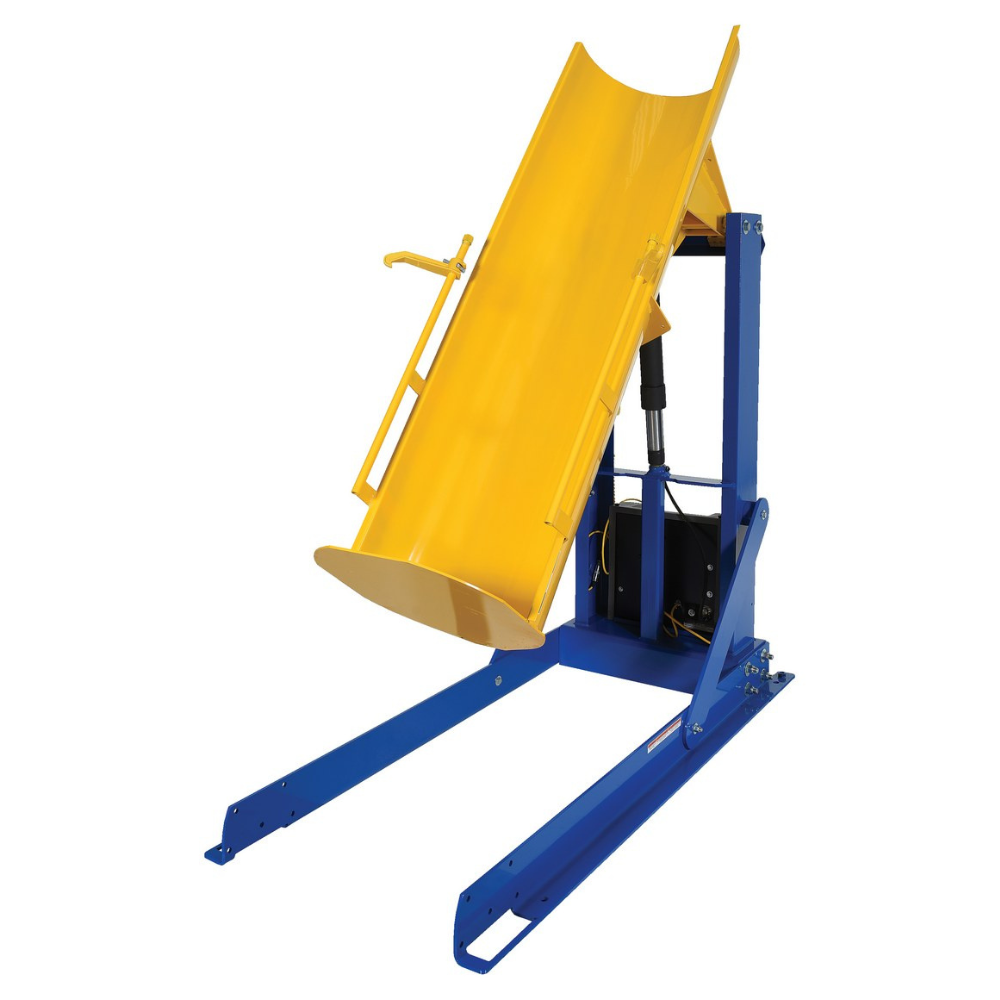

  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec

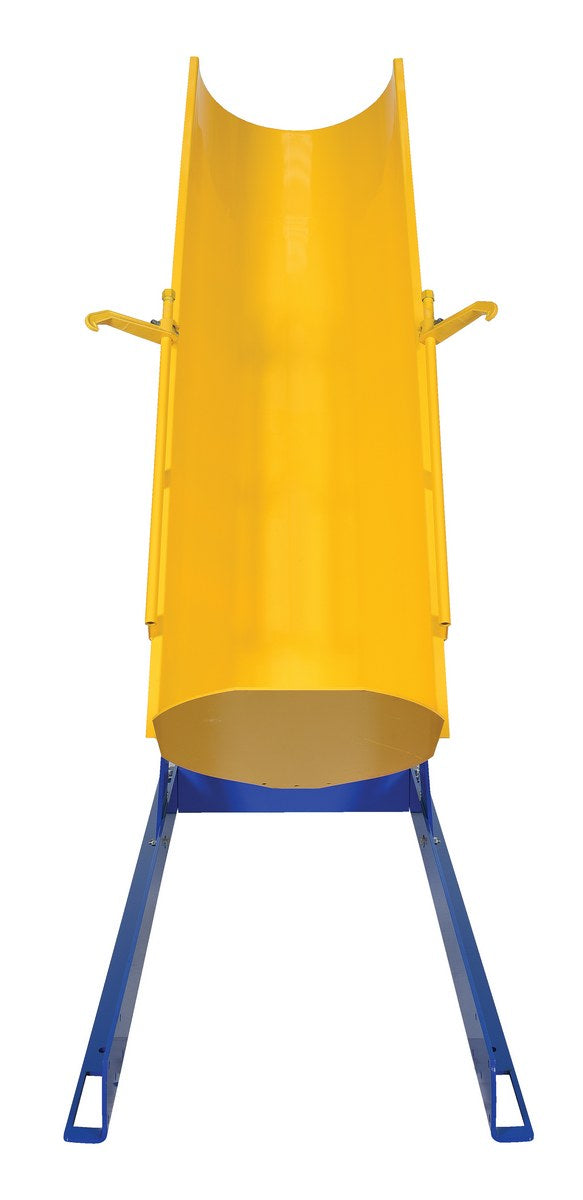

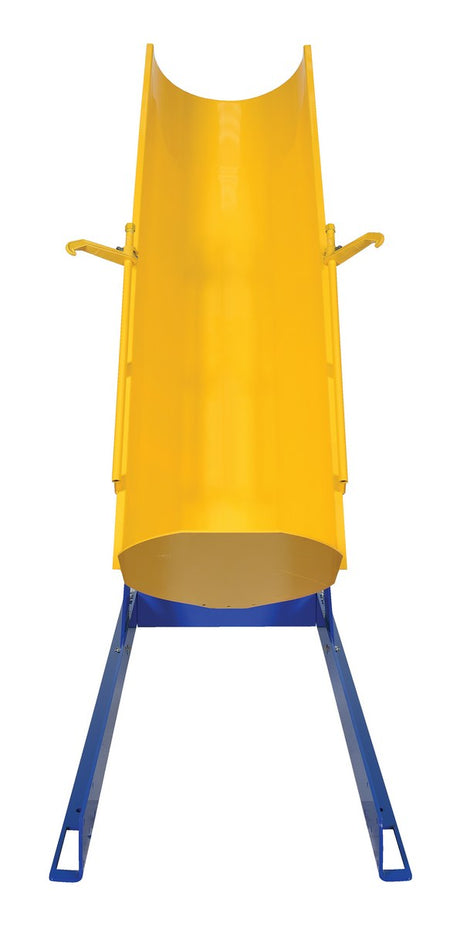

  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary
  • Assembled Dimensions: 80 in × 36 in × 84 in, 798 lbs
  • Package Dimensions: 96 in × 44 in × 90 in, 986 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
