Steel Stationary Hydraulic Drum Dumper – 60 In. Dump Height – 1,500 lb Capacity – HDD-60-15-S – Vestil

SKU: HDD-60-15-S
$5,106.00
Estimated Lead Time:6-8 Weeks

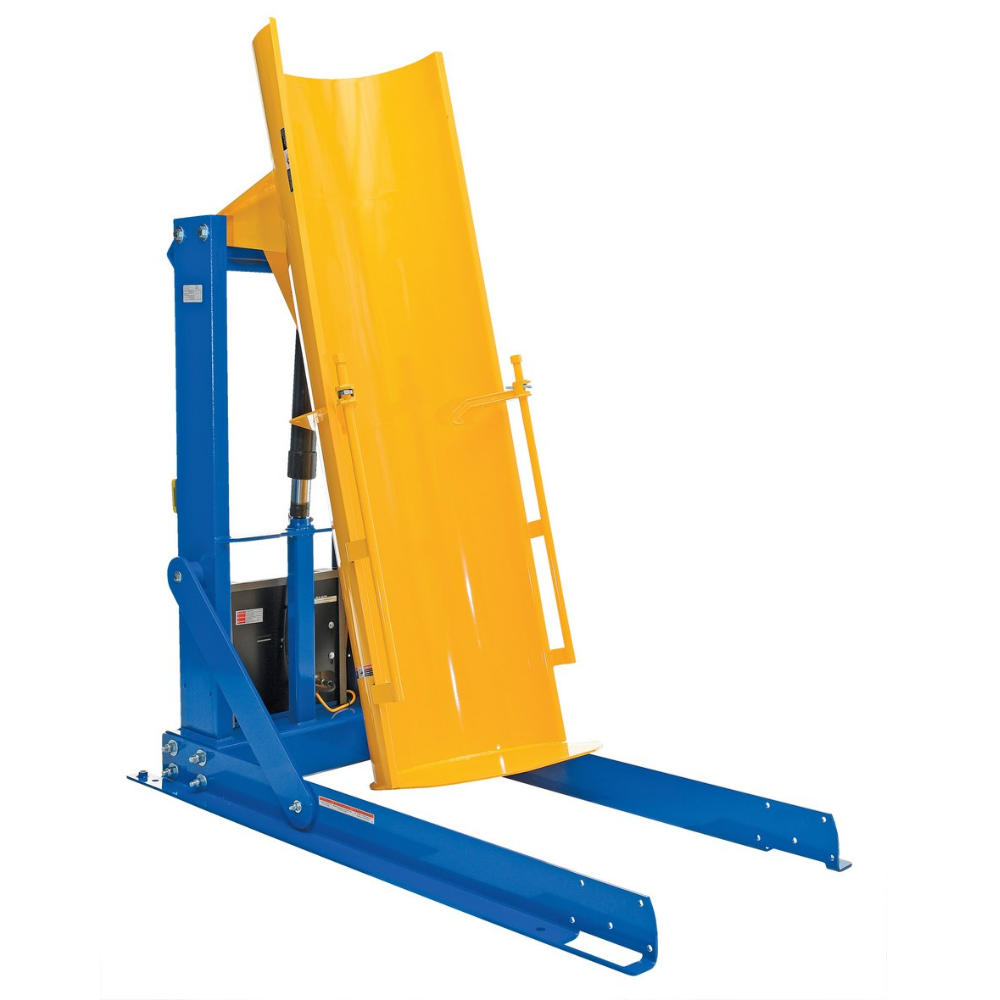

The Vestil HDD-60-15-S Stationary Hydraulic Drum Dumper is built for safe and efficient dumping of heavy drums at a 60-inch height. Designed with a solid steel chute and all-steel construction, this unit accommodates steel, plastic, and fiber drums. Safety features include an upper travel limit switch, brass safety velocity fuse, and adjustable drum restraints. The dumper is controlled with a hand-held pendant on a coil cord, allowing controlled rotation and stopping at any point within its 135° dump range.
  • Model Number: HDD-60-15-S
  • Capacity: 1,500 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 60 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary
  • Assembled Dimensions: 80 in × 36 in × 84 in, 798 lbs
  • Package Dimensions: 96 in × 44 in × 89 in, 963 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
