Steel Stationary Hydraulic Drum Dumper – 60 In. Dump Height – 1,000 lb Capacity – HDD-60-10-S – Vestil

SKU: HDD-60-10-S
$4,888.58
Estimated Lead Time:6-8 Weeks

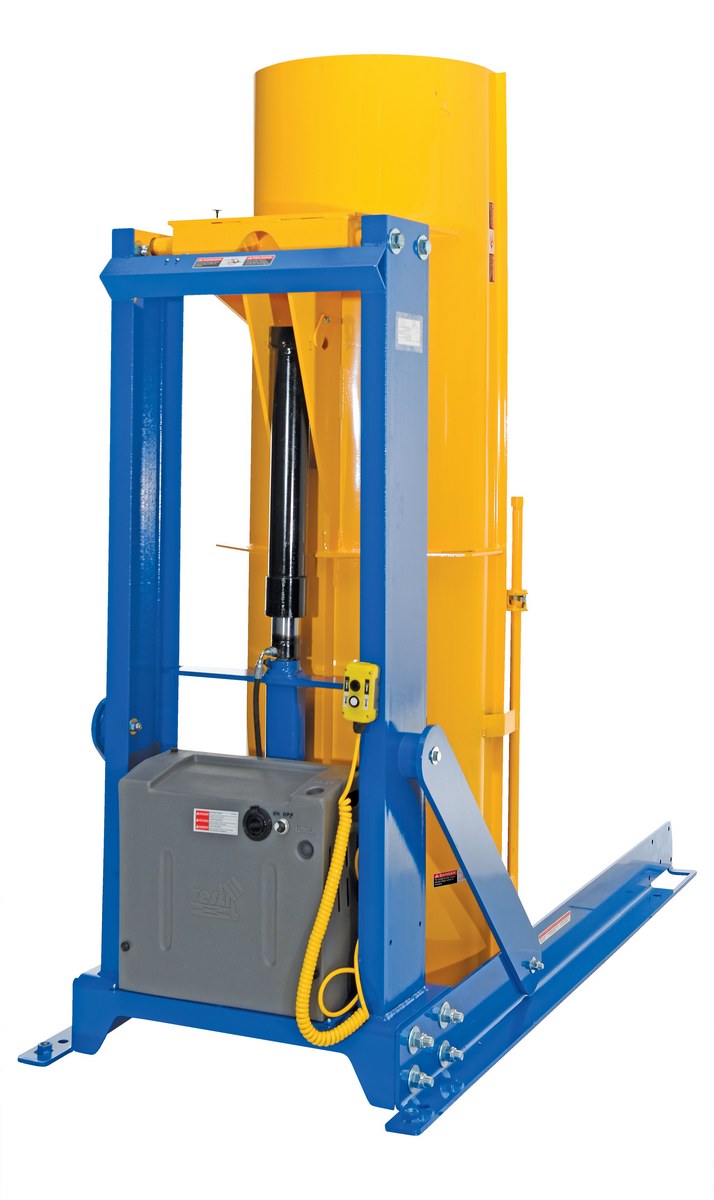

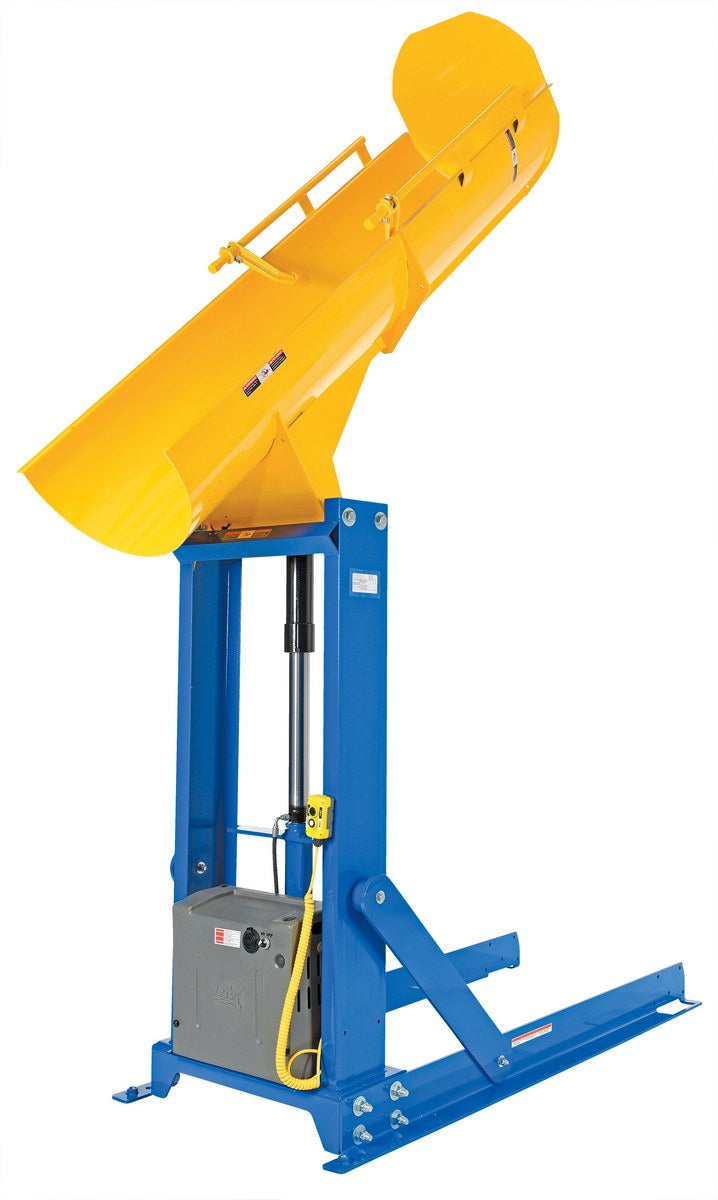

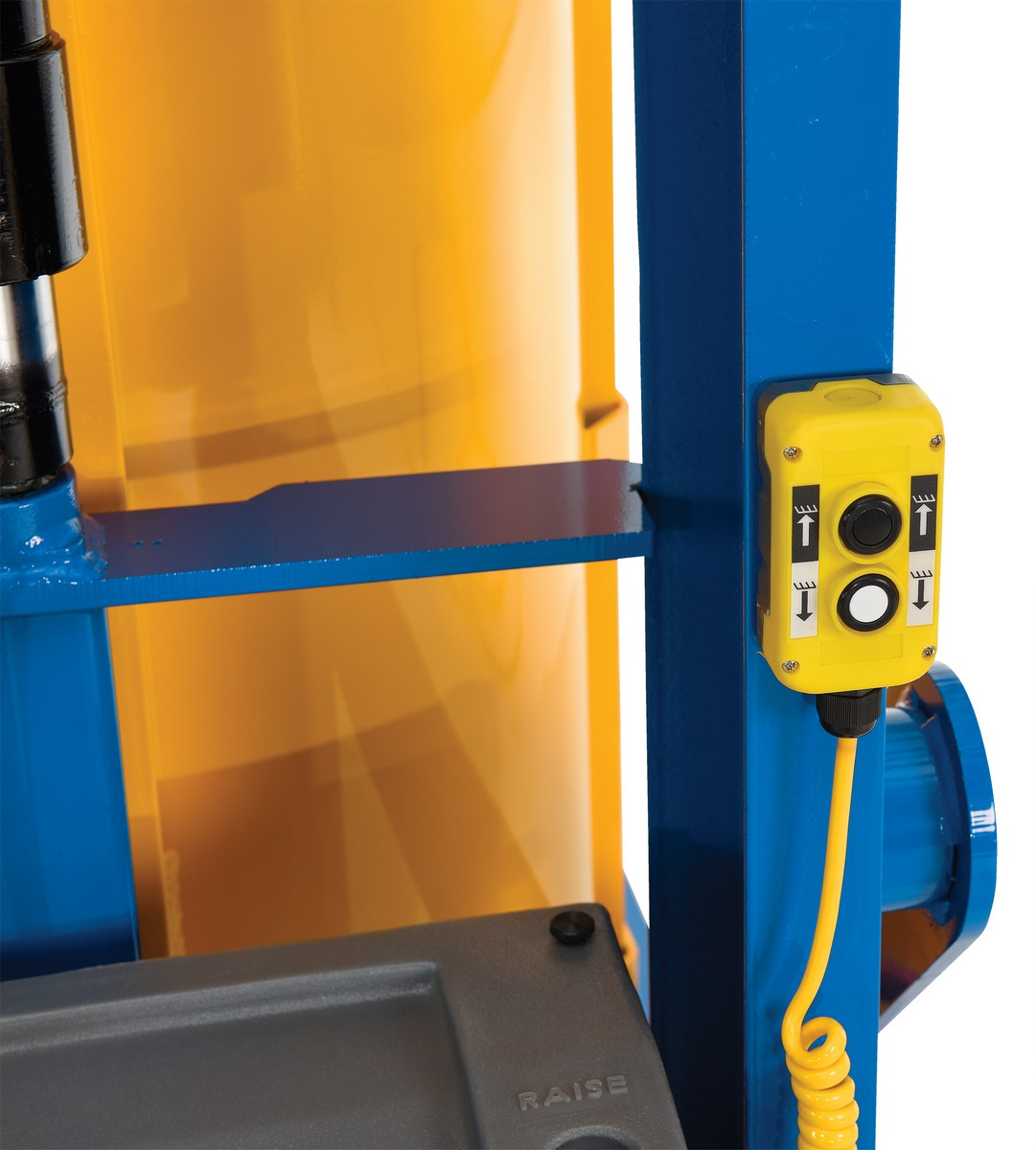

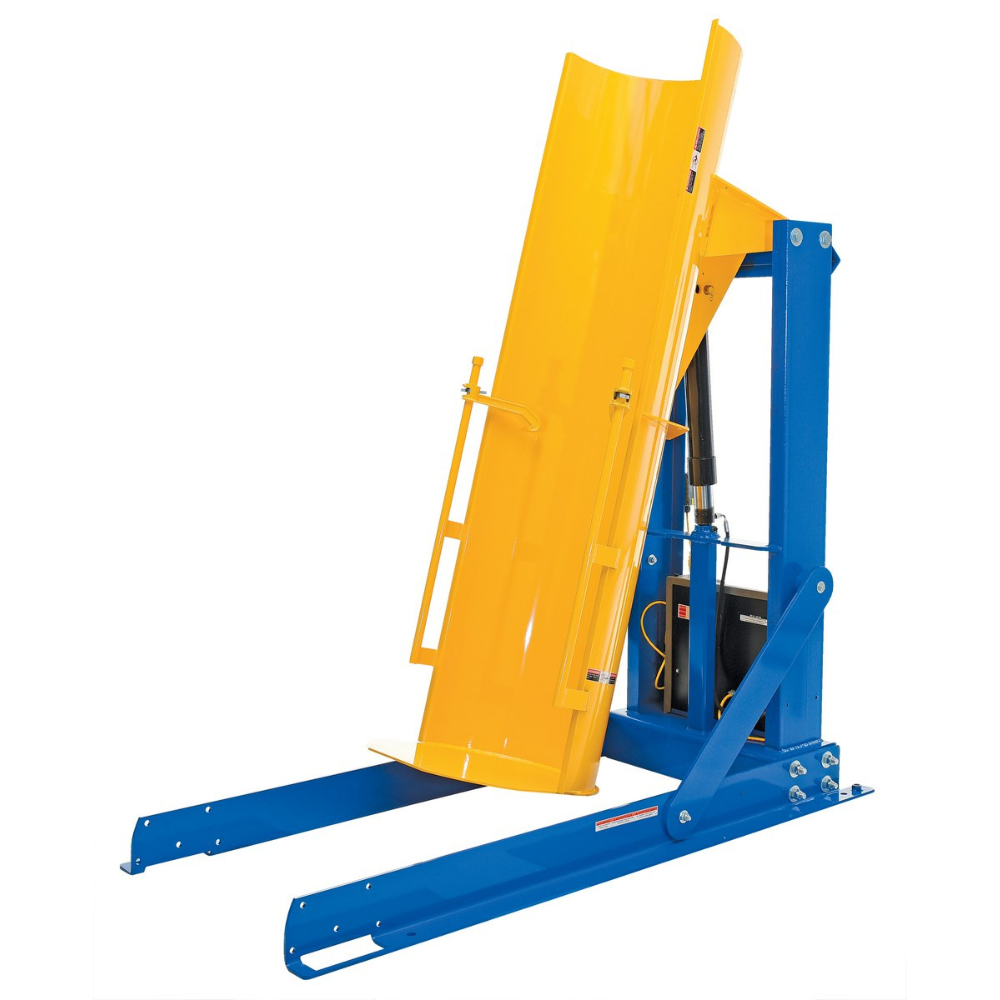

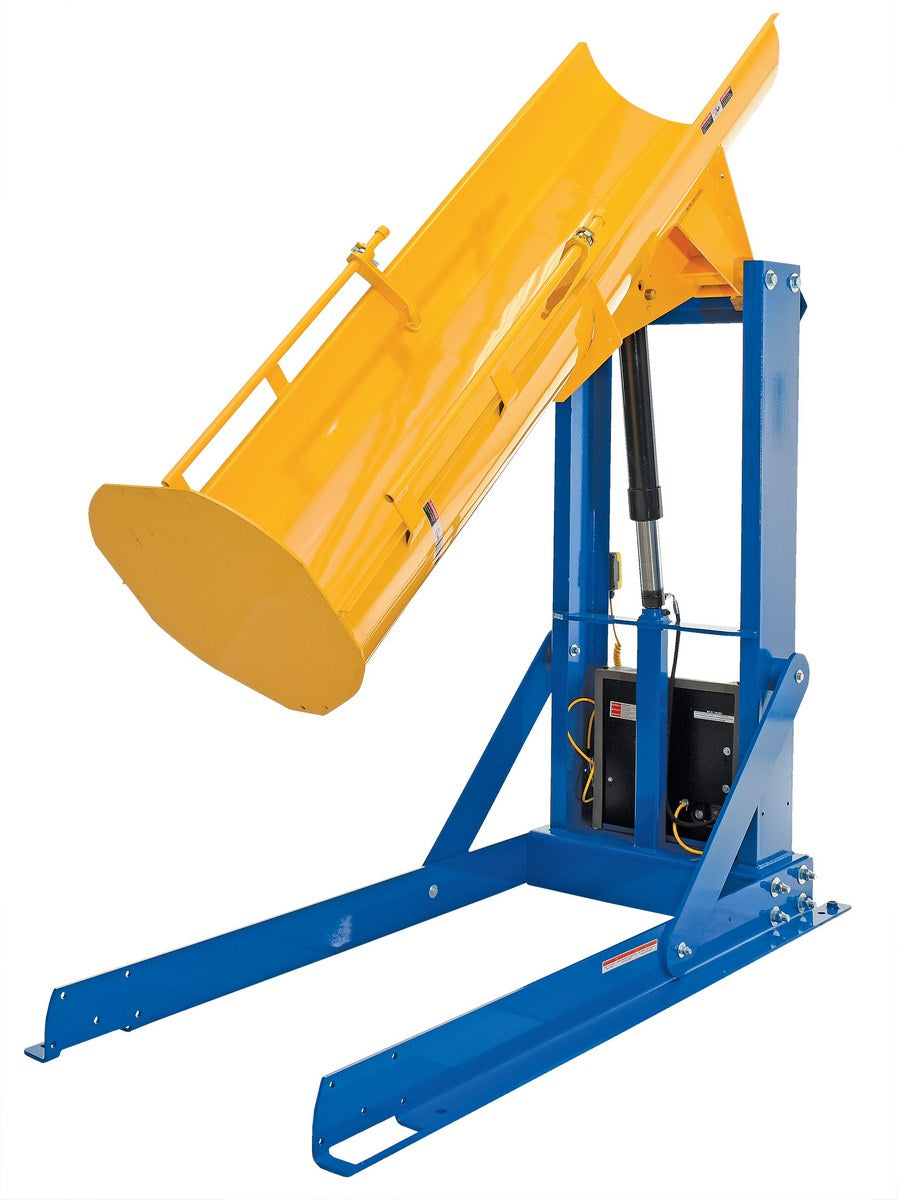

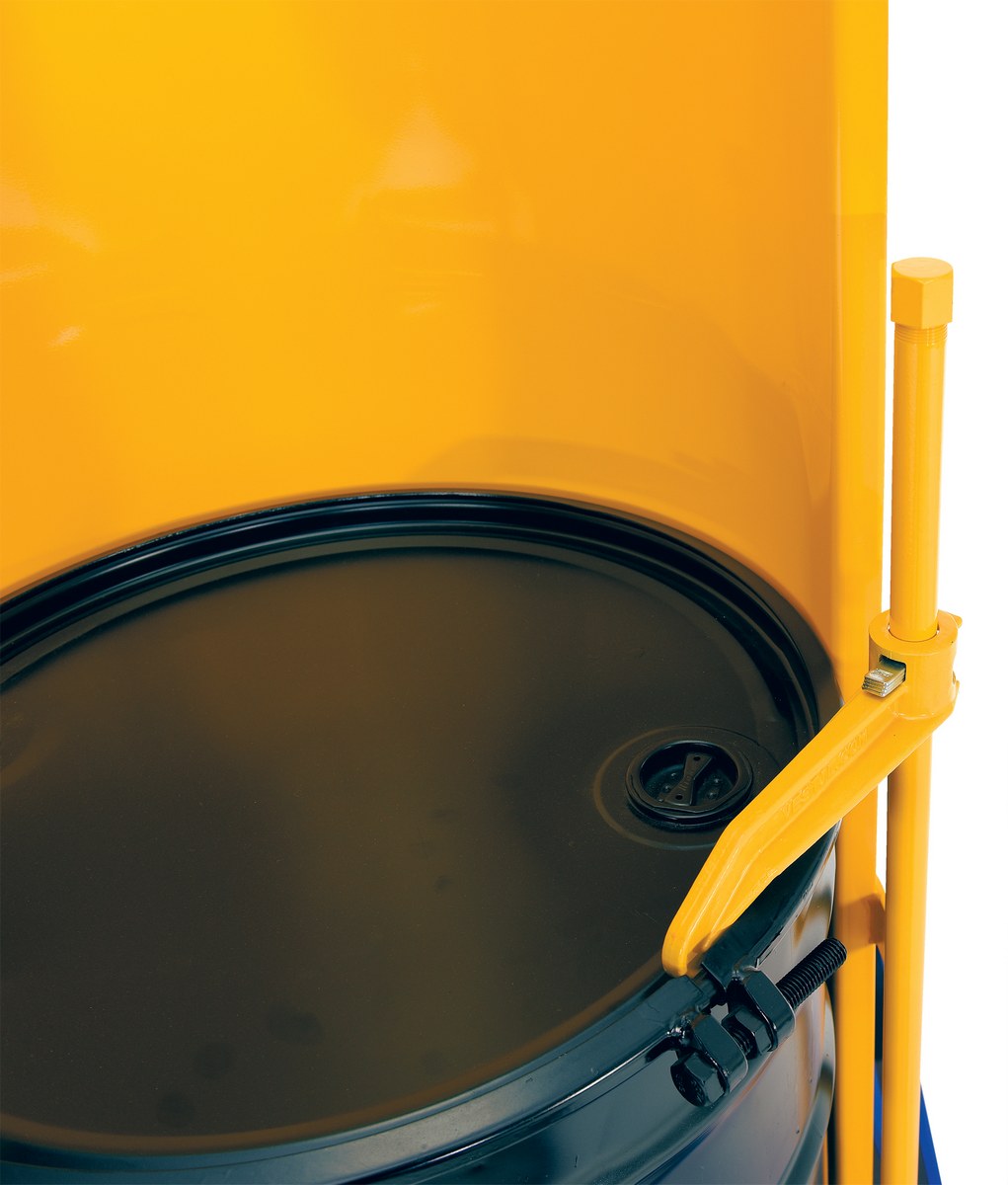

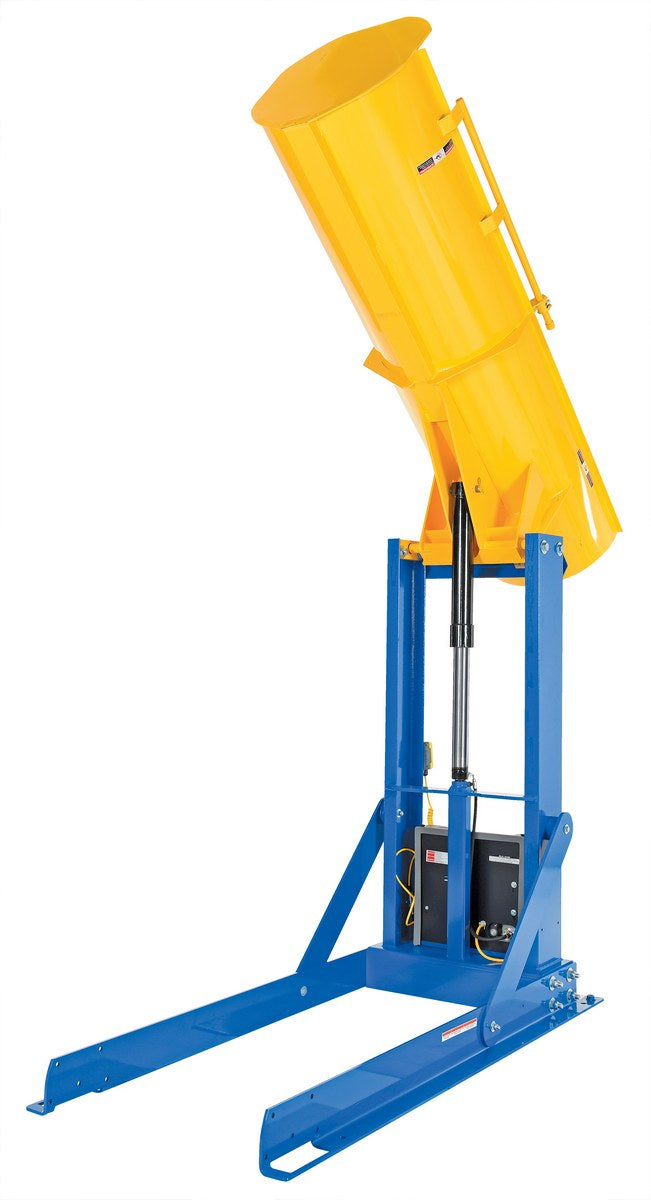

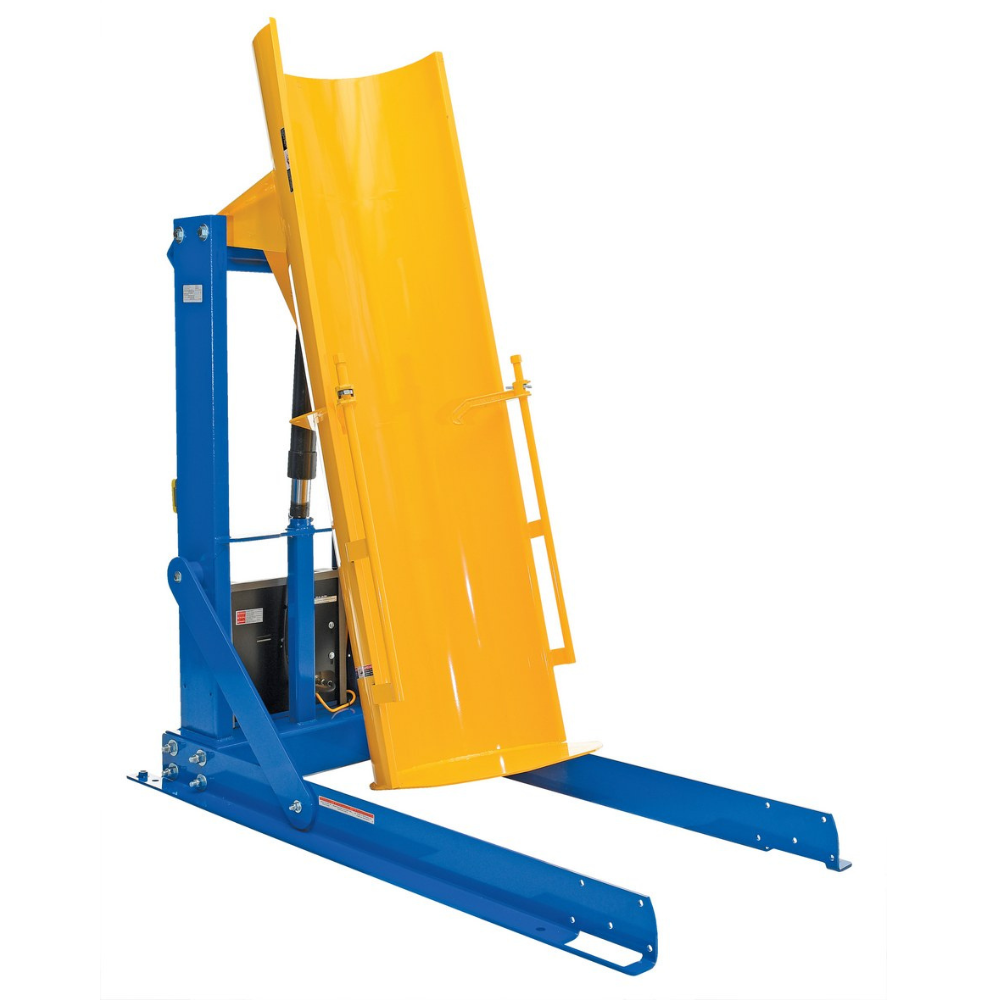

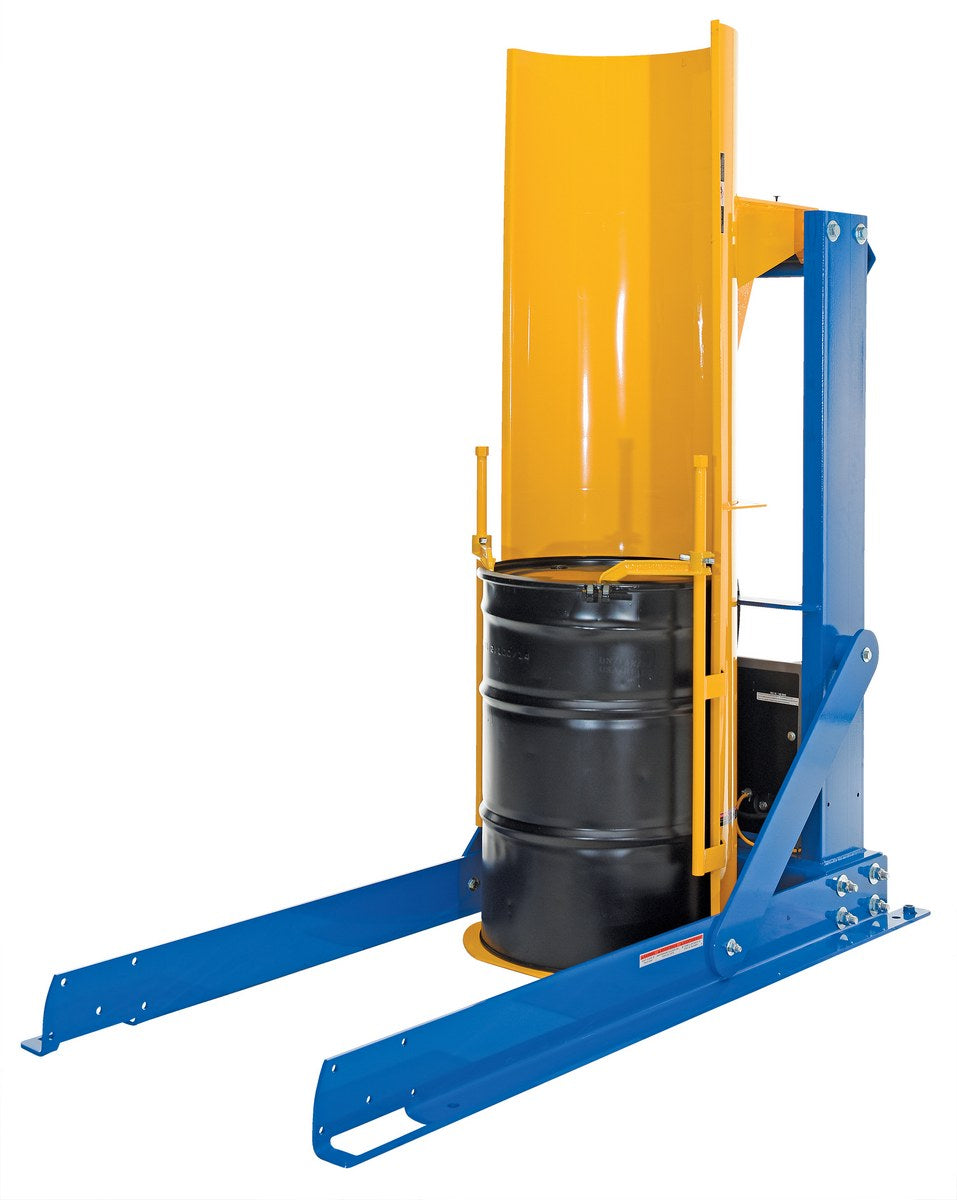

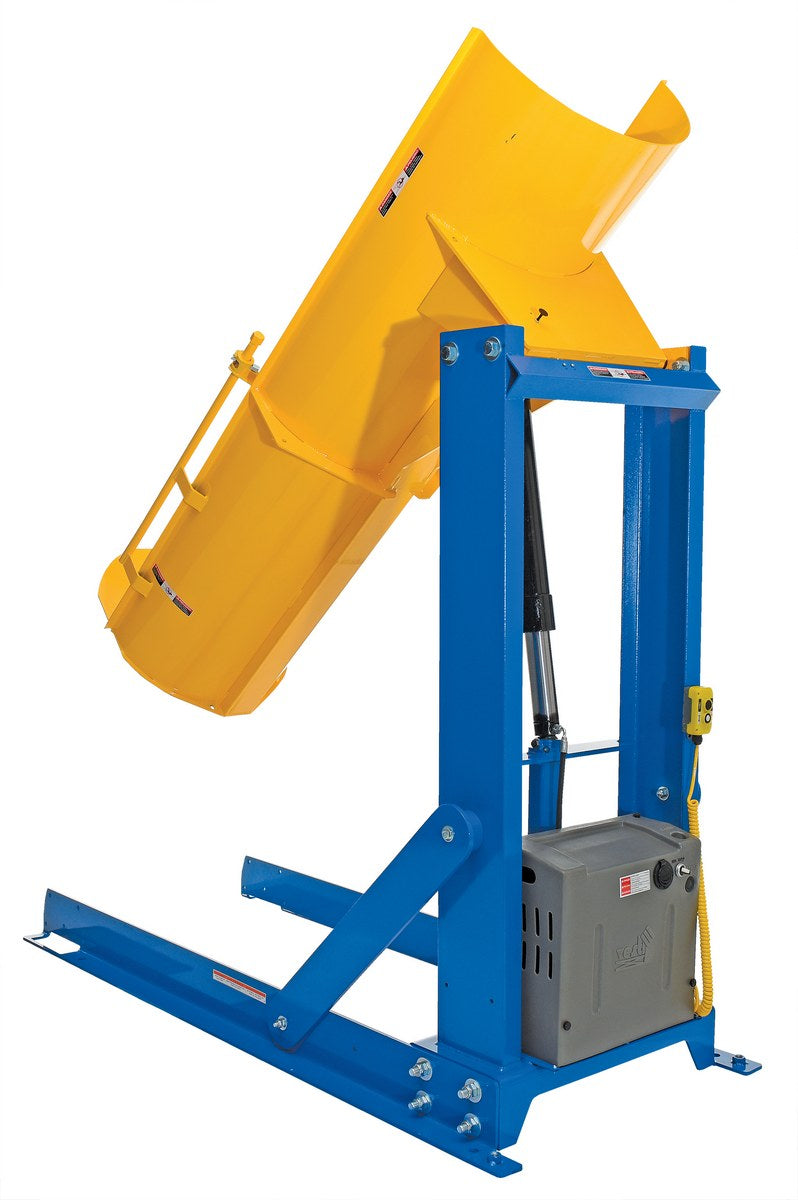

The Vestil HDD-60-10-S Stationary Hydraulic Drum Dumper provides reliable and efficient dumping of heavy drums at a 60-inch height. Built for steel, plastic, and fiber drums, the unit includes a solid steel chute and rugged all-steel construction for long-term performance. Safety features include an upper travel limit switch, a brass velocity fuse, and vertically adjustable drum restraints for secure handling. Operation is controlled by a hand-held pendant on a coil cord, allowing precise dumping at any point within its 135° rotation range.
  • Model Number: HDD-60-10-S
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 60 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary (no casters)
  • Assembled Dimensions: 80 in × 36 in × 84 in, 798 lbs
  • Package Dimensions: 96 in × 44 in × 91 in, 945 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
