Home » Steel Stationary Hydraulic Drum Dumper – 48 In. Dump Height – 750 lb Capacity – HDD-48-7-S – Vestil
Vestil

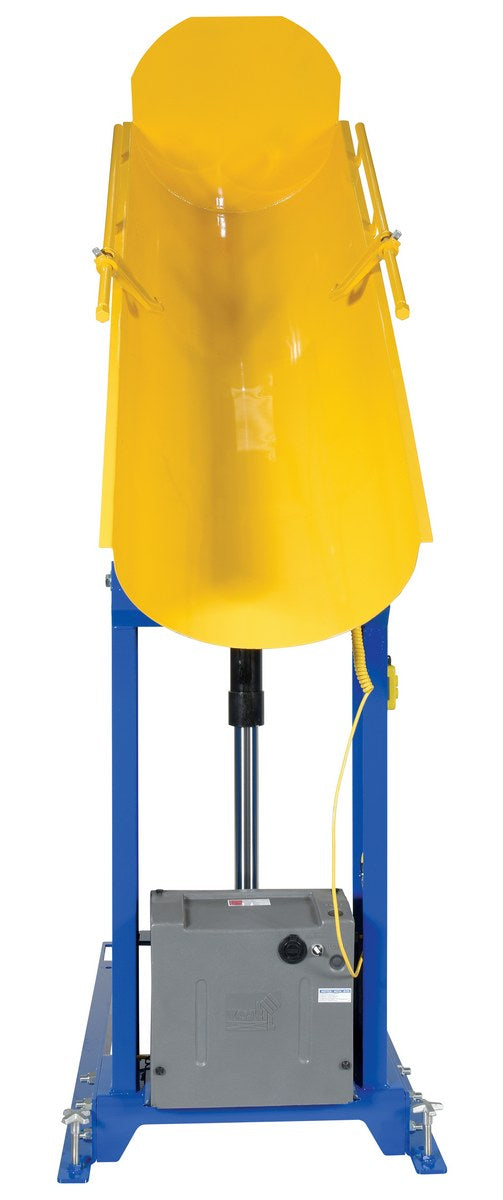

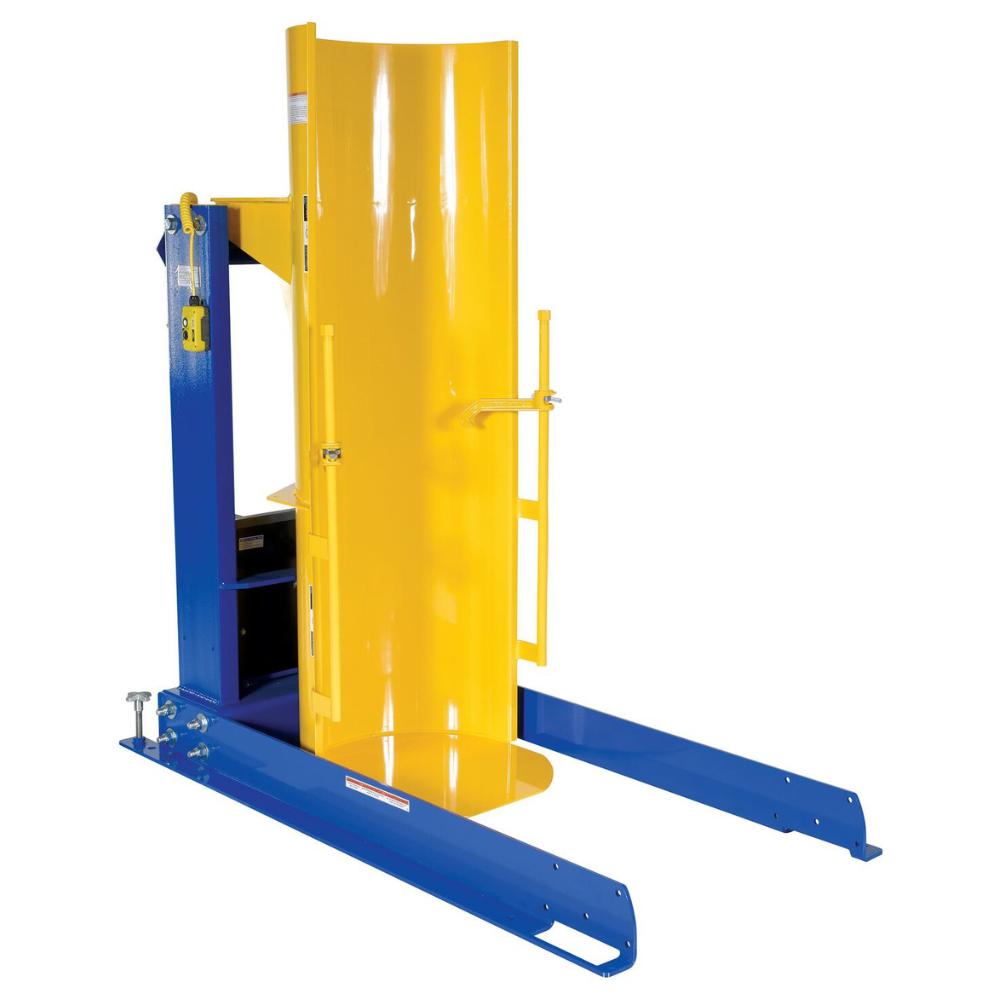

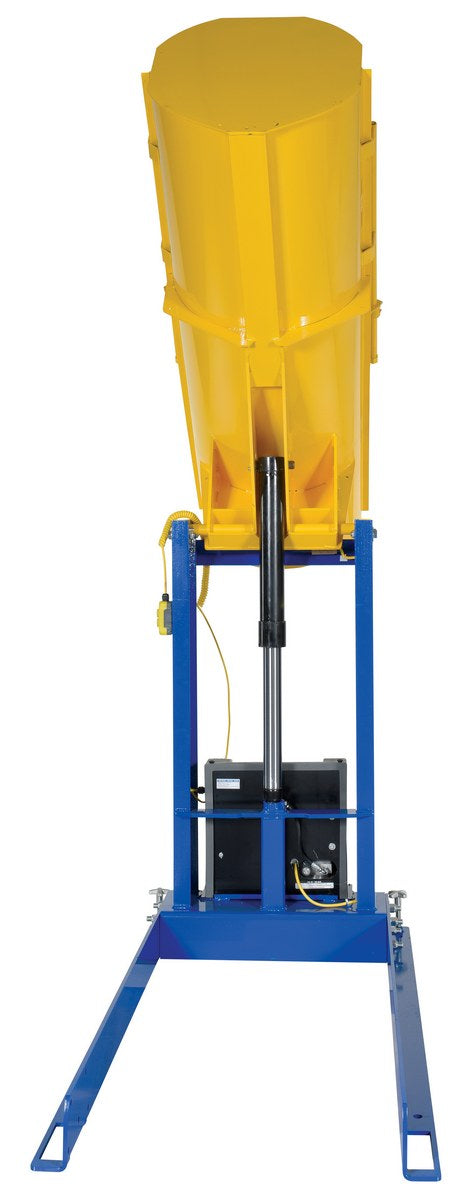

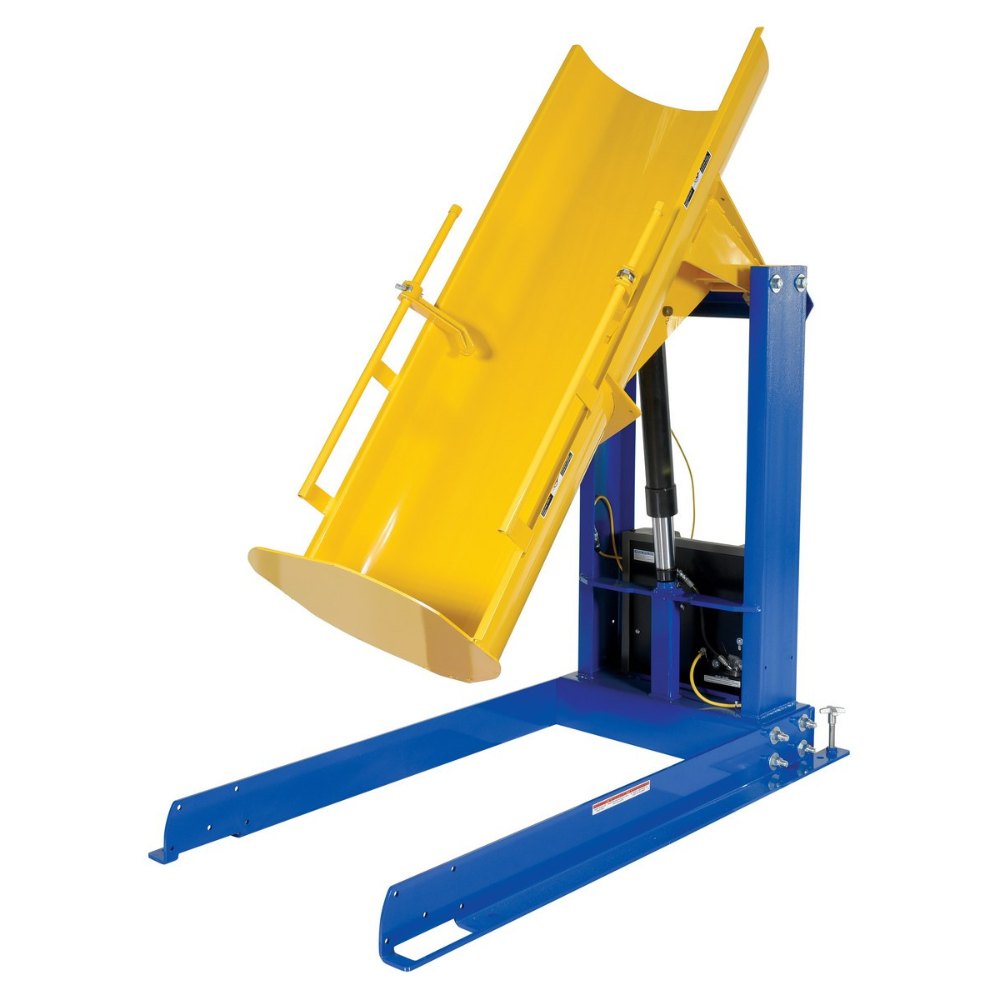

Steel Stationary Hydraulic Drum Dumper – 48 In. Dump Height – 750 lb Capacity – HDD-48-7-S – Vestil

SKU: HDD-48-7-S
$4,232.46
Estimated Lead Time:6-8 Weeks

The Vestil HDD-48-7-S Stationary Hydraulic Drum Dumper provides a safe and efficient solution for dumping heavy drums at a fixed location. Built with a heavy-duty steel frame and solid steel chute, it accommodates both steel, plastic, and fiber drums in 30 and 55 gallon sizes. This unit includes standard safety features such as an upper travel limit switch, brass velocity fuse, and vertical adjustment drum restraints. Operation is controlled by a hand-held pendant on a coiled cord, allowing precise drum rotation and stopping at any point. With a 48-inch dump height and durable construction, it ensures reliable long-term service in demanding environments.
  • Model Number: HDD-48-7-S
  • Capacity: 750 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Dump Height: 48 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 34 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Stationary
  • Assembled Dimensions: 71.5 in × 36 in × 72 in, 676 lbs
  • Package Dimensions: 78 in × 43 in × 79 in, 811 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
