1000 Lb. Steel Powered Drive & Powered Lift Hydraulic Single Scissor Cart – CART-1000-DC-CTD – Vestil

SKU: CART-1000-DC-CTD
$5,959.19
Estimated Lead Time:1-2 Weeks

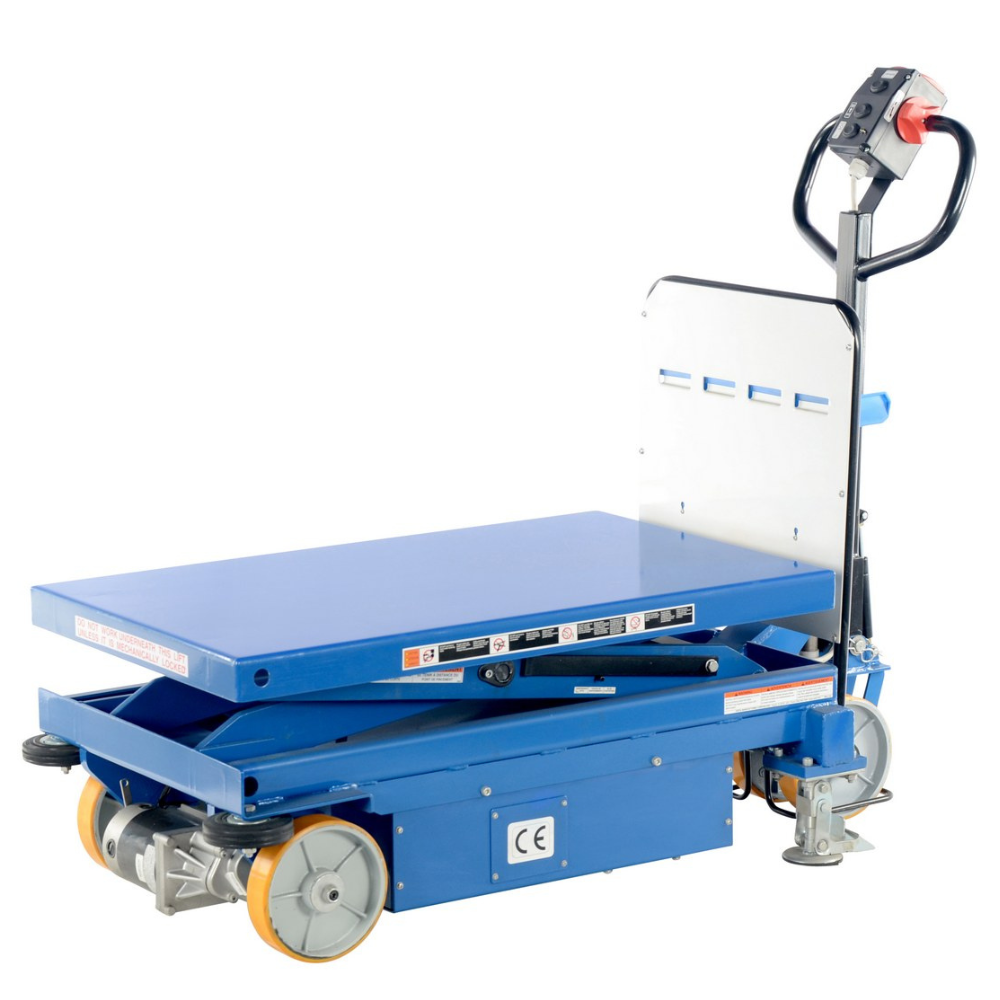

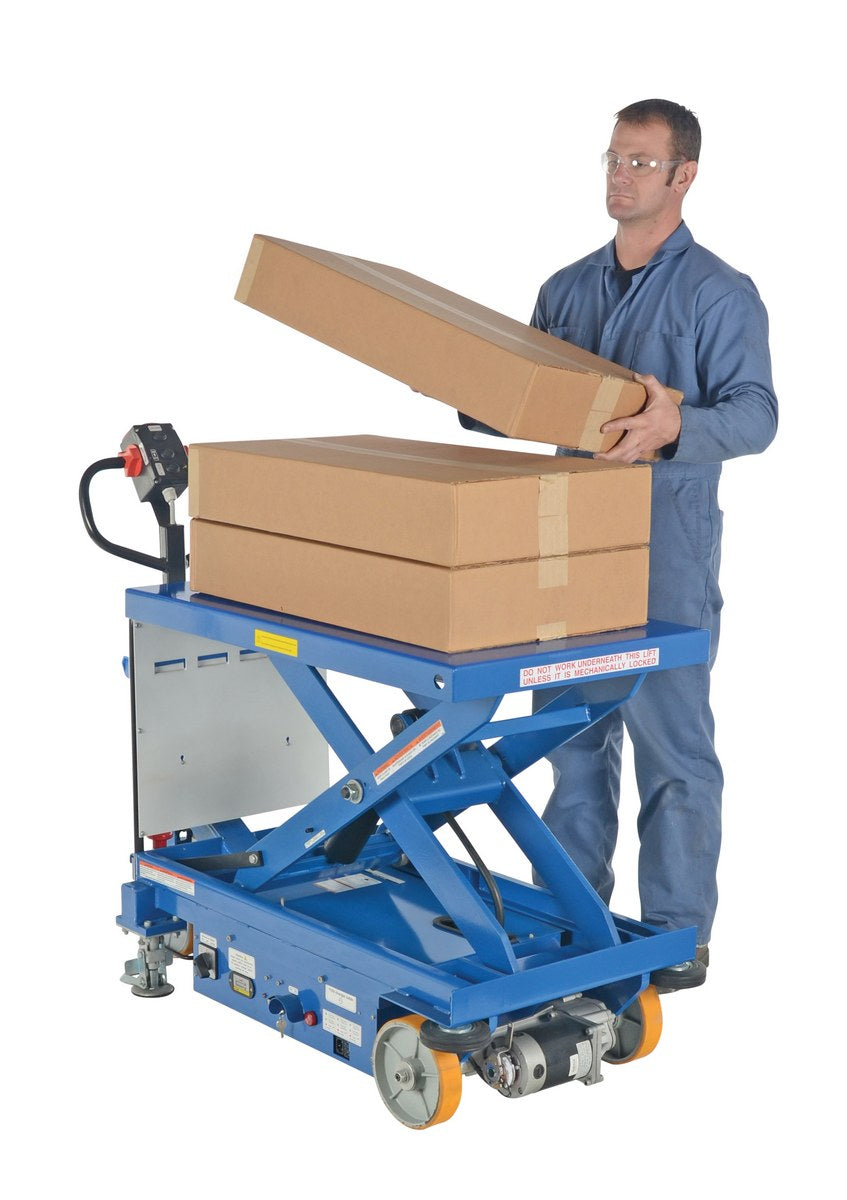

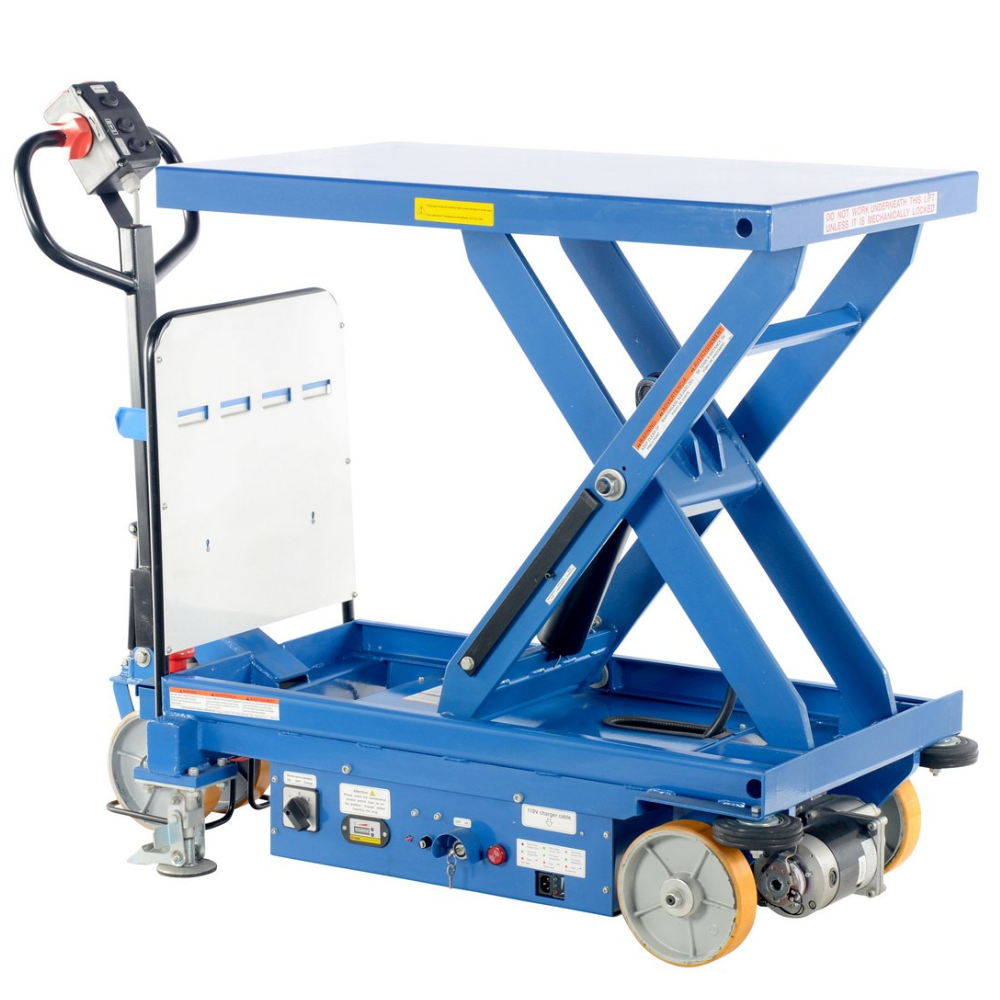

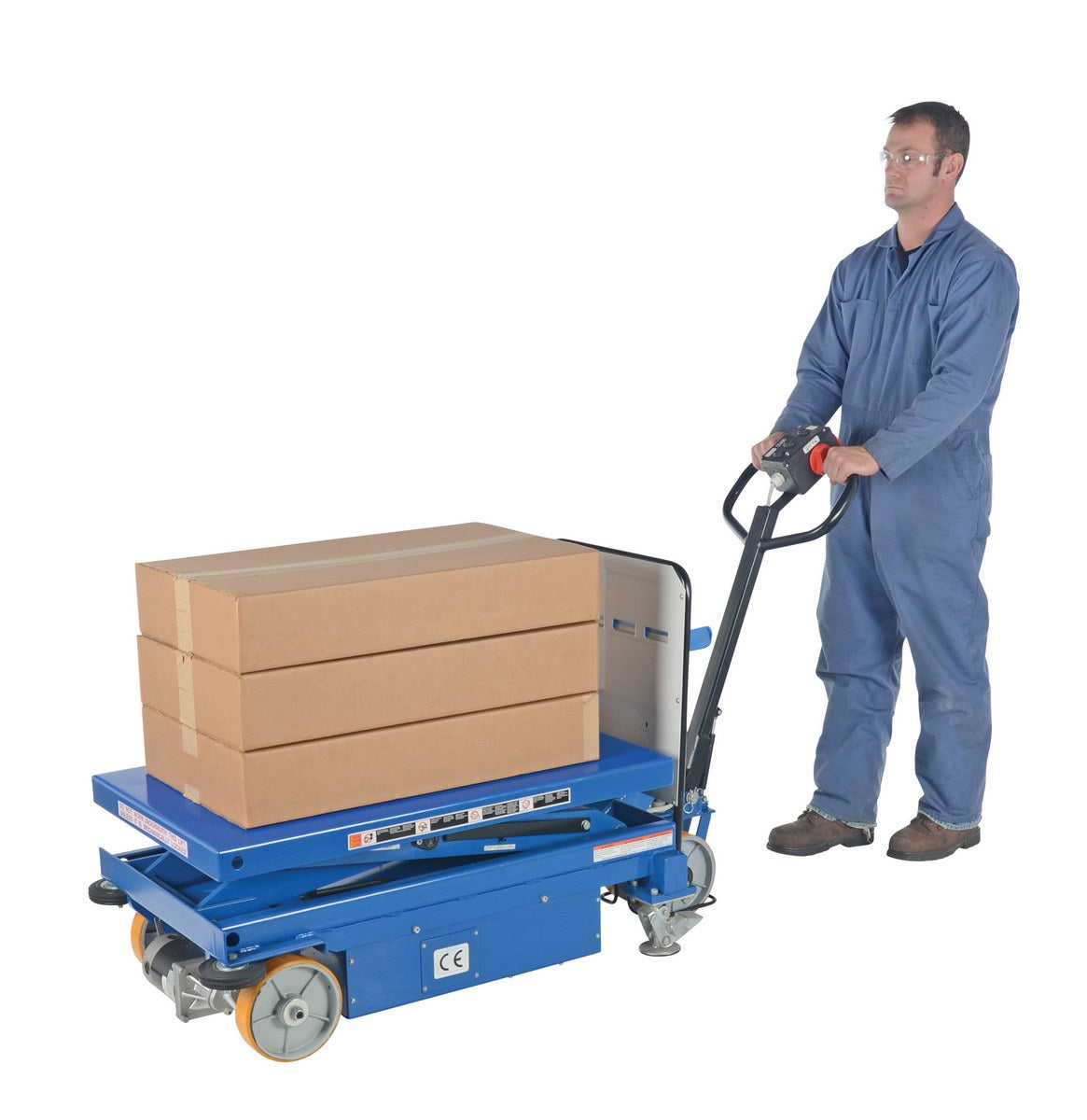

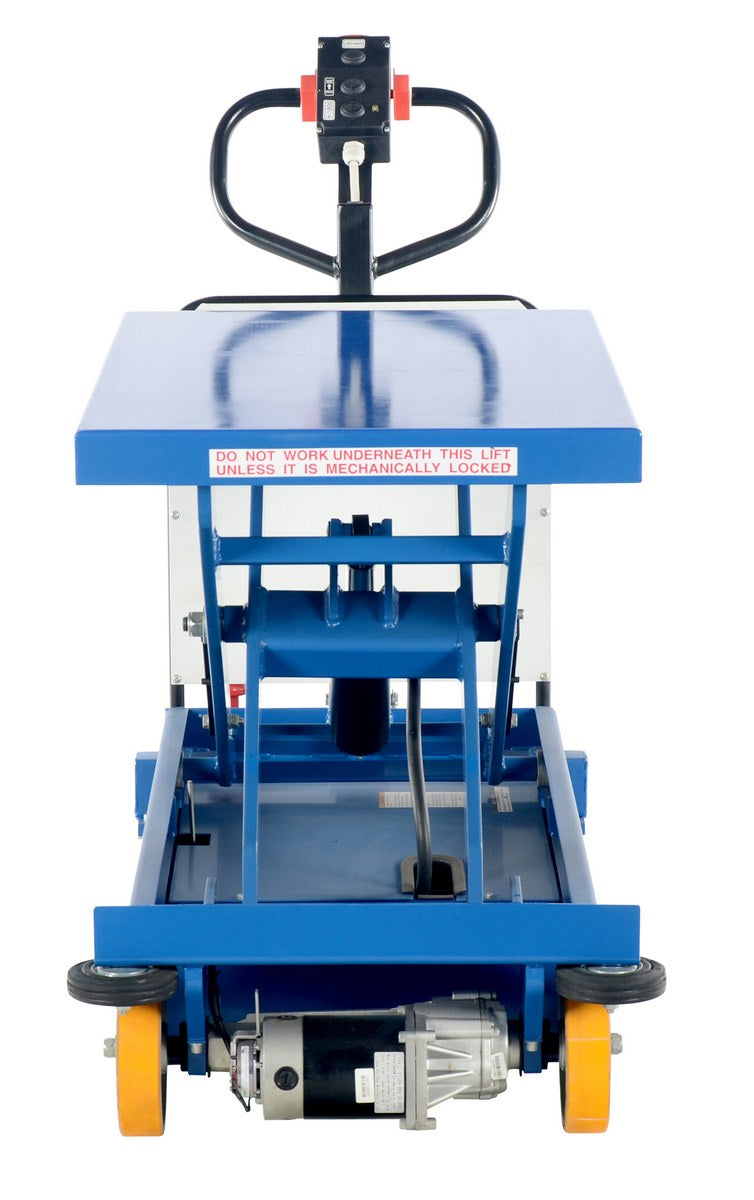

The Vestil Model CART-1000-DC-CTD is a fully powered hydraulic scissor cart designed for heavy-duty material handling. Equipped with both powered lift and powered drive, it allows operators to transport and elevate loads up to 1000 lbs with minimal effort.

A high-torque 24V DC drive system delivers variable forward and reverse travel up to 3.7 mph, while push-button lift controls raise the single scissor platform to 42.4 inches. Standard safety and convenience features include automatic braking, emergency reverse, horn, key switch, dock-level raise/lower controls, and a battery charge indicator. Poly-on-steel casters ensure smooth, quiet rolling.
  • Model Number: CART-1000-DC-CTD
  • Capacity: 1000 lbs
  • Platform Size: 24" W × 40" L, steel
  • Lift Range: 18.125" (min) to 42.375" (max), 24.25" travel
  • Overall Dimensions: 54.33" L × 26.25" W × 45.875" H
  • Frame Material: Powder-coated steel
  • Power Source: Electric – Cordless (24V DC)
  • Drive Speed: 0–3.7 mph, forward/reverse
  • Casters/Wheels: (2) front 7.875" × 2" poly-on-steel, (2) rear 7.875" × 2.5" poly-on-steel
  • Battery: (2) 12V, 70 lb wet acid batteries, integrated charger included
  • Weight: 492 lbs assembled
  • Finish: Blue

Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year (Limited – Parts)
