Steel Portable Hydraulic Drum Dumper – 72 In. Dump Height – 1,000 lb Capacity – HDD-72-10-P – Vestil

SKU: HDD-72-10-P
$5,178.13
Estimated Lead Time:6-8 Weeks

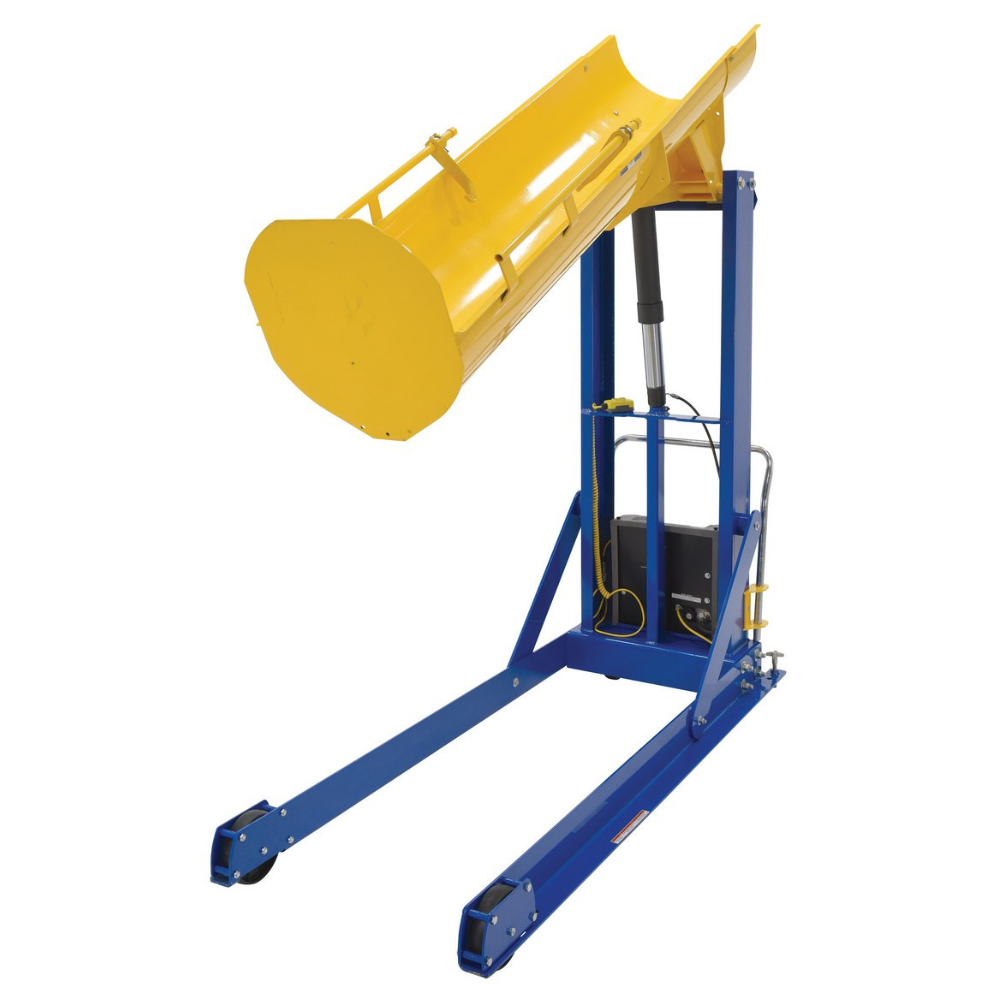

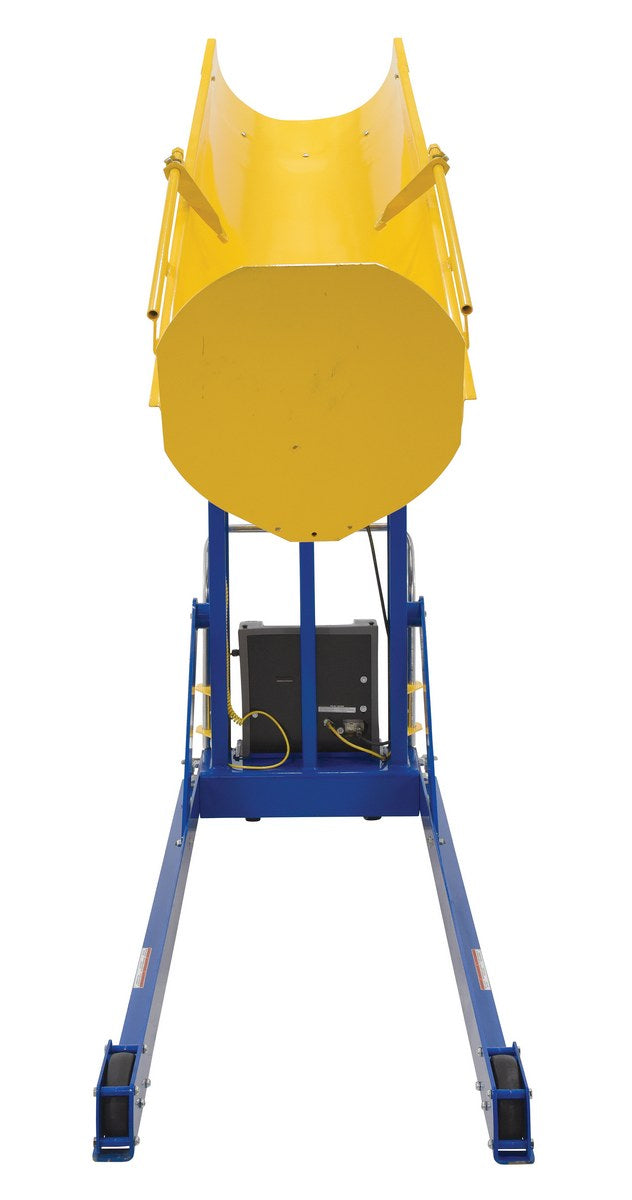

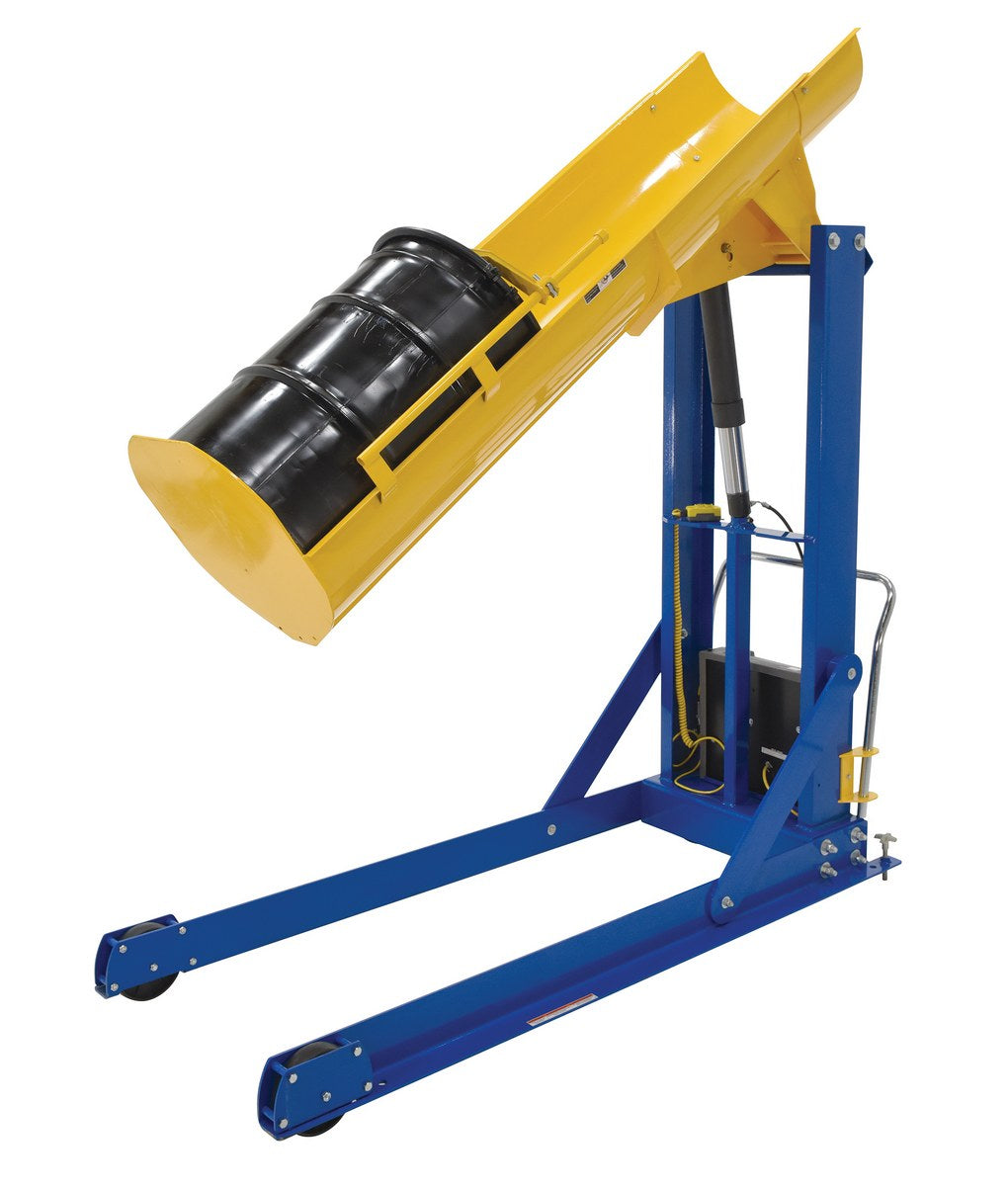

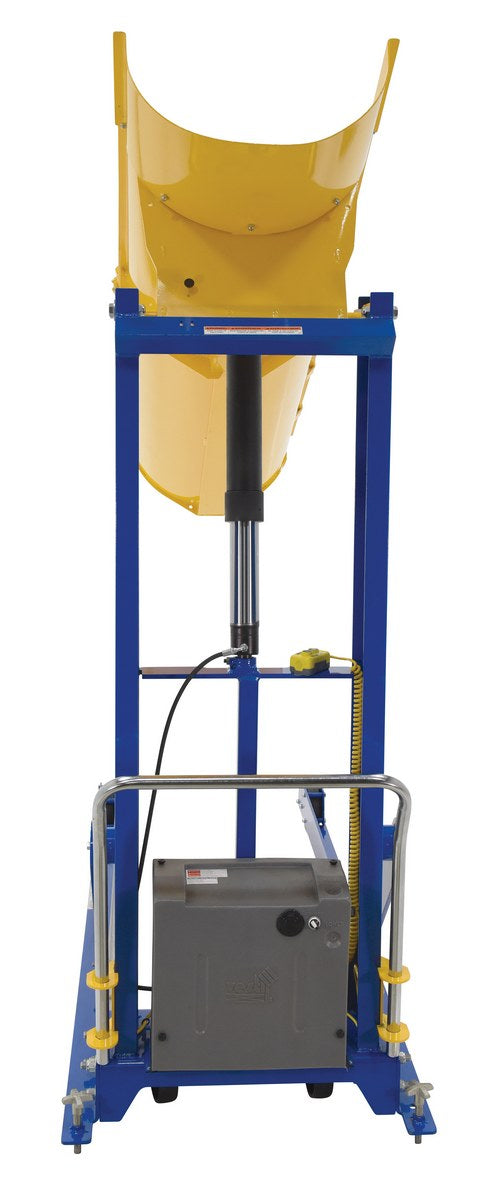

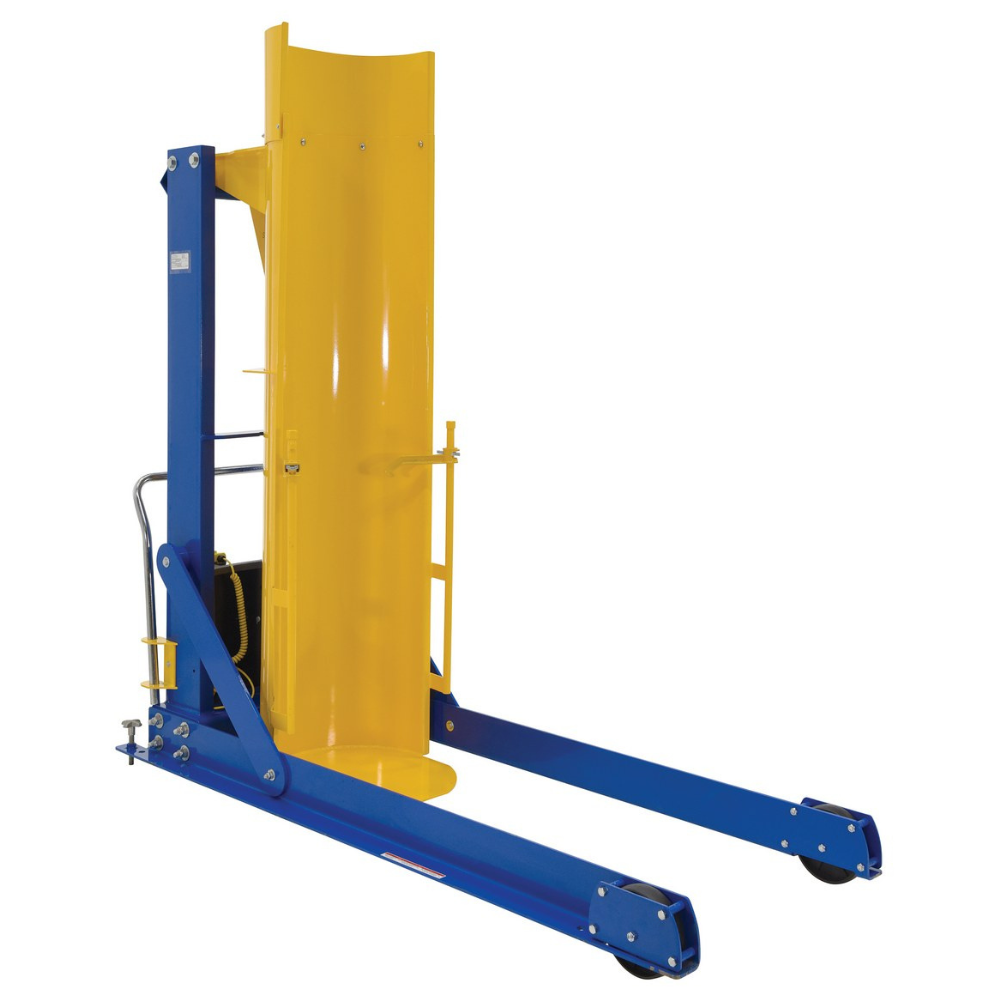

The Vestil HDD-72-10-P Portable Hydraulic Drum Dumper is designed for safe and efficient dumping of heavy drums at a 72-inch height. Built with a heavy-duty steel frame and solid steel chute, this unit provides reliable performance for steel, plastic, and fiber drums. Standard safety features include an upper travel limit switch, a brass safety velocity fuse in the cylinder, and adjustable drum restraints. The dumper is operated with a hand-held control on a coil cord and mounted on casters with floor locks for portability. The drum rotation can be stopped at any point, ensuring controlled and precise operation.
  • Model Number: HDD-72-10-P
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 72 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 13.5 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Portable (with casters & floor lock)
  • Assembled Dimensions: 92 in × 36 in × 96 in, 963 lbs
  • Package Dimensions: 96 in × 44 in × 90 in, 1,064 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
