Steel Portable Hydraulic Drum Dumper – 60 In. Dump Height – 1,000 lb Capacity – HDD-60-10-P – Vestil

SKU: HDD-60-10-P
$5,096.20
Estimated Lead Time:6-8 Weeks

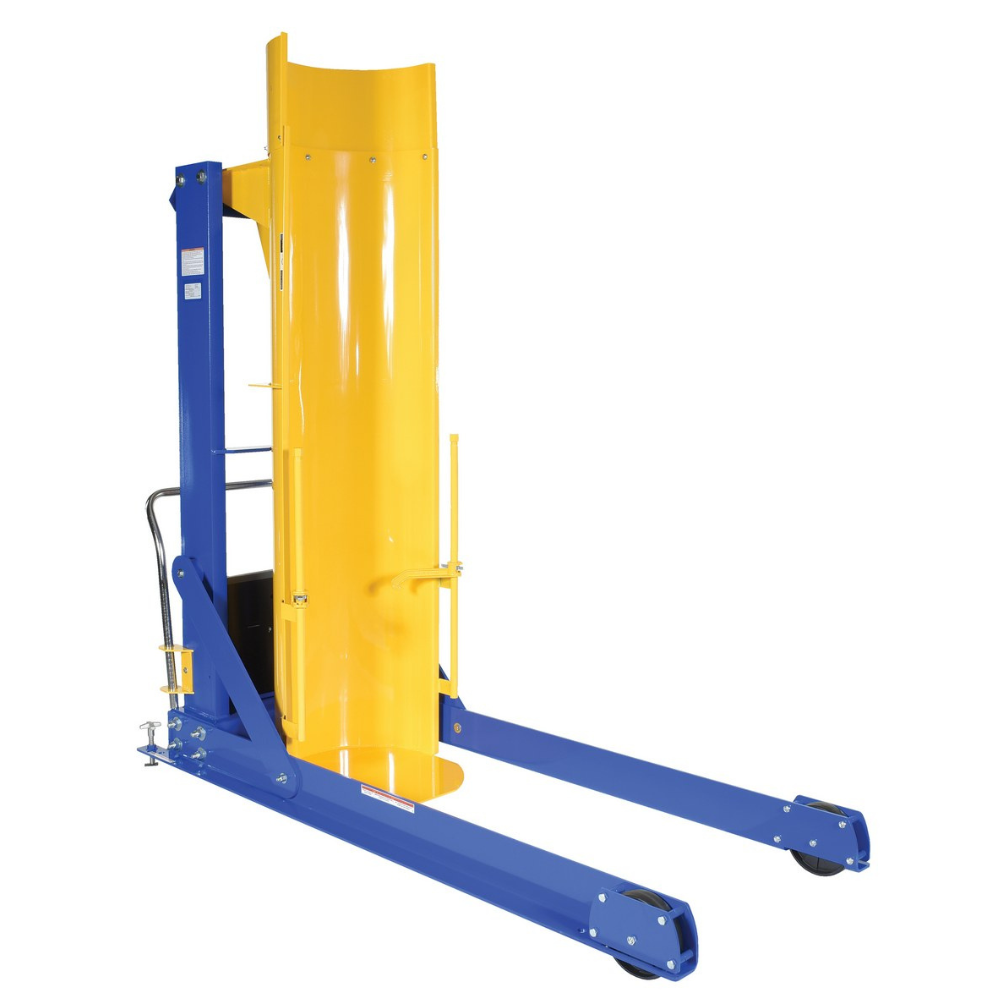

The Vestil HDD-60-10-P Portable Hydraulic Drum Dumper provides safe and efficient dumping of heavy drums at a 60-inch height. Designed for steel, plastic, and fiber drums, the unit features a solid steel chute and rugged all-steel construction for long-term reliability. Equipped with casters and floor lock screws, it allows for easy mobility and secure positioning during operation. Safety features include an upper travel limit switch and a brass velocity fuse. Drum restraints are vertically adjustable to ensure secure handling, and a hand-held pendant control on a coil cord provides simple, reliable operation.
  • Model Number: HDD-60-10-P
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Maximum Dump Height: 60 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Portable with (2) rigid 8 in × 2 in casters and (2) swivel 6 in × 2 in casters
  • Assembled Dimensions: 80 in × 36 in × 84.5 in, 887 lbs
  • Package Dimensions: 96 in × 44 in × 90 in, 980 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
