Steel Portable Hydraulic Drum Dumper – 48 In. Dump Height – 1,500 lb Capacity – HDD-48-15-P – Vestil

SKU: HDD-48-15-P
$5,215.21
Estimated Lead Time:6-8 Weeks

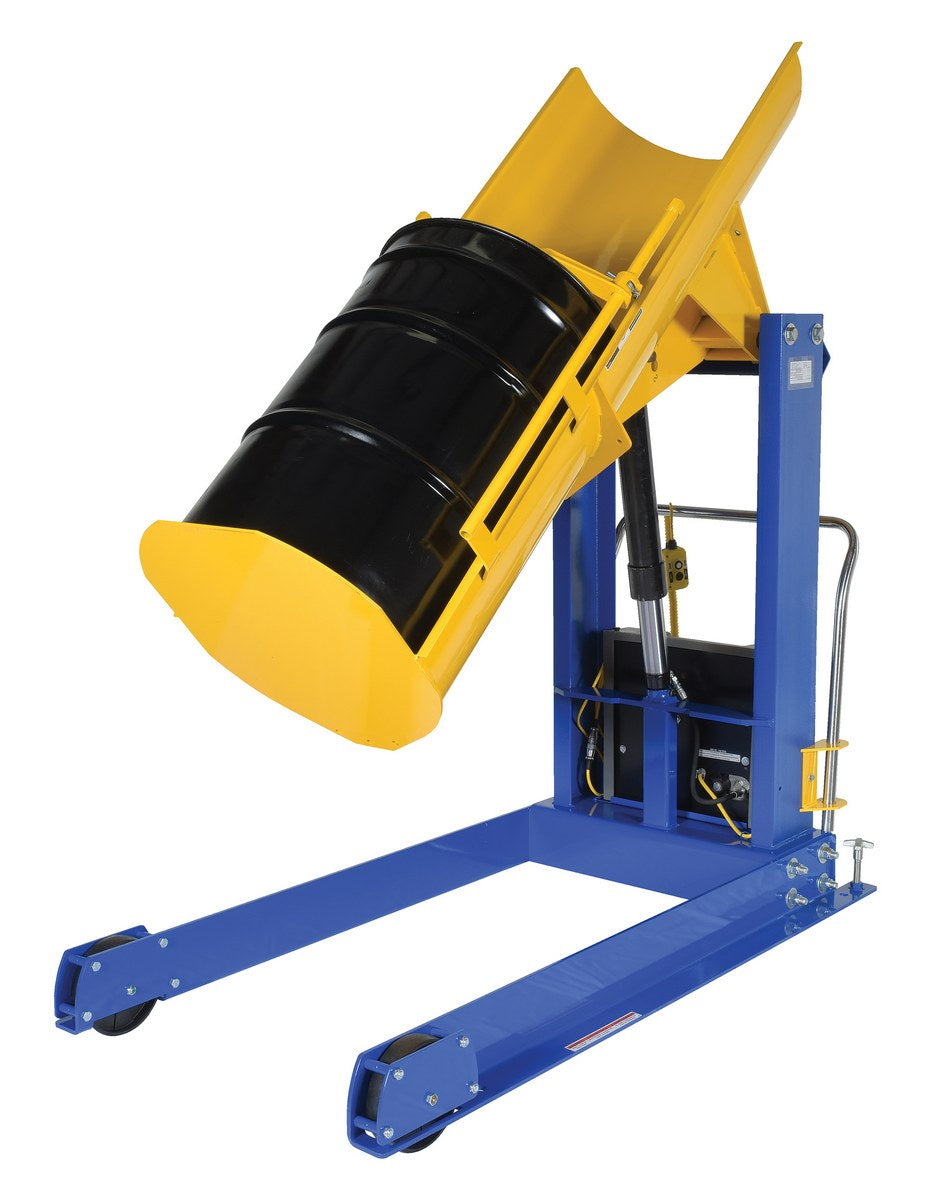

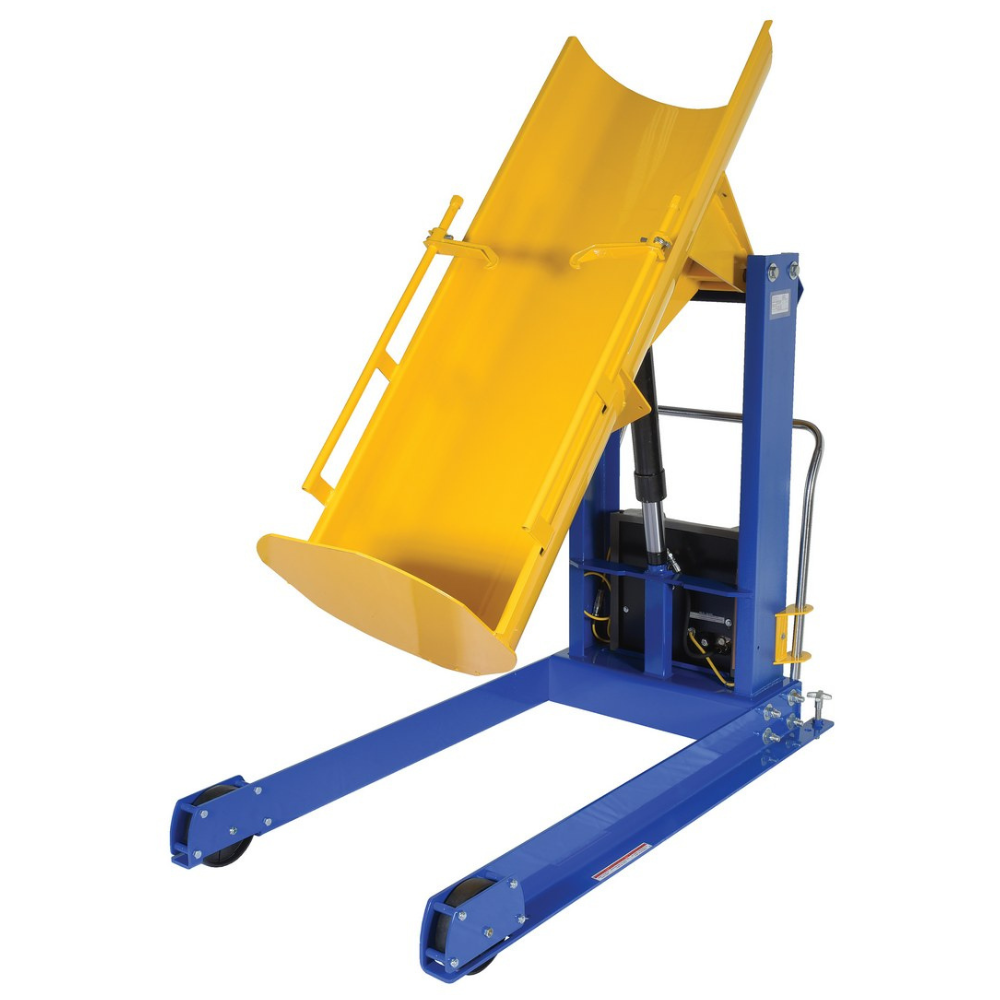

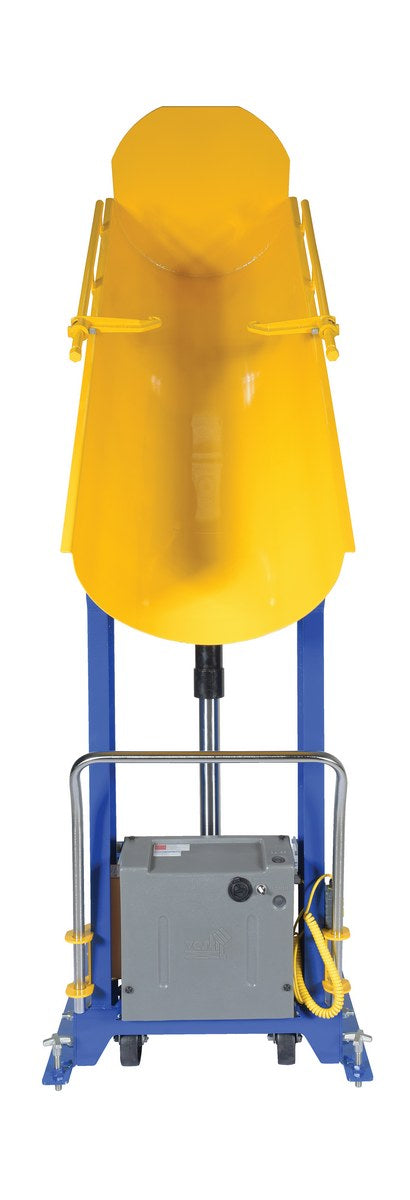

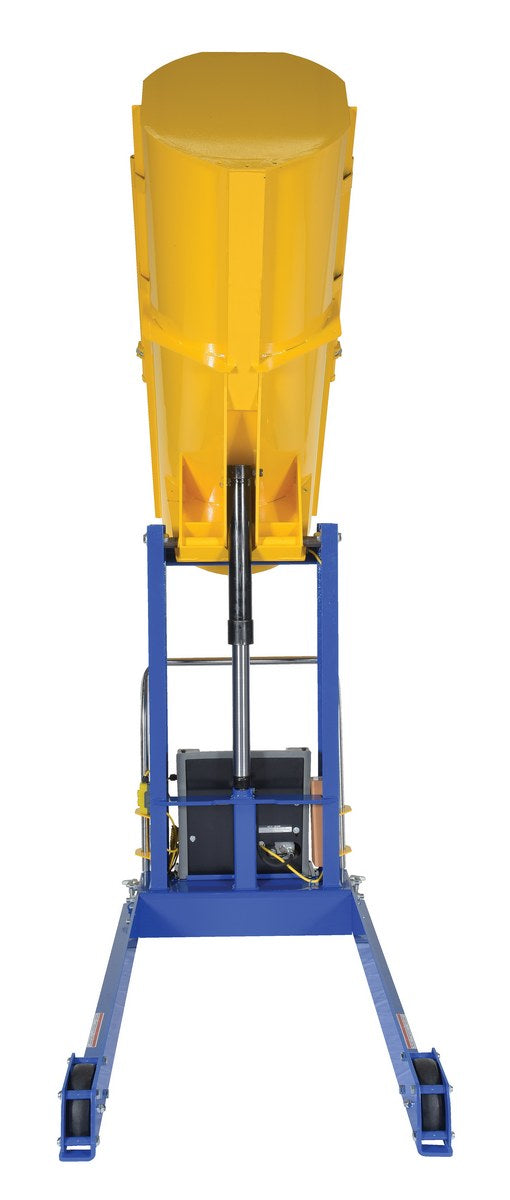

The Vestil HDD-48-15-P Portable Hydraulic Drum Dumper is built to safely and efficiently handle the dumping of heavy drums. Constructed with a solid steel chute and all-steel frame, it provides strength and long-term reliability. This unit accommodates steel, plastic, and fiber drums with adjustable drum restraints for secure handling. The portable design includes heavy-duty casters and floor lock screws for stability during use. Standard features include an upper travel limit switch, a velocity fuse in the hydraulic cylinder, and a hand-held pendant control with coil cord for operator convenience.
  • Model Number: HDD-48-15-P
  • Capacity: 1,500 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Dump Height: 48 in
  • Dump Angle: 45° (135° rotation)
  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Portable (casters with floor locks)
  • Assembled Dimensions: 71.5 in × 36 in × 72.5 in, 761 lbs
  • Package Dimensions: 88 in × 44 in × 78 in, 880 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
