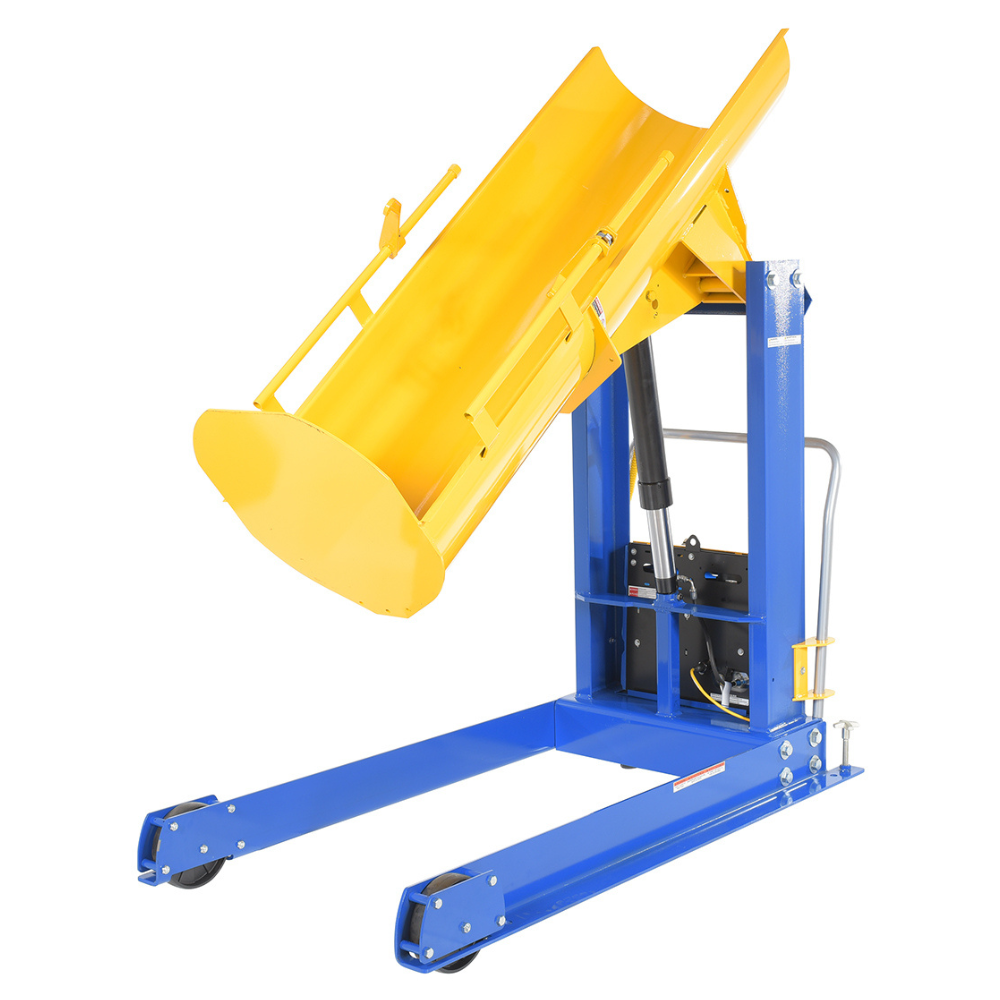

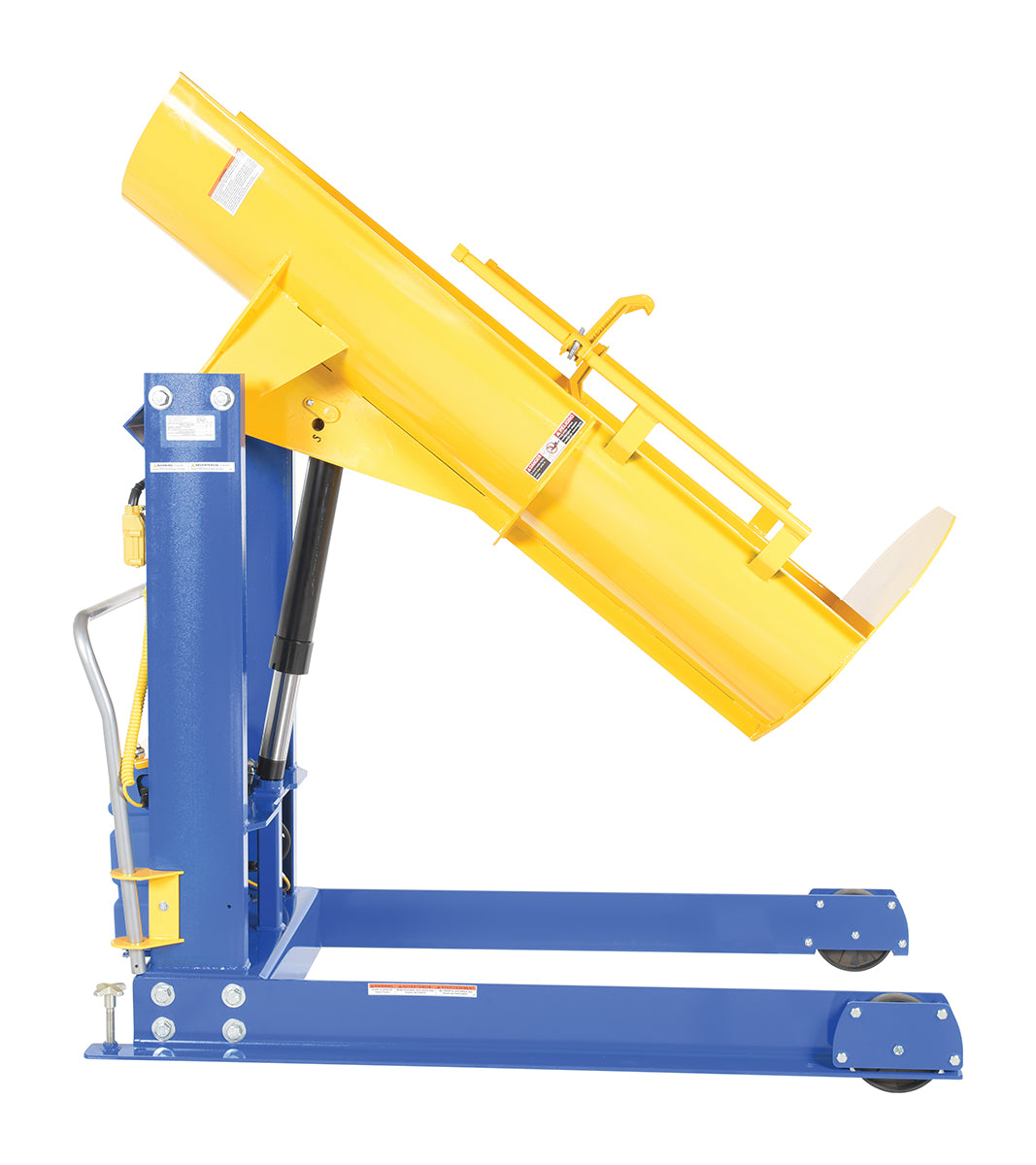

Steel Portable Hydraulic Drum Dumper – 48 In. Dump Height – 1,000 lb Capacity – HDD-48-10-P – Vestil

SKU: HDD-48-10-P
$4,752.99
Estimated Lead Time:6-8 Weeks

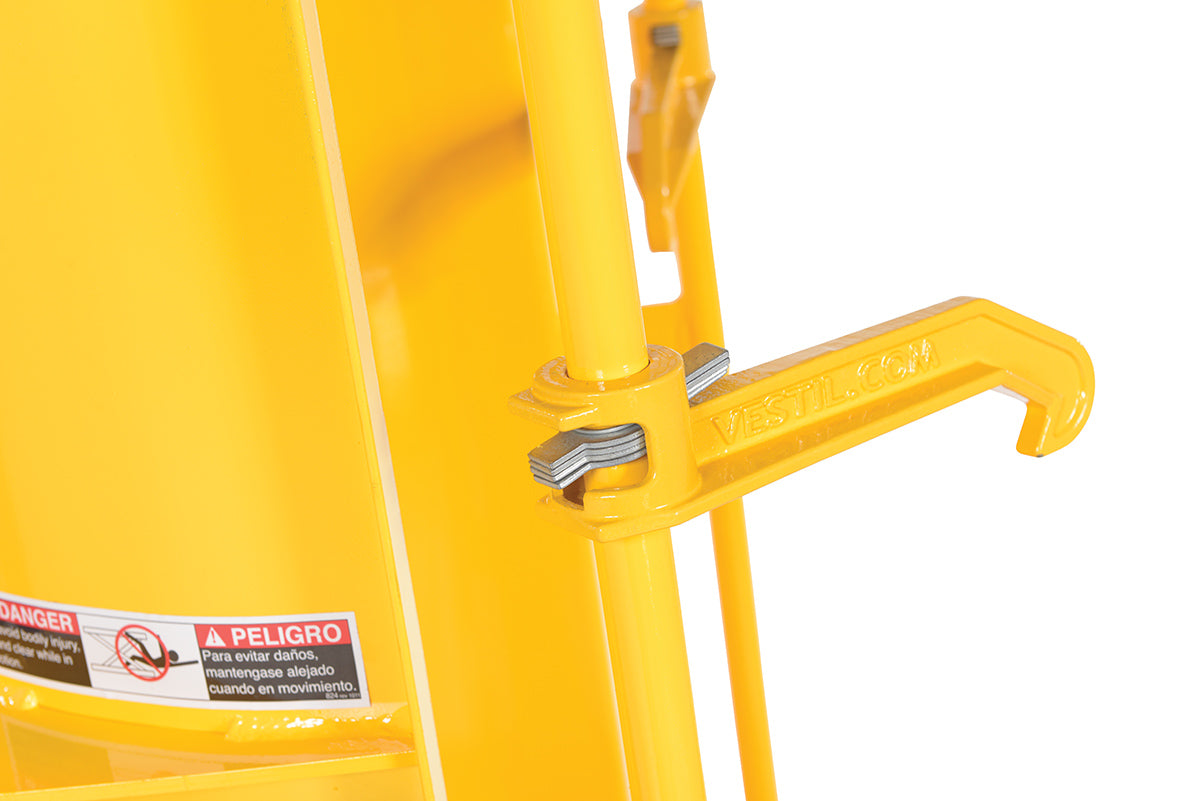

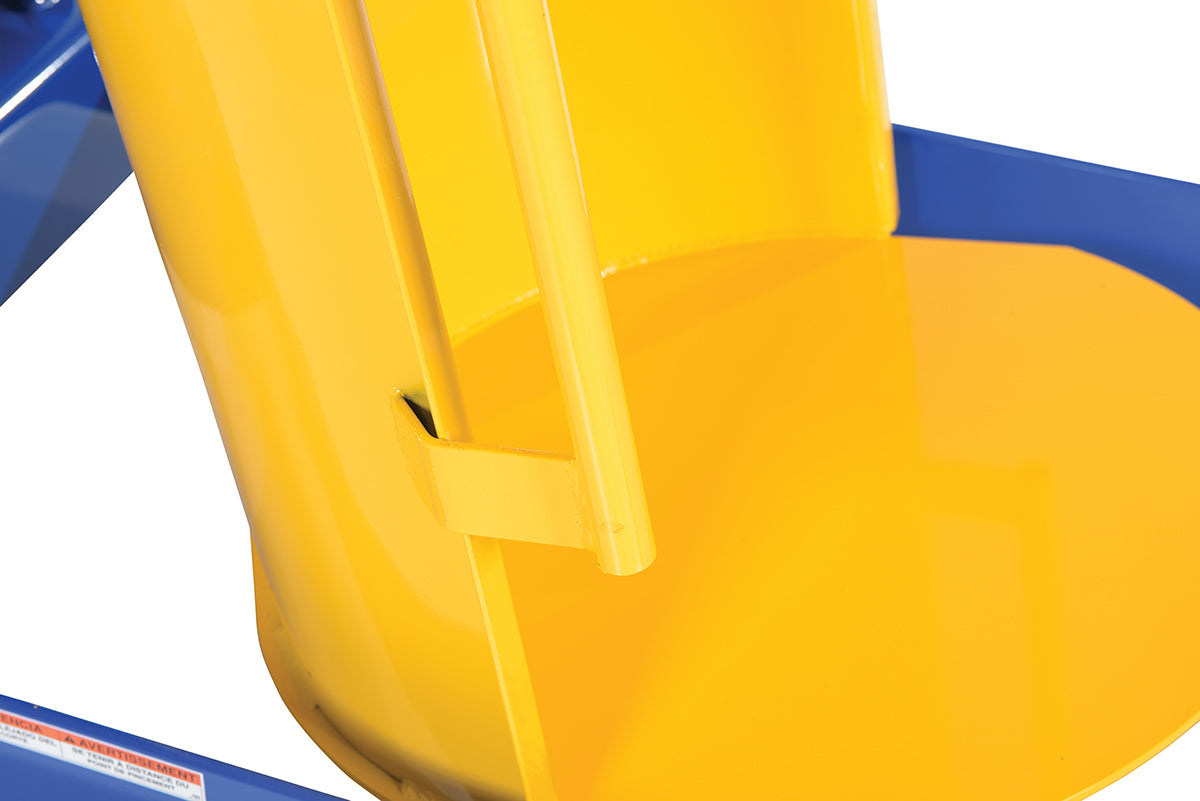

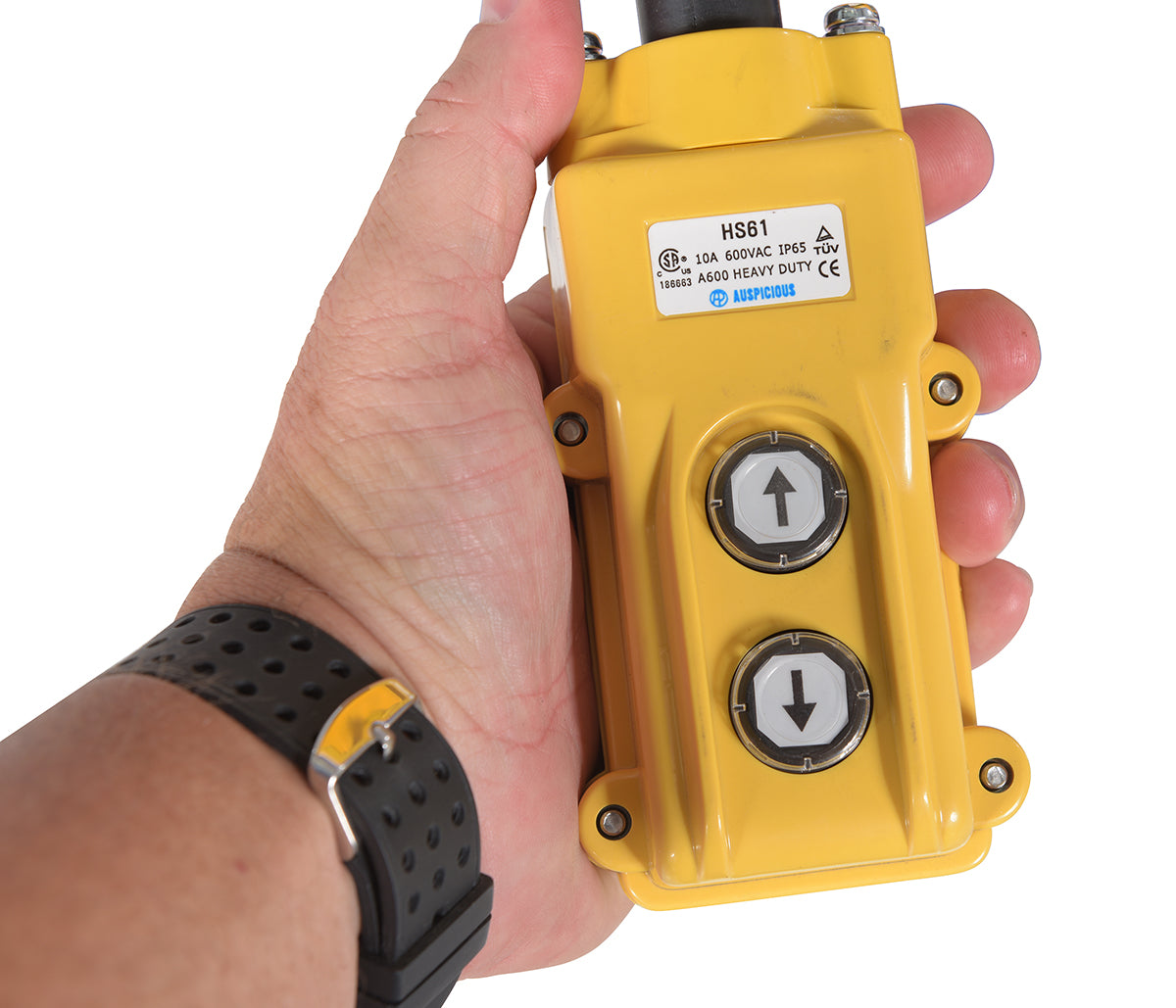

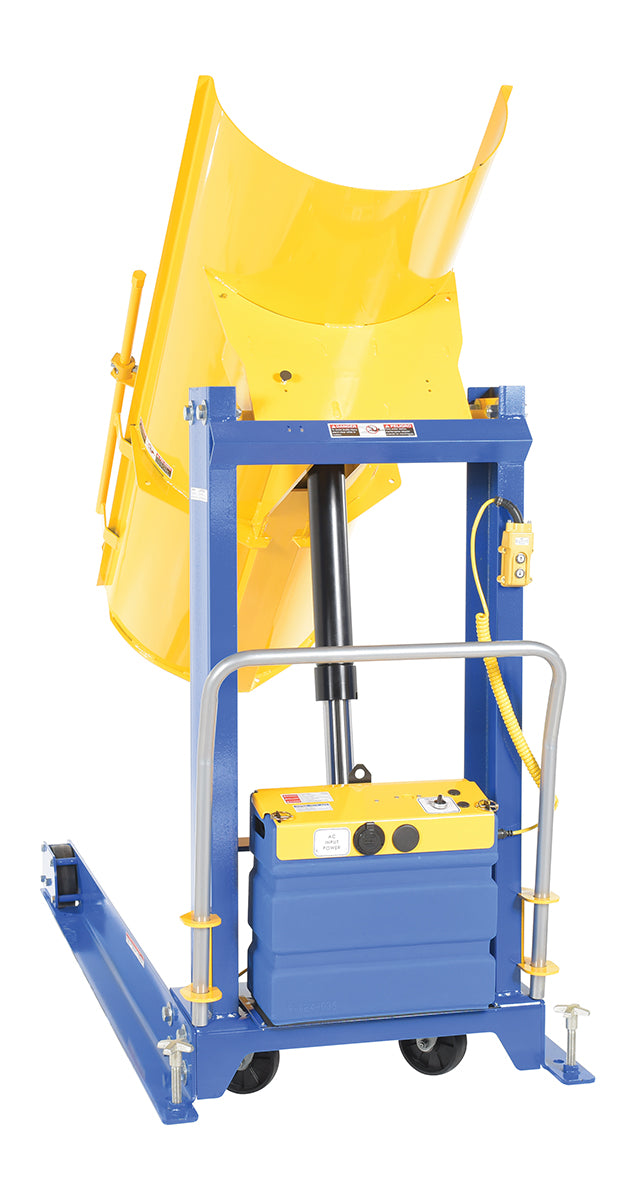

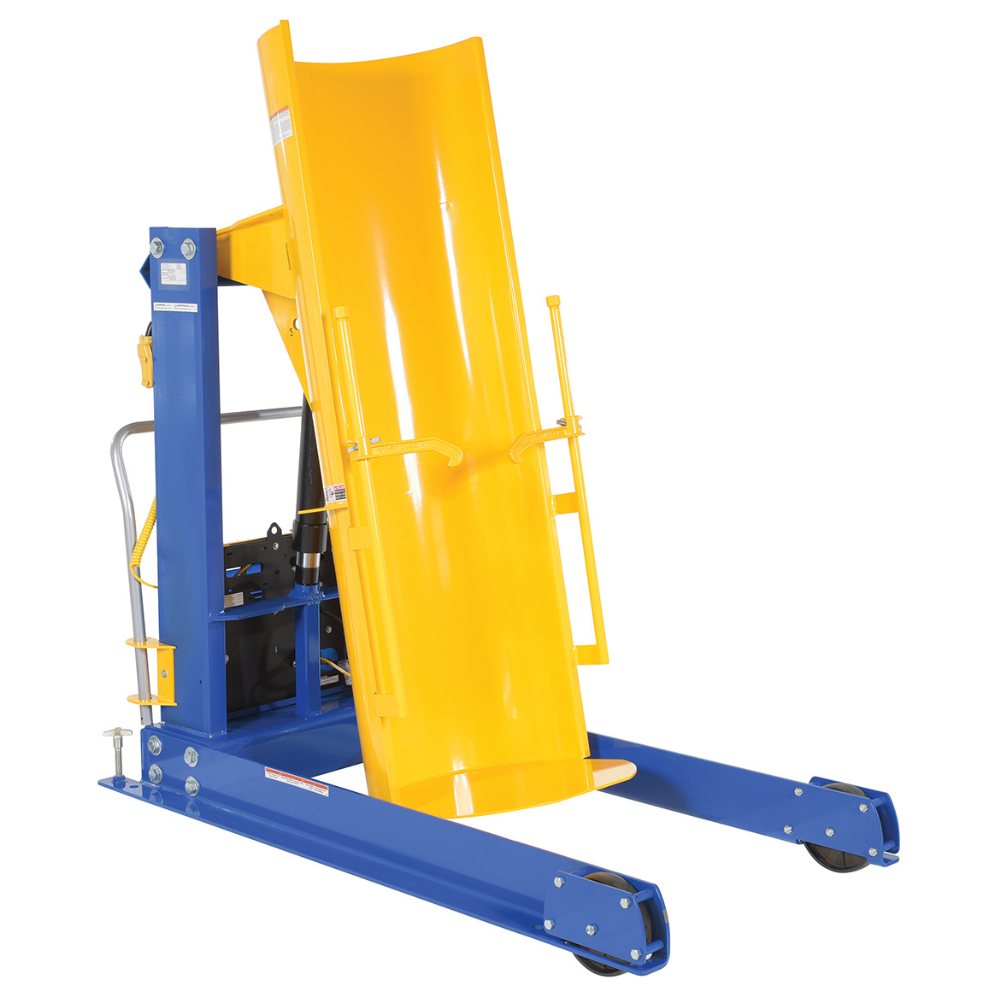

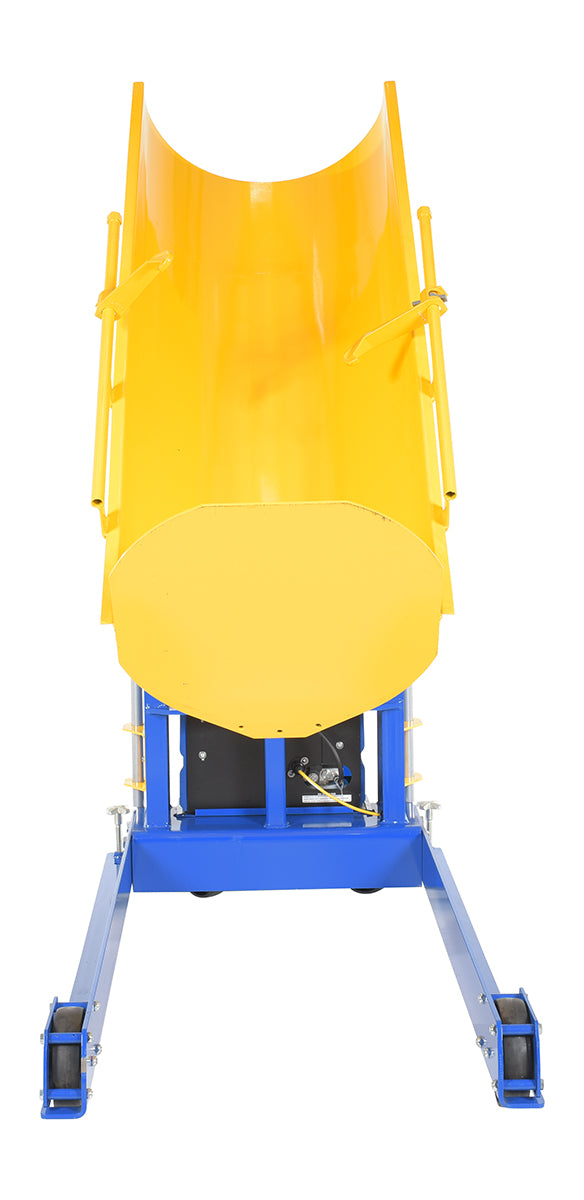

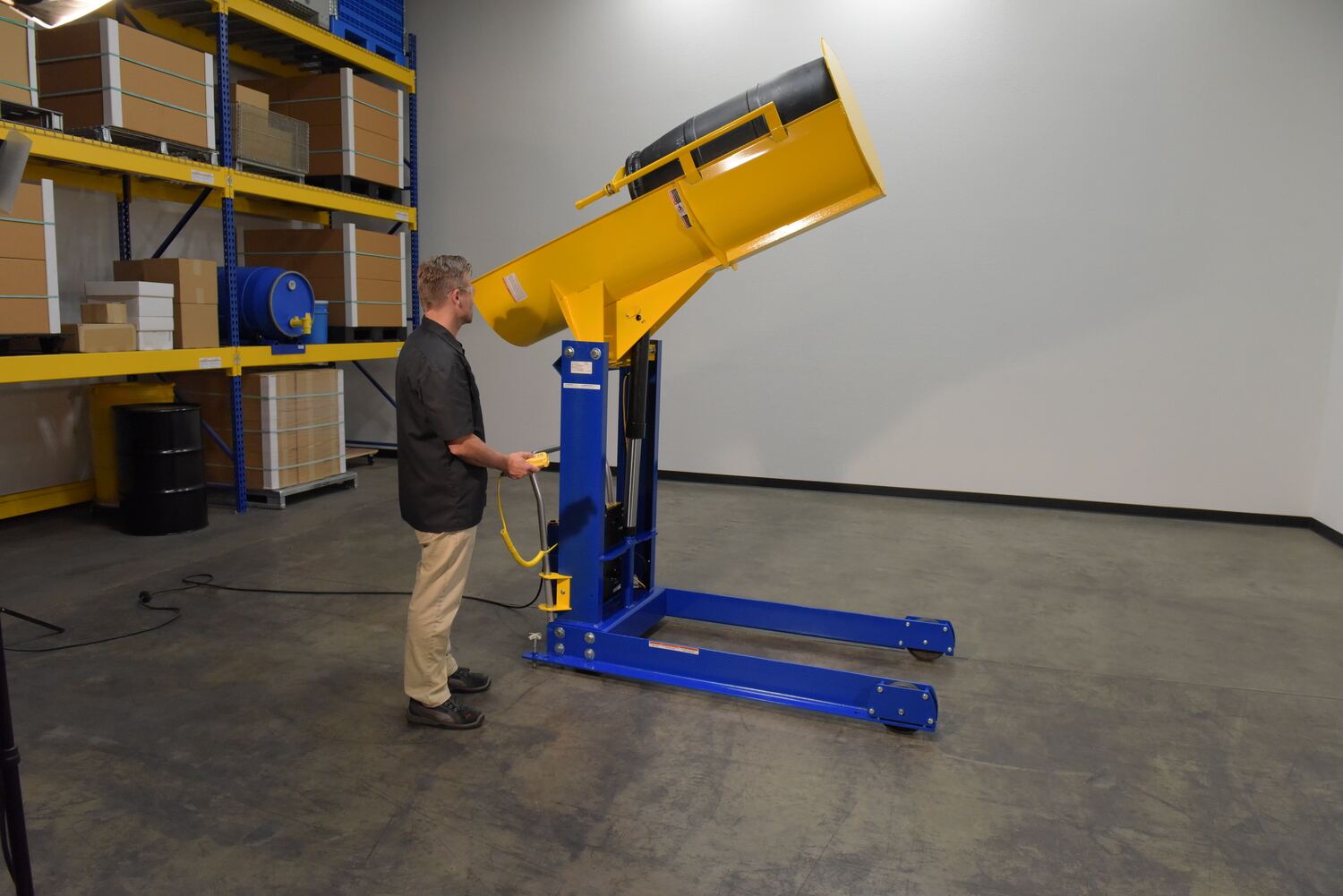

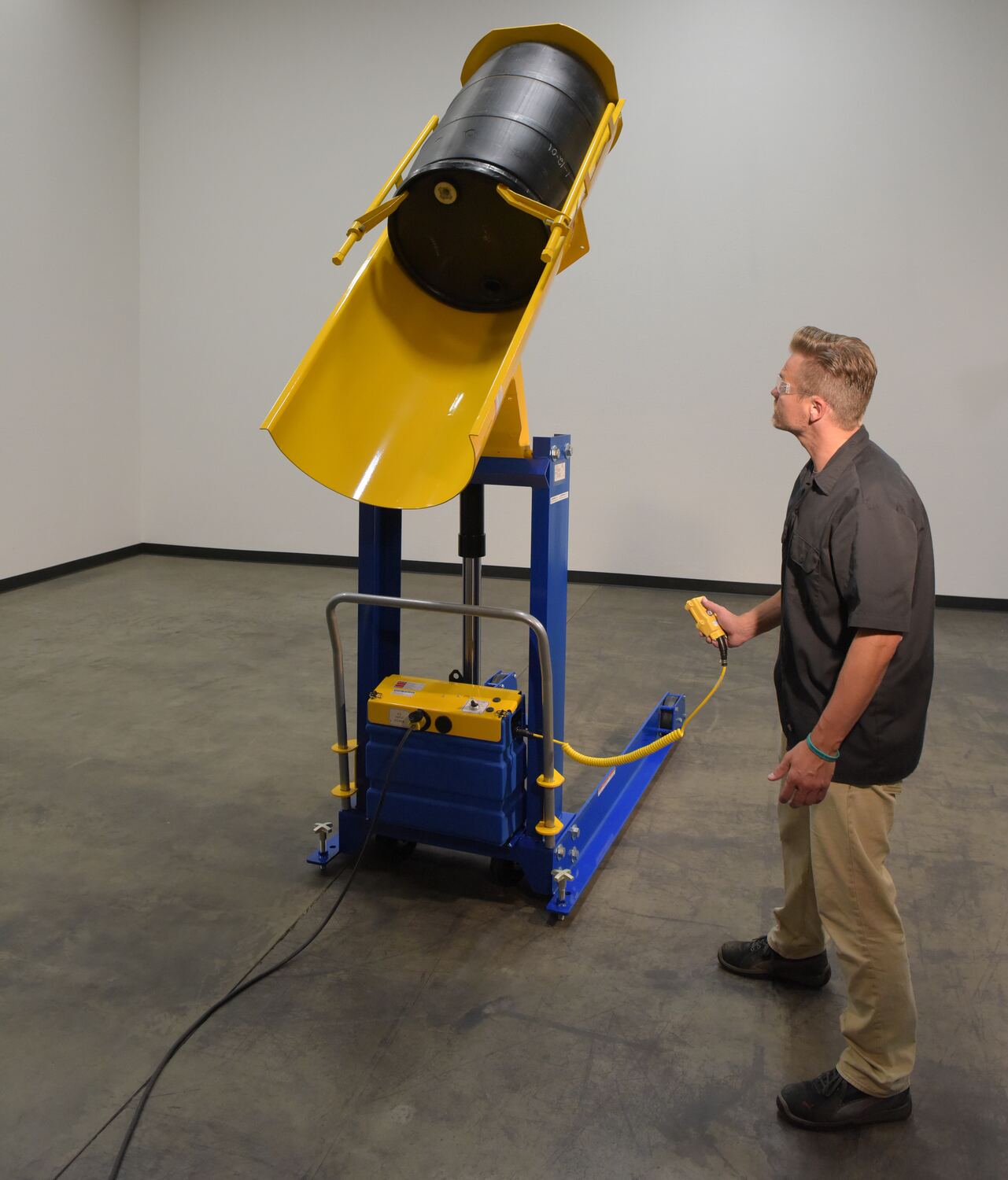

The Vestil HDD-48-10-P Portable Hydraulic Drum Dumper provides a safe and efficient way to empty heavy drums. Built from all-steel construction with a solid steel chute, it handles steel, plastic, and fiber drums with ease. This unit is portable with casters and floor lock screws for stable positioning. Standard features include adjustable drum restraints, an upper travel limit switch, a safety velocity fuse, and a pre-wired electric motor. A hand-held pendant control with coil cord allows precise drum dumping operation.
  • Model Number: HDD-48-10-P
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 30 or 55 Gallon (Steel, Plastic, Fiber)
  • Orientation: Horizontal Dumping
  • Dump Height: 48 in
  • Dump Angle: 45° (135° rotation)

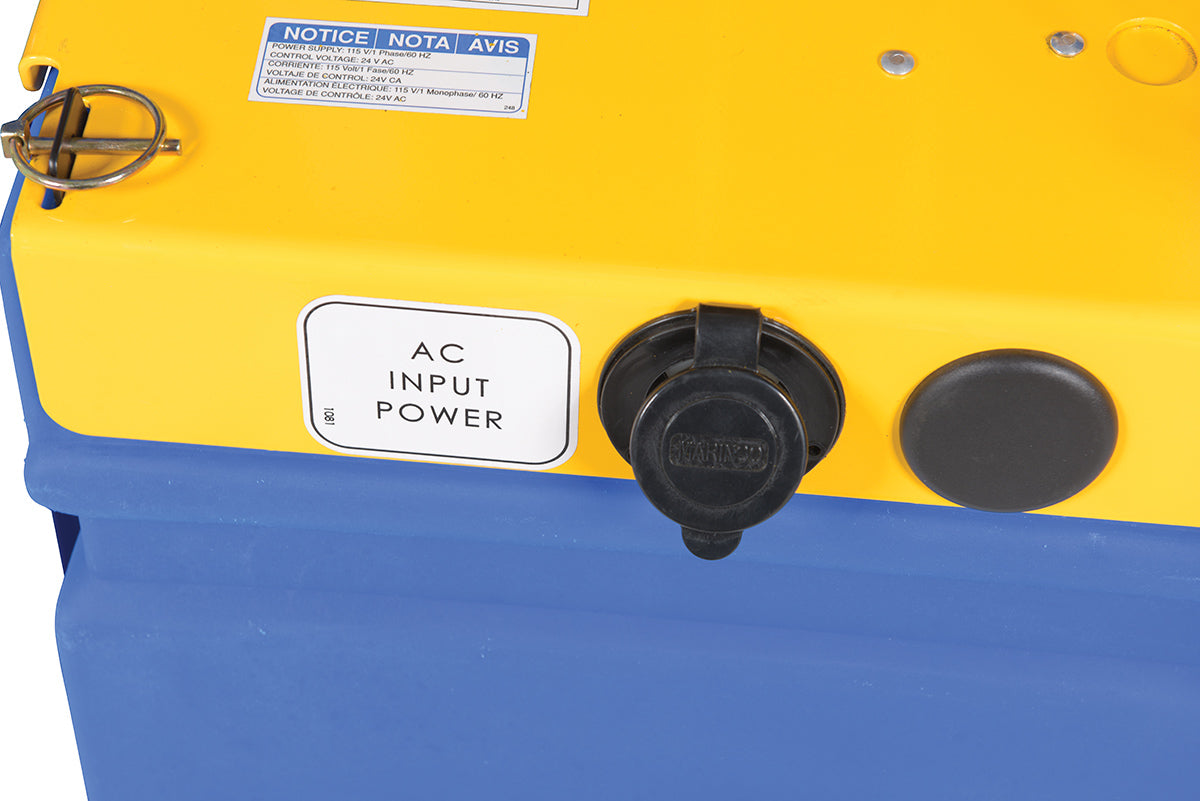

  • Power Source: Electric – 115V, Single Phase, 0.75 hp, 60 Hz
  • Raise Time: 42 sec
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Accepted Drum Diameter: 16.5 – 23.5 in
  • Accepted Drum Height: 27.5 – 39.5 in
  • Mobility: Portable, with casters and floor locks
  • Assembled Dimensions: 71.5 in × 36 in × 72.5 in, 761 lbs
  • Package Dimensions: 82 in × 42 in × 78 in, 862 lbs
  • Material: Steel (Blue Frame, Yellow Chute)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
