Steel Manual Drum Lifter/Rotator/Transport – DRUM-LRT-II – Vestil

SKU: DRUM-LRT-II
$3,609.06
Estimated Lead Time:1-3 Days

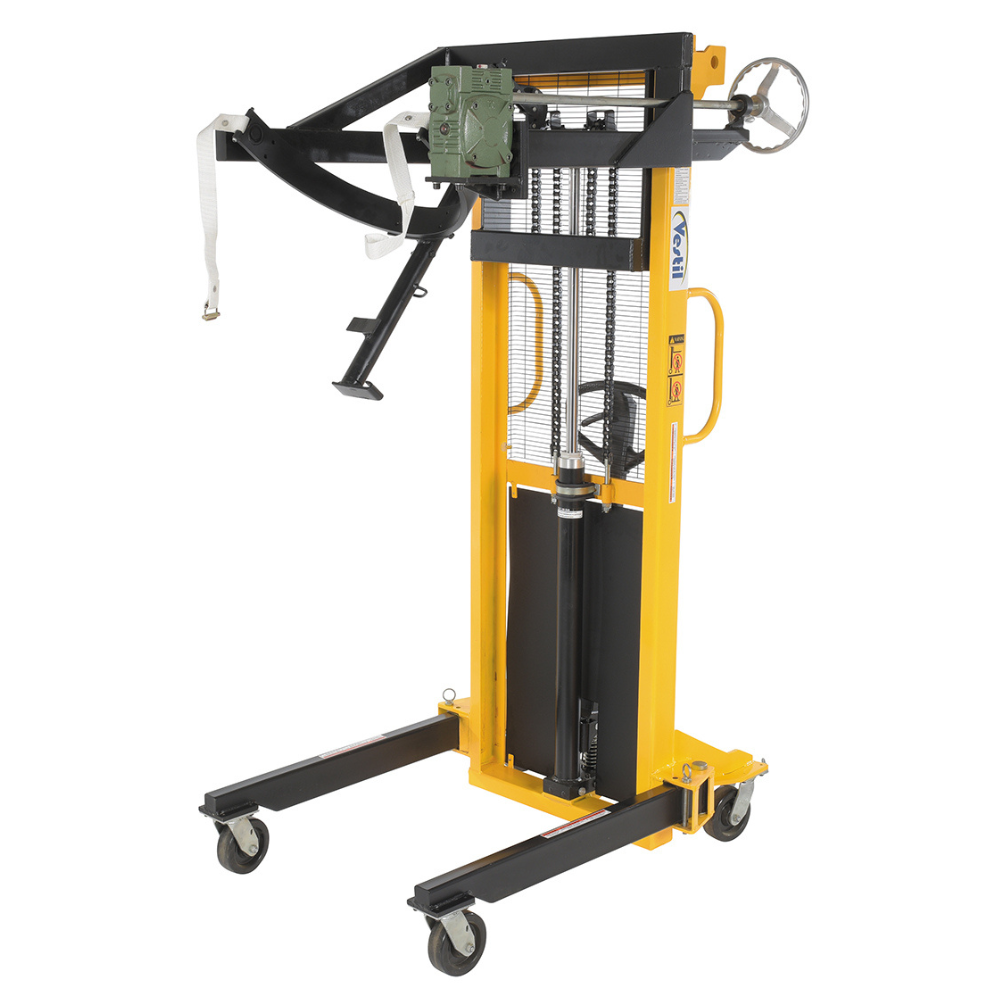

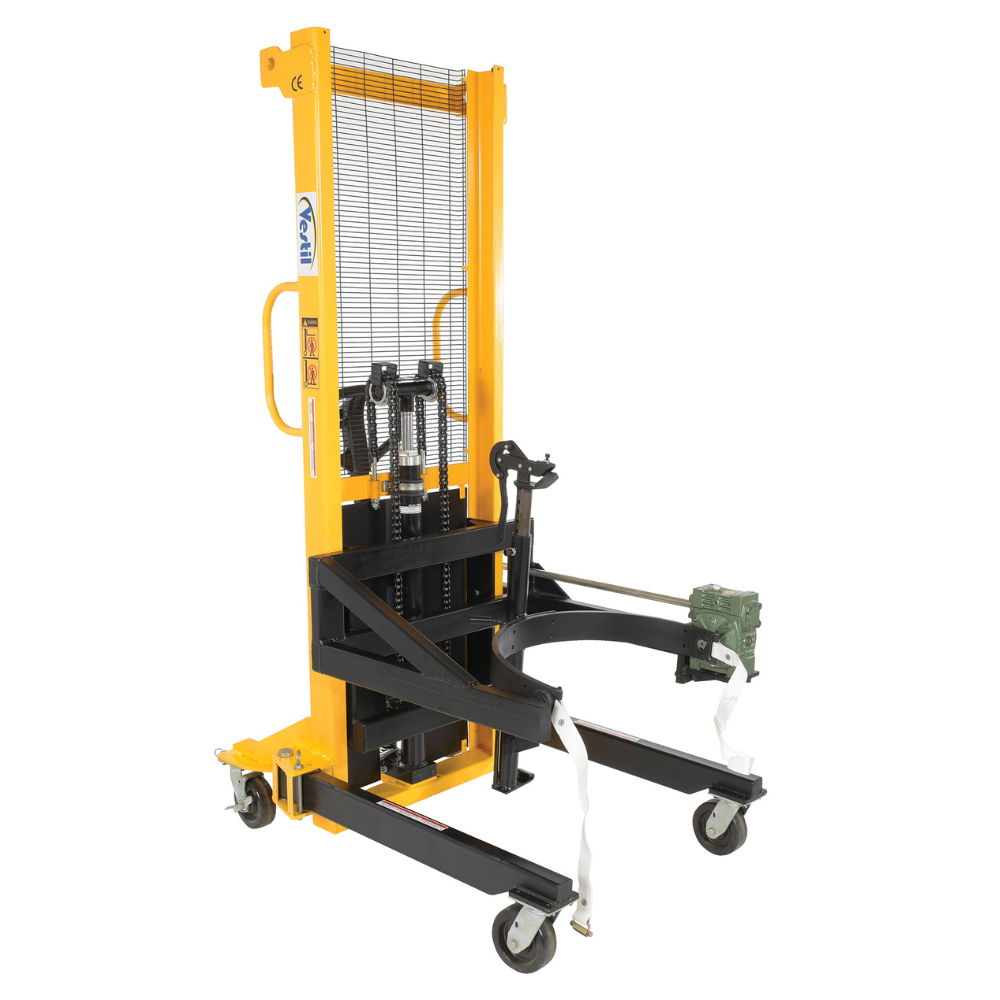

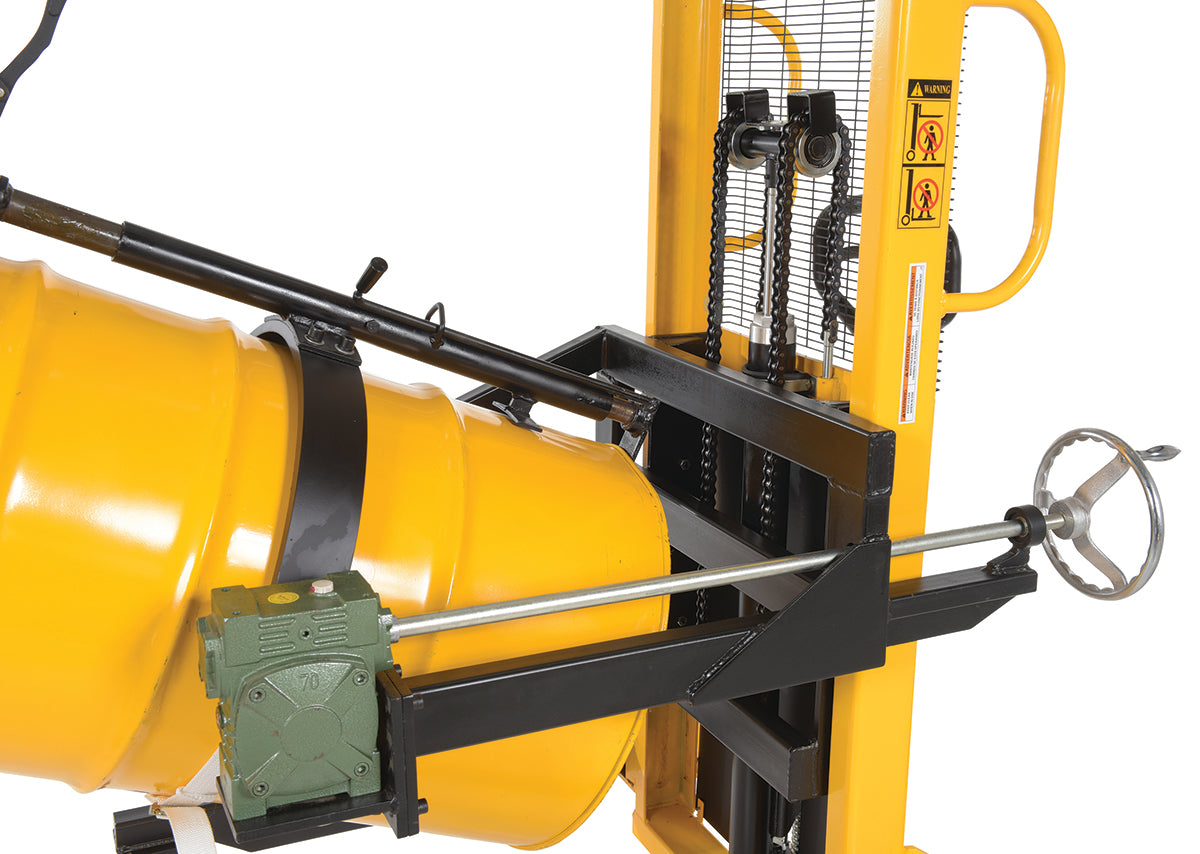

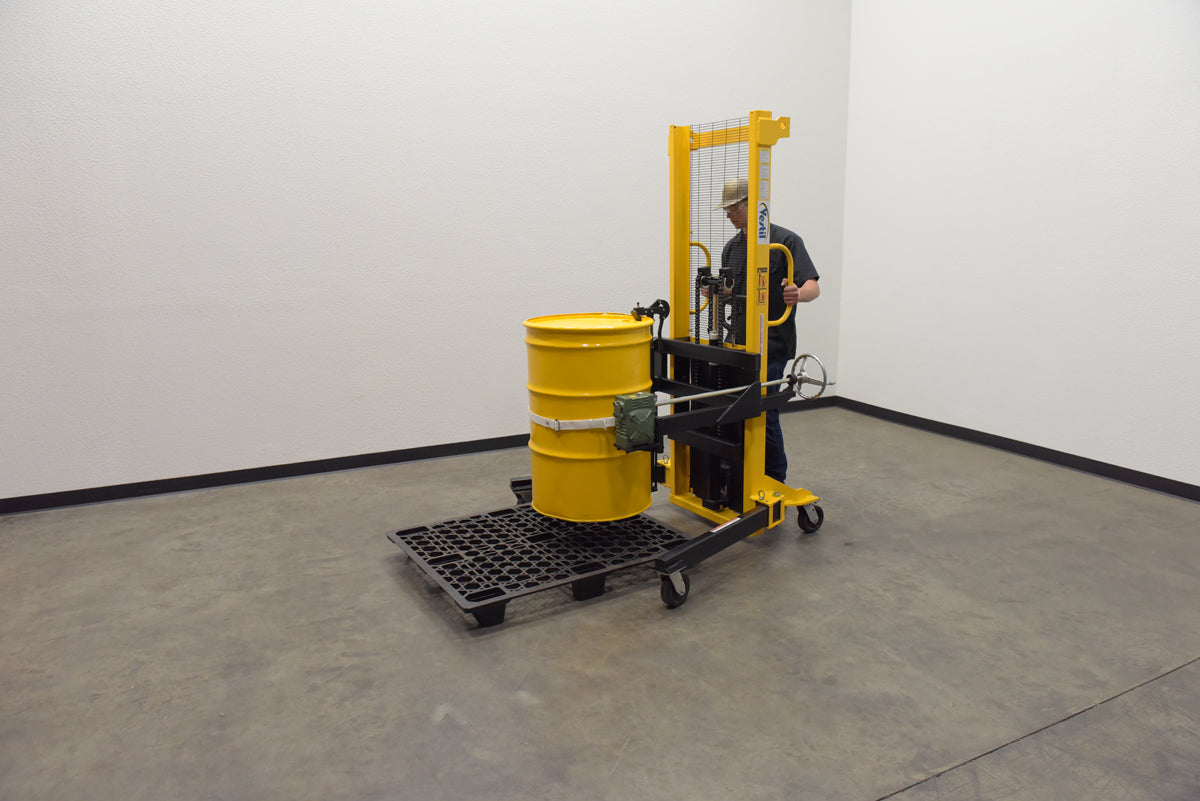

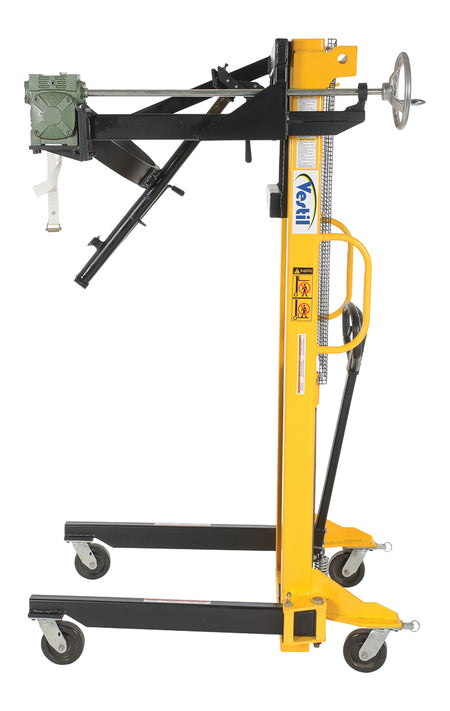

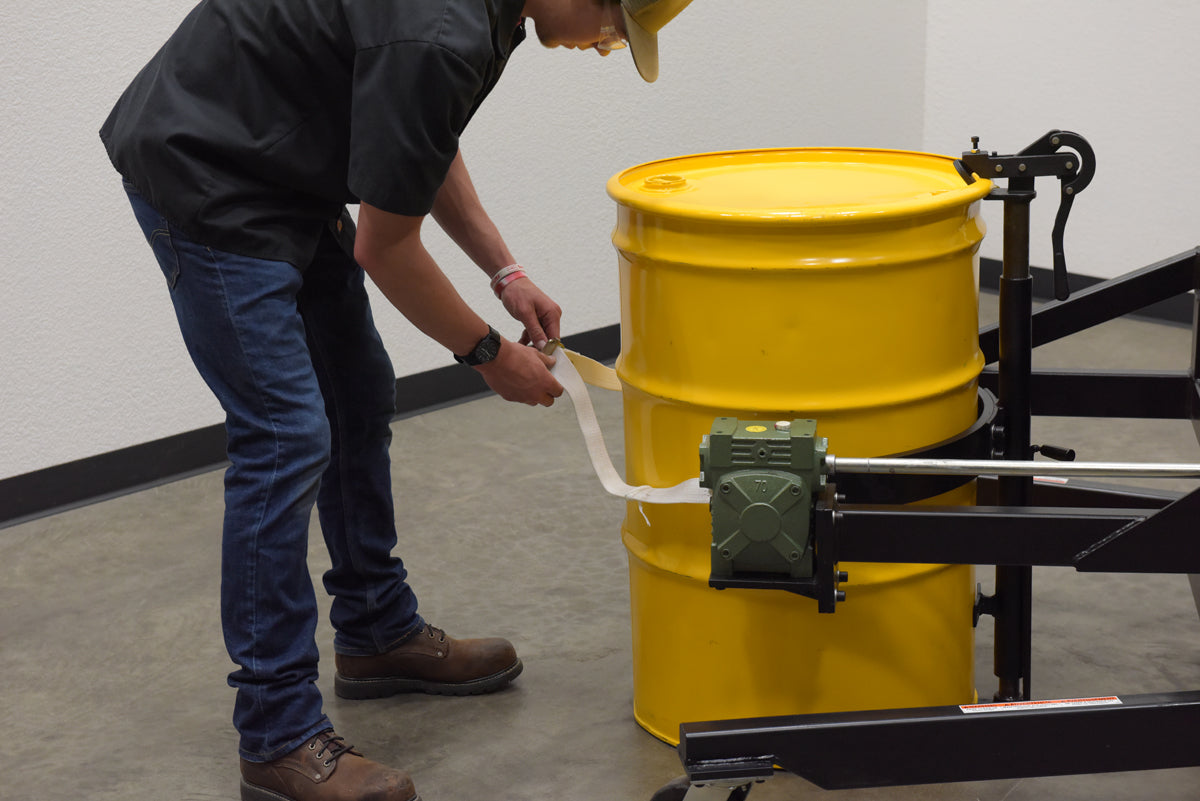

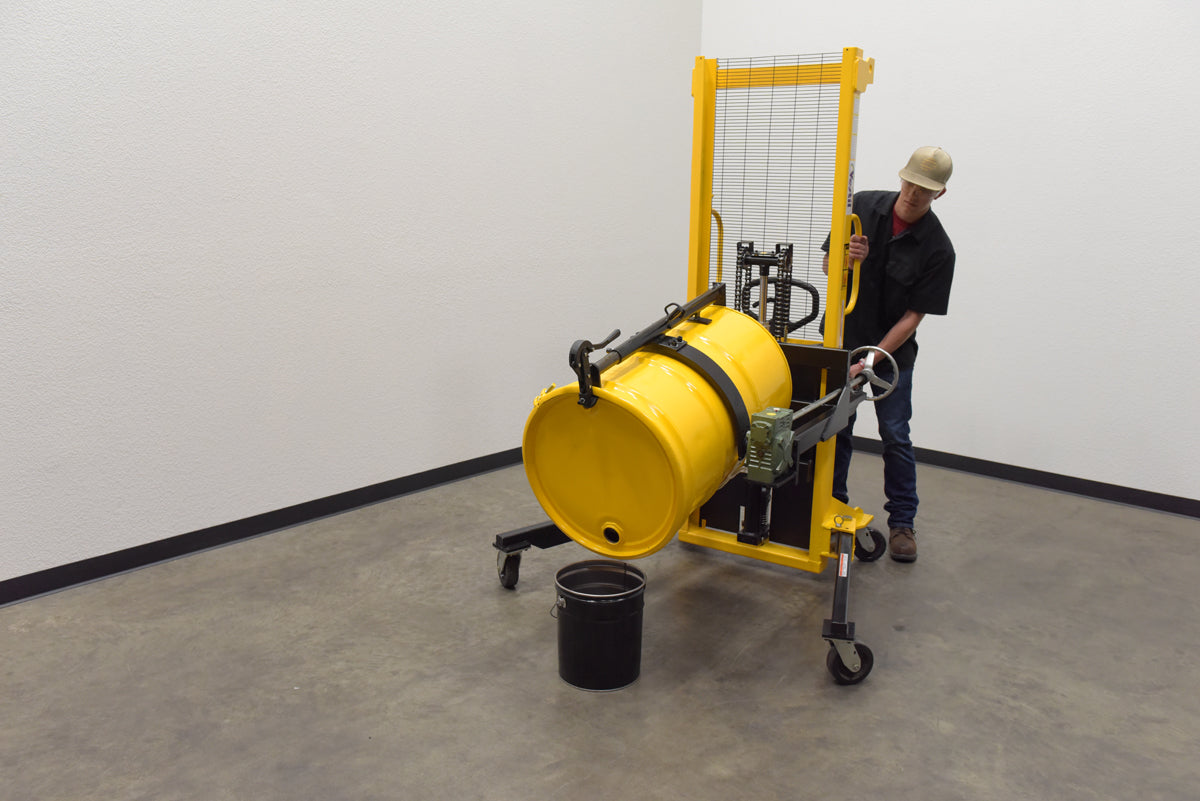

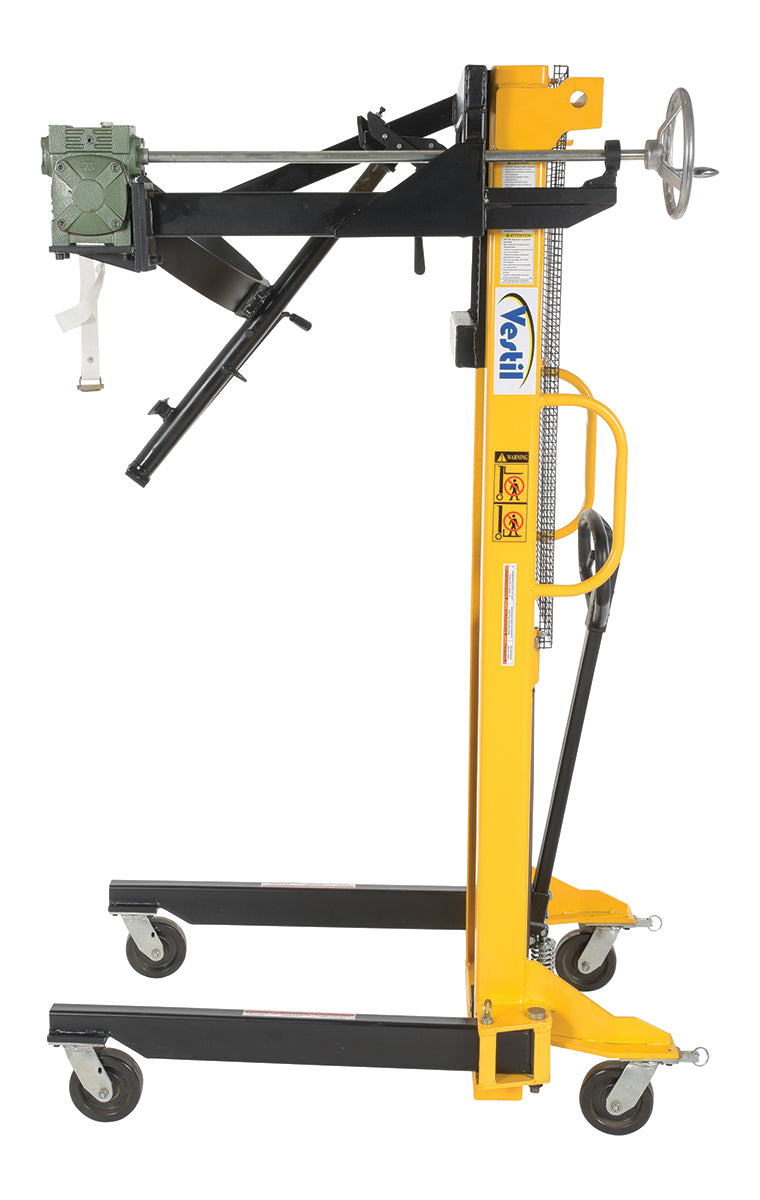

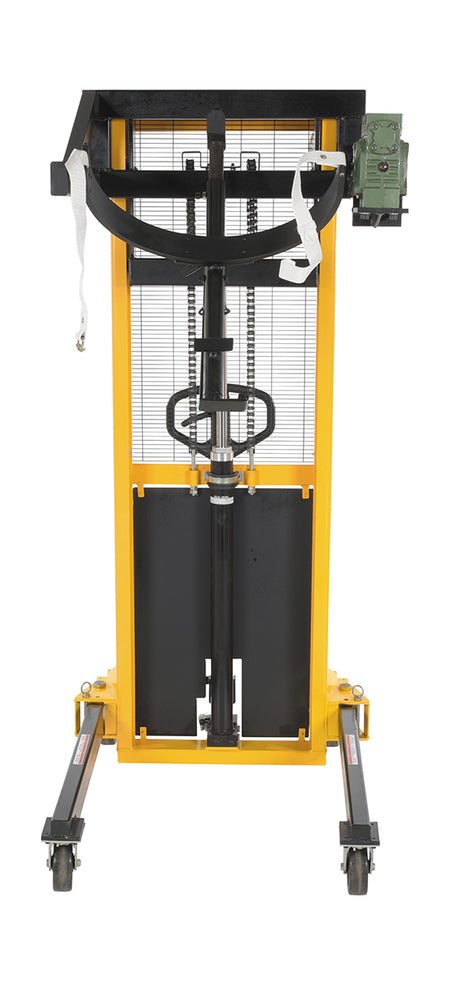

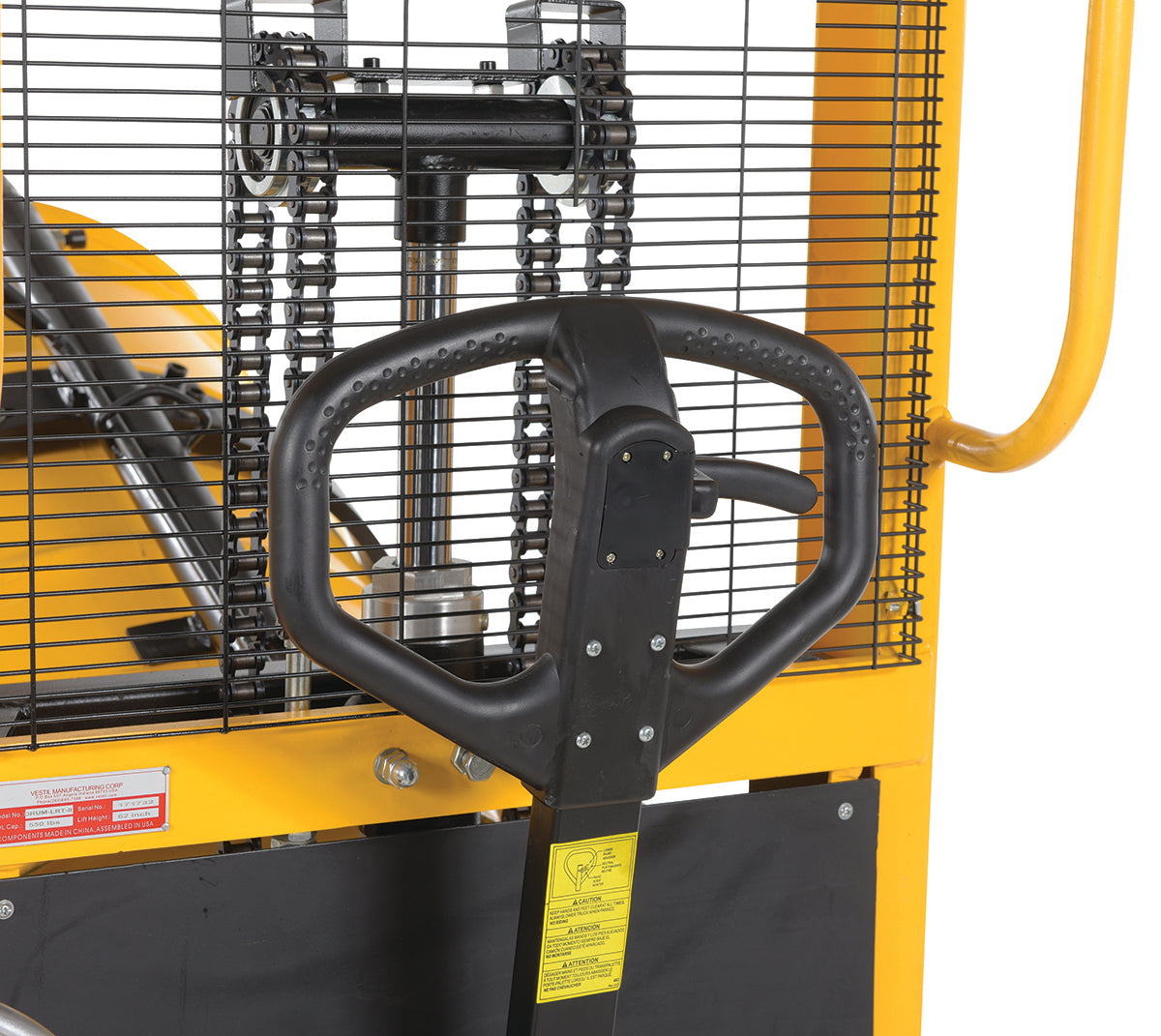

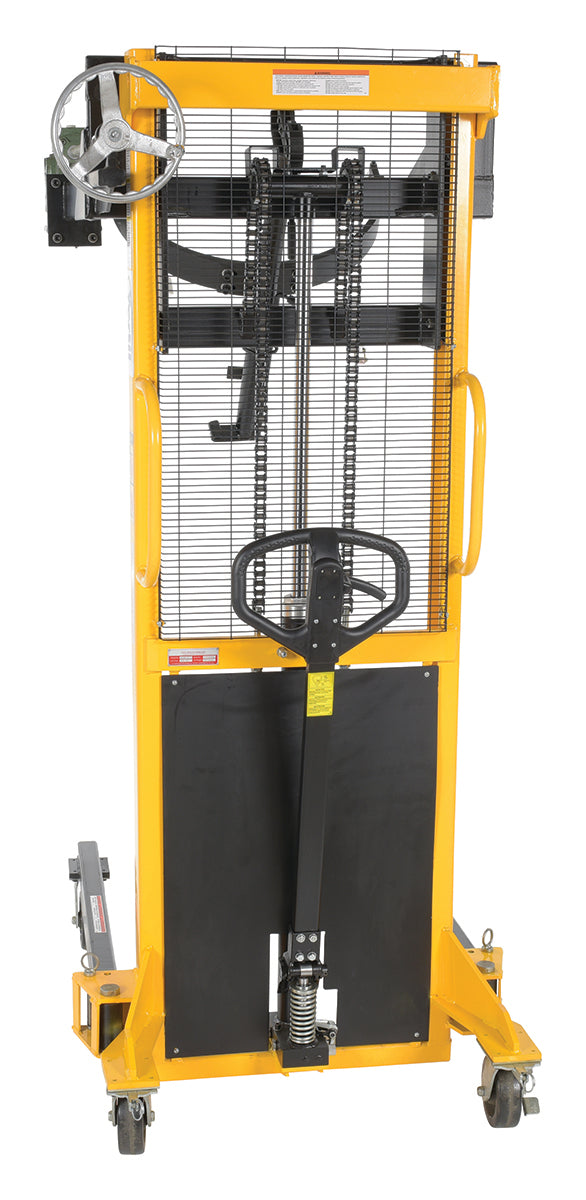

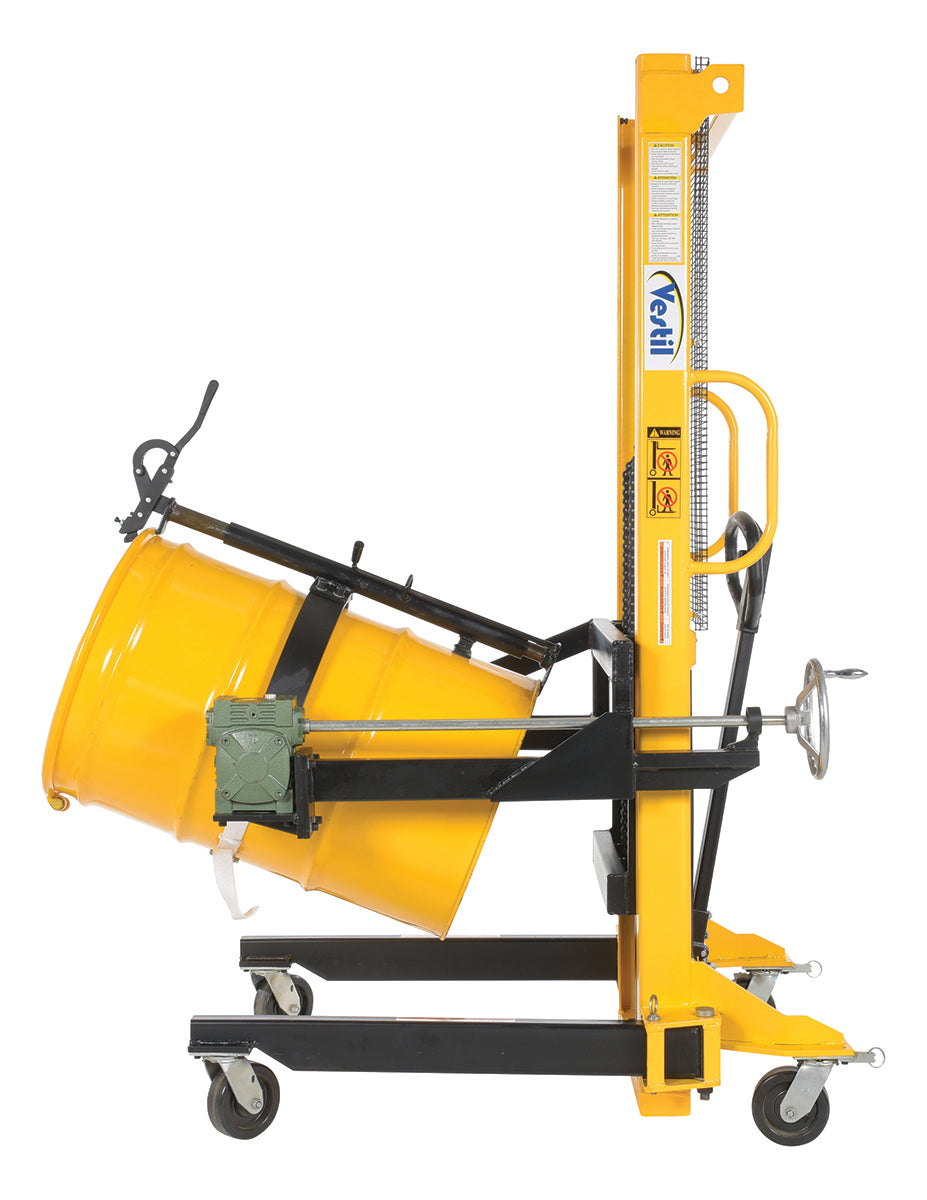

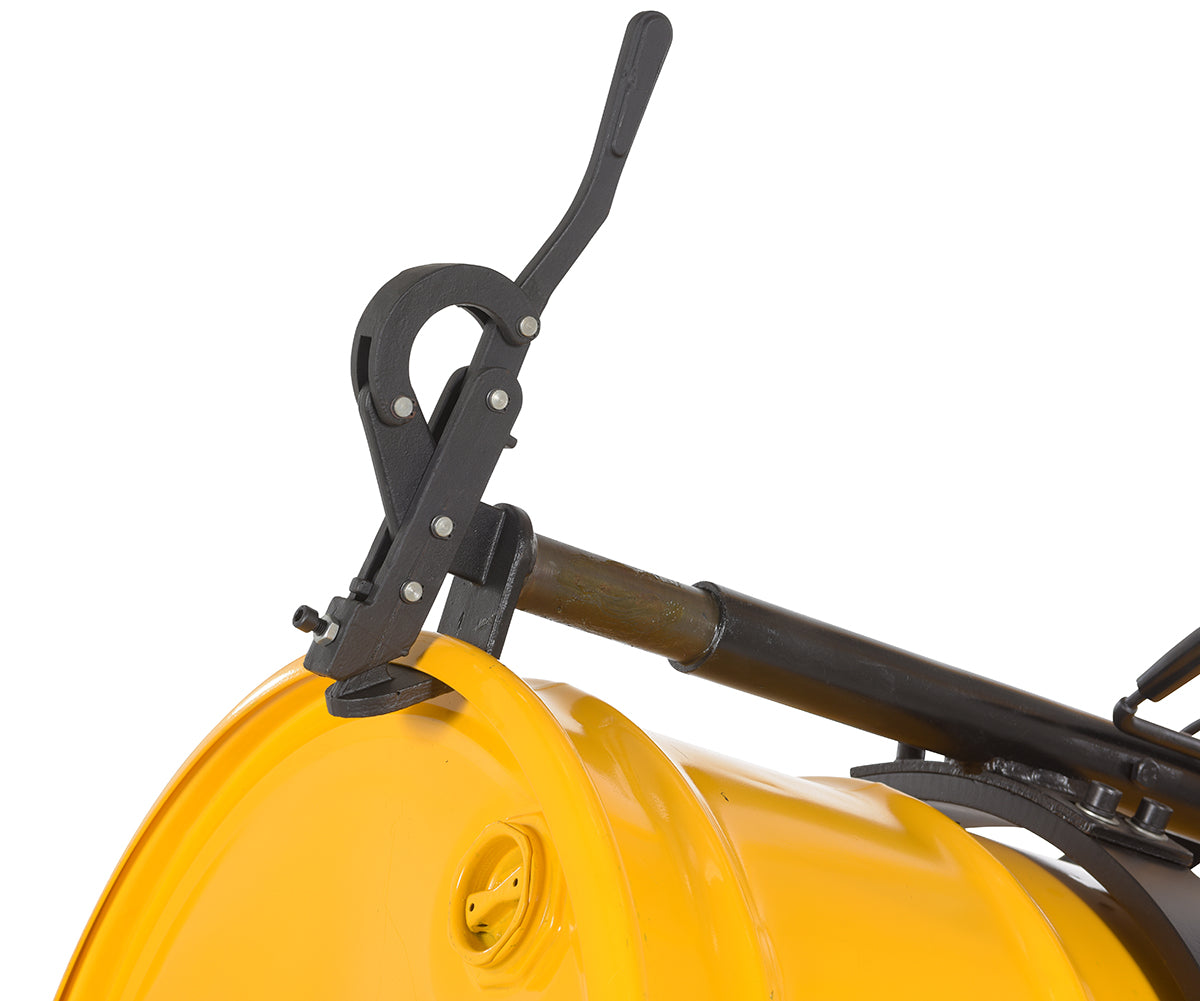

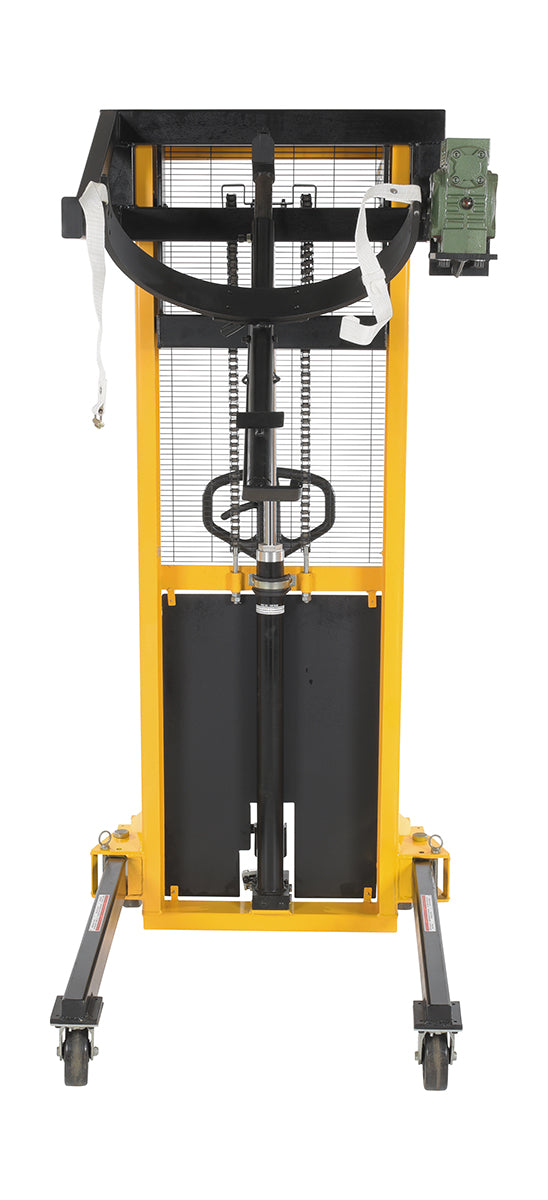

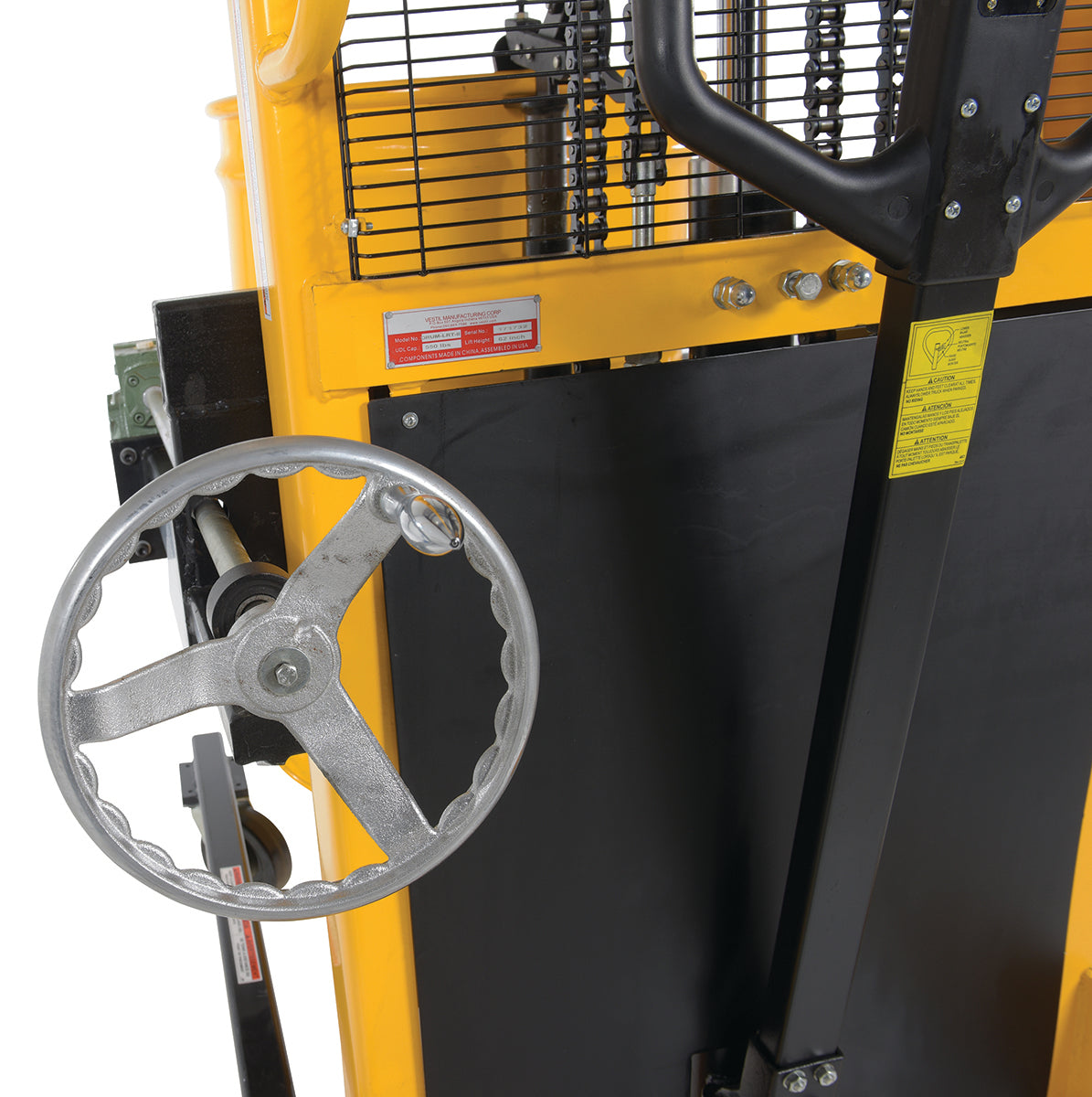

The Vestil Model DRUM-LRT-II Steel Manual Drum Lifter/Rotator/Transporter offers an efficient solution for lifting, rotating, and transporting 55-gallon drums. Designed with pivoting straddle legs, it provides easy access to drums on pallets. A locking pin secures the legs in place during operation. This manual unit features a hand-pump lift system and crank-operated drum rotation, delivering precise handling in warehouse or industrial environments. Built with rugged steel and finished in a yellow/black powder coat, it is ideal for long-term use with both steel and fiber drums.
  • Model Number: DRUM-LRT-II
  • Capacity: 550 lbs
  • Compatible Drum Size: 55 Gallon
  • Compatible Drum Material: Steel & Fiber
  • Drum Diameter: 24 in
  • Maximum Lift Height (Vertical): 62 in
  • Maximum Lift Height (Horizontal/Dump): 67 in
  • Rotation Range: 360° (Manual crank)
  • Leg Type: Pivoting Straddle Legs (Locking Pin)
  • Mast Type: Single
  • Power Source: Manual
  • Steering Wheel Diameter: 7 in
  • Steering Wheel Width: 2 in
  • Front Wheel Diameter: 5.9 in
  • Front Wheel Width: 1.25 in
  • Caster Material: Nylon
  • Pumps to Raise to Maximum Height: 71
  • Turns to Rotate Drum 360°: 42
  • Down Time (Release): 24.28 seconds
  • Overall Length: 51.5 in
  • Overall Width: 34 in
  • Overall Height: 82.625 in
  • Weight: 426 lbs (assembled)

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days – Limited Parts
