500 Lb. Steel Linear Actuated Elevating Cart – CART-500-LA – Vestil

SKU: CART-500-LA
$1,333.53
Estimated Lead Time:1-3 Days

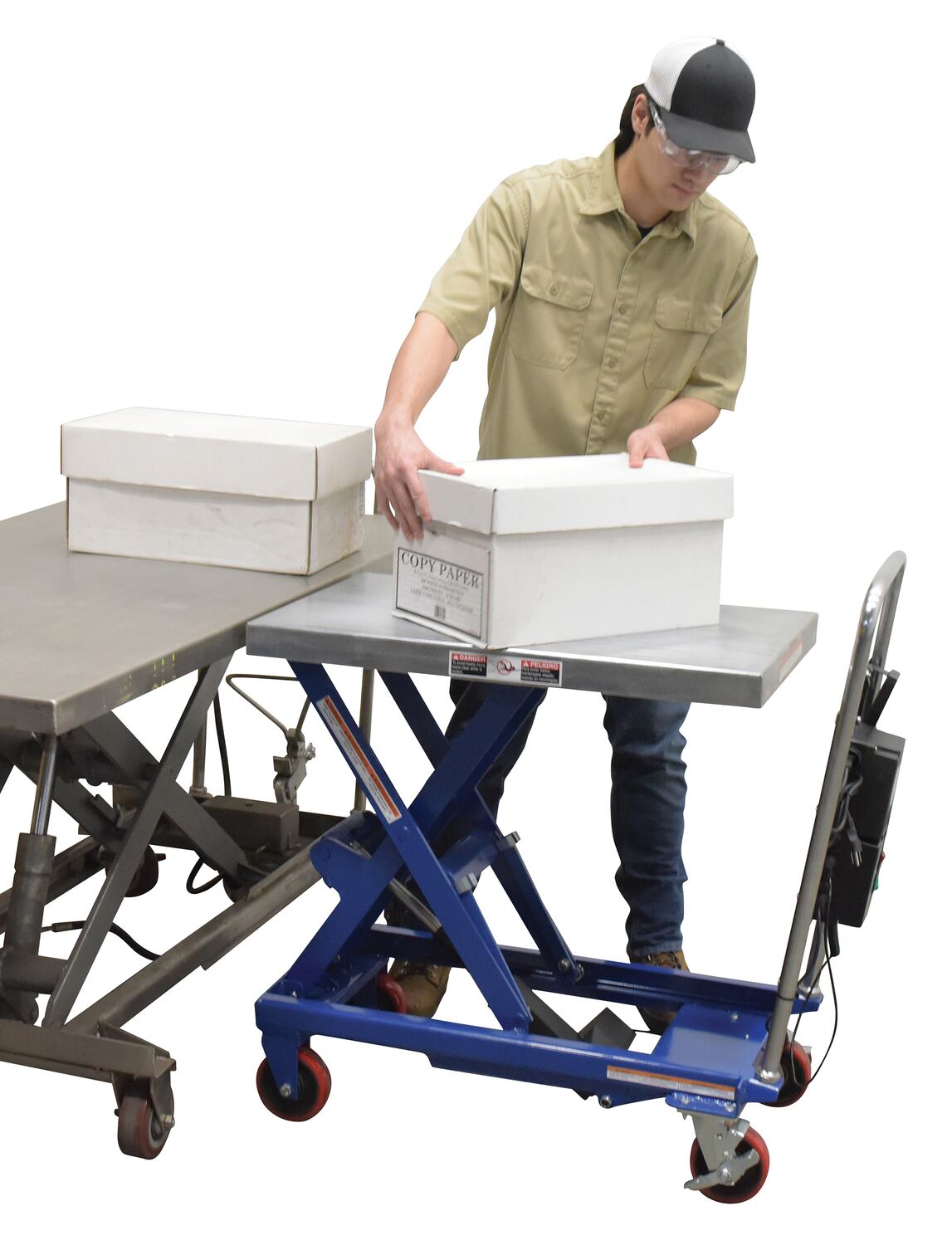

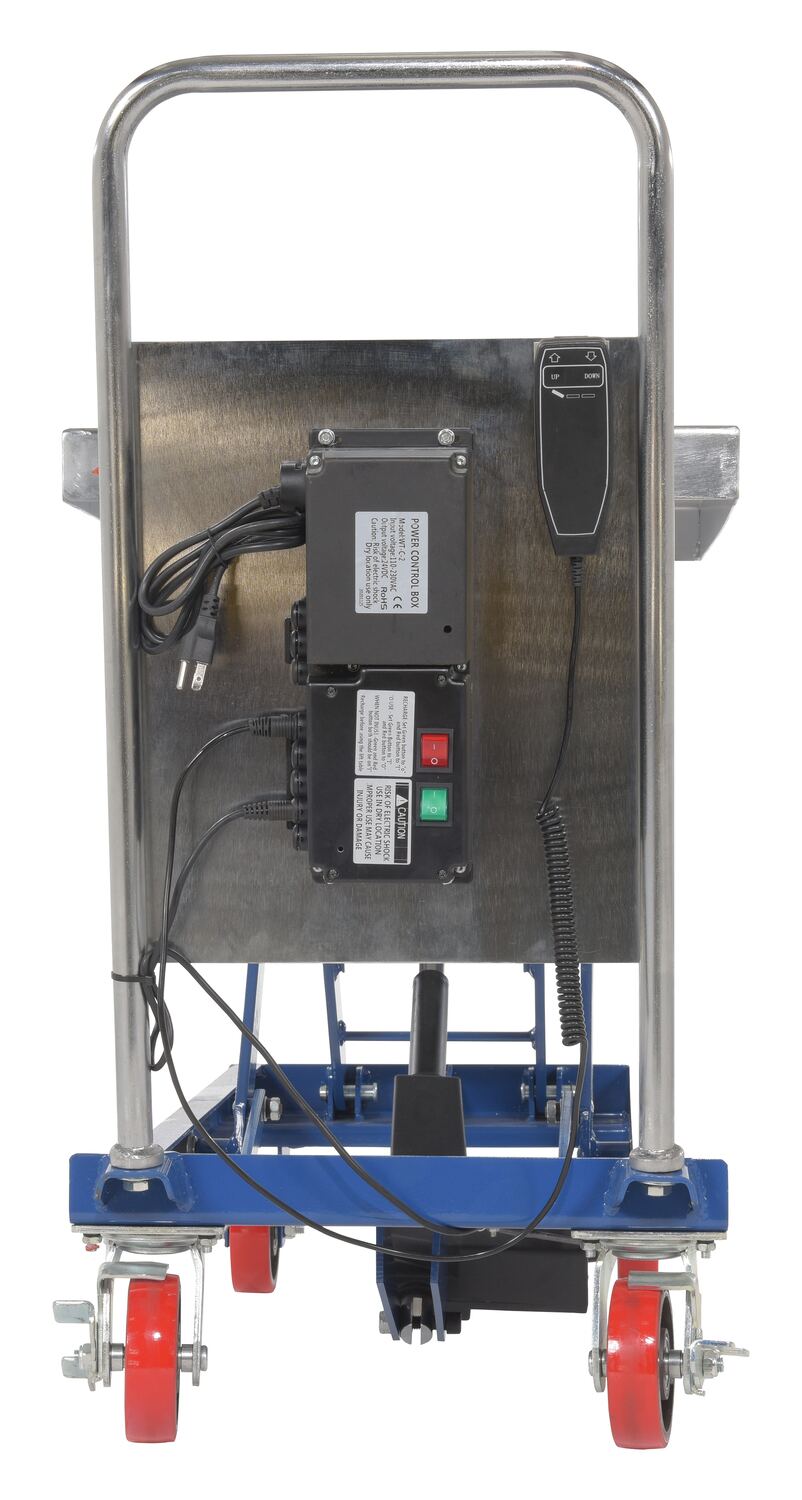

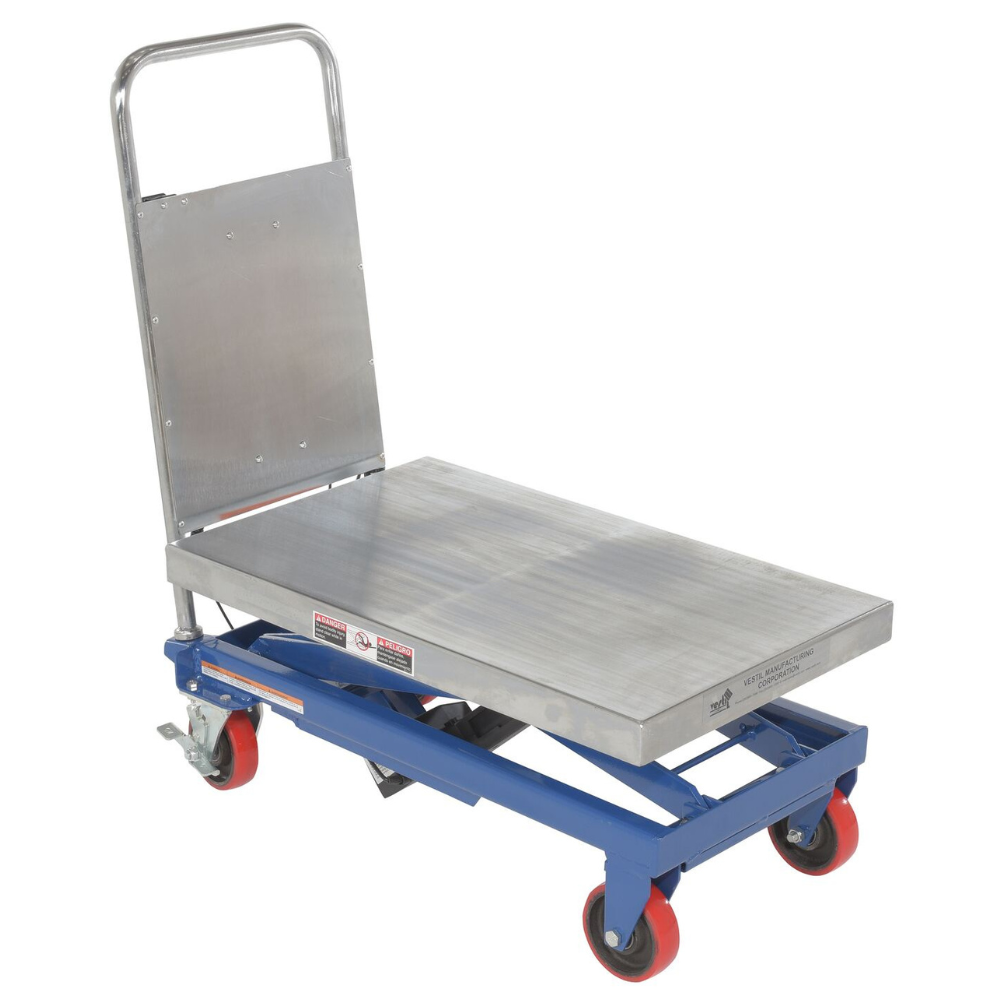

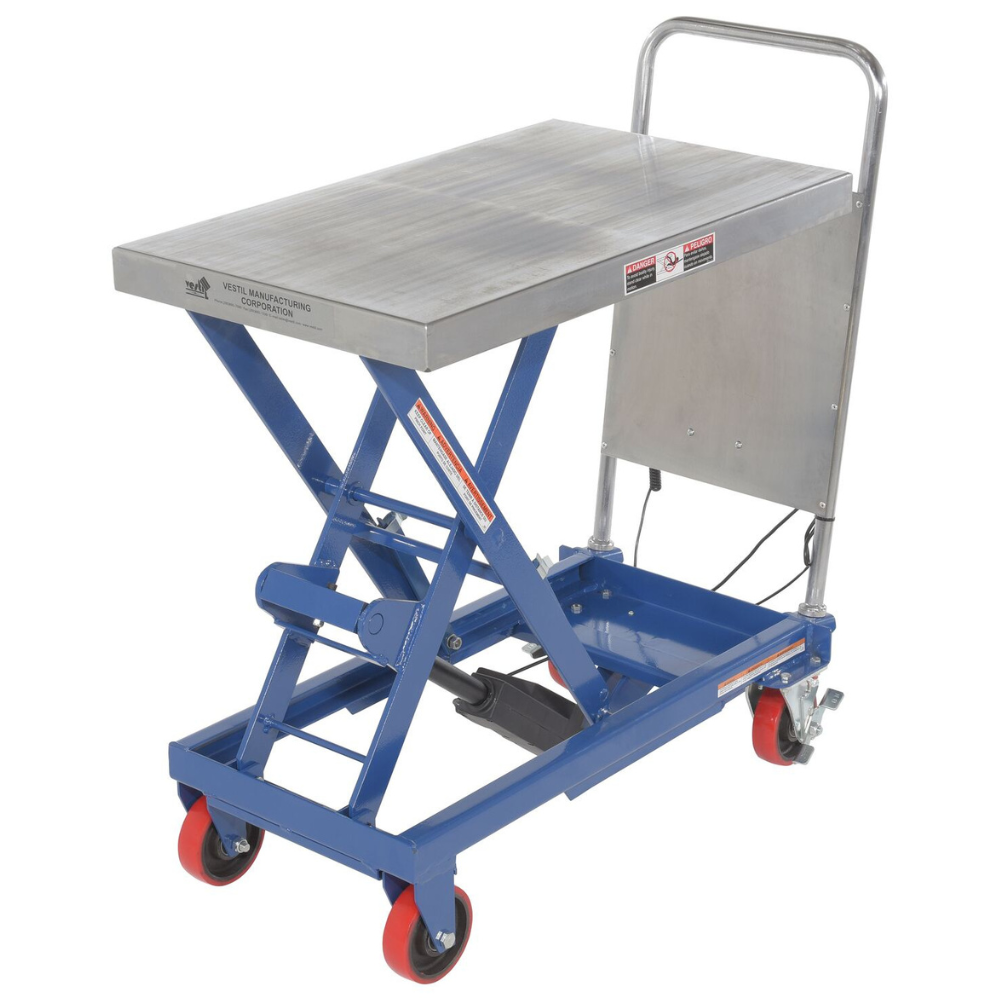

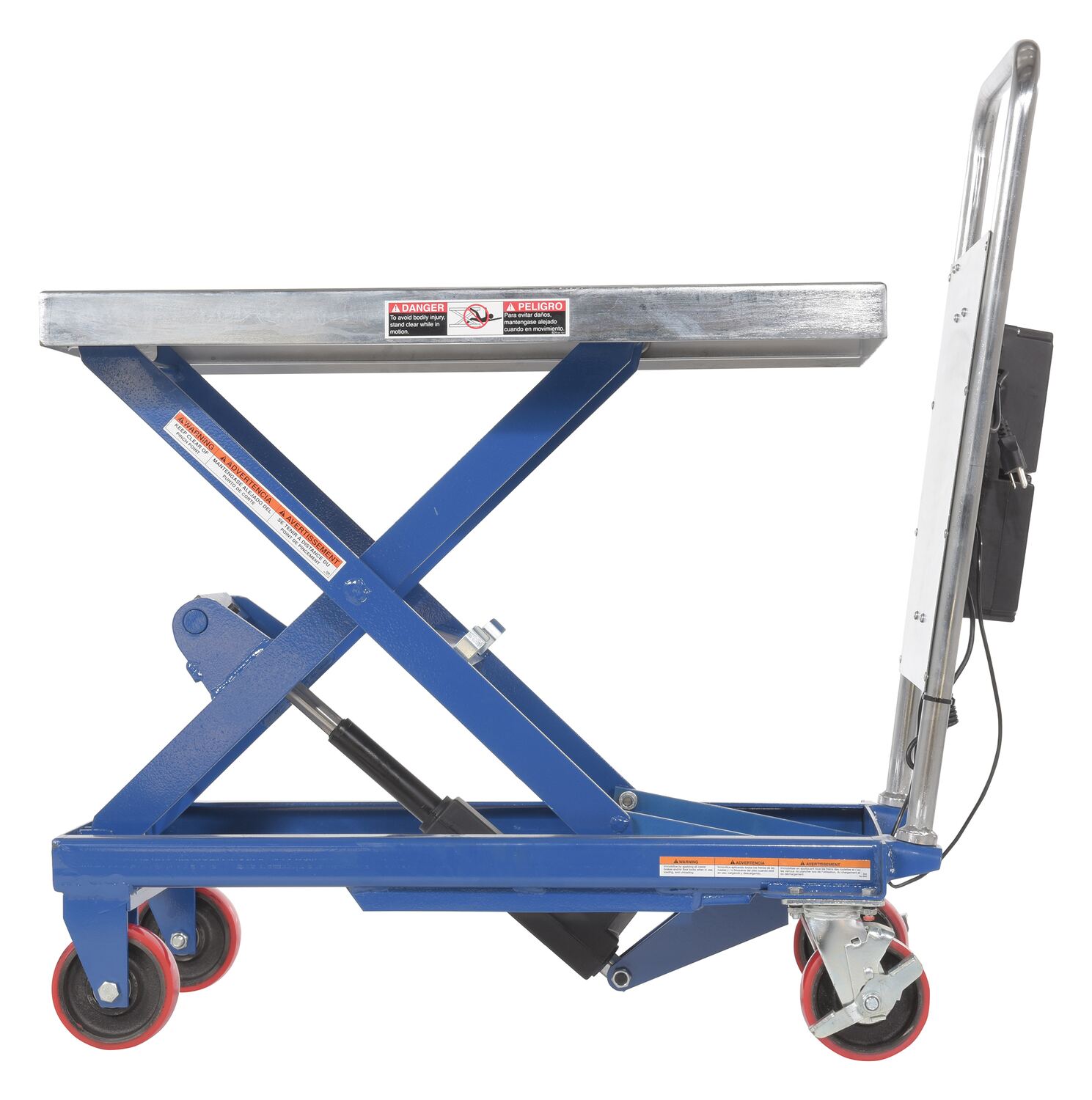

The linear actuated elevating cart transports materials from workstation to workstation with ease. Its electric linear actuator allows precise positioning and prevents platform drift—common in hydraulic carts. Powered by a DC battery with an on-board charger, the cart includes a hand-held pendant control with coil cord. Stainless steel platform, frame, and hardware provide durability, while zinc-plated scissor legs and poly-on-steel casters ensure long service life. Rolls smoothly on two rigid and two swivel casters.
  • Model Number: CART-500-LA
  • Capacity: 500 lbs
  • Platform Size: 19.5" W x 32.5" L
  • Lift Range: 15" (min) to 33" (max) – 27" travel
  • Overall Size: 44.5" W x 53.5" L x 42" H
  • Casters: 4 total (2 rigid, 2 swivel), 4" poly-on-steel
  • Power: 24V DC (two 12V batteries, charger included)
  • Weight: 178 lbs (ship weight 224 lbs)
  • Finish: Blue/Silver, stainless frame, zinc scissor legs

Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year (Limited – Parts)
