5,000 Lb. Steel Leveling Jack – LJ-21 - Vestil

SKU: LJ-21
$119.59
Estimated Lead Time:1-3 Days

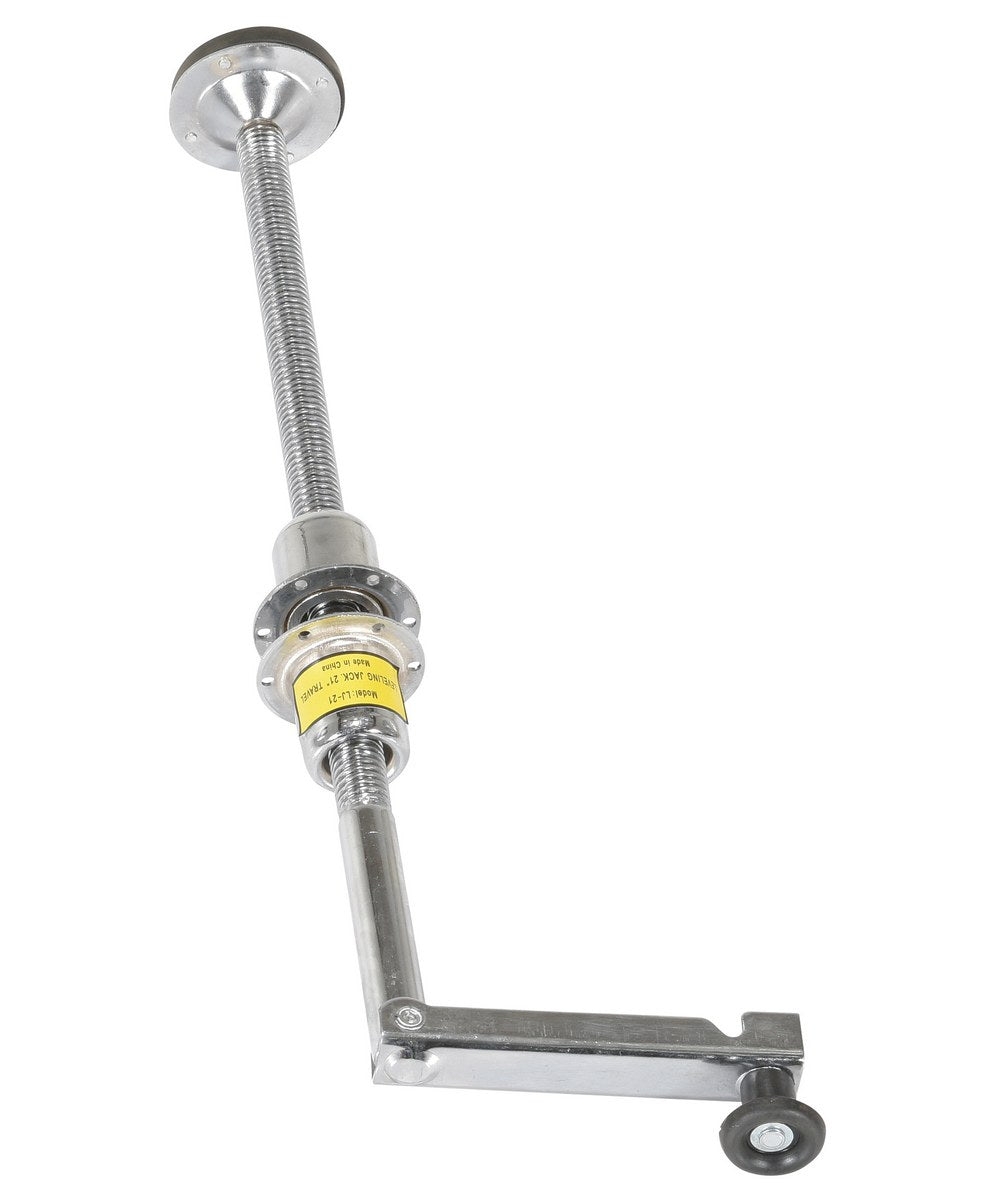

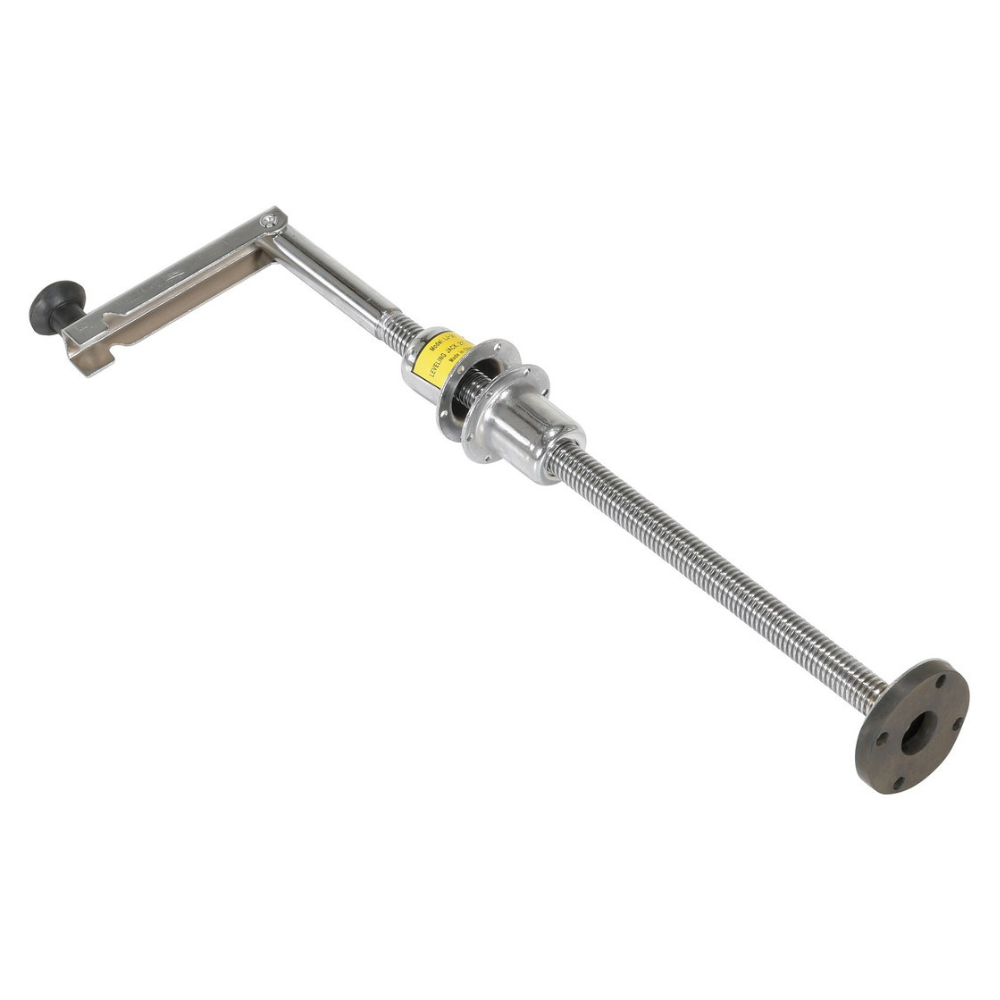

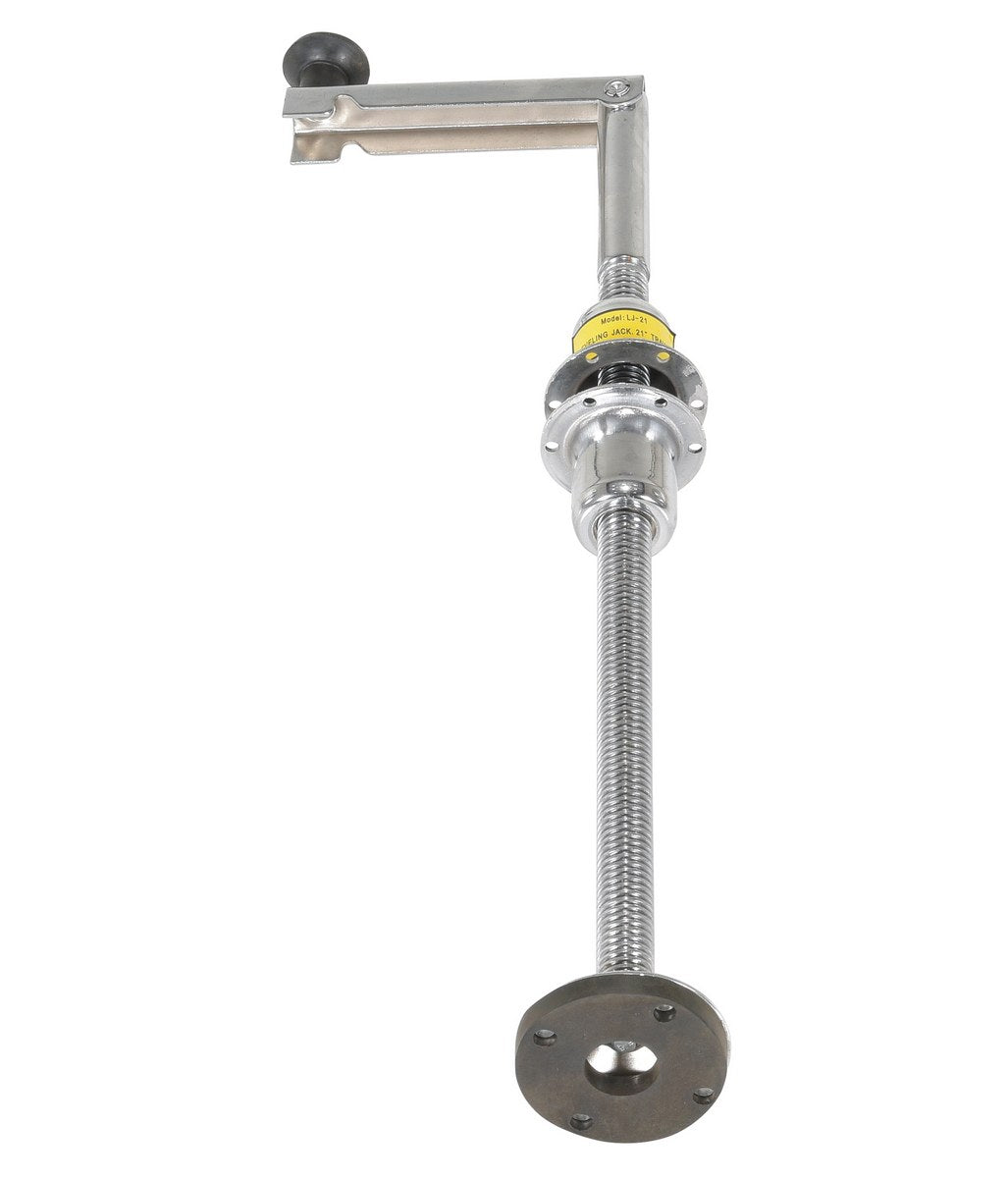

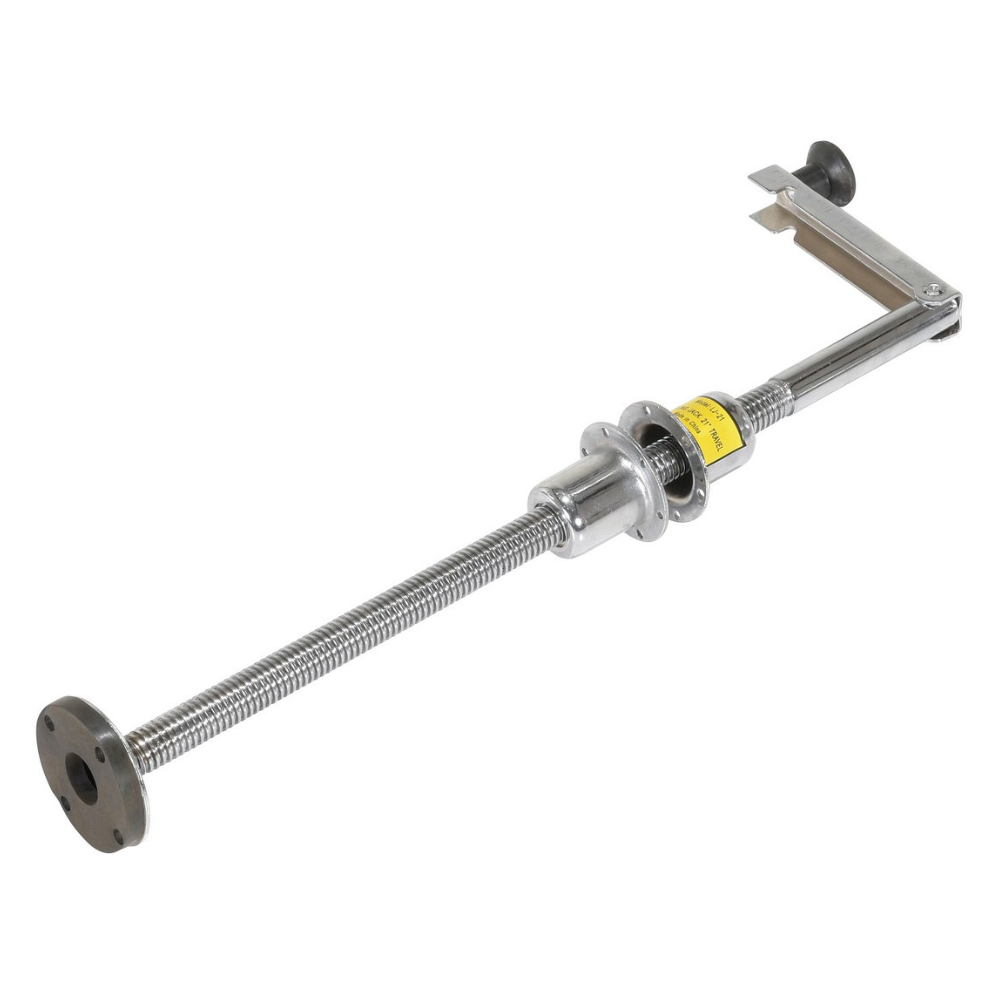

The Vestil LJ-21 is a screw-style leveling jack designed for permanent installation to raise, level, and stabilize platforms and other portable equipment at the desired height.
Drill a 1-1/4 in. hole through the platform and bolt it between the upper and lower divided-housing flanges of the jack.Its fold-down handle saves space when not in use, while the swivel base features a slip-resistant rubber pad for secure floor grip. Replacement pads are available.
  • Model Number: LJ-21
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.
  • Maximum Height: 25-1/2 in.
  • Screw Travel: 21 in.
  • Screw Diameter: 1-1/4 in.
  • Lift Rate per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Swivel Base Diameter: 3-7/8 in.
  • Jaw Opening: 15-1/4 in.
  • Thread Size: 4 mm
  • Assembled Dimensions: 9 W × 4.5 D × 30 H in.
  • Assembled Weight: 14 lb
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
