5,000 Lb. Steel Leveling Jack – LJ-17 - Vestil

SKU: LJ-17
$92.66
Estimated Lead Time:1-3 Days

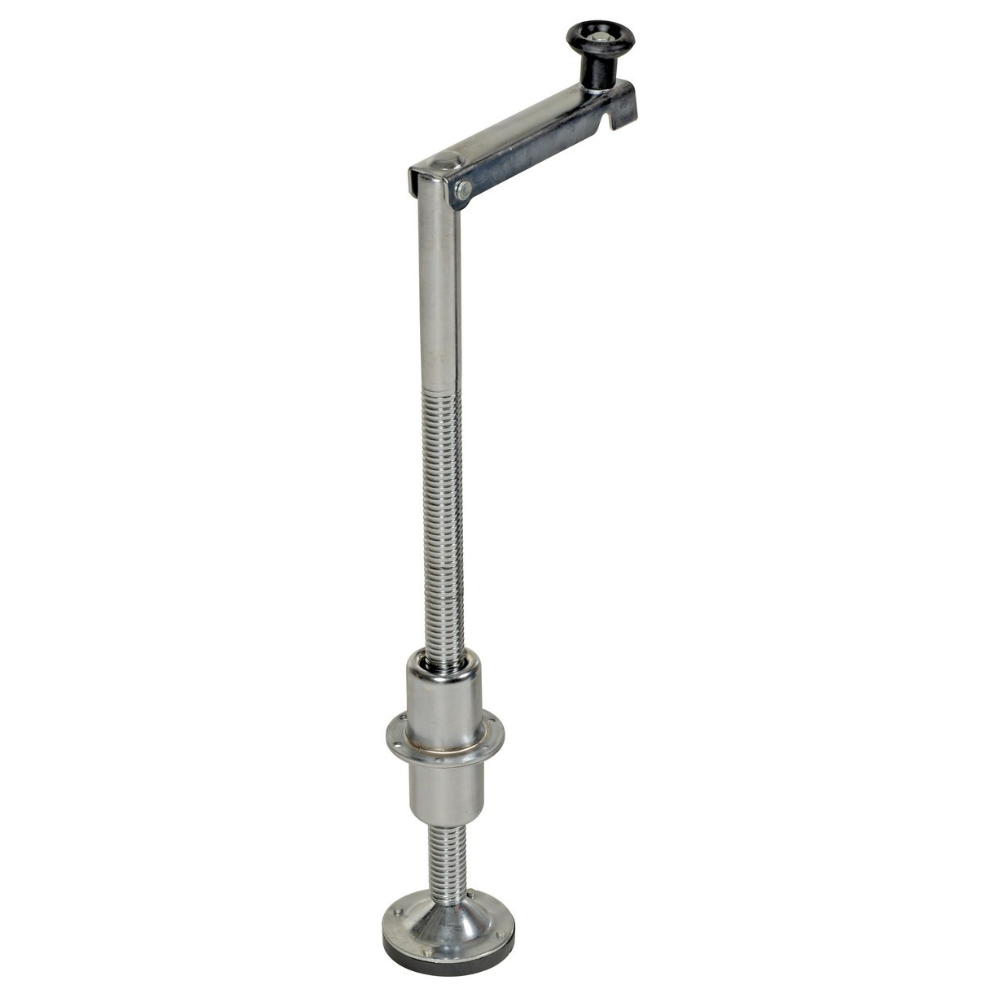

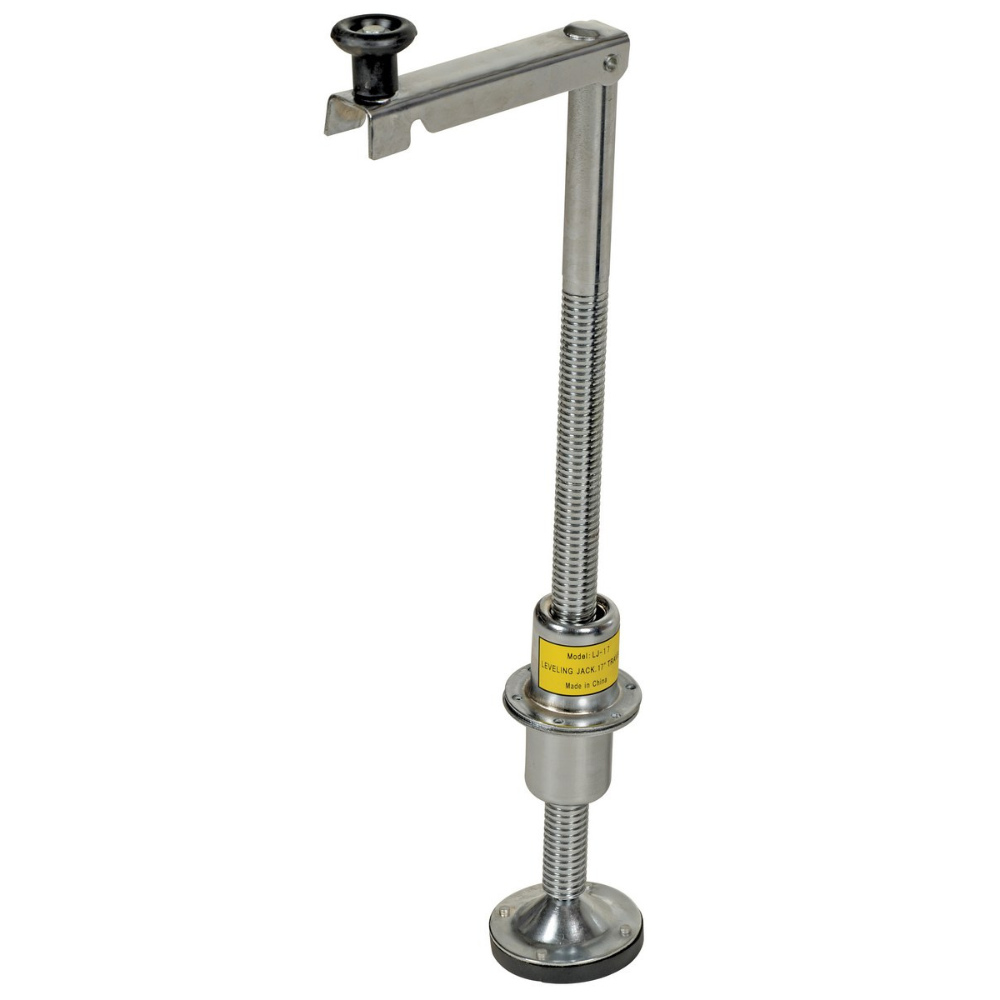

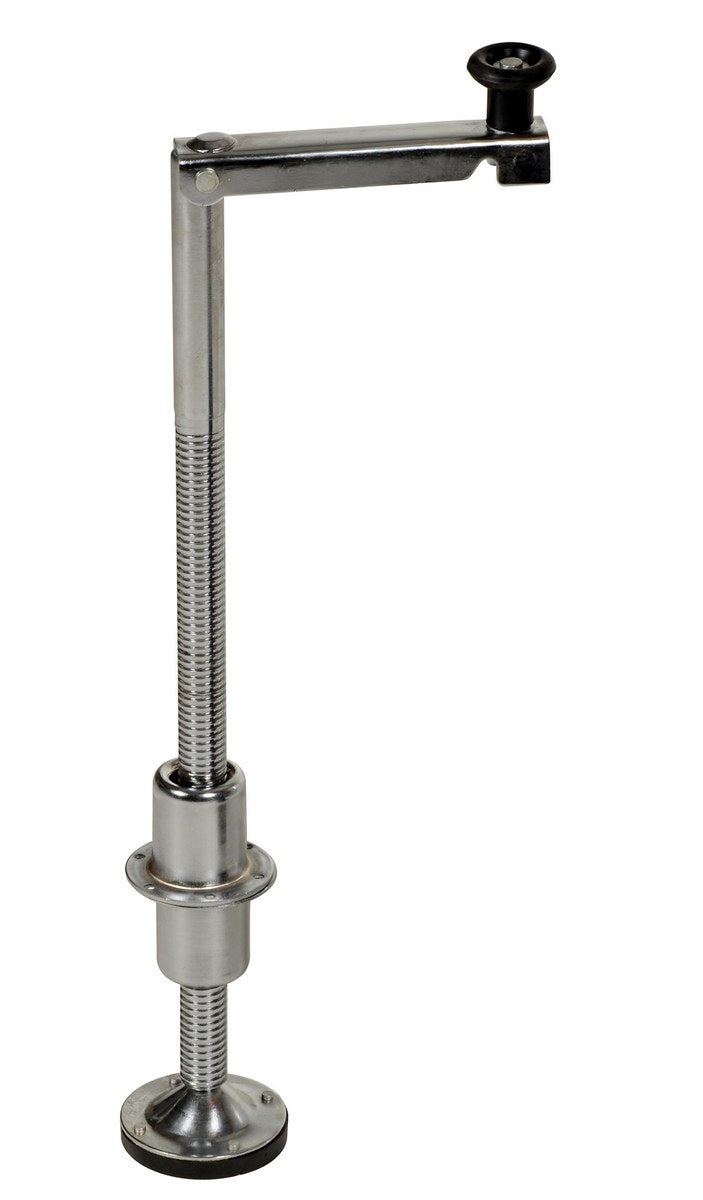

The Vestil LJ-17 is a screw-style leveling jack designed for permanent installation to raise, level, and stabilize platforms and other portable equipment at the required height.
Drill a 1-1/4 in. diameter hole through the platform and bolt it between the upper and lower divided-housing flanges of the jack.The fold-down handle keeps the jack compact when not in use, and the swivel base features a slip-resistant rubber pad for secure floor grip. Replacement pads are available.
  • Model Number: LJ-17
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.
  • Maximum Height: 21-1/2 in.
  • Screw Travel: 17 in.
  • Screw Diameter: 1-1/4 in.
  • Lift Rate per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Swivel Base Diameter: 3-7/8 in.
  • Jaw Opening: 11-1/4 in.
  • Thread Size: 4 mm
  • Assembled Dimensions: 9 W × 4.5 D × 26 H in.
  • Assembled Weight: 13 lb
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
