5,000 Lb. Steel Leveling Jack – LJ-9 - Vestil

SKU: LJ-9
$83.43
Estimated Lead Time:1-3 Days

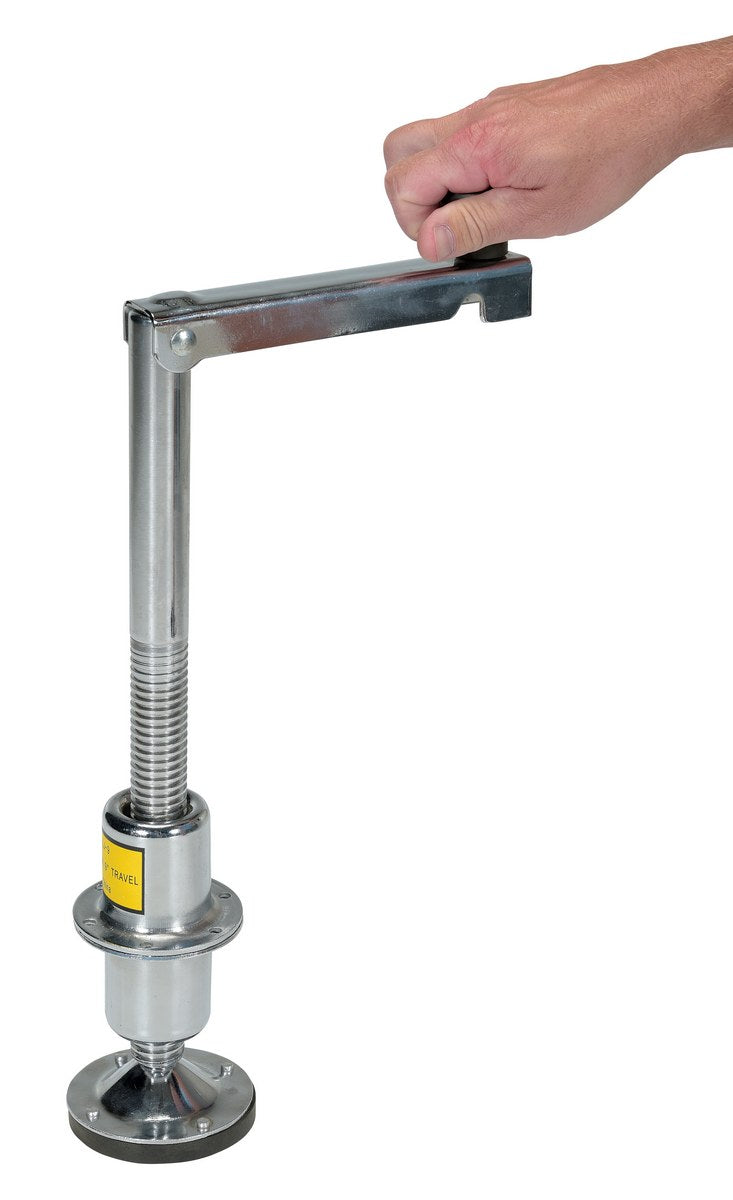

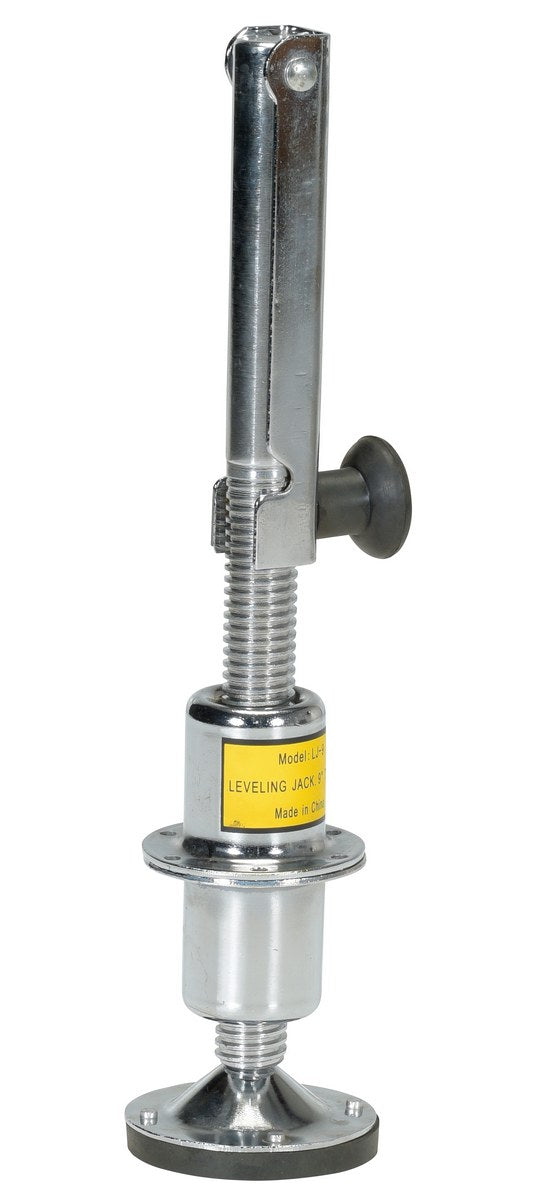

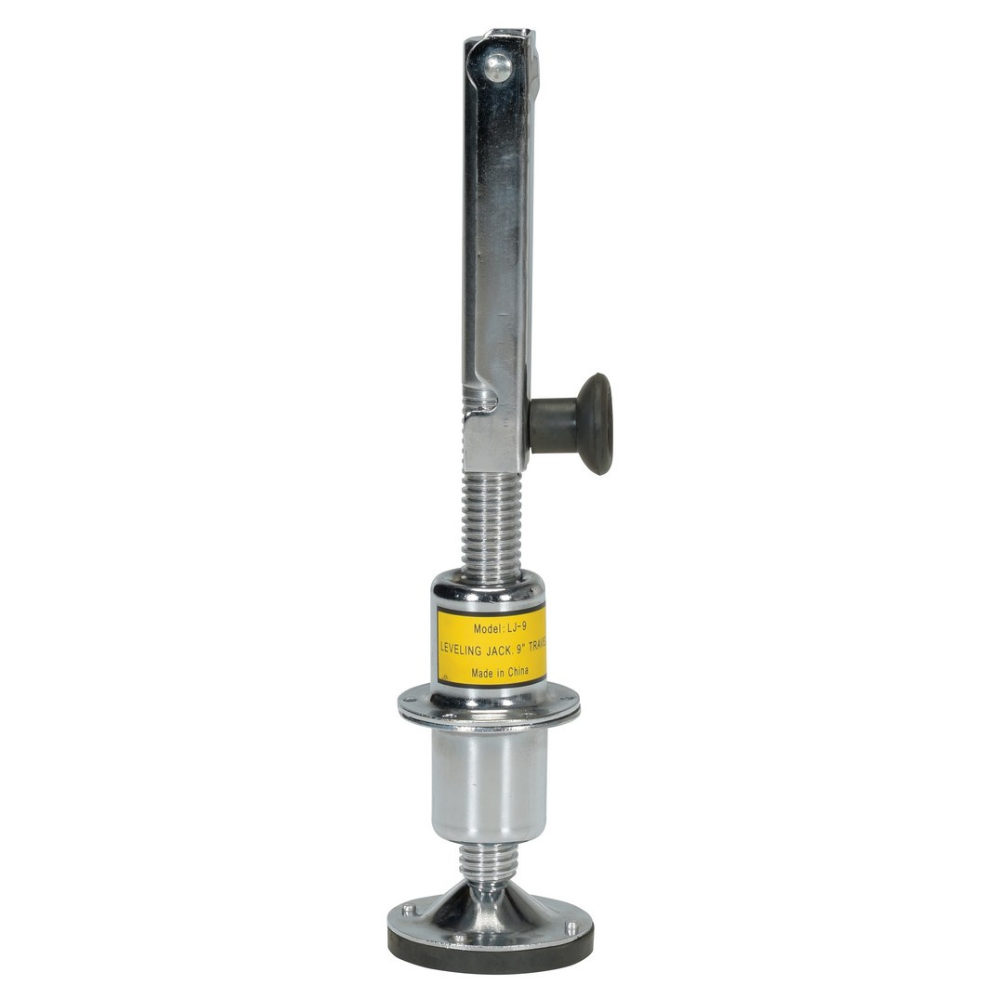

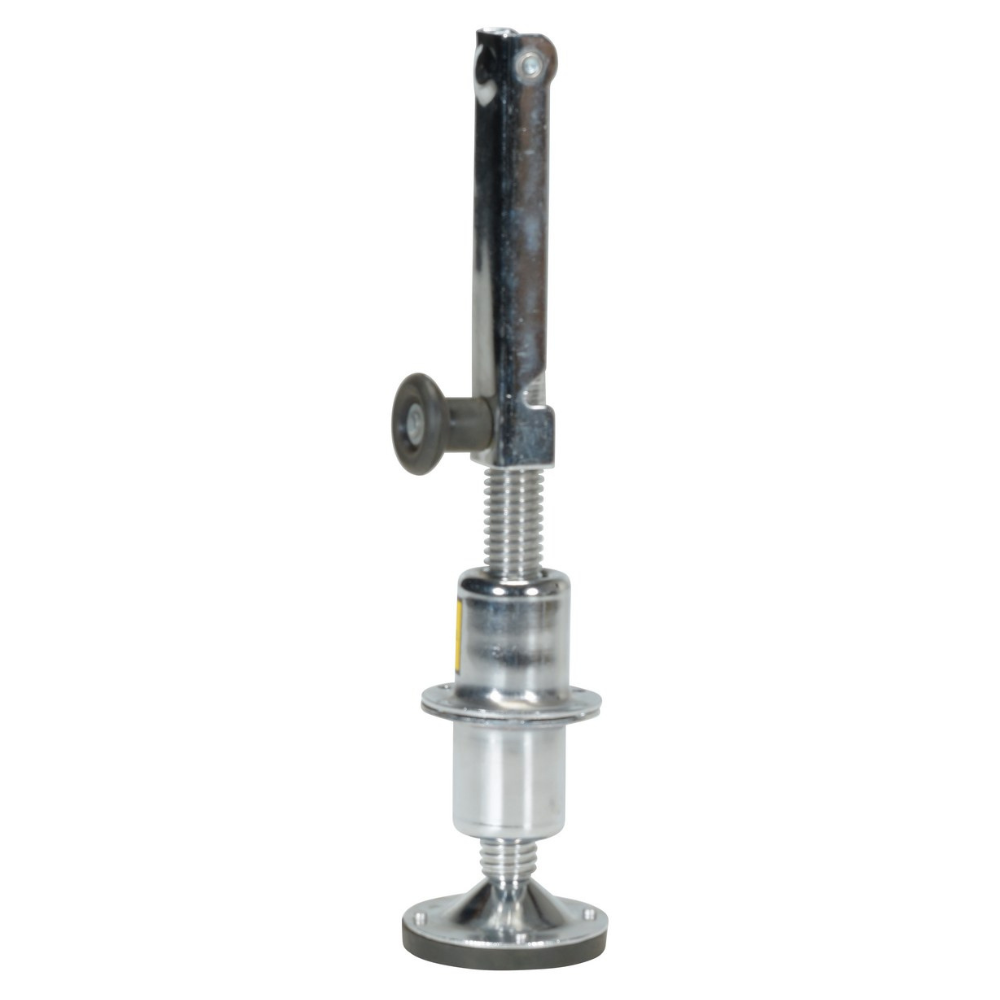

The Vestil LJ-9 Leveling Jack is a screw-style jack designed for permanent installation to raise, level, and stabilize platforms or other portable equipment at the desired height.
A 1-1/4 in. hole is drilled through the platform so it can be bolted between the jack’s upper and lower divided housing flanges.The fold-down handle allows smooth operation and stays out of the way when not in use.A swivel base with slip-resistant rubber pad provides reliable floor grip and helps keep equipment steady during use.
Replacement rubber pads are available.
  • Model Number: LJ-9
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.
  • Maximum Height: 13-1/2 in.
  • Screw Travel: 9 in.
  • Screw Diameter: 1-1/4 in.
  • Lift Rate per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Swivel Base Diameter: 3-7/8 in.
  • Jaw Opening: 3-1/4 in.
  • Thread Size: 4 mm
  • Assembled Dimensions: 9 W × 4.5 D × 18 H in.
  • Assembled Weight: 9 lb
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
