Steel Left Mount Hand Operated Floor Lock – FL-LK-SMR-L - Vestil

SKU: FL-LK-SMR-L
$68.33
Estimated Lead Time:1-3 Days

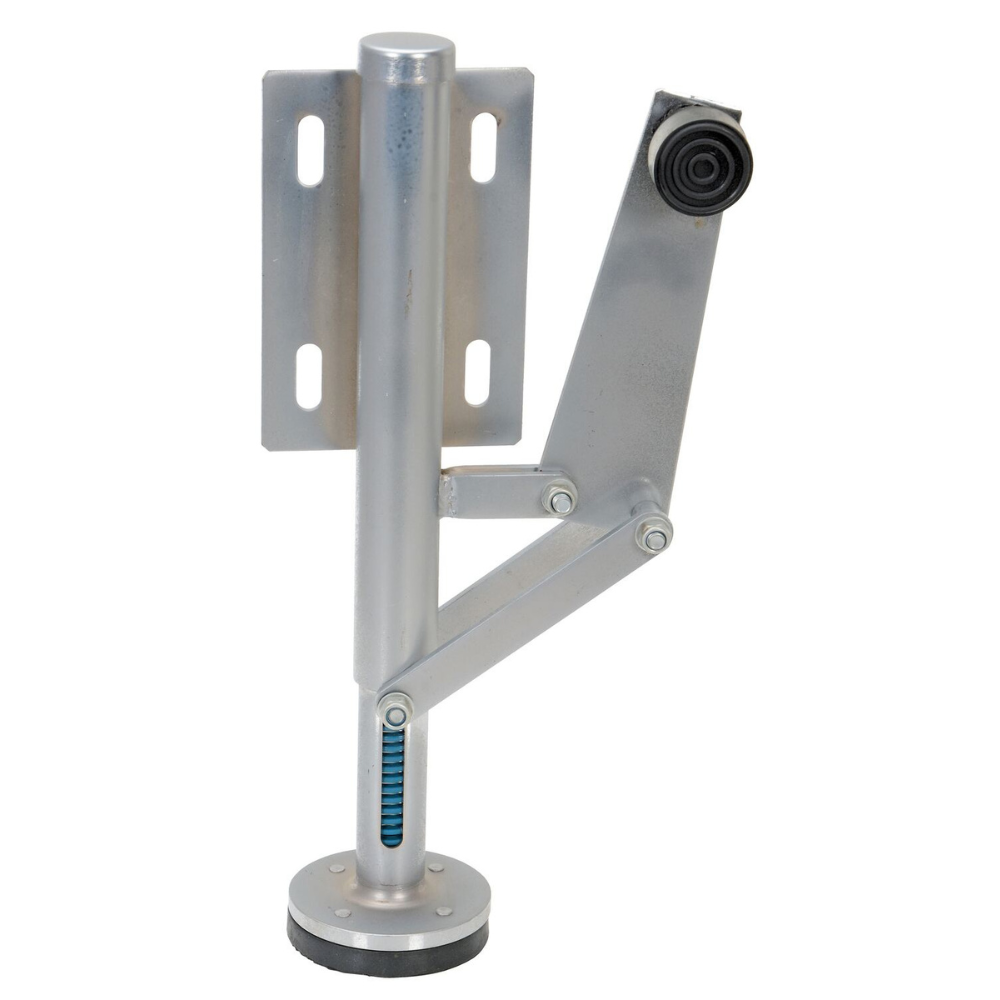

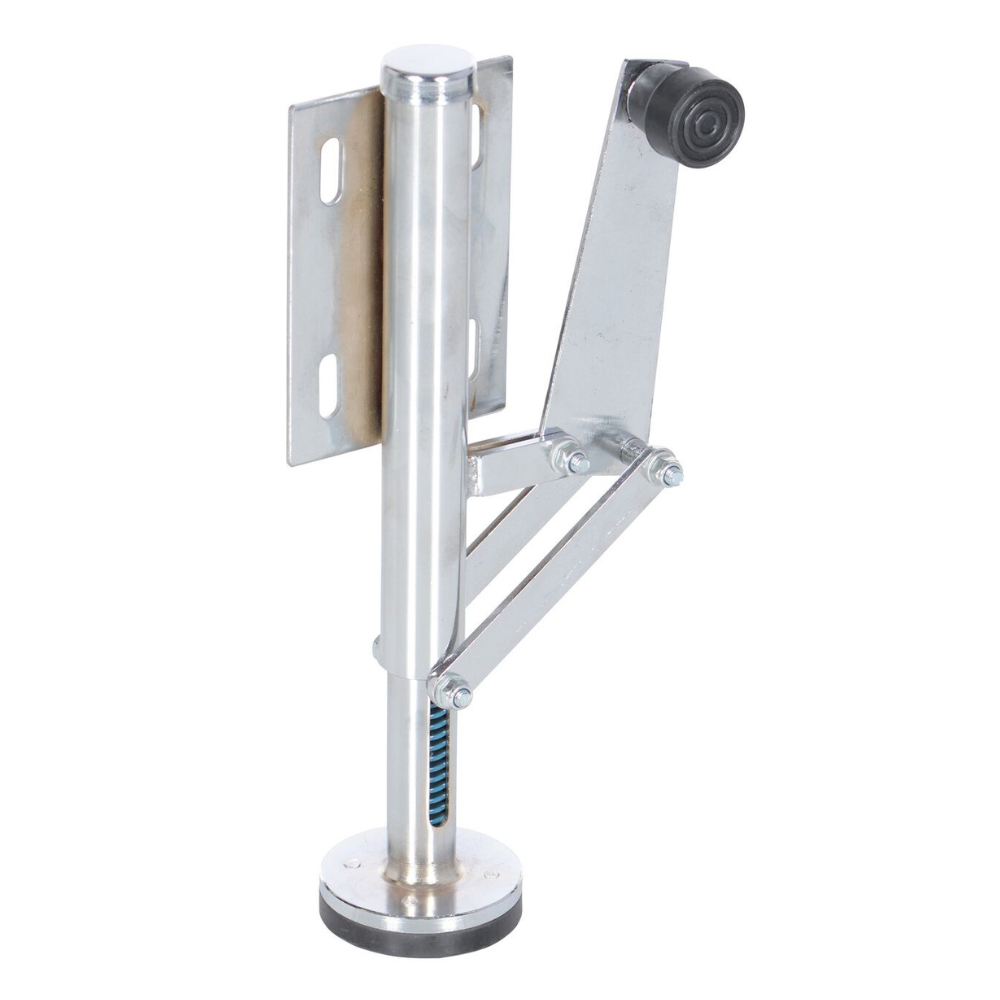

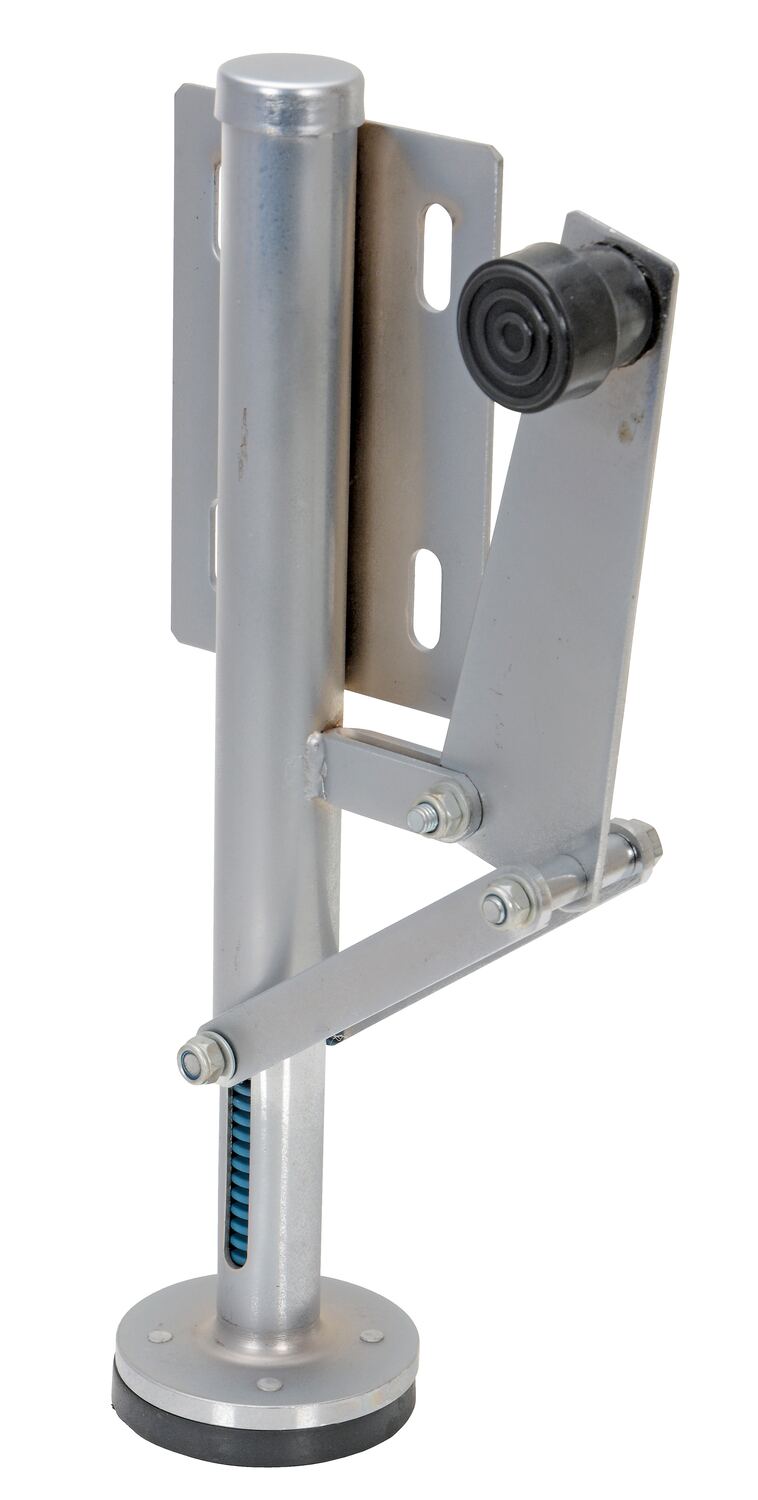

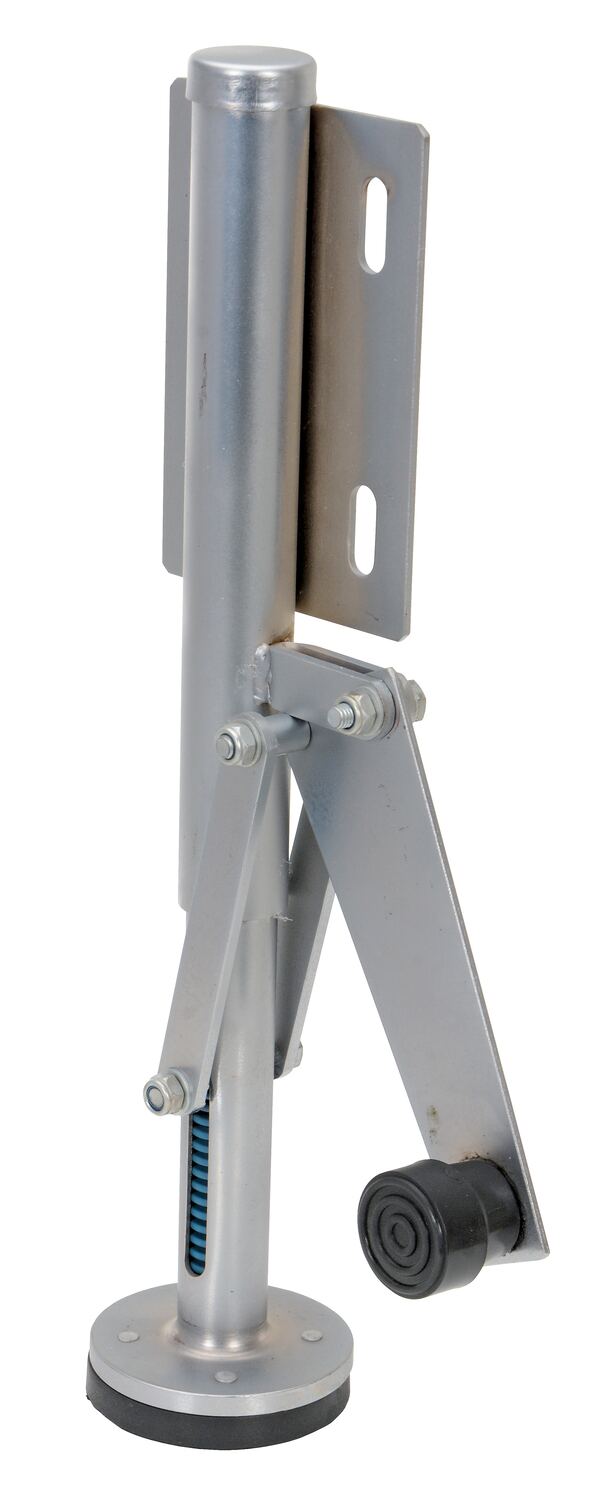

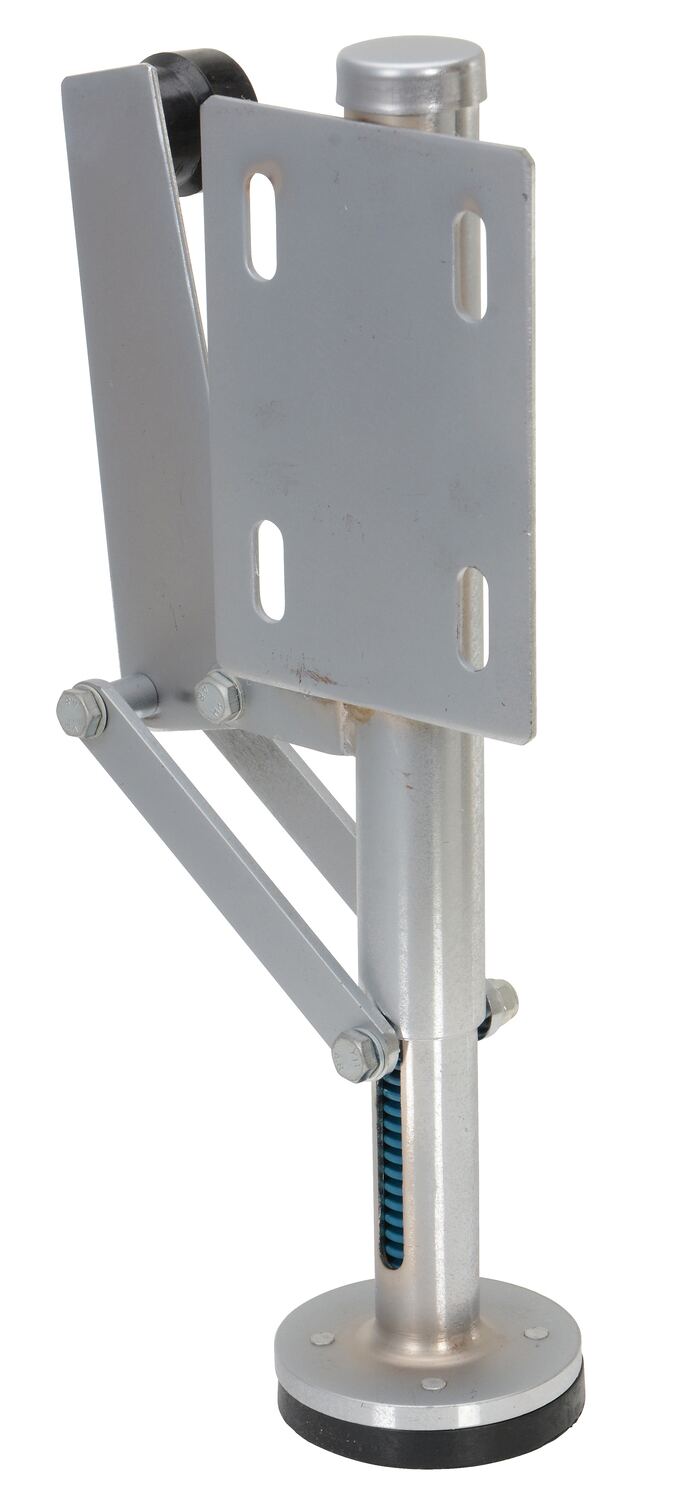

The Vestil FL-LK-SMR-L is a hand-operated, left-side mount floor lock designed for platform trucks, fixture dollies, and other castered equipment. Activation is via hand-lowered friction pad, providing secure immobilization without using the foot. Its spring-loaded pad allows for consistent contact on uneven floors, and the independent brake system ensures versatile mounting and reliable stopping power.
  • Model Number: FL-LK-SMR-L
  • Extended Height: 18"
  • Retracted Height: 15-3/4"
  • Mounting Height Range: 10–12"
  • Used with Caster Width: 2" of travel
  • Pad Mounting Height (Retracted): 1-1/2"
  • Plate Width / Height: 4-1/2" × 6-1/2"
  • Mounting Bolt Diameter: 3/8"
  • Mounting Plate Thickness: 1/8"
  • Slotted Mounting Hole (W × H): 13/32" × 13/16"
  • Inside Bolt Hole Spacing: 2-29/32" × 3-1/4"
  • Outside Bolt Hole Spacing: 2-29/32" × 4-3/4"
  • Assembled Dimensions (W × D × H): 8.3125" × 3.875" × 18"
  • Assembled Weight: 9 lb 
  • Material: Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
