Steel Knockdown Vertical Cylinder Cabinet – 5 to 10 Cylinder Capacity – CYL-V-510-KD – Vestil

SKU: CYL-V-510-KD
$840.83
Estimated Lead Time:4-5 Weeks

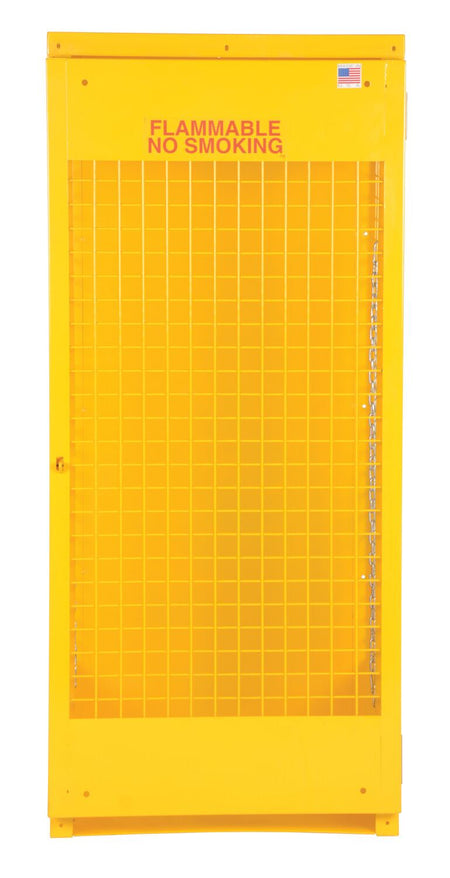

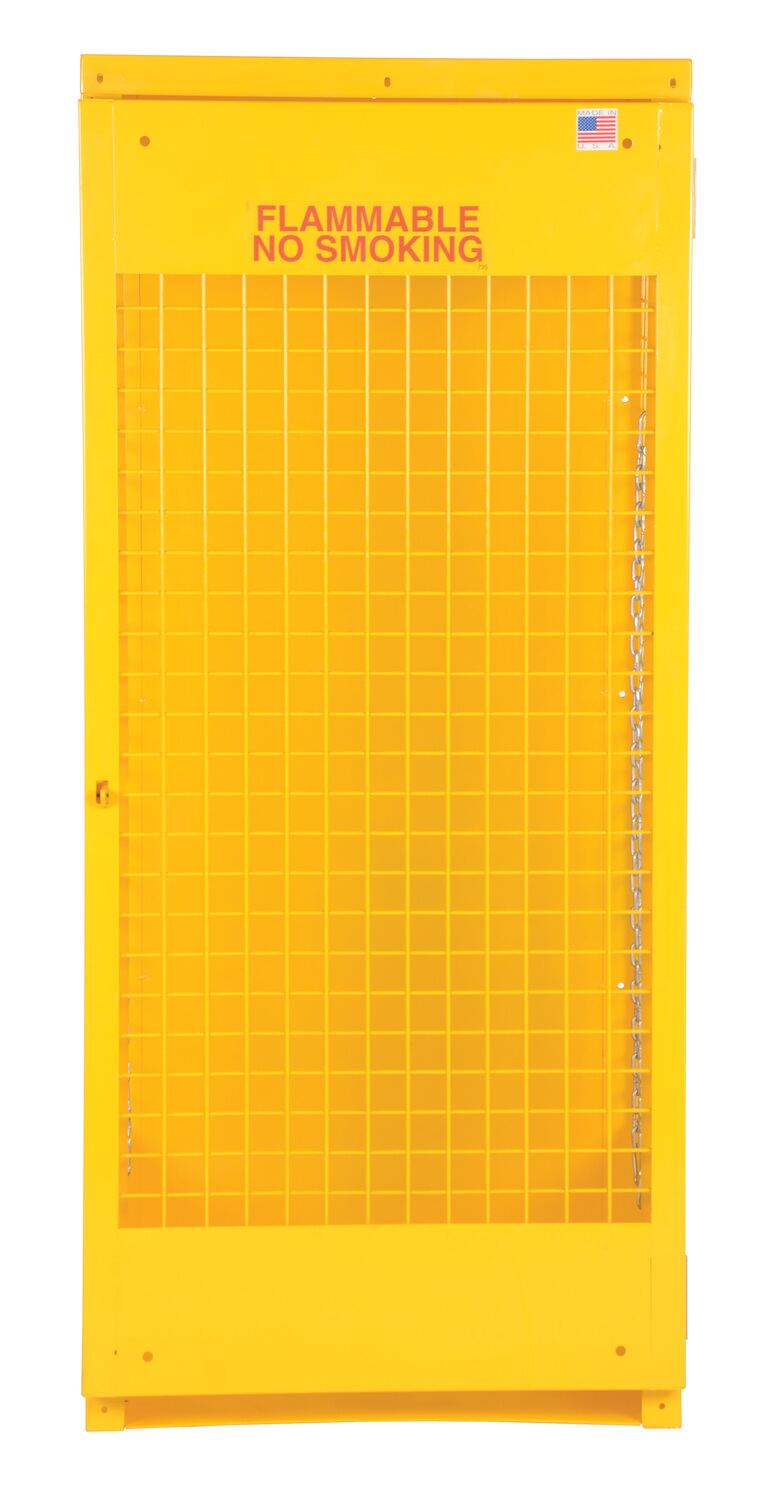

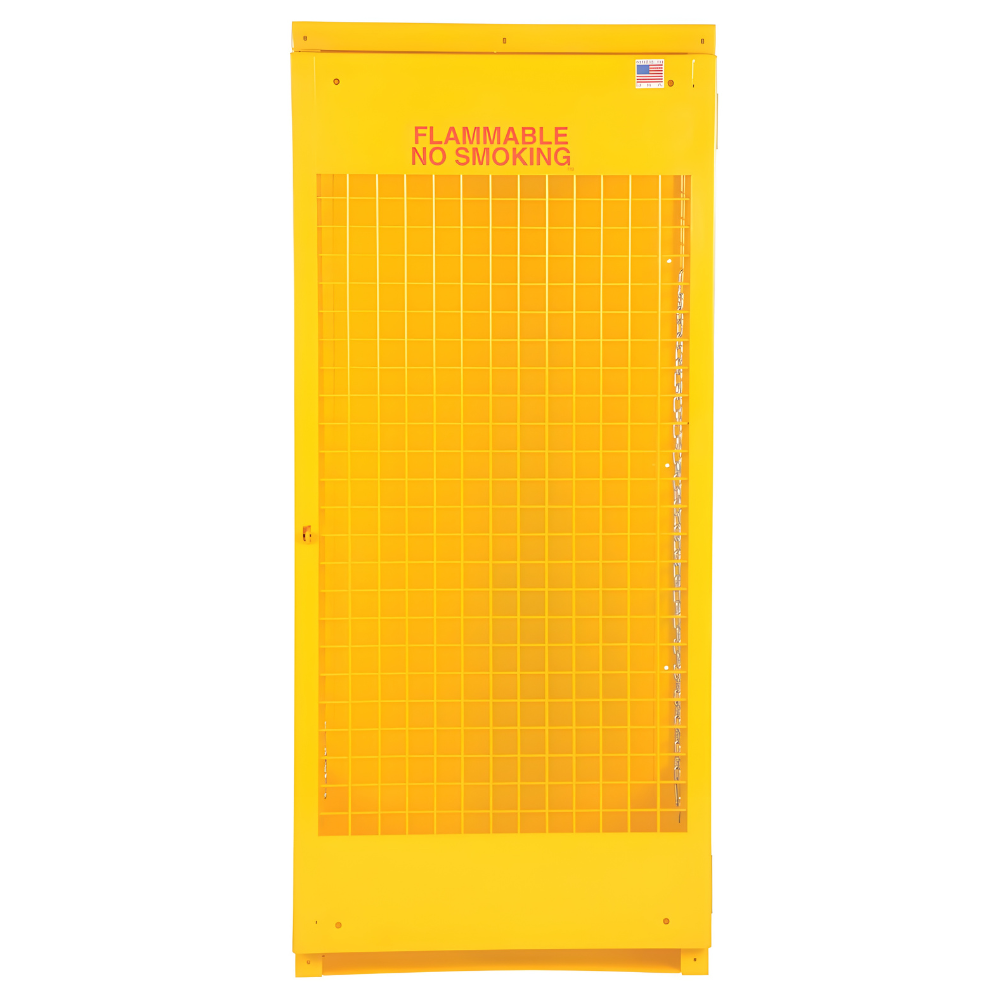

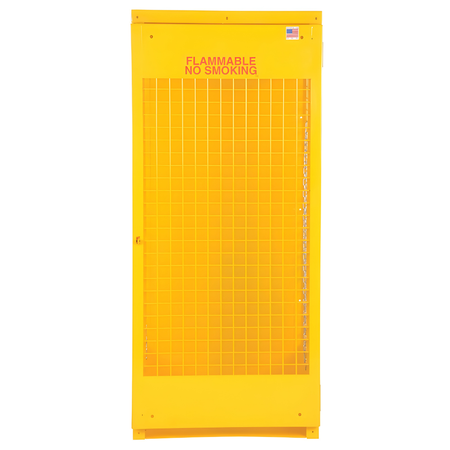

The Vestil CYL-V-510-KD Steel Knockdown Vertical Cylinder Cabinet provides safe and secure storage for up to ten gas cylinders, depending on size. Built from heavy-duty 10-gauge steel, it features expanded mesh sides and door for visibility and ventilation, with a solid top, back, and bottom for durability. The hinged lockable door (padlock not included) and included securing chains protect cylinders, while lag holes in the base allow for anchoring. This cabinet ships knockdown for reduced freight cost and requires user assembly. Finished in safety yellow powder coat with bold “FLAMMABLE – NO SMOKING” signage, it complies with OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CGA P-1 standards.
  • Model Number: CYL-V-510-KD
  • Cylinder Capacity: 5 to 10 (vertical)
  • Weight Capacity: 250 lbs
  • Overall Dimensions: 30 in W × 32 in D × 68.25 in H
  • Assembled Weight: 287 lbs
  • Package Dimensions: 40 in W × 48 in D × 25 in H, 287 lbs
  • Material: 10-gauge steel
  • Finish: Safety yellow powder coat with red “FLAMMABLE – NO SMOKING” signage
  • Door Type: Hinged, lockable (padlock not included)
  • Construction: Expanded mesh sides/door; solid steel top, back, bottom
  • Features: Includes chains for securing cylinders; lag holes in base for anchoring
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2, CGA P-1
  • Assembly: Ships knockdown, assembly required

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
