Steel Knockdown Vertical Cylinder Cabinet – 10 to 20 Cylinder Capacity – CYL-V-1020-KD – Vestil

SKU: CYL-V-1020-KD
$1,417.91
Estimated Lead Time:4-5 Weeks

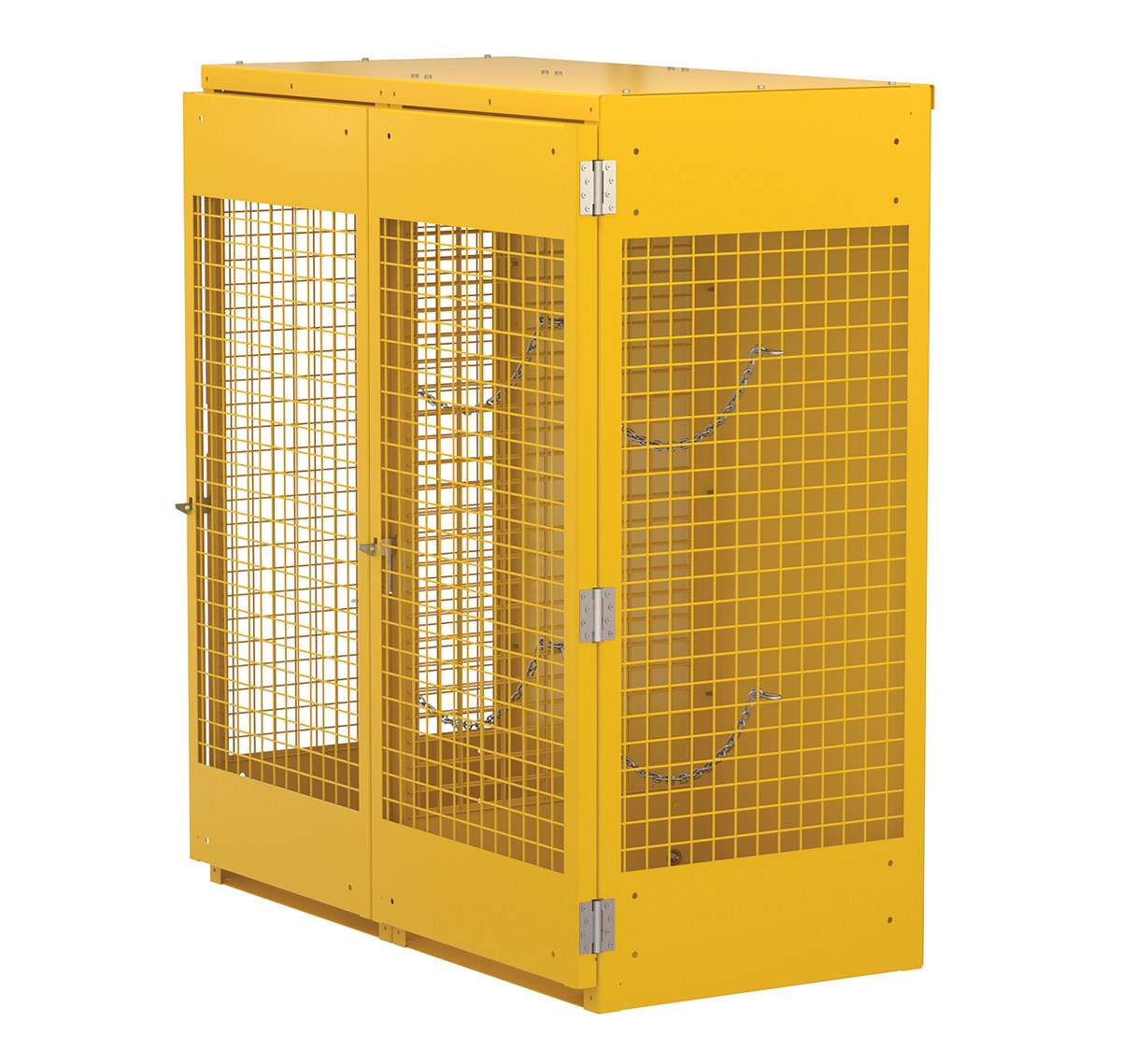

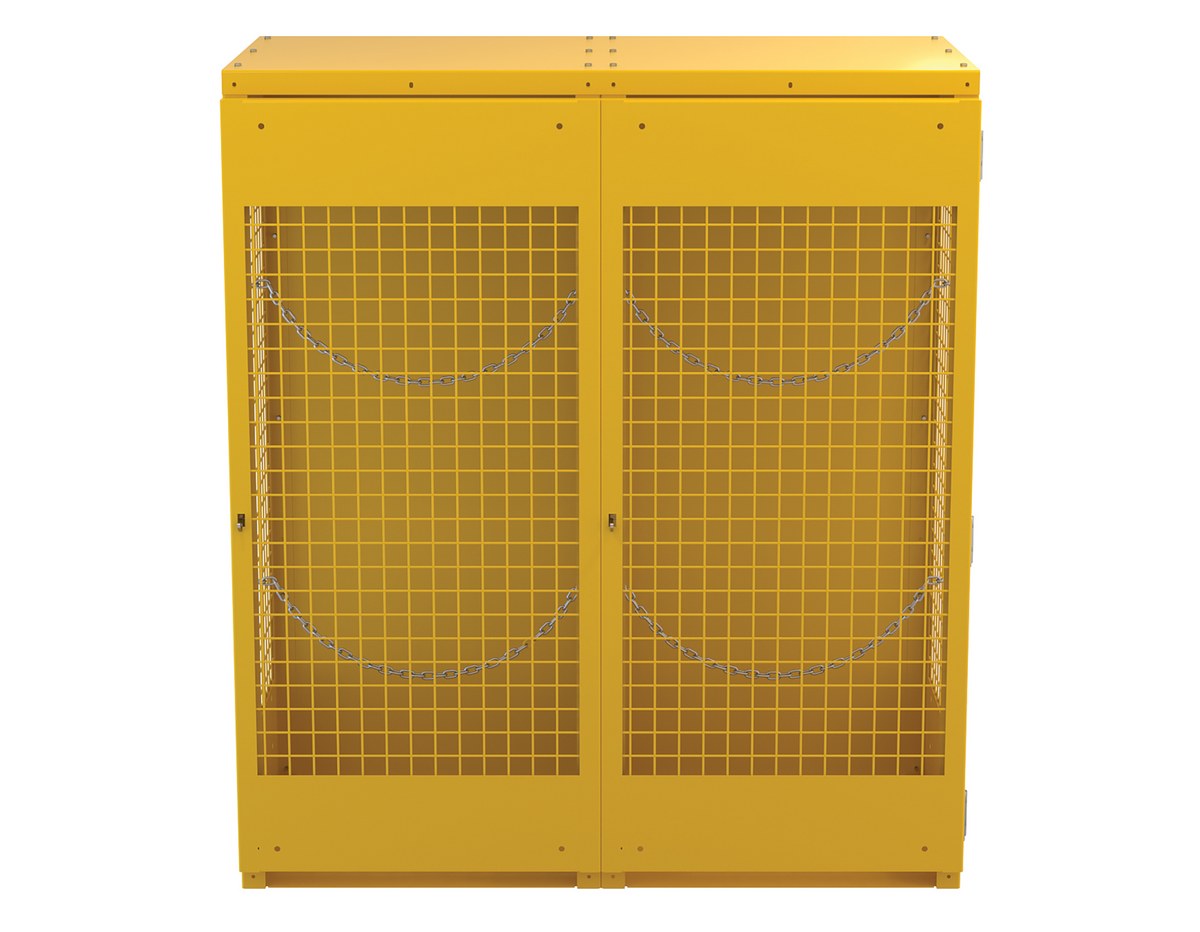

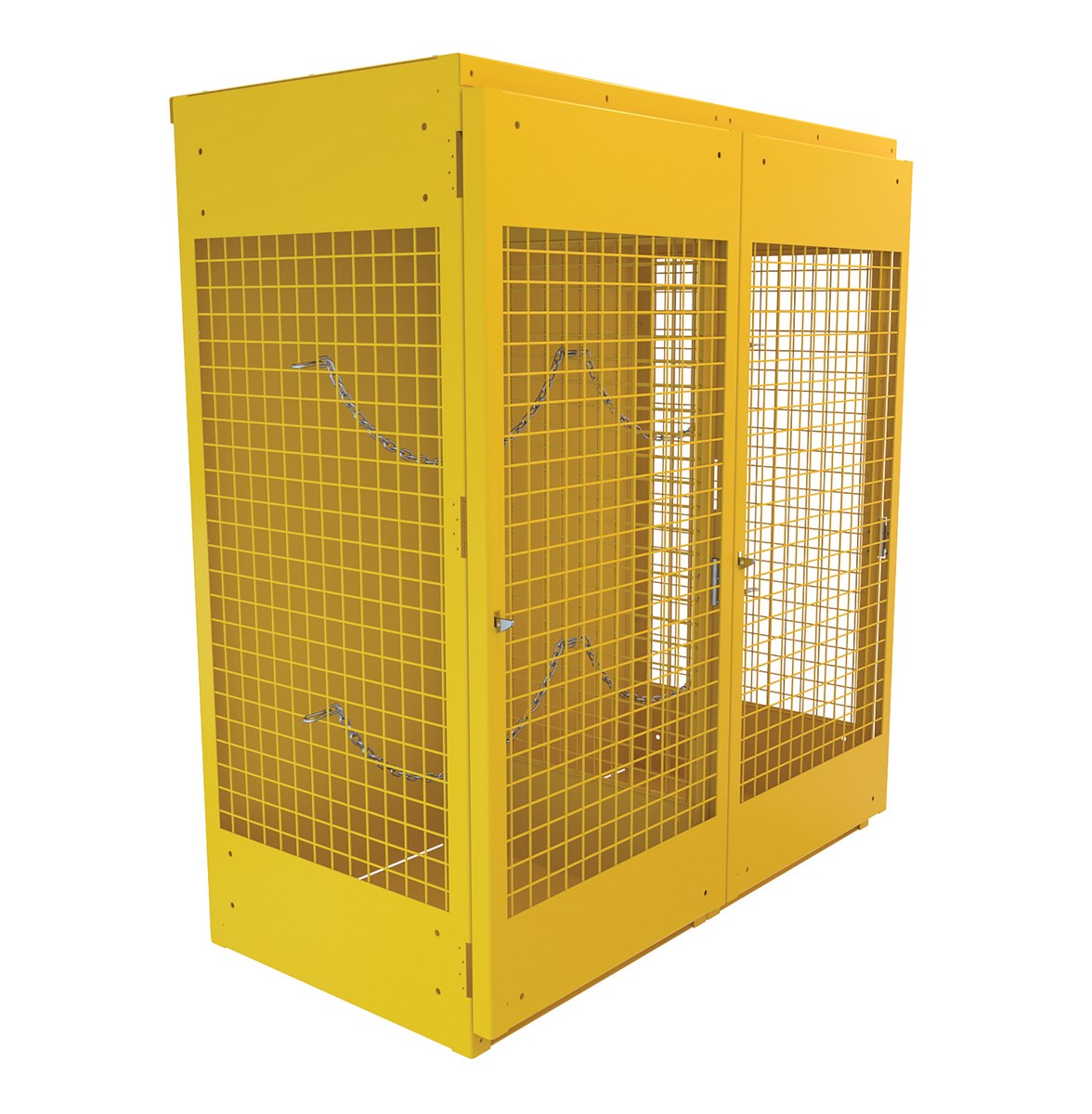

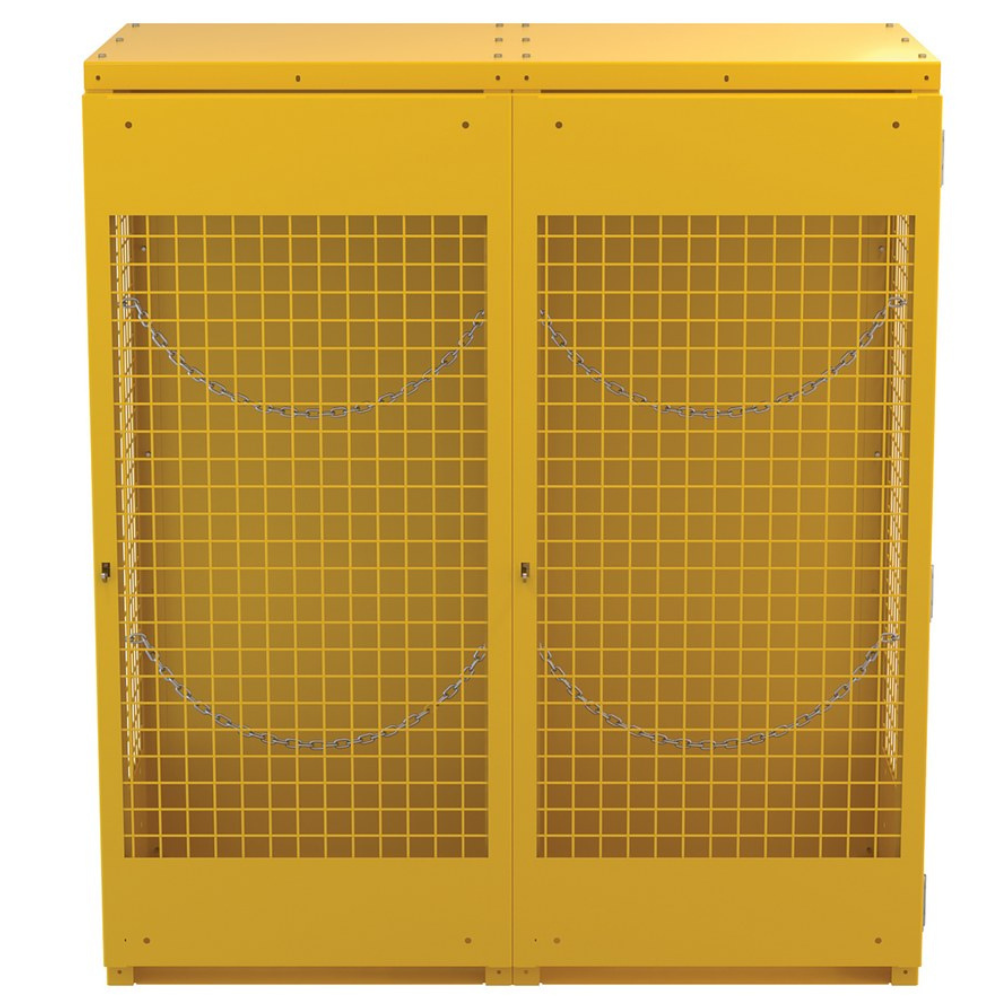

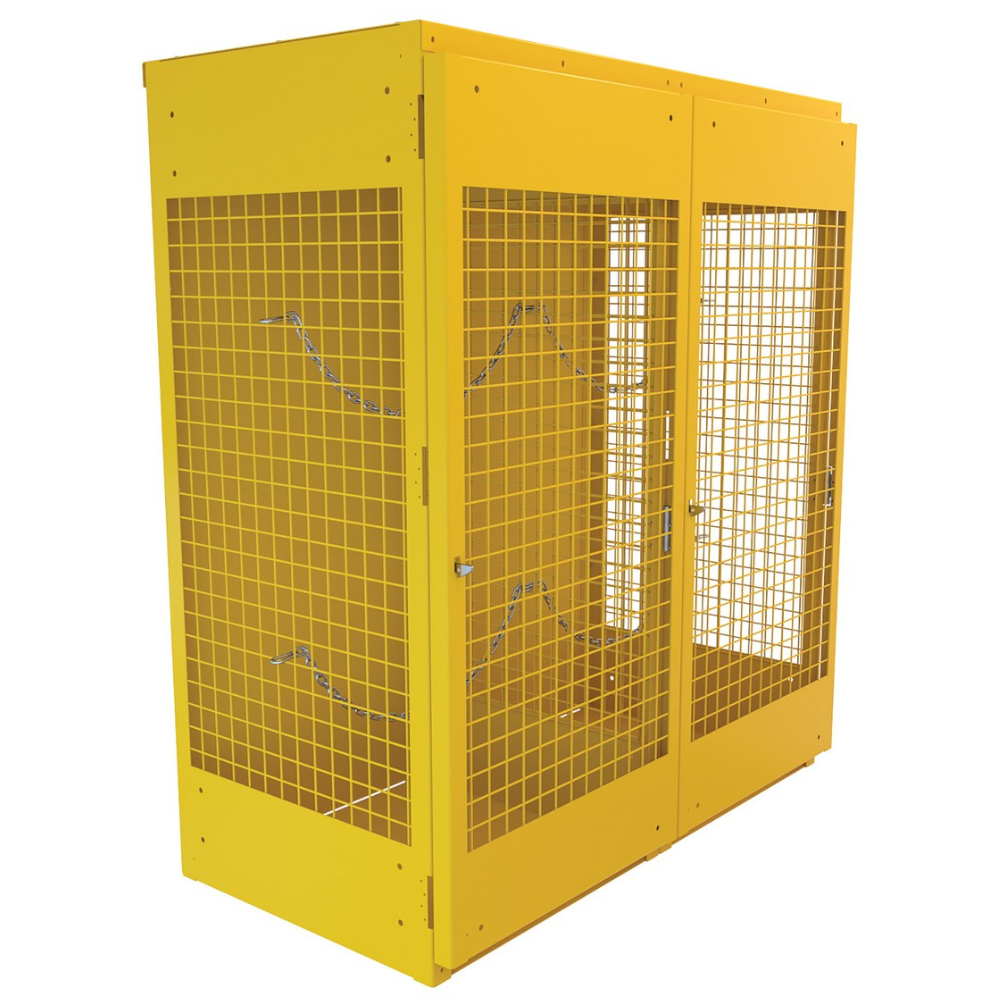

The Vestil CYL-V-1020-KD Steel Knockdown Vertical Cylinder Cabinet provides safe and compliant storage for 10 to 20 cylinders, depending on size. Constructed of heavy-duty 10-gauge steel, it features expanded mesh sides and doors for visibility and ventilation, with solid steel panels on the top, back, and bottom for strength. A hinged lockable door (padlock not included) and securing chains keep cylinders in place, while lag holes in the base allow for permanent anchoring. Finished in high-visibility yellow powder coat with bold “FLAMMABLE – NO SMOKING” signage, this unit meets OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CGA P-1 standards. Shipped knocked down for user assembly.
  • Model Number: CYL-V-1020-KD
  • Cylinder Capacity: 10 to 20 (vertical)
  • Weight Capacity: 500 lbs
  • Overall Dimensions: 60 in W × 32 in D × 68.25 in H
  • Assembled Weight: 374 lbs
  • Package Dimensions: 40 in W × 48 in D × 73 in H, 398 lbs
  • Material: 10-gauge steel
  • Finish: Safety yellow powder coat with red “FLAMMABLE – NO SMOKING” signage
  • Door Type: Hinged, lockable (padlock not included)
  • Construction: Expanded mesh sides/door; solid top, back, bottom
  • Features: Includes securing chains; lag holes in base for anchoring
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2, CGA P-1
  • Assembly: Ships knockdown – assembly required

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
