Steel Knockdown Horizontal & Vertical Cylinder Cabinet – 8 Horizontal / 10 Vertical Capacity – CYL-H8-V510-KD – Vestil

SKU: CYL-H8-V510-KD
$1,317.10
Estimated Lead Time:4-5 Weeks

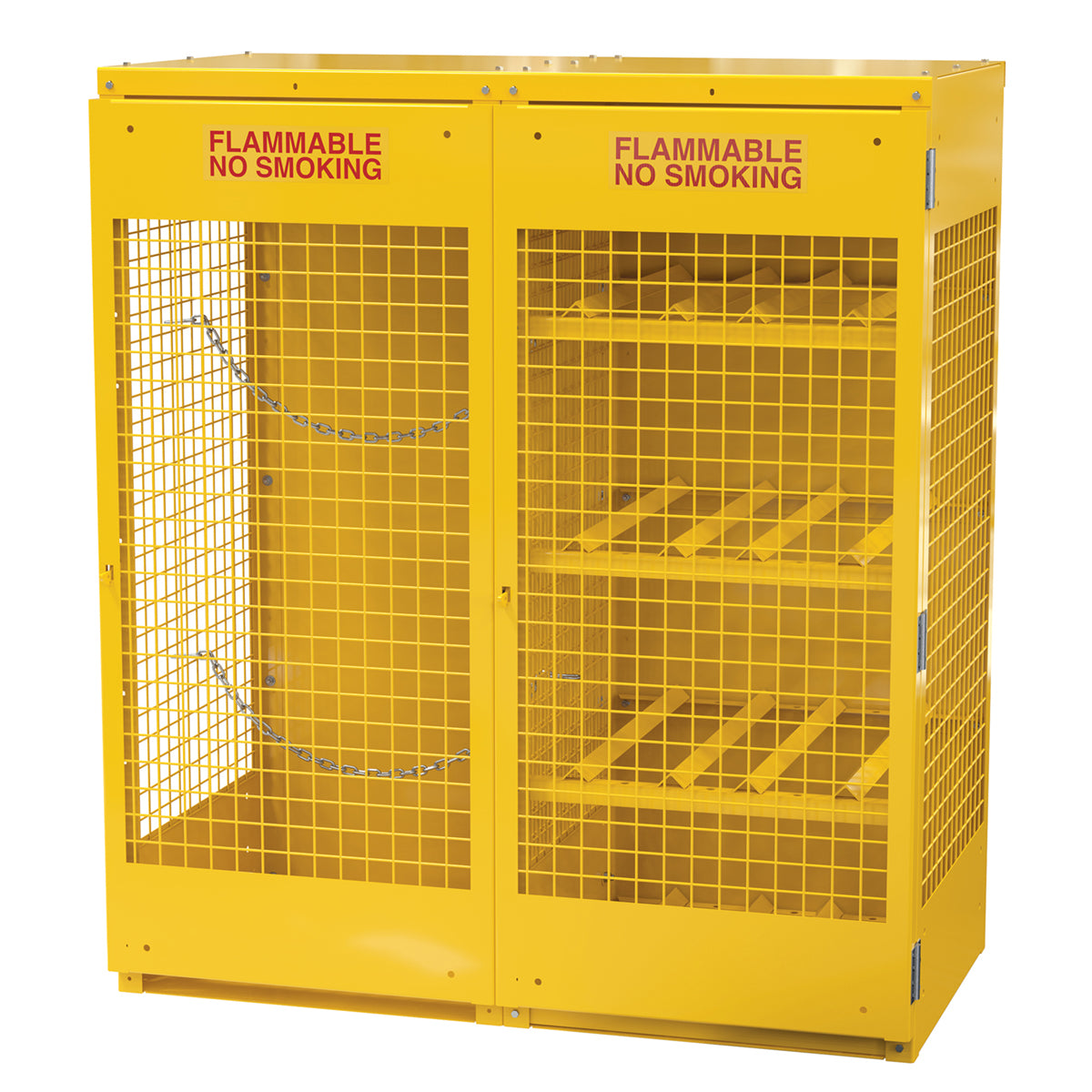

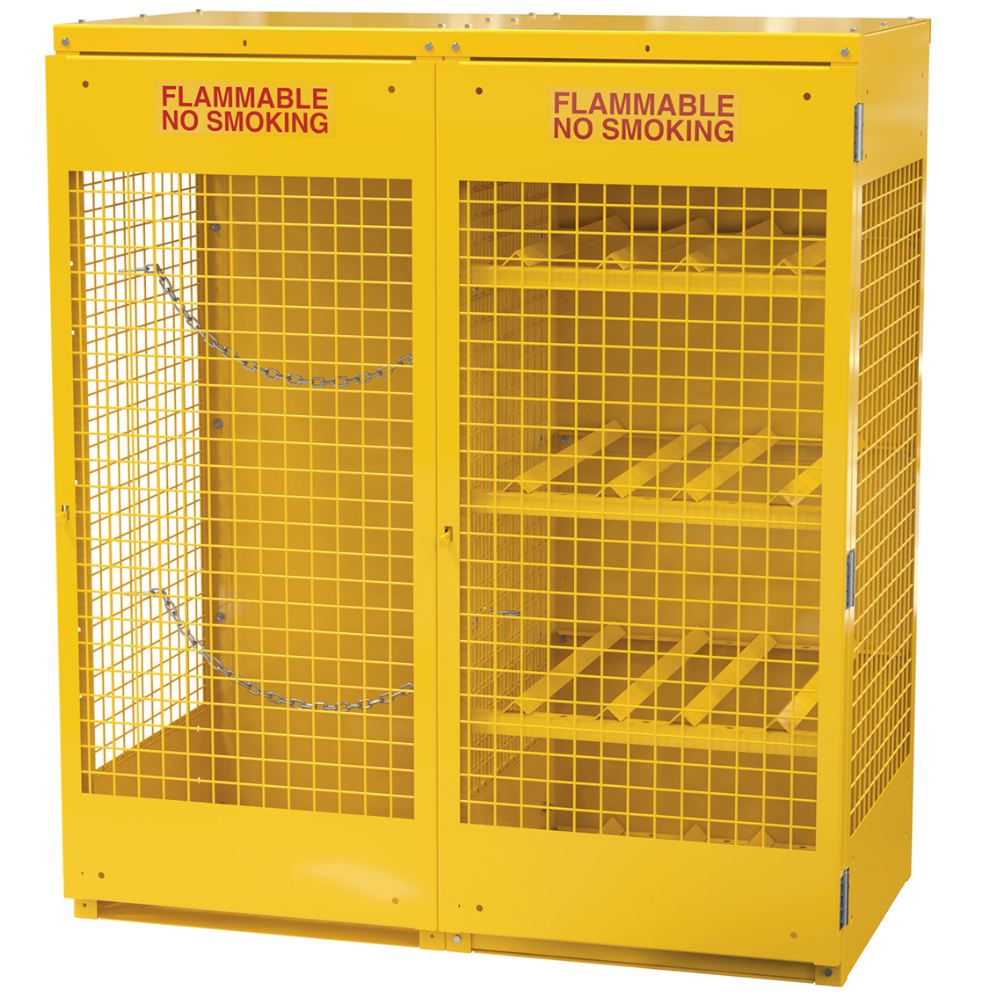

The Vestil CYL-H8-V510-KD Steel Knockdown Horizontal and Vertical Cylinder Cabinet provides safe storage for up to eight horizontal and ten vertical cylinders. Built from heavy-duty steel with expanded mesh sides and door, and solid sheet steel top, bottom, and back, the cabinet combines strength with visibility of stored cylinders. The lockable hinged door (padlock not included) and lag holes in the base enhance security. Supplied in a knockdown design for easier shipping and handling, the unit requires assembly by the user. Finished in safety yellow with red “FLAMMABLE – NO SMOKING” signage, the cabinet meets OSHA 1910.110 (f)(6)(ii), CSA B-149.2, and NFPA 55/58 standards.
  • Model Number: CYL-H8-V510-KD
  • Capacity: 8 horizontal cylinders / 10 vertical cylinders
  • Weight Capacity: 360 lbs (90 lbs per shelf)
  • Overall Dimensions: 60 in W × 32 in D × 68.25 in H
  • Assembled Weight: 433 lbs
  • Package Dimensions: 40 in W × 75 in D × 20 in H, 505 lbs
  • Material: 10-gauge steel with expanded mesh sides and door
  • Door Type: Hinged, lockable (padlock not included)
  • Finish: Safety yellow with red “FLAMMABLE – NO SMOKING” signage
  • Assembly: Knockdown – assembly required
  • Compliance: OSHA 1910.110 (f)(6)(ii), CSA B-149.2, NFPA 55/58
  • Features: Lag holes for securing, non-portable, single-door construction

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
