Steel Knockdown Horizontal Cylinder Cabinet – 4 Cylinder Capacity – CYL-H-4-KD – Vestil

SKU: CYL-H-4-KD
$535.49
Estimated Lead Time:4-5 Weeks

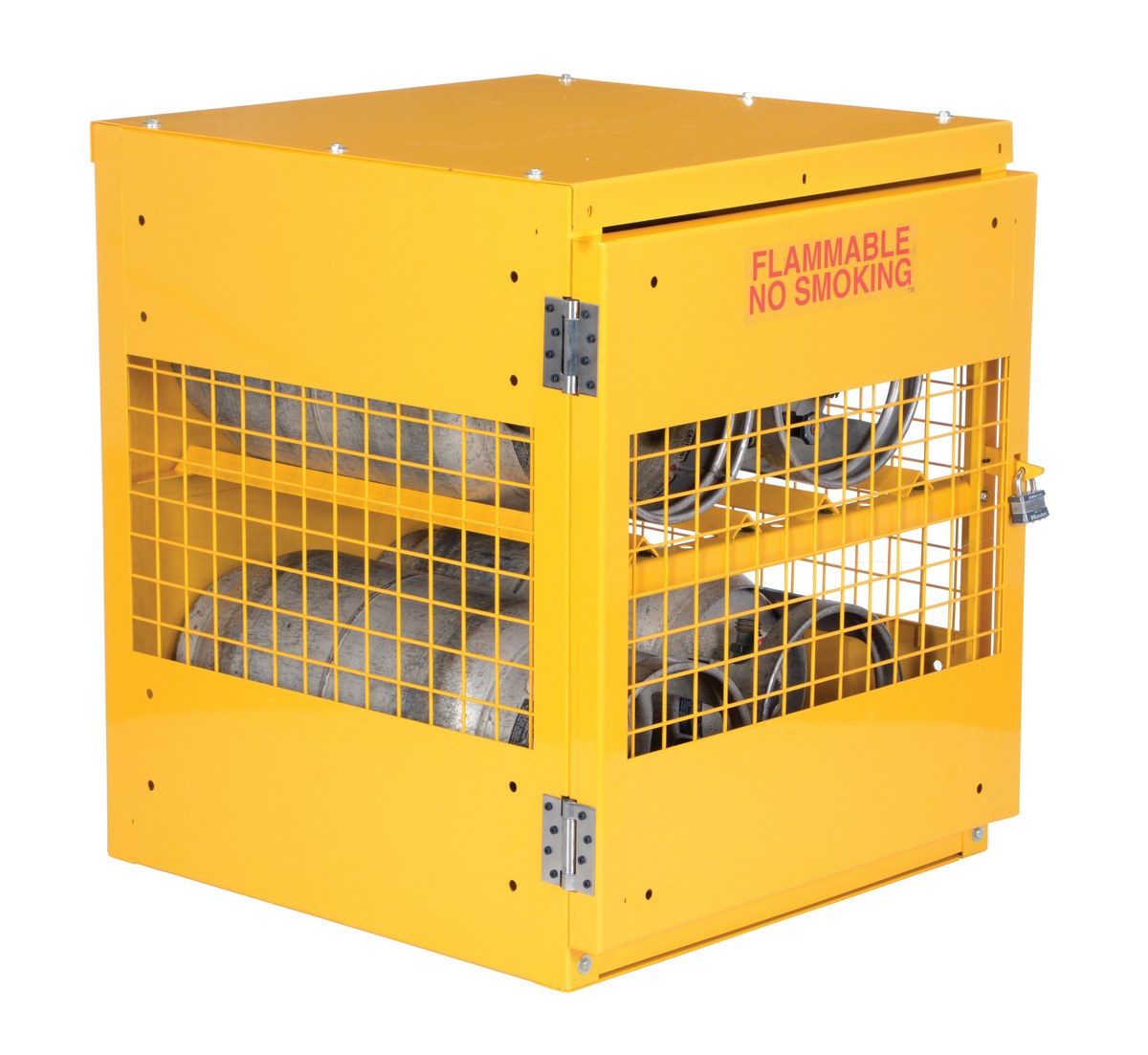

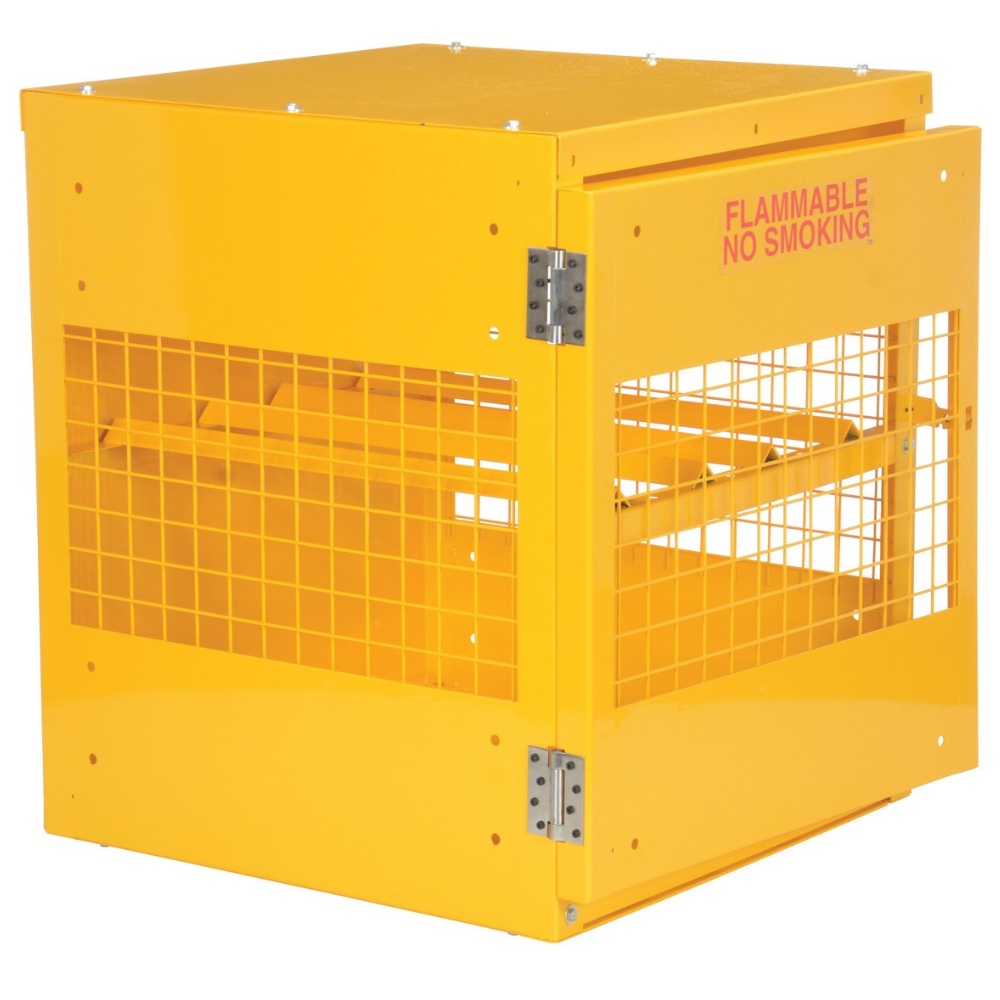

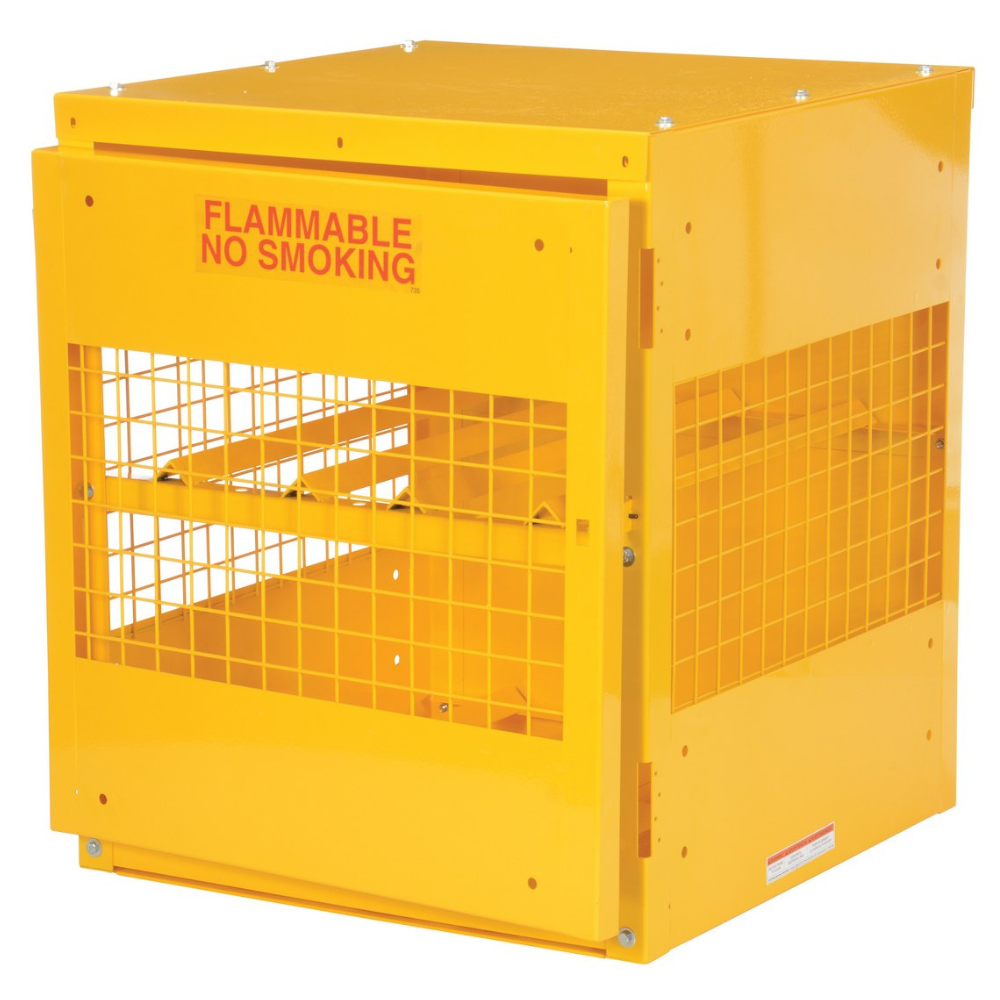

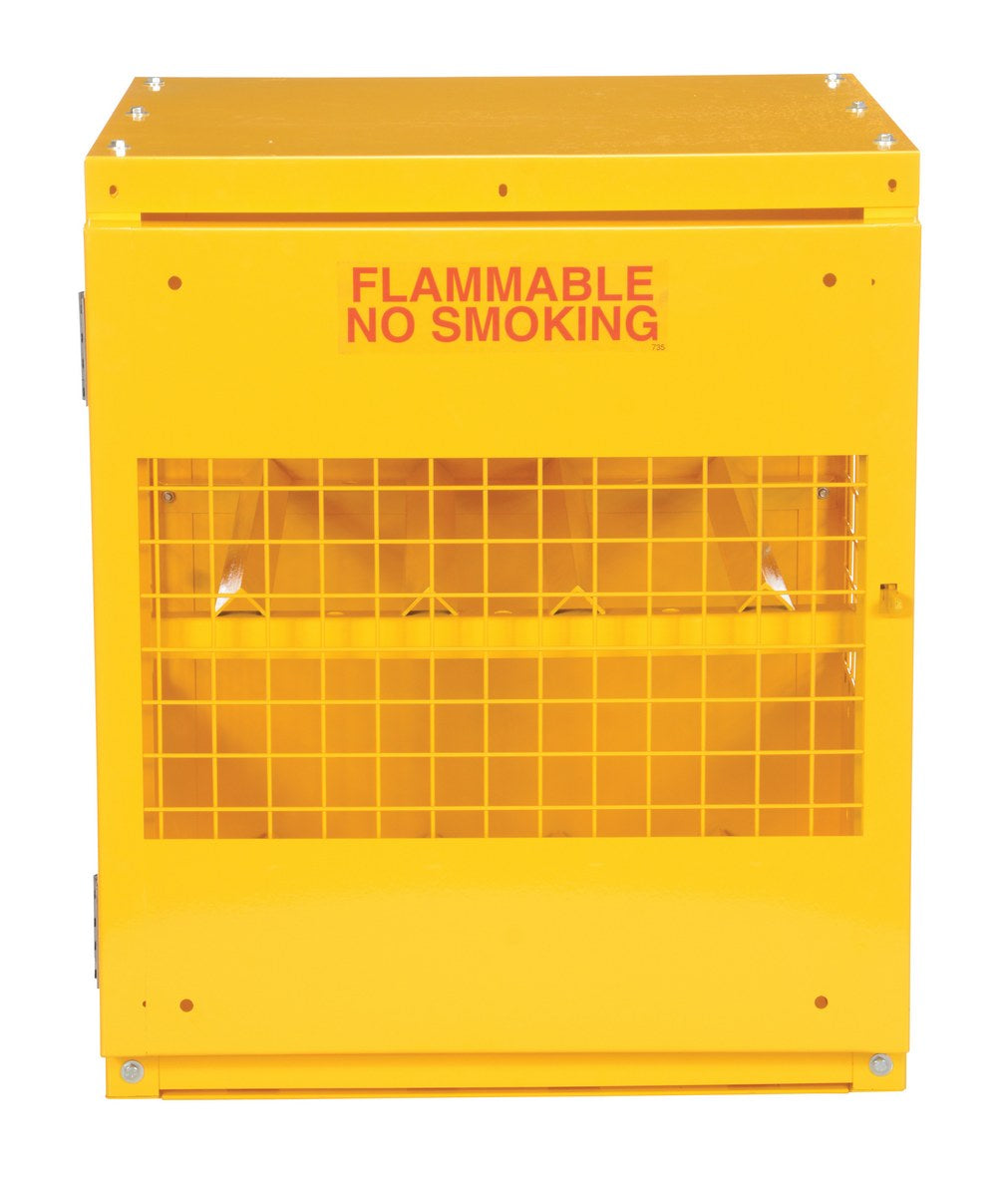

The Vestil CYL-H-4-KD Steel Knockdown Horizontal Cylinder Cabinet offers secure storage for up to four gas cylinders. Constructed with expanded steel mesh sides and a solid sheet steel back, bottom, and top, the cabinet provides both strength and visibility of contents. A hinged, lockable door (padlock not included) secures cylinders in place, while lag holes in the base allow for anchoring. Finished in safety yellow with red “FLAMMABLE – NO SMOKING” signage, the unit meets OSHA 1910.110, CSA B-149.2, and NFPA 55/58 standards. Shipped knockdown, the cabinet requires user assembly.
  • Model Number: CYL-H-4-KD
  • Capacity: 4 cylinders
  • Weight Capacity: 180 lbs (90 lbs per shelf)
  • Overall Dimensions: 30 in W × 32 in D × 35.25 in H
  • Assembled Weight: 156 lbs
  • Package Dimensions: 40 in W × 48 in D × 12 in H, 184 lbs
  • Material: 10-gauge steel with expanded mesh sides and door
  • Door Type: Hinged, lockable (padlock not included)
  • Finish: Safety yellow with red signage
  • Assembly: Required (knockdown shipped)
  • Compliance: OSHA 1910.110, CSA B-149.2, NFPA 55/58
  • Features: Lag holes for securing, non-portable, single-door construction

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
