Home » Steel Knockdown Horizontal Cylinder Cabinet – 16 Cylinder Capacity – CYL-H-16-KD – Vestil
Vestil

Steel Knockdown Horizontal Cylinder Cabinet – 16 Cylinder Capacity – CYL-H-16-KD – Vestil

SKU: CYL-H-16-KD
$1,754.88
Estimated Lead Time:4-5 Weeks

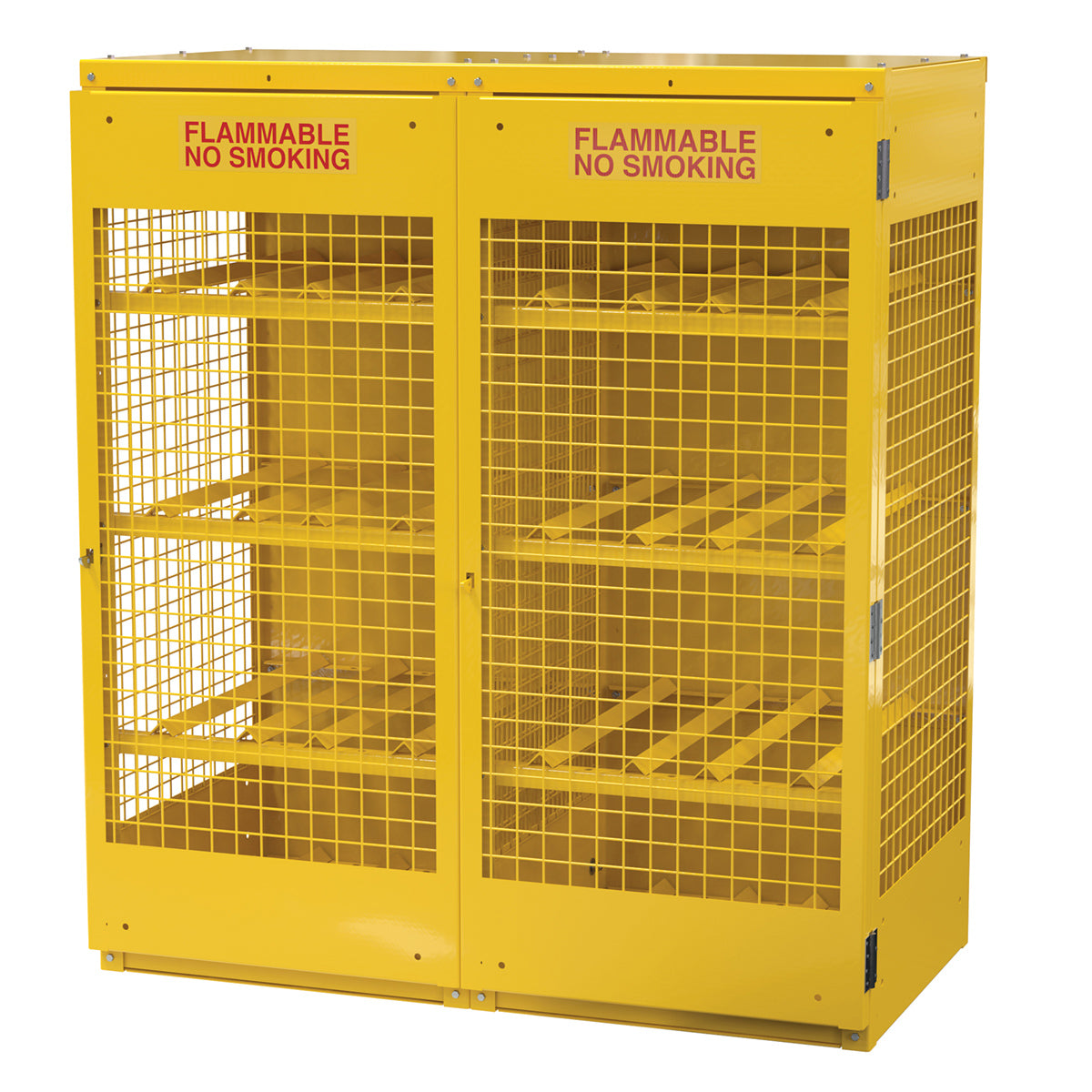

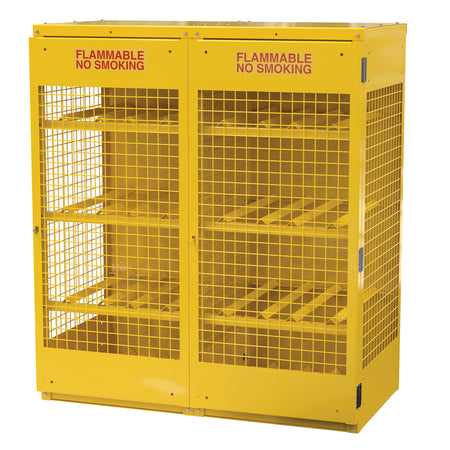

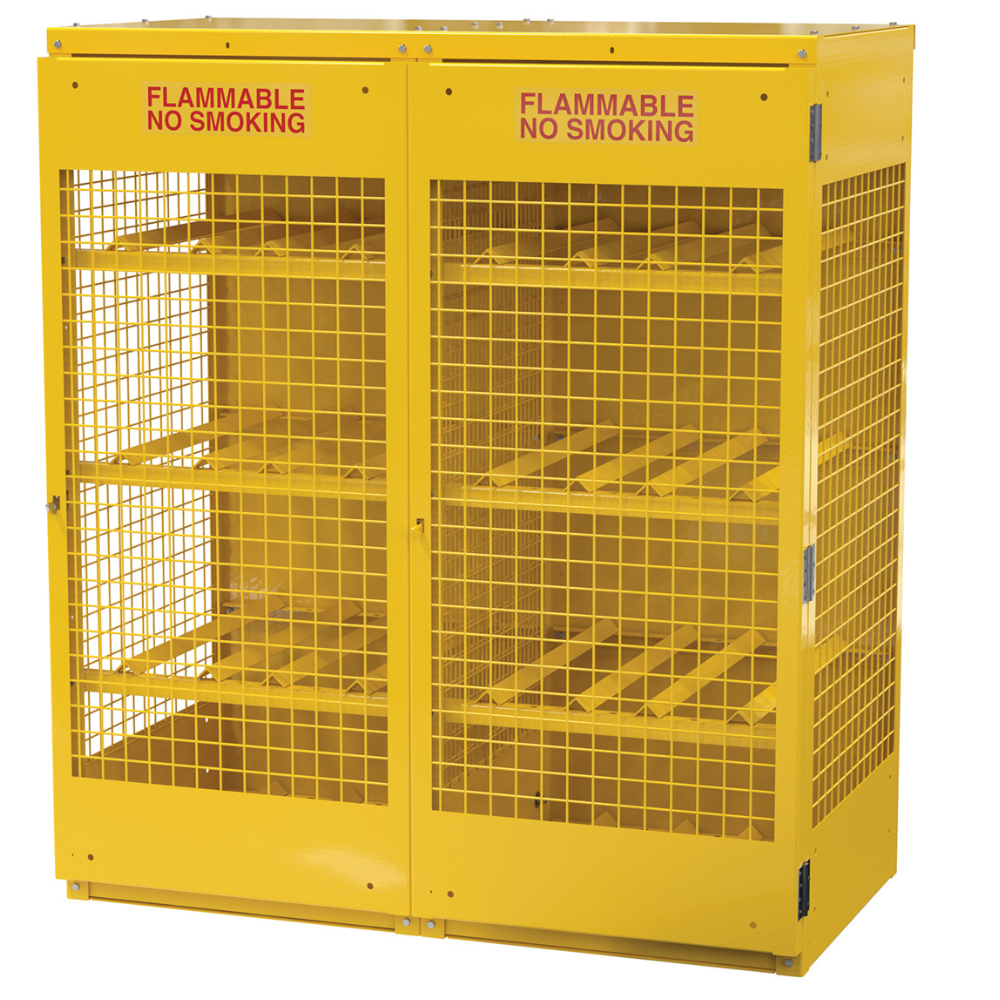

The Vestil CYL-H-16-KD Knockdown Horizontal Steel Cylinder Cabinet provides secure storage for up to 16 horizontal gas cylinders. Constructed from rugged 10-gauge steel with expanded mesh sides and doors for ventilation and visibility, and solid steel top, back, and bottom panels. The hinged lockable door (padlock not included) ensures safety, while lag holes in the base allow for floor anchoring. Finished in high-visibility safety yellow with red “FLAMMABLE – NO SMOKING” signage, this model ships knocked down and requires user assembly. Complies with OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CSA B-149.2 standards.
  • Model Number: CYL-H-16-KD
  • Cylinder Capacity: 16 (horizontal)
  • Weight Capacity: 720 lbs (90 lbs per shelf)
  • Overall Dimensions: 60 in W × 32 in D × 68.25 in H
  • Assembled Weight: 493 lbs
  • Package Dimensions: 48 in W × 38 in D × 35 in H, 495 lbs
  • Material: 10-gauge steel
  • Finish: Safety yellow with red “FLAMMABLE – NO SMOKING” signage
  • Door Type: Hinged, lockable (padlock not included)
  • Construction: Expanded mesh sides/doors; solid top, back, and bottom
  • Features: Ships knocked down, requires assembly; lag holes for securing
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
