Steel Horizontal & Vertical Cylinder Cabinet – 8 Horizontal / 10 Vertical Capacity – CYL-H8-V510 – Vestil

SKU: CYL-H8-V510
$1,414.90
Estimated Lead Time:4-5 Weeks

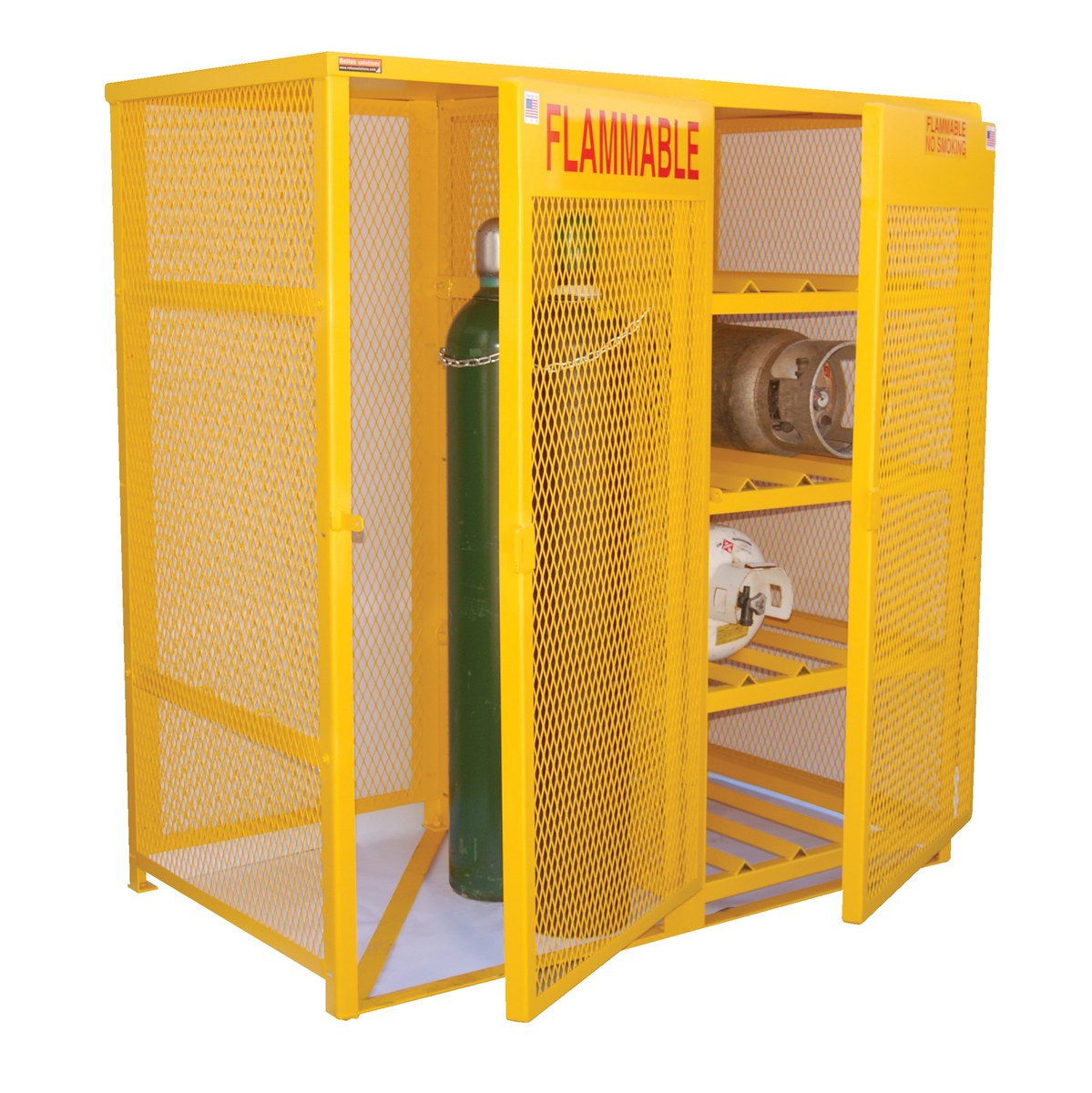

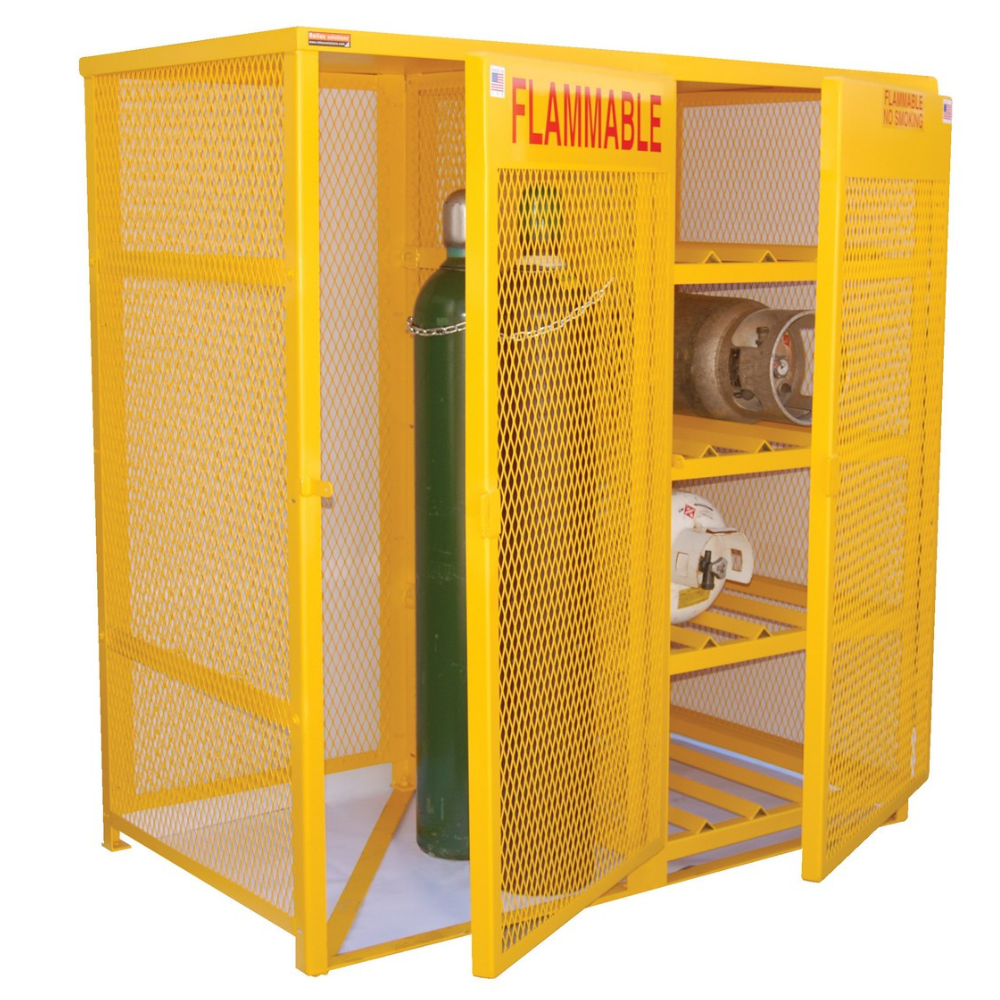

The Vestil CYL-H8-V510 Steel Horizontal and Vertical Cylinder Cabinet provides secure storage for up to eight horizontal and ten vertical cylinders. Constructed of heavy-duty steel with expanded mesh sides and door and solid sheet steel top, bottom, and back, the cabinet offers both durability and visibility of contents. A hinged, lockable door (padlock not included) protects cylinders, while lag holes in the base allow for secure floor anchoring. Finished in safety yellow with red “FLAMMABLE – NO SMOKING” signage, the cabinet complies with OSHA 1910.110 (f)(6)(ii), CSA B-149.2, and NFPA 55/58 standards.
  • Model Number: CYL-H8-V510
  • Capacity: 8 horizontal cylinders / 10 vertical cylinders
  • Weight Capacity: 360 lbs (90 lbs per shelf)
  • Overall Dimensions: 60 in W × 32 in D × 68.25 in H
  • Assembled Weight: 432 lbs
  • Package Dimensions: 40 in W × 75 in D × 40 in H, 505 lbs
  • Material: 10-gauge steel with expanded mesh sides and door
  • Door Type: Hinged, lockable (padlock not included)
  • Finish: Safety yellow with red “FLAMMABLE – NO SMOKING” signage
  • Assembly: Ships assembled
  • Compliance: OSHA 1910.110 (f)(6)(ii), CSA B-149.2, NFPA 55/58
  • Features: Lag holes for securing, non-portable, single-door construction

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
