Steel Horizontal Cylinder Cabinet – 8 Cylinder Capacity – CYL-H-8 – Vestil

SKU: CYL-H-8
$922.44
Estimated Lead Time:4-5 Weeks

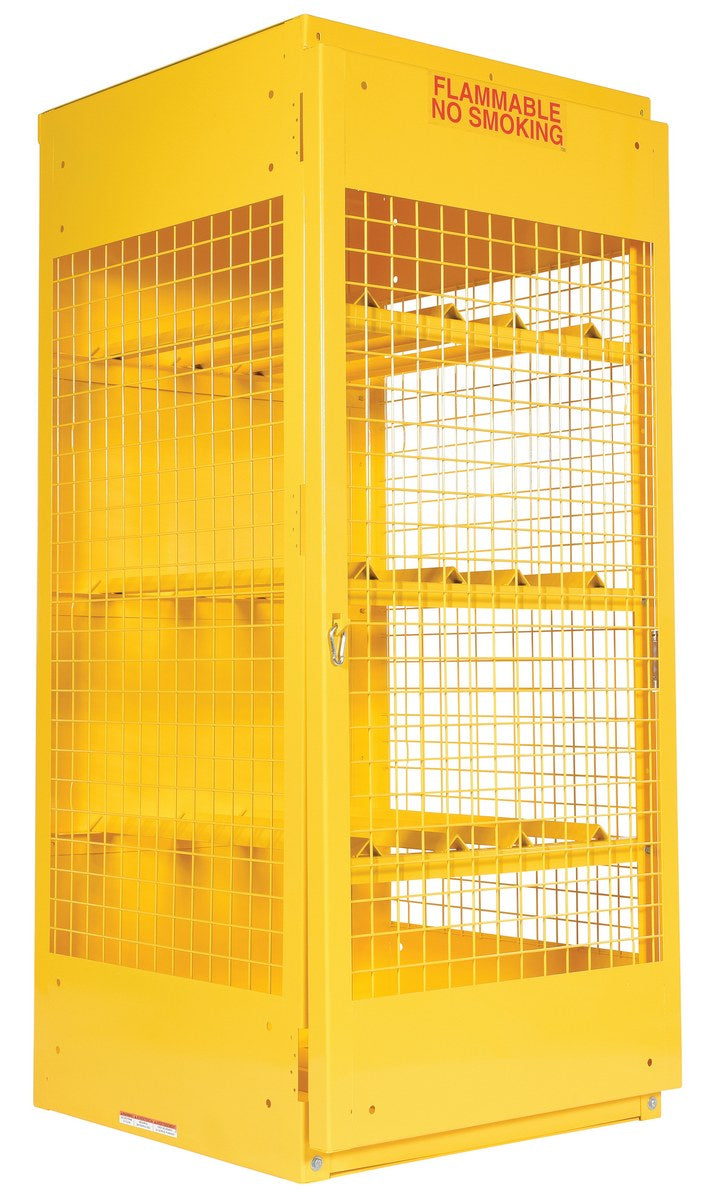

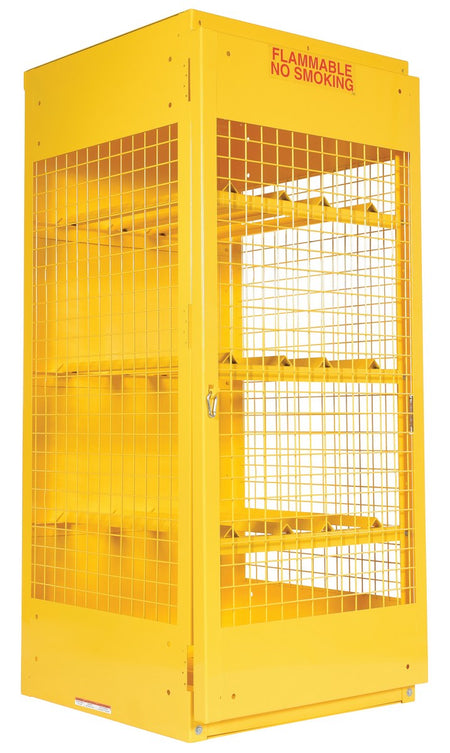

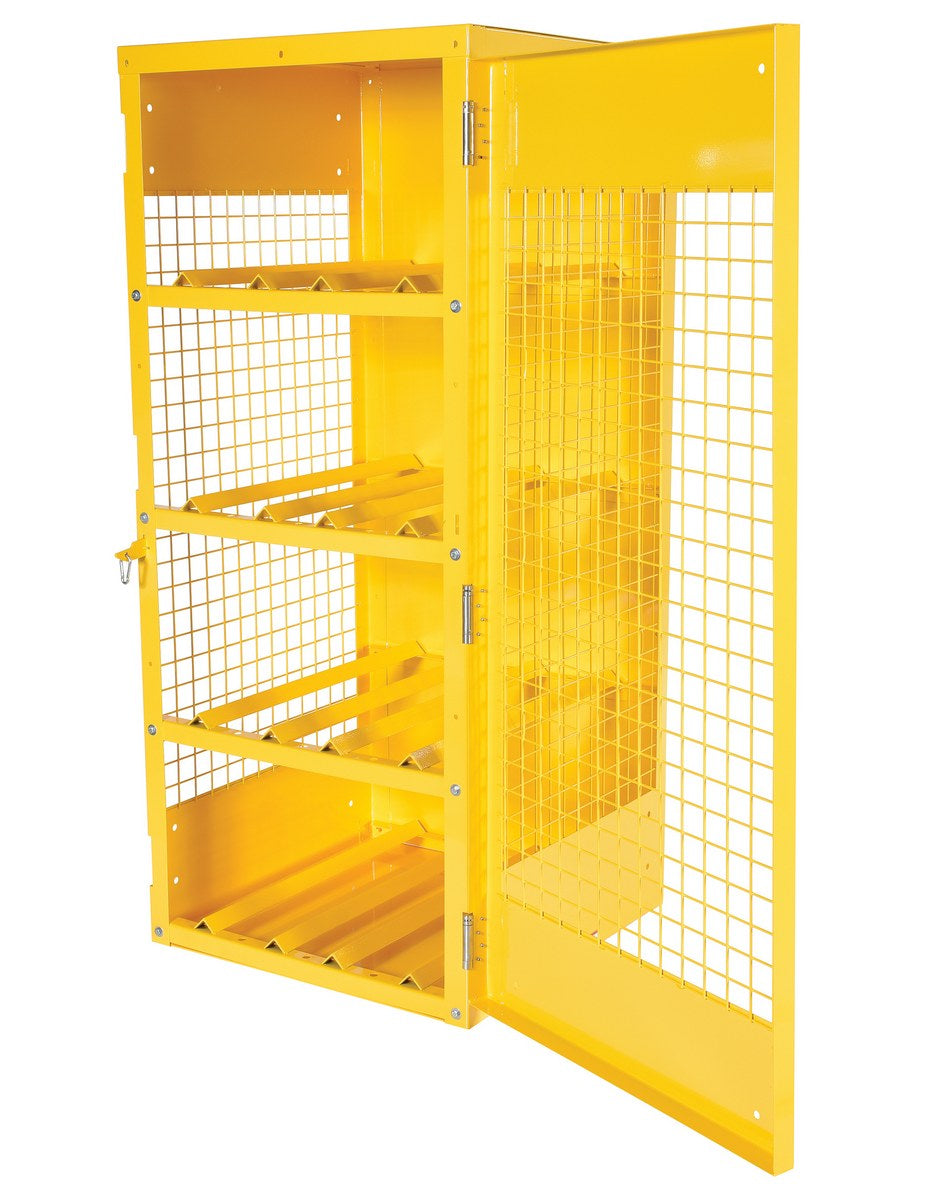

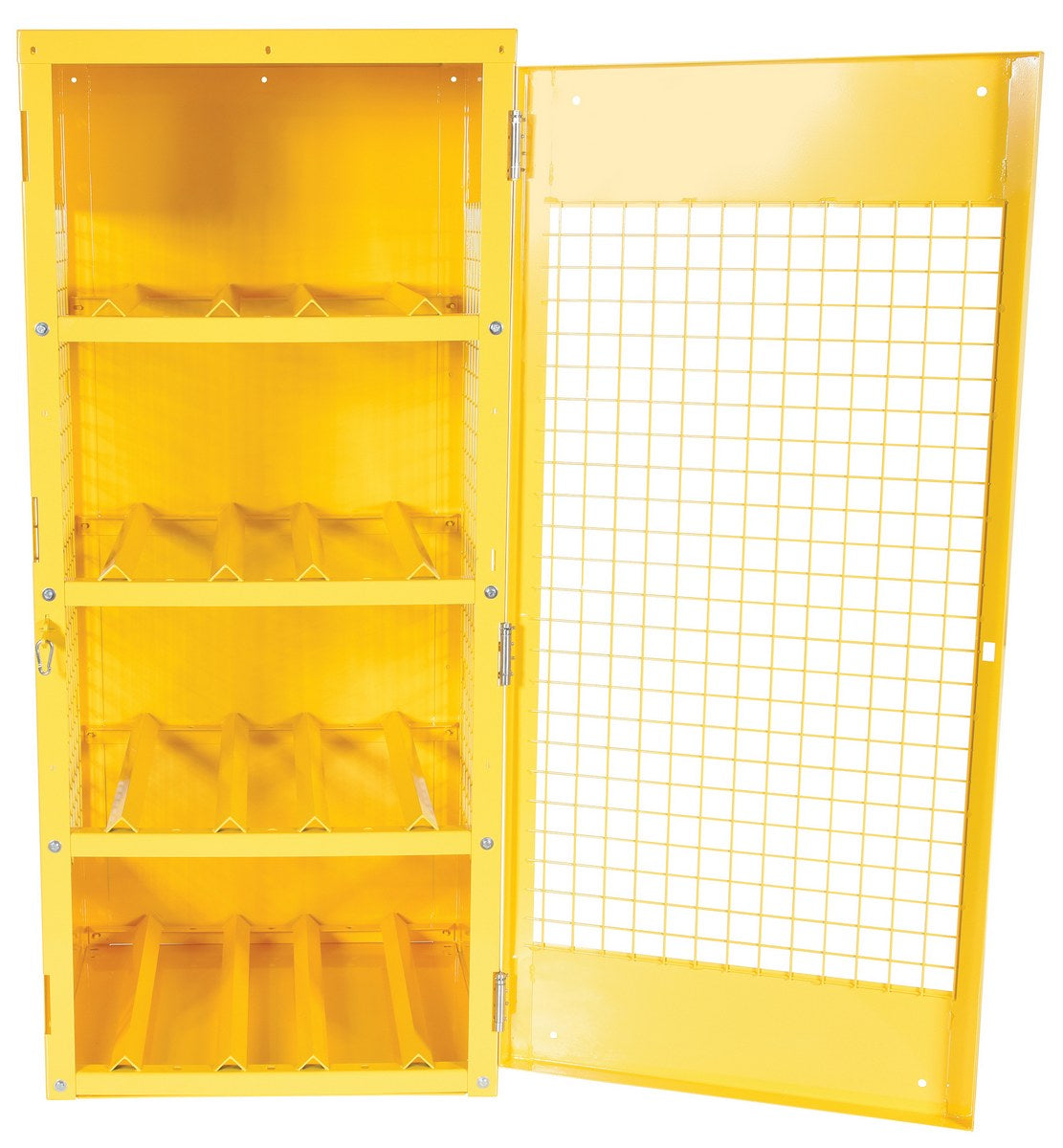

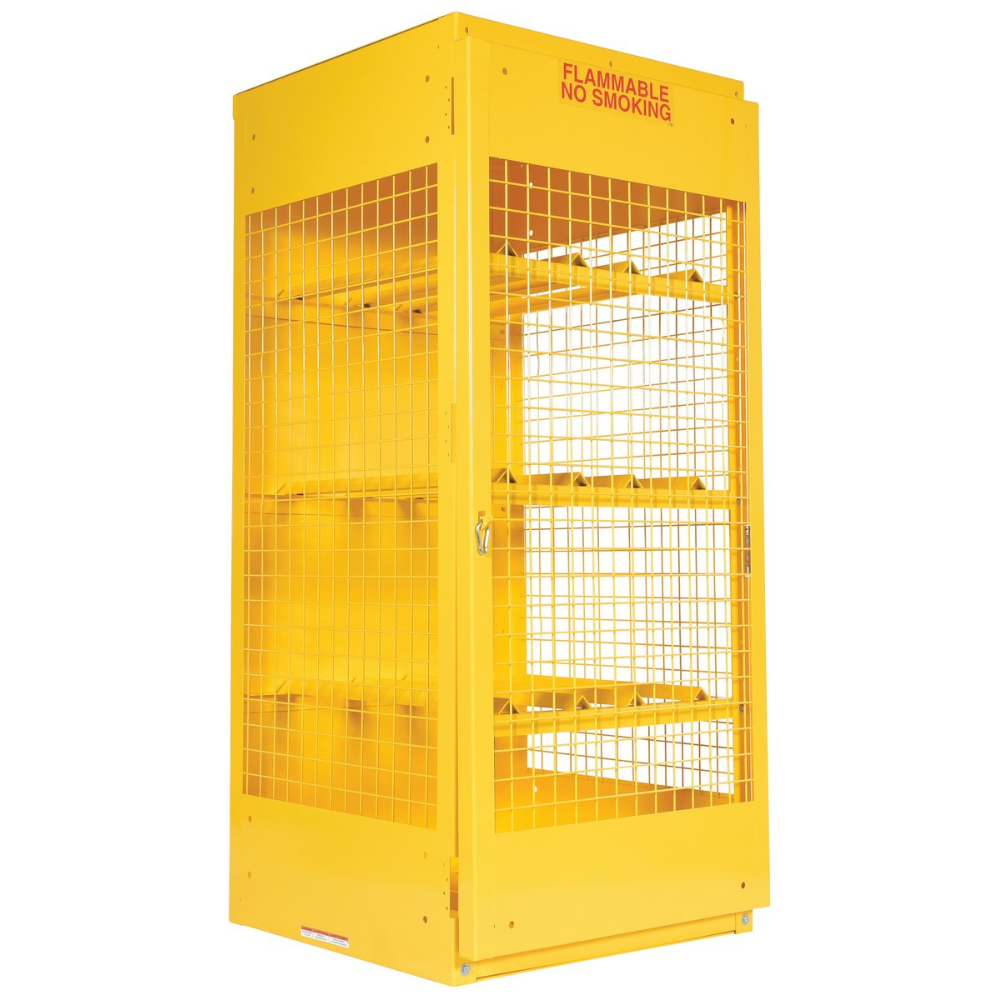

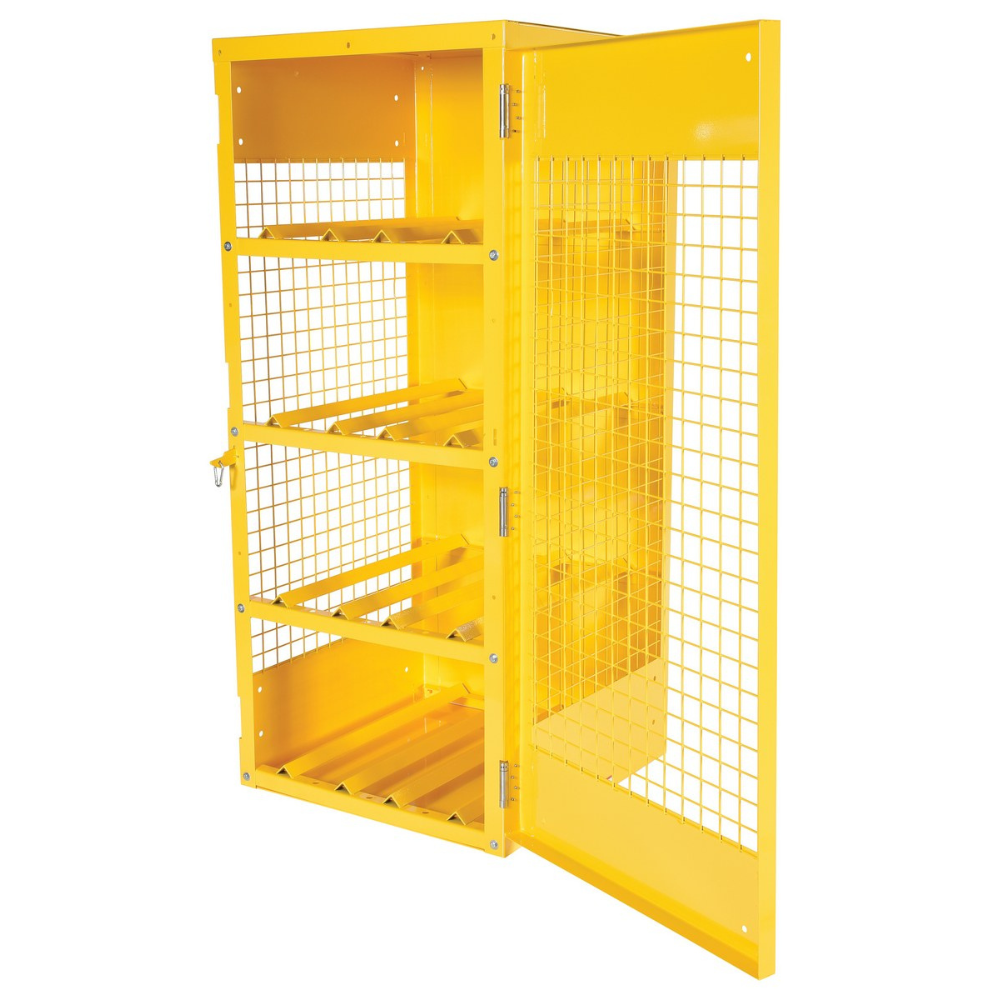

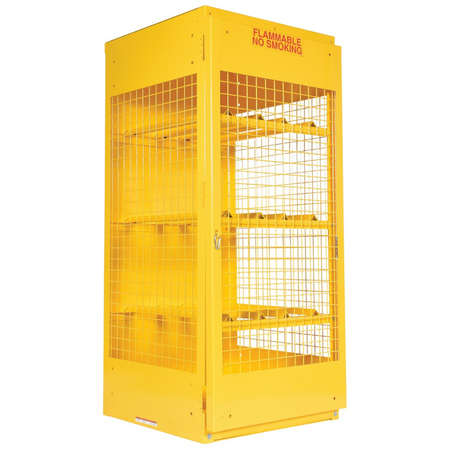

The Vestil CYL-H-8 Steel Horizontal Cylinder Cabinet provides secure storage for up to eight cylinders. The cabinet features expanded steel mesh sides and door, along with a solid sheet steel back, bottom, and top for strength and visibility. A hinged, lockable door (padlock not included) helps prevent unauthorized access, while lag holes in the base allow for secure floor anchoring. Finished in safety yellow with red “FLAMMABLE – NO SMOKING” signage, the cabinet meets OSHA 1910.110 (f)(6)(ii), CSA B-149.2, and NFPA 55/58 standards. Designed for horizontal storage of cylinders in industrial settings.
  • Model Number: CYL-H-8
  • Capacity: 8 cylinders
  • Weight Capacity: 360 lbs (90 lbs per shelf)
  • Overall Dimensions: 30 in W × 32 in D × 68.25 in H
  • Assembled Weight: 277 lbs
  • Package Dimensions: 40 in W × 48 in D × 75 in H, 277 lbs
  • Material: 10-gauge steel with expanded mesh sides and door
  • Door Type: Hinged, lockable (padlock not included)
  • Finish: Safety yellow with red “FLAMMABLE – NO SMOKING” signage
  • Assembly: Fully assembled
  • Compliance: OSHA 1910.110 (f)(6)(ii), CSA B-149.2, NFPA 55/58
  • Features: Lag holes for securing, non-portable, single-door construction

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
