Steel Horizontal Cylinder Cabinet – 12 Cylinder Capacity – CYL-H-12 – Vestil

SKU: CYL-H-12
$1,314.29
Estimated Lead Time:4-5 Weeks

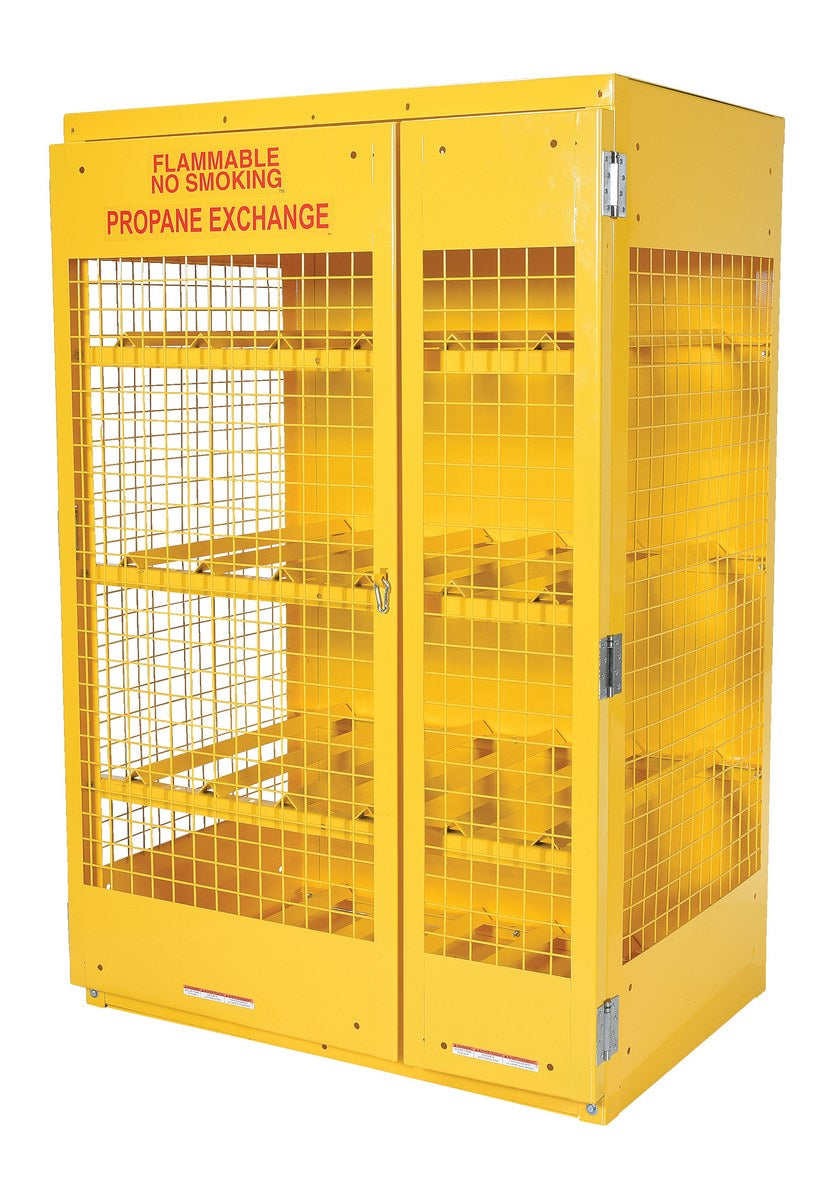

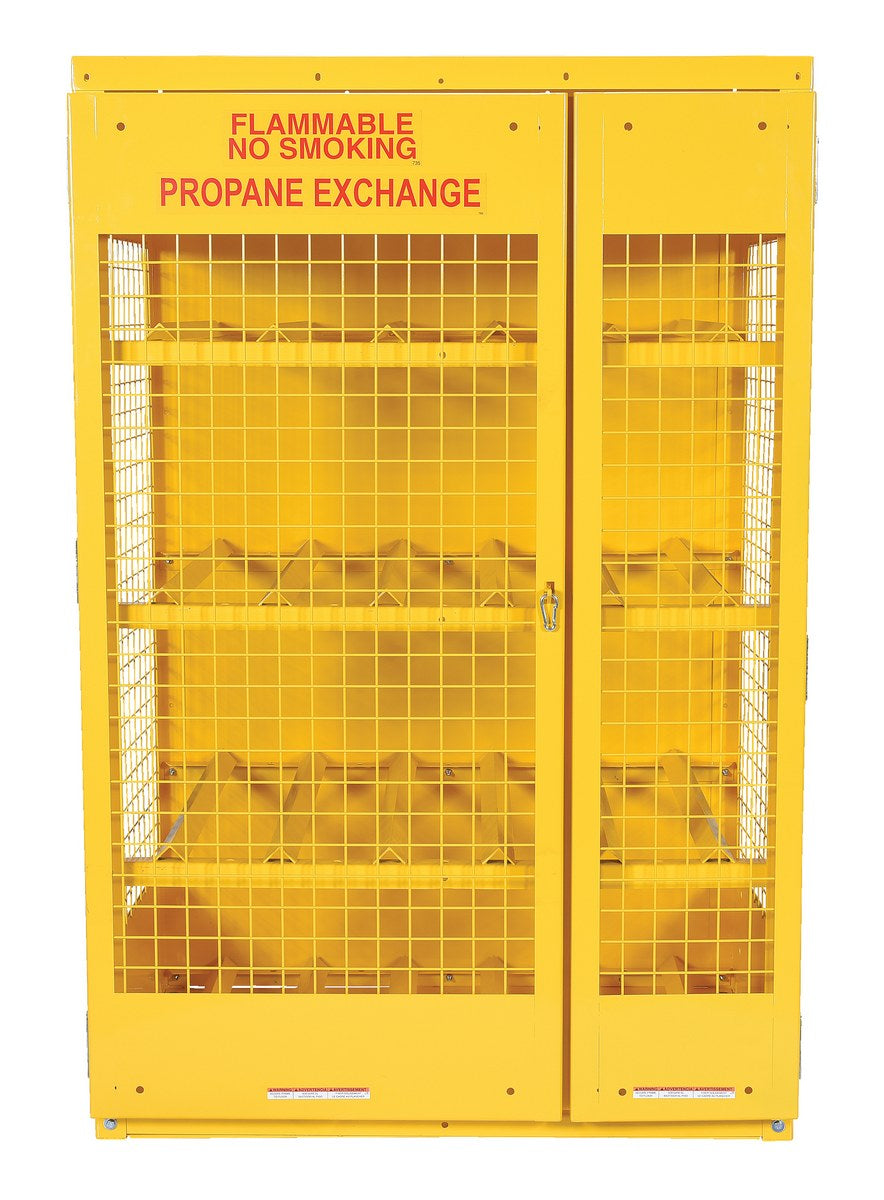

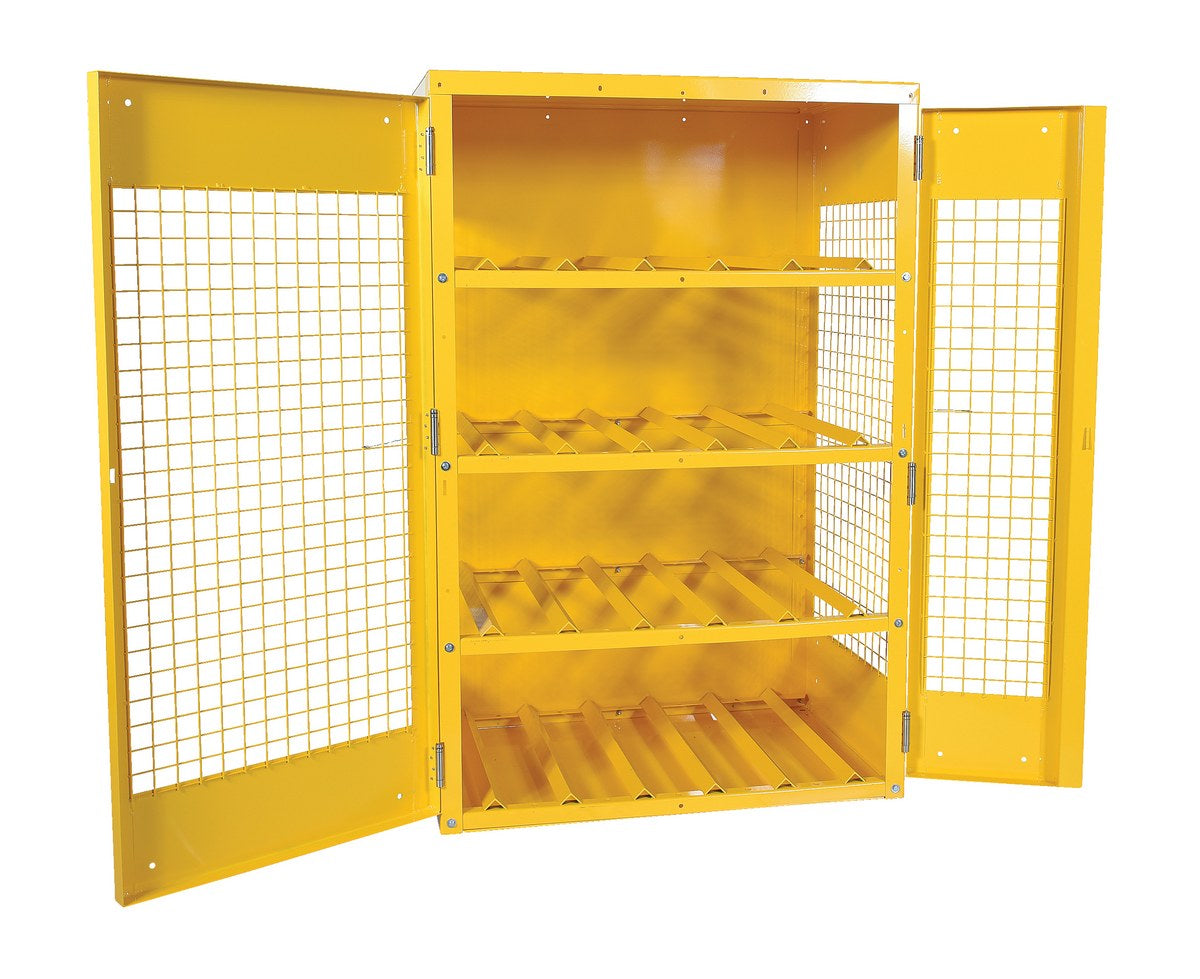

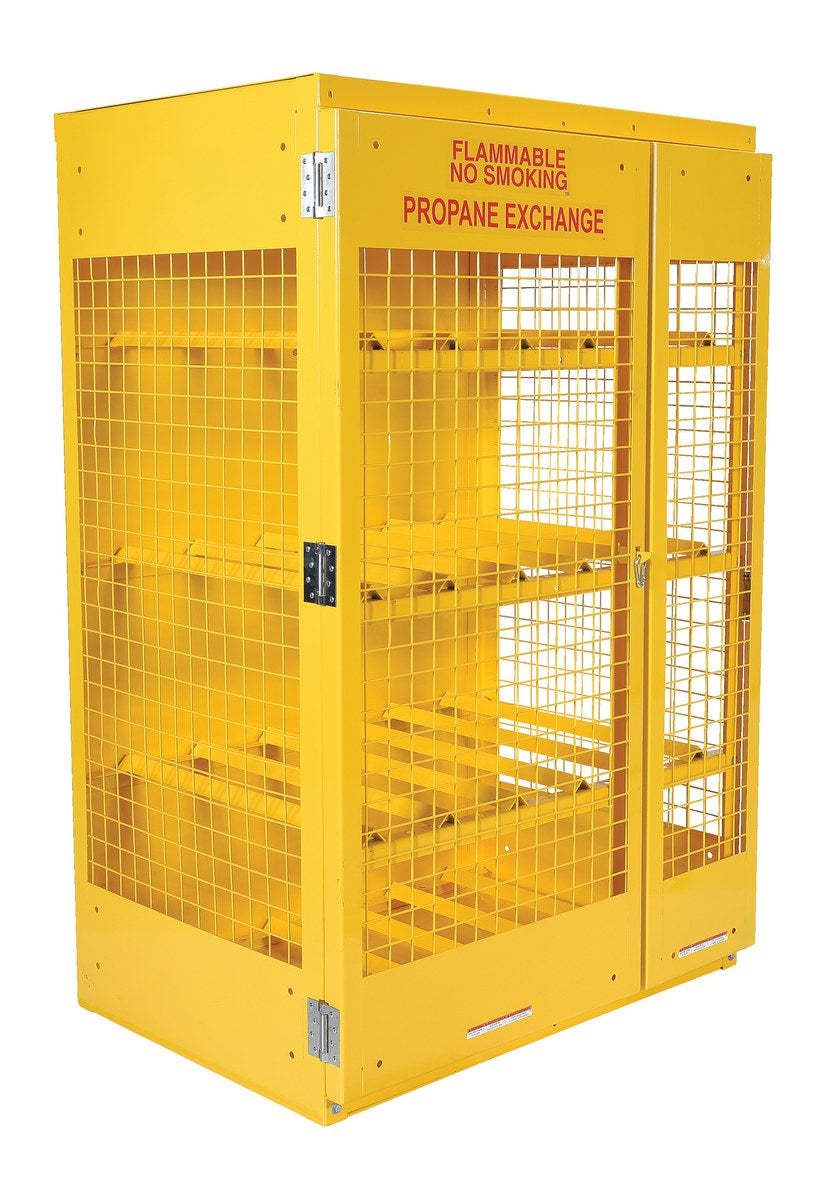

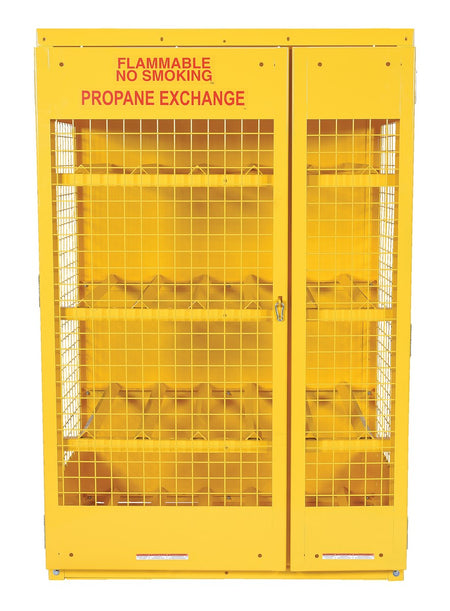

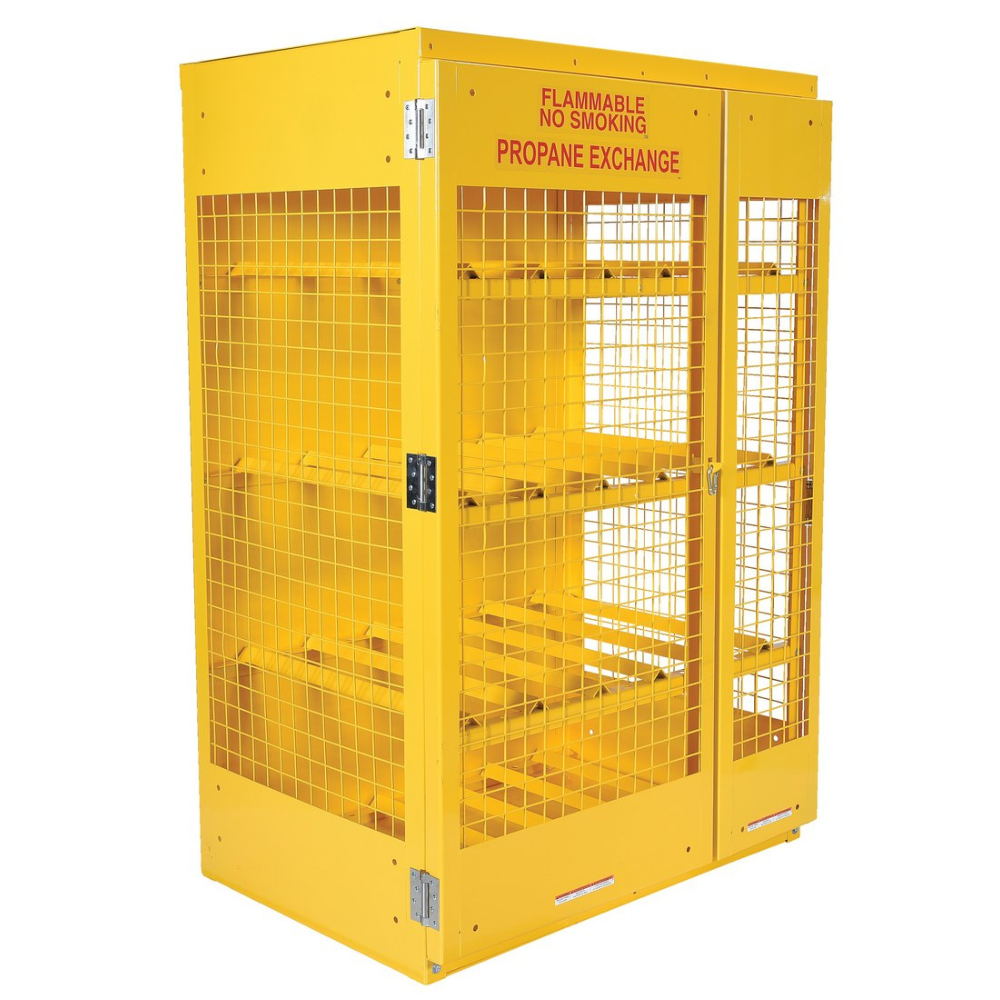

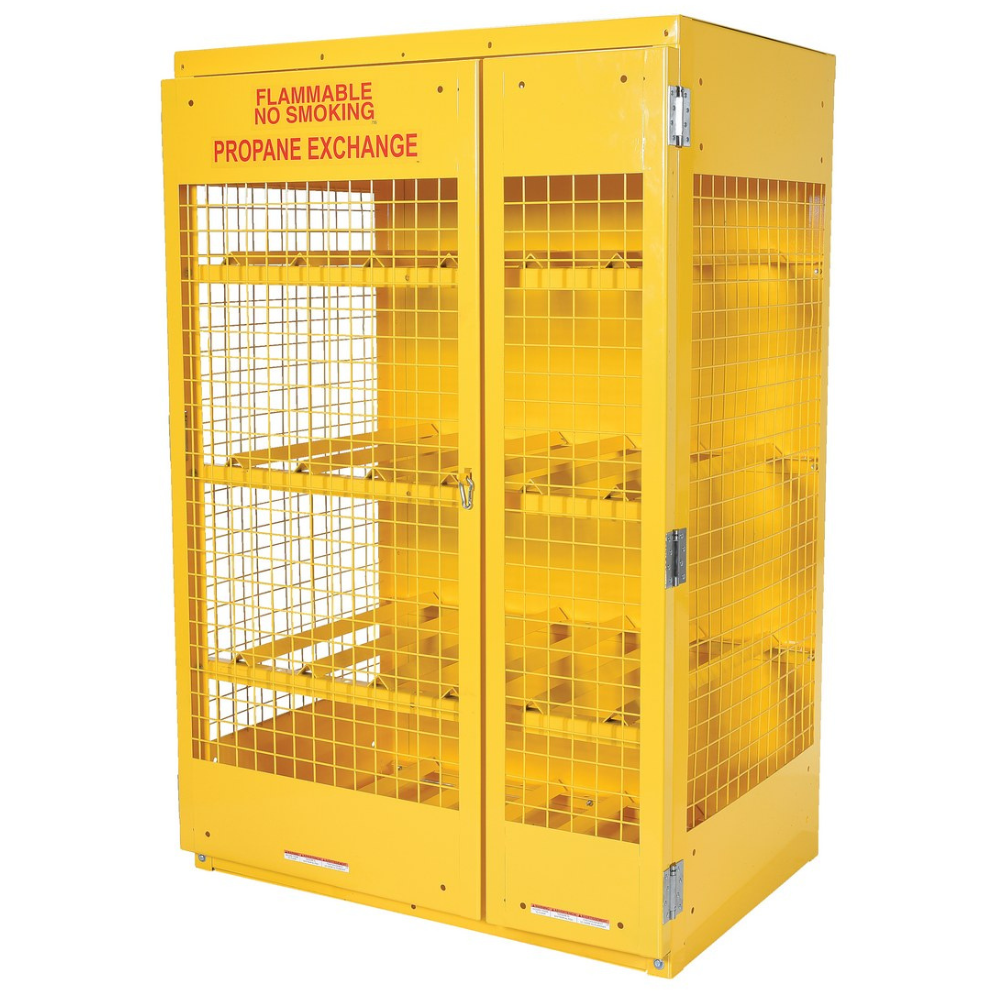

The Vestil CYL-H-12 Steel Horizontal Cylinder Cabinet is designed for the secure storage of up to 12 horizontal gas cylinders. Built with rugged steel construction, the cabinet features expanded steel mesh sides and door for visibility and ventilation, while the top, back, and bottom are solid sheet steel for added strength. A hinged, lockable door (padlock not included) and lag holes in the base provide enhanced safety and security. Finished in safety yellow with red “FLAMMABLE – NO SMOKING” signage, this cabinet complies with OSHA 1910.110 (f)(6)(ii), NFPA 55/58, and CSA B-149.2 standards.
  • Model Number: CYL-H-12
  • Cylinder Capacity: 12 (horizontal)
  • Weight Capacity: 440 lbs (110 lbs per shelf)
  • Overall Dimensions: 45 in W × 32 in D × 68.25 in H
  • Assembled Weight: 342 lbs
  • Package Dimensions: 42 in W × 48 in D × 73 in H, 358 lbs
  • Material: 10-gauge steel
  • Finish: Safety yellow with red “FLAMMABLE – NO SMOKING” signage
  • Door Type: Hinged, lockable (padlock not included)
  • Construction: Expanded mesh sides/door, solid steel top, back, and bottom
  • Features: Lag holes for floor securing, non-portable, single-door cabinet
  • Compliance: OSHA 1910.110 (f)(6)(ii), NFPA 55/58, CSA B-149.2

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
