Steel Fork Truck Drum Carrier/Rotator – 55 Gallon – 800 Lb. Capacity – DCR-205-8 – Vestil

SKU: DCR-205-8
$868.11
Estimated Lead Time:1-3 Days

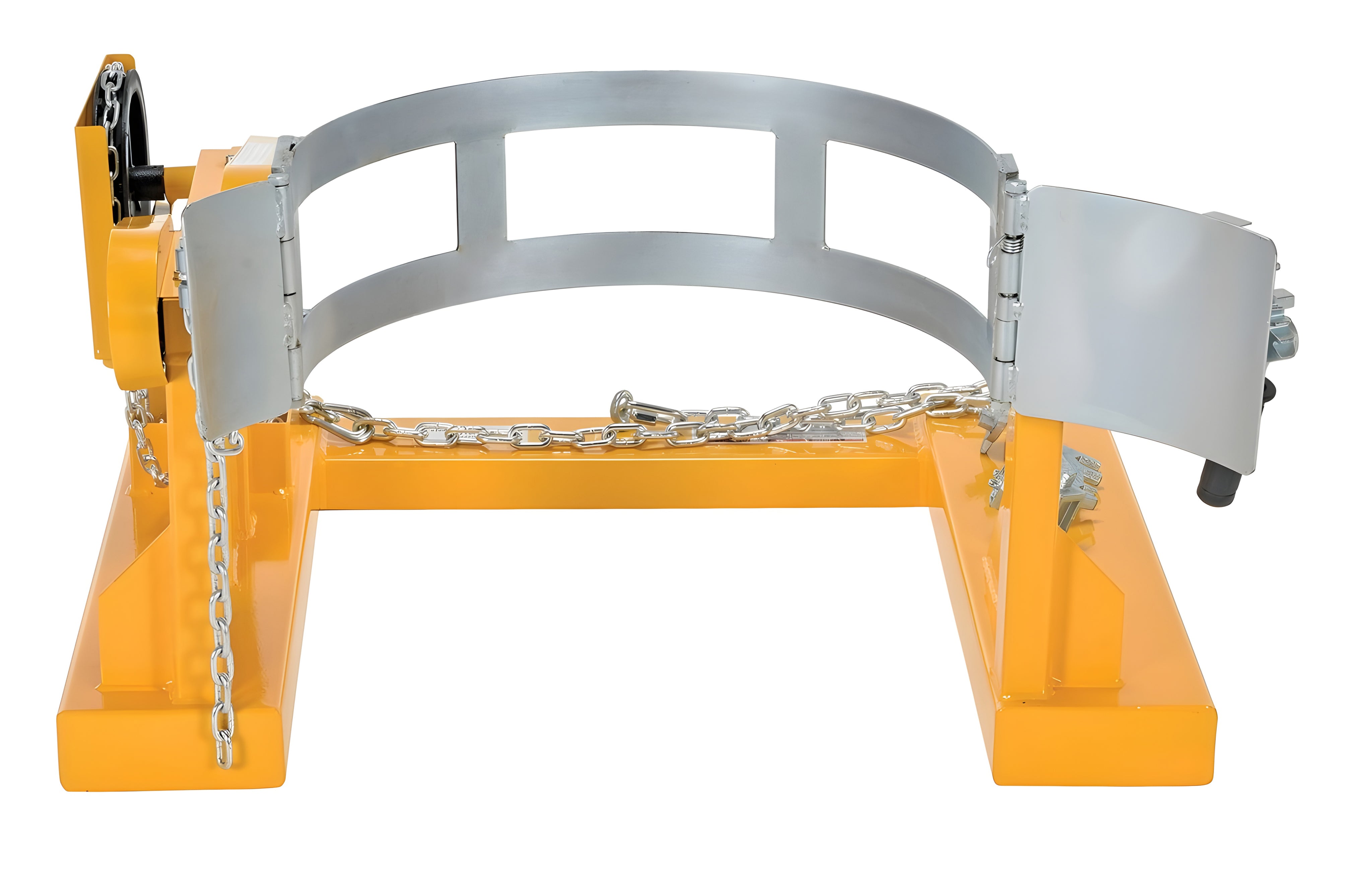

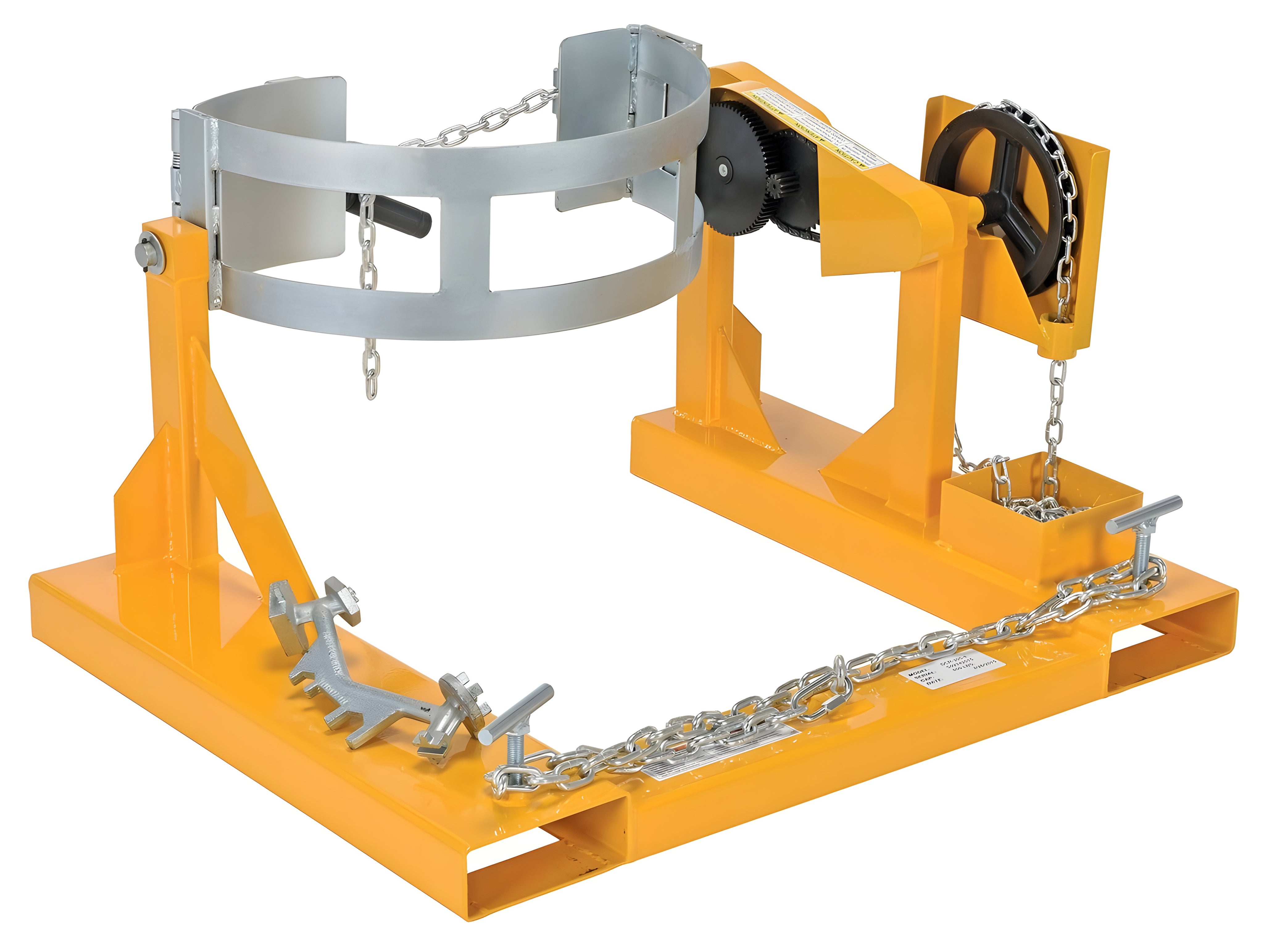

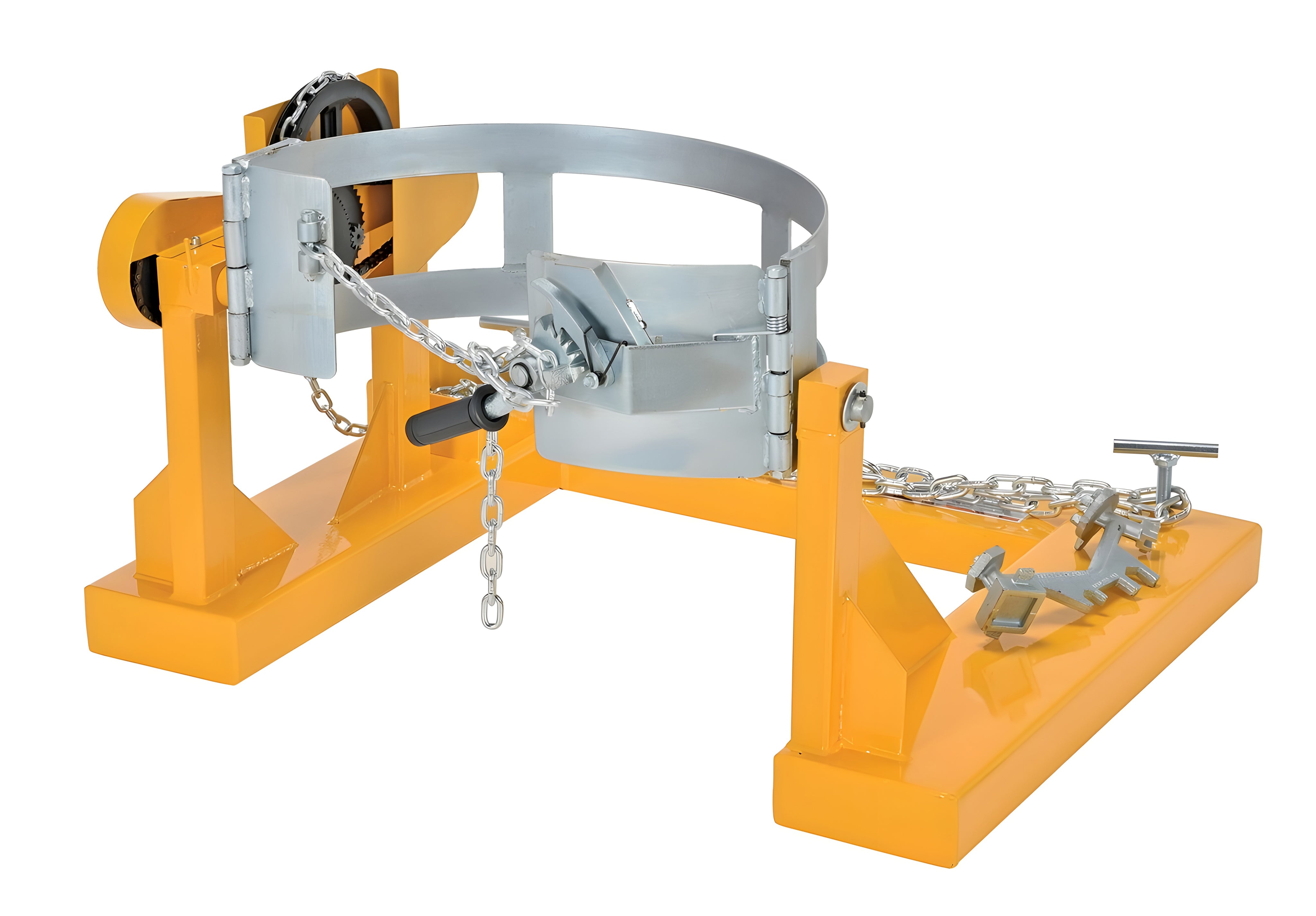

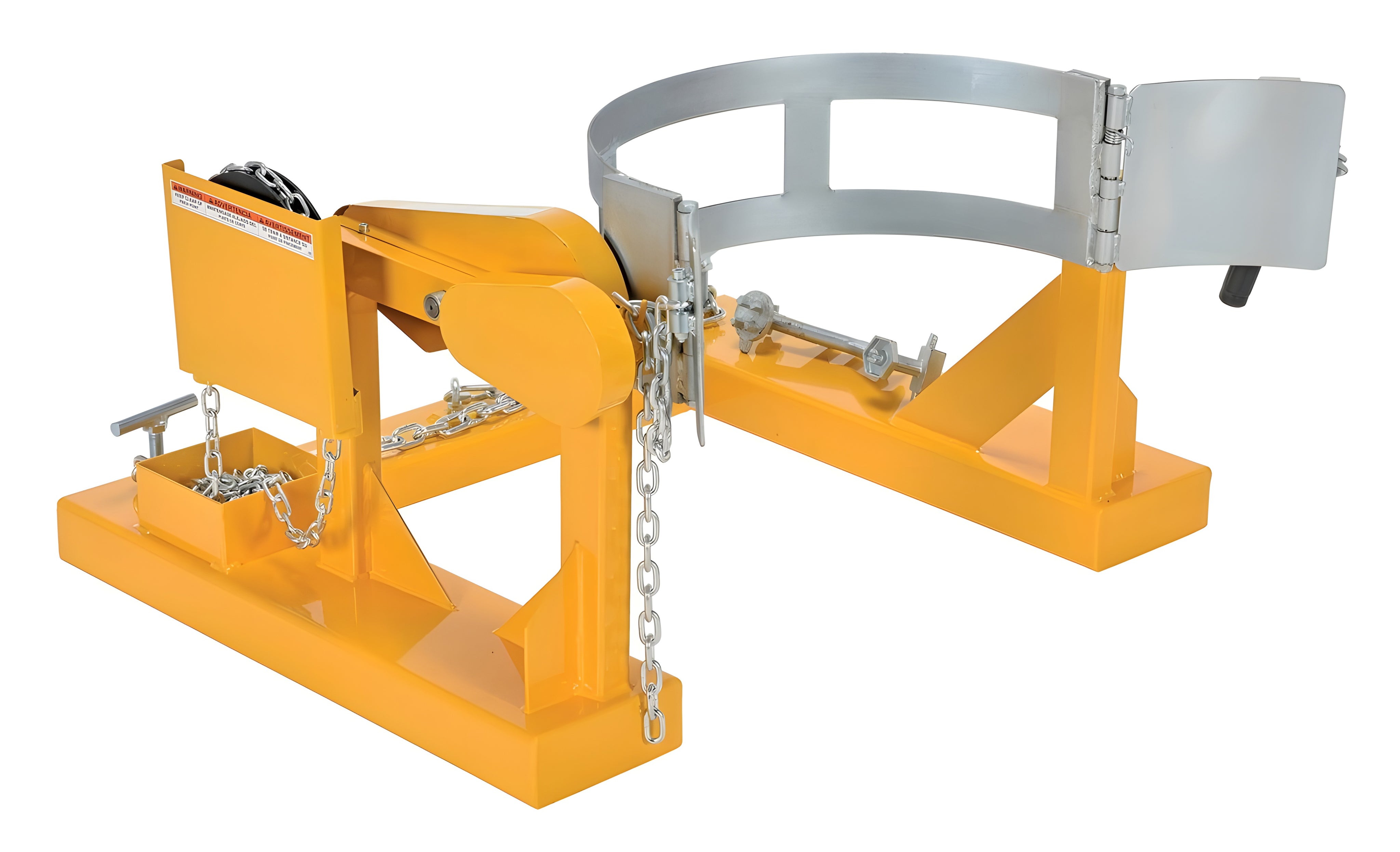

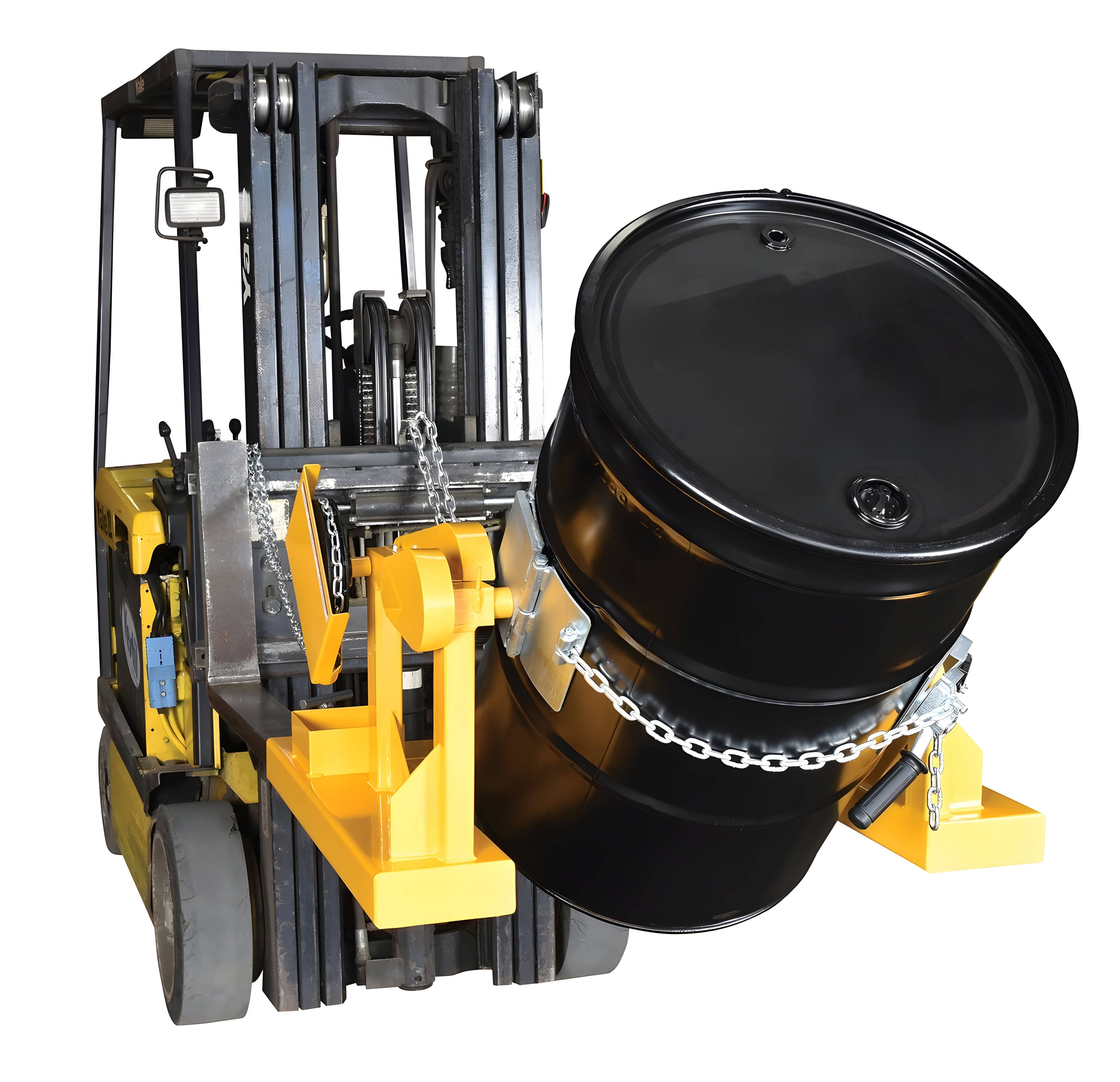

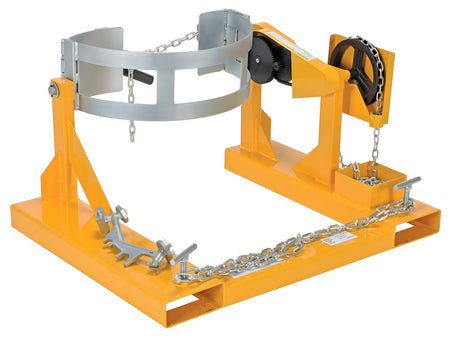

The Vestil Model DCR-205-8 Steel Fork Truck Drum Carrier/Rotator allows forklift operators to safely transport and rotate 55-gallon steel drums. Drums are held securely in place with a durable chain locking system, and a 15 ft. rotation chain enables drum rotation directly from the operator’s seat. The unit rotates drums a full 360°, includes a bung nut wrench, and complies with OSHA General Industry rule 1910.178 and ANSI B56.1 standards.
  • Model Number: DCR-205-8
  • Capacity: 800 lbs
  • Compatible Drum Size: 55 Gallon
  • Compatible Drum Material: Steel
  • Power Source: Manual
  • Maximum Rotation: 360°
  • Drum Restraint Method: Chain
  • Drum Restraint Chain Length: 33 in
  • Safety Chain: 56 in
  • Rotation Chain: 15 ft
  • Fork Pocket Height: 2.625 in
  • Fork Pocket Width: 7 in
  • Fork Pocket Centers: 31.375 in
  • Crank Turns per 90° Rotation: 10
  • Drum Cradle Finish: Zinc Plated
  • Overall Length: 38.625 in
  • Overall Width: 38.75 in
  • Overall Height: 25.9375 in
  • Weight: 151 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days – Limited Parts
