Steel Fork Truck Drum Carrier/Rotator – 55 Gallon – 1500 Lb. Capacity – DCR-205-15 – Vestil

SKU: DCR-205-15
$888.21
Estimated Lead Time:1-3 Days

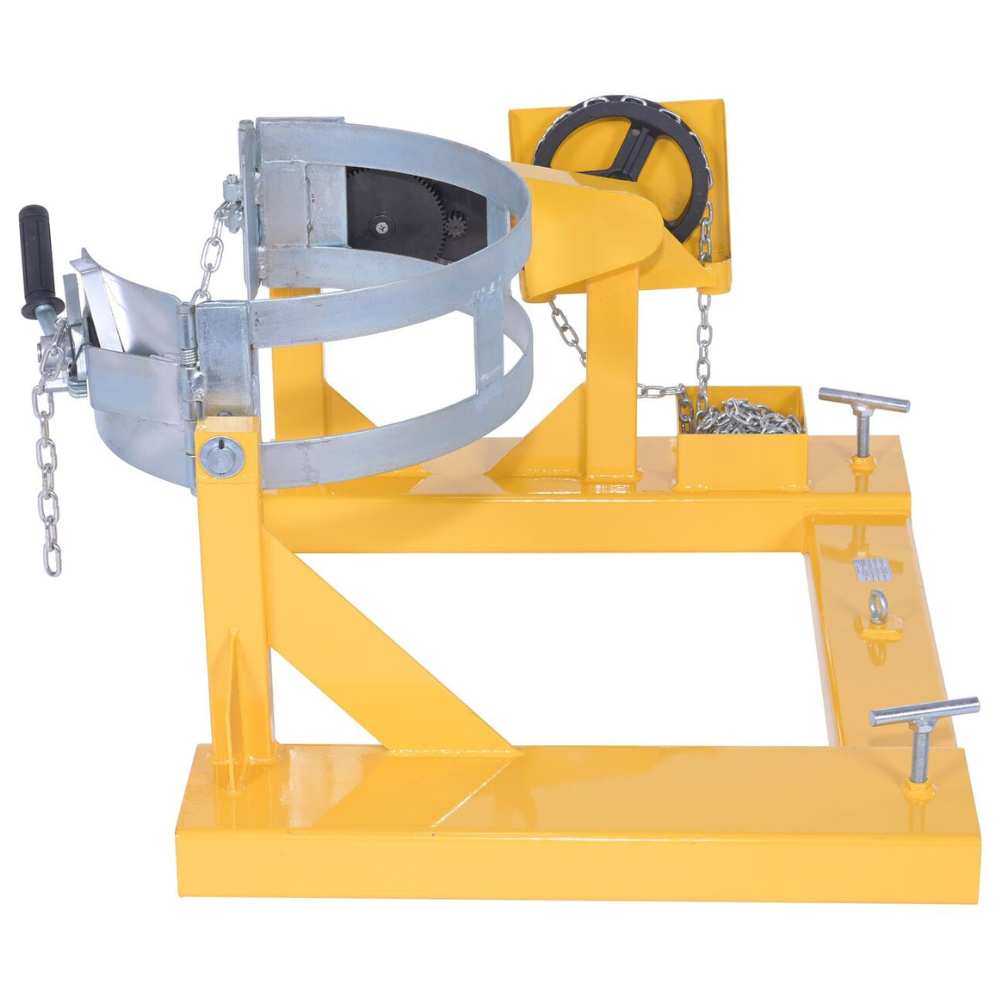

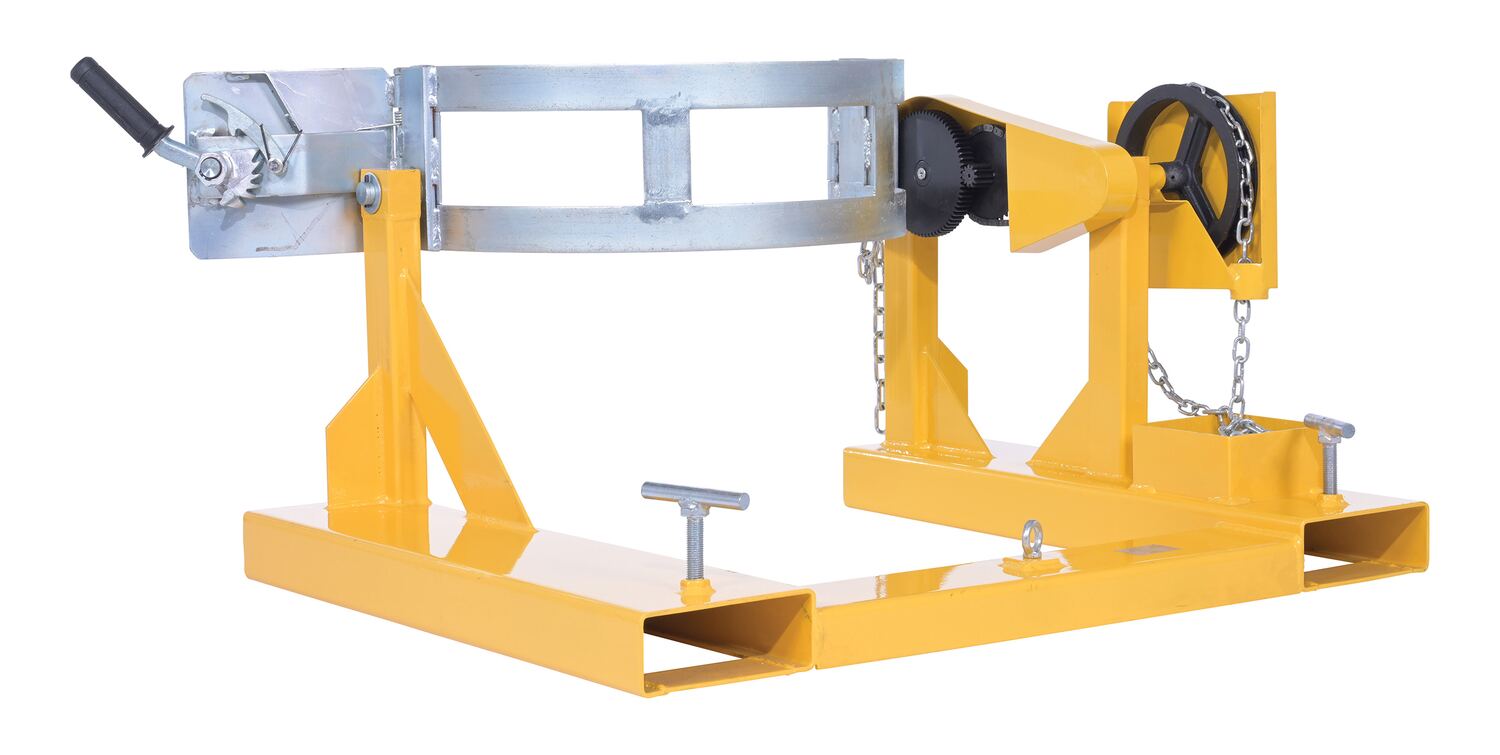

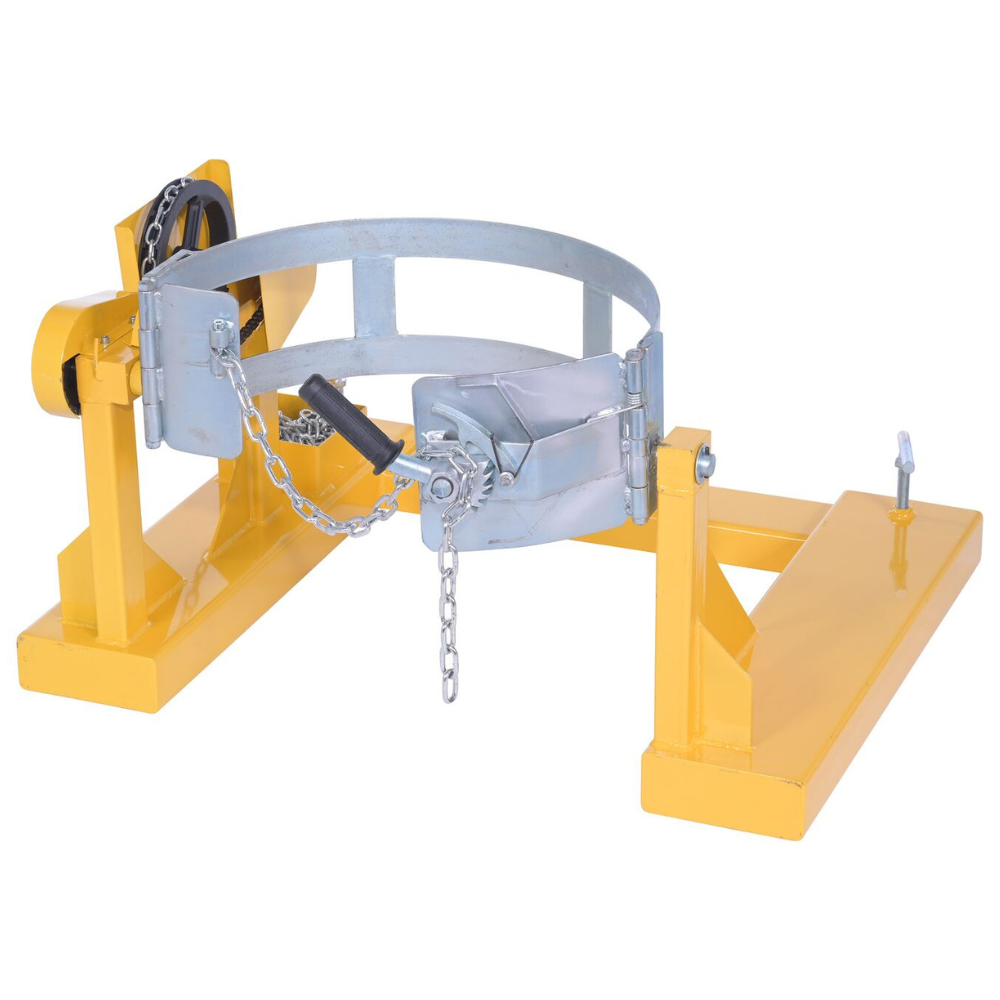

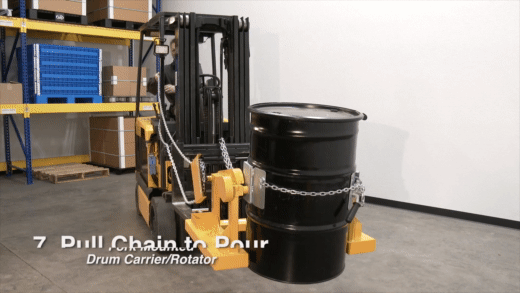

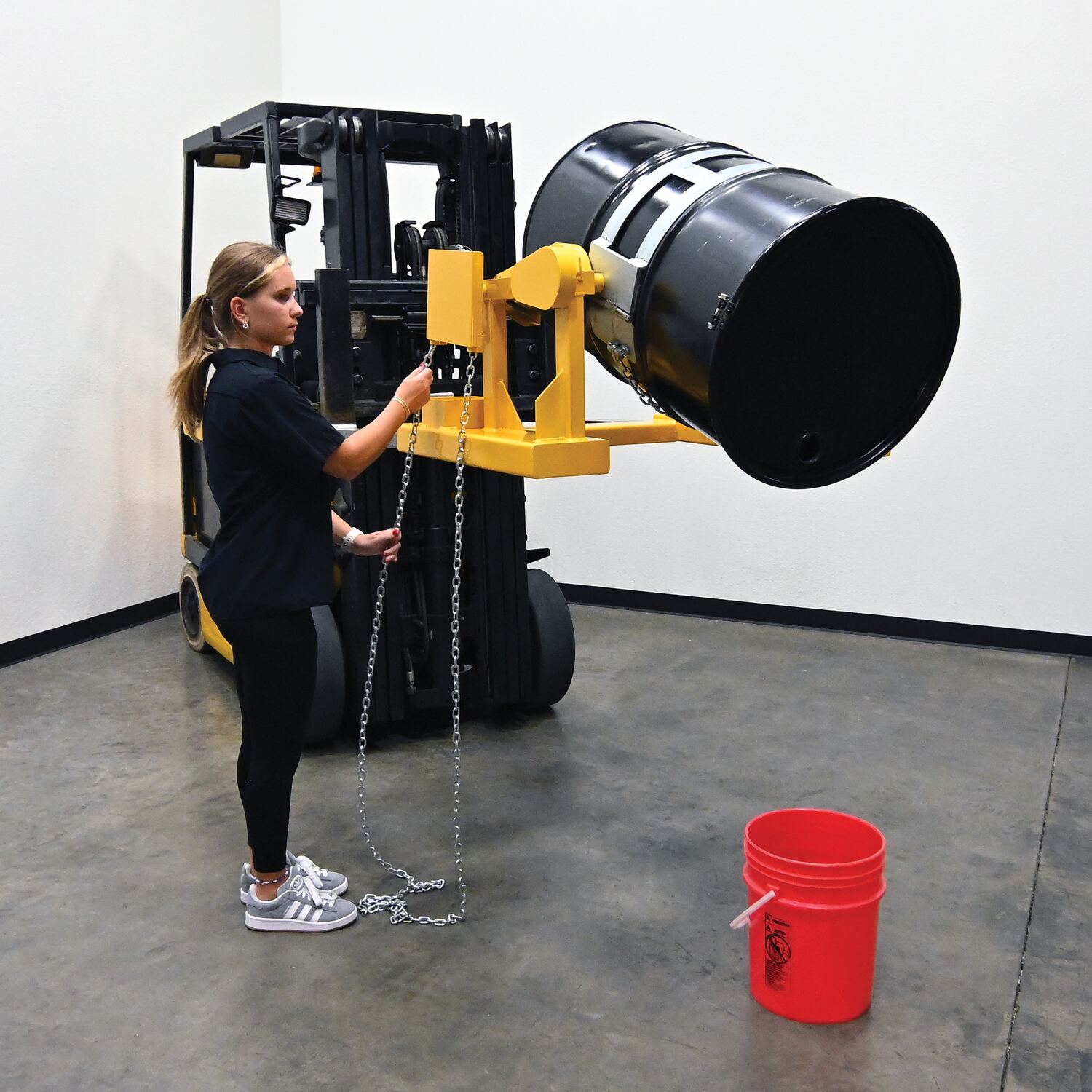

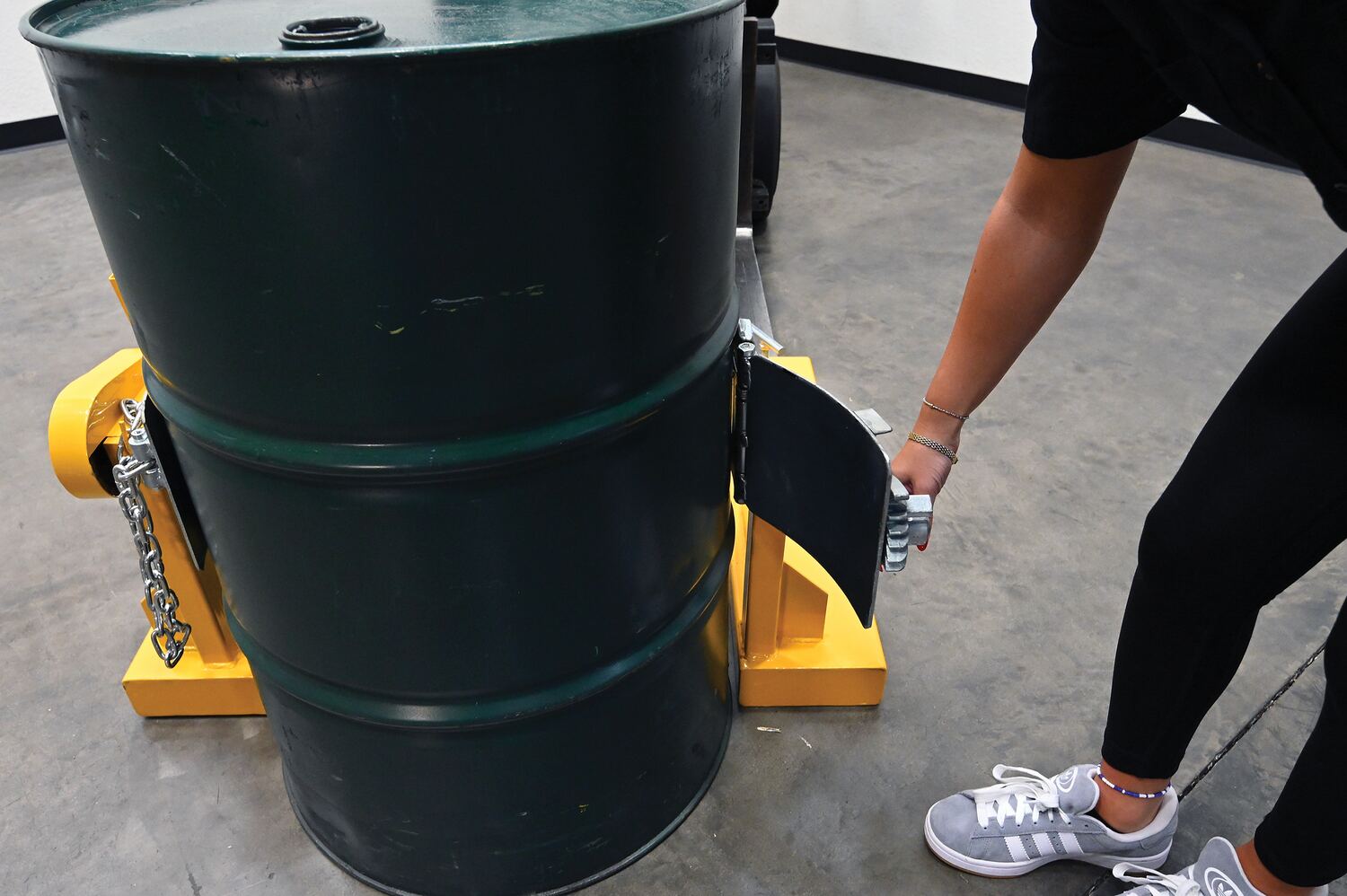

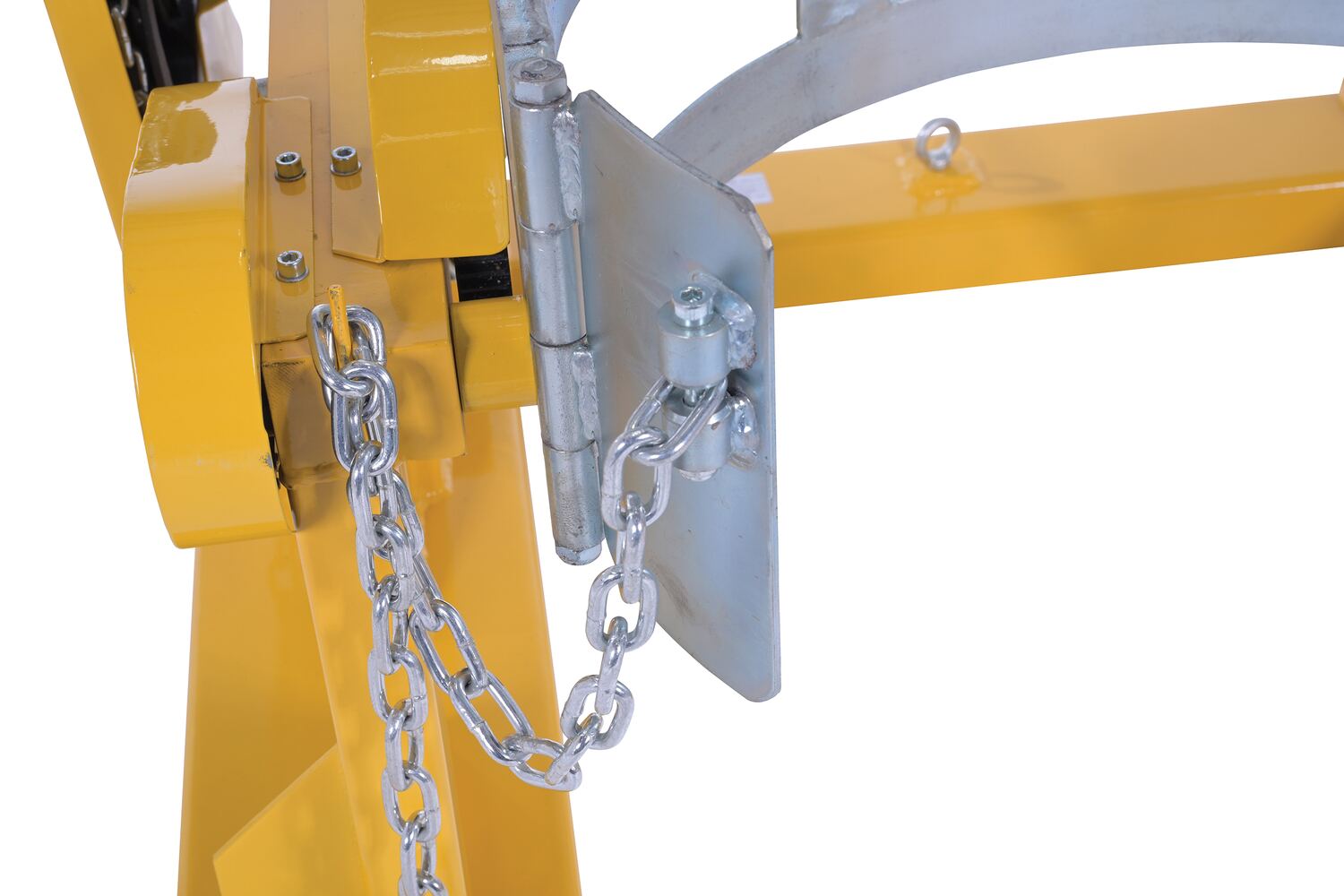

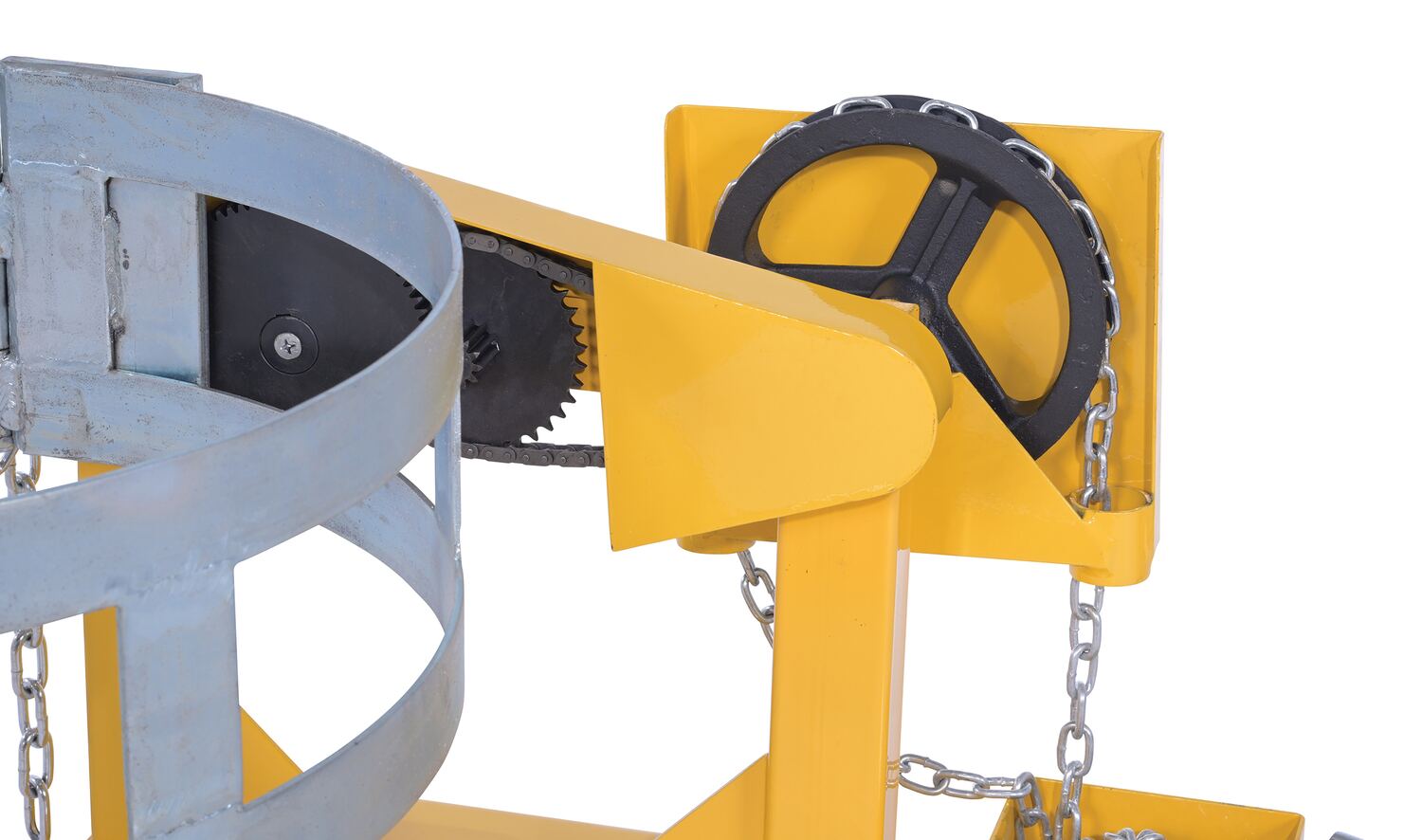

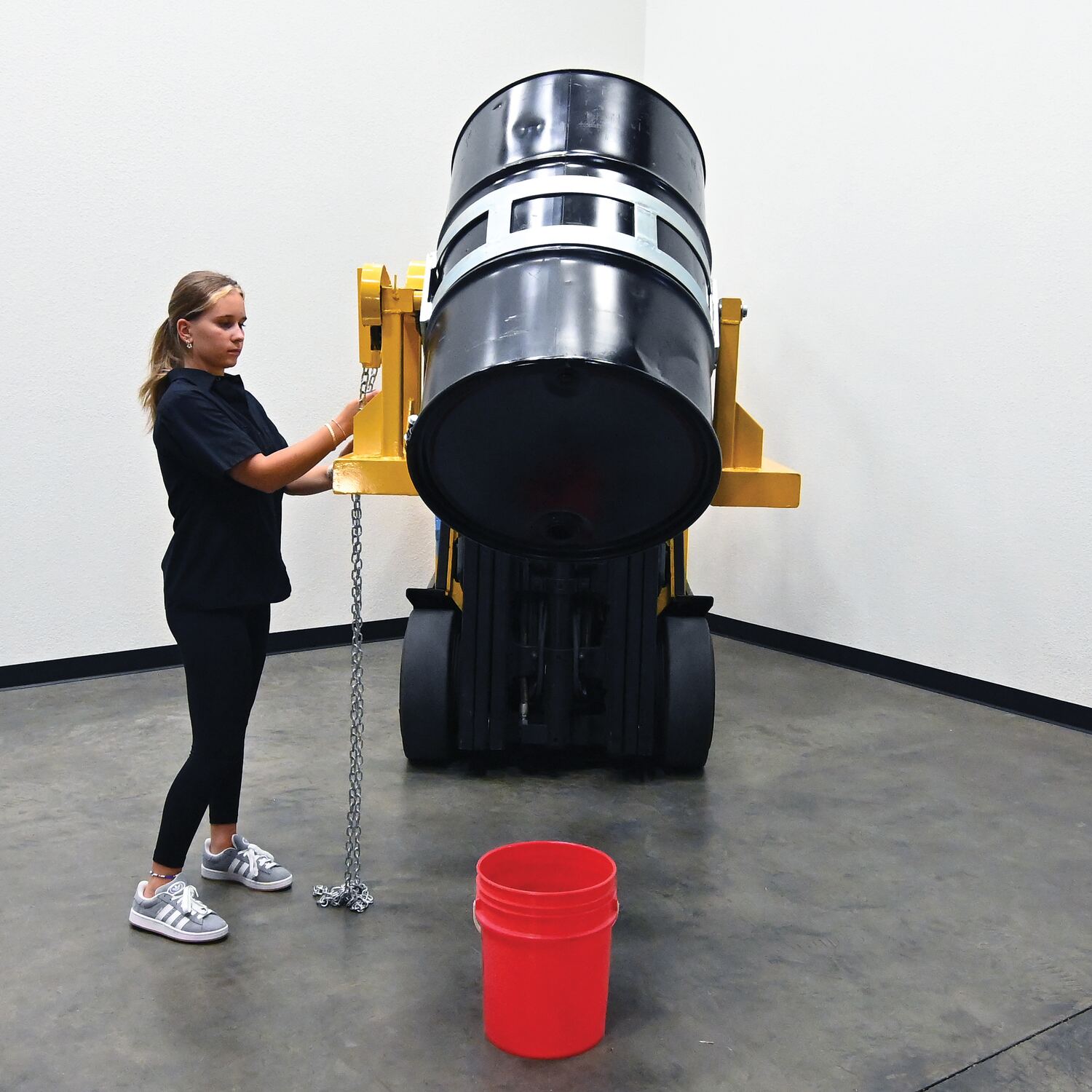

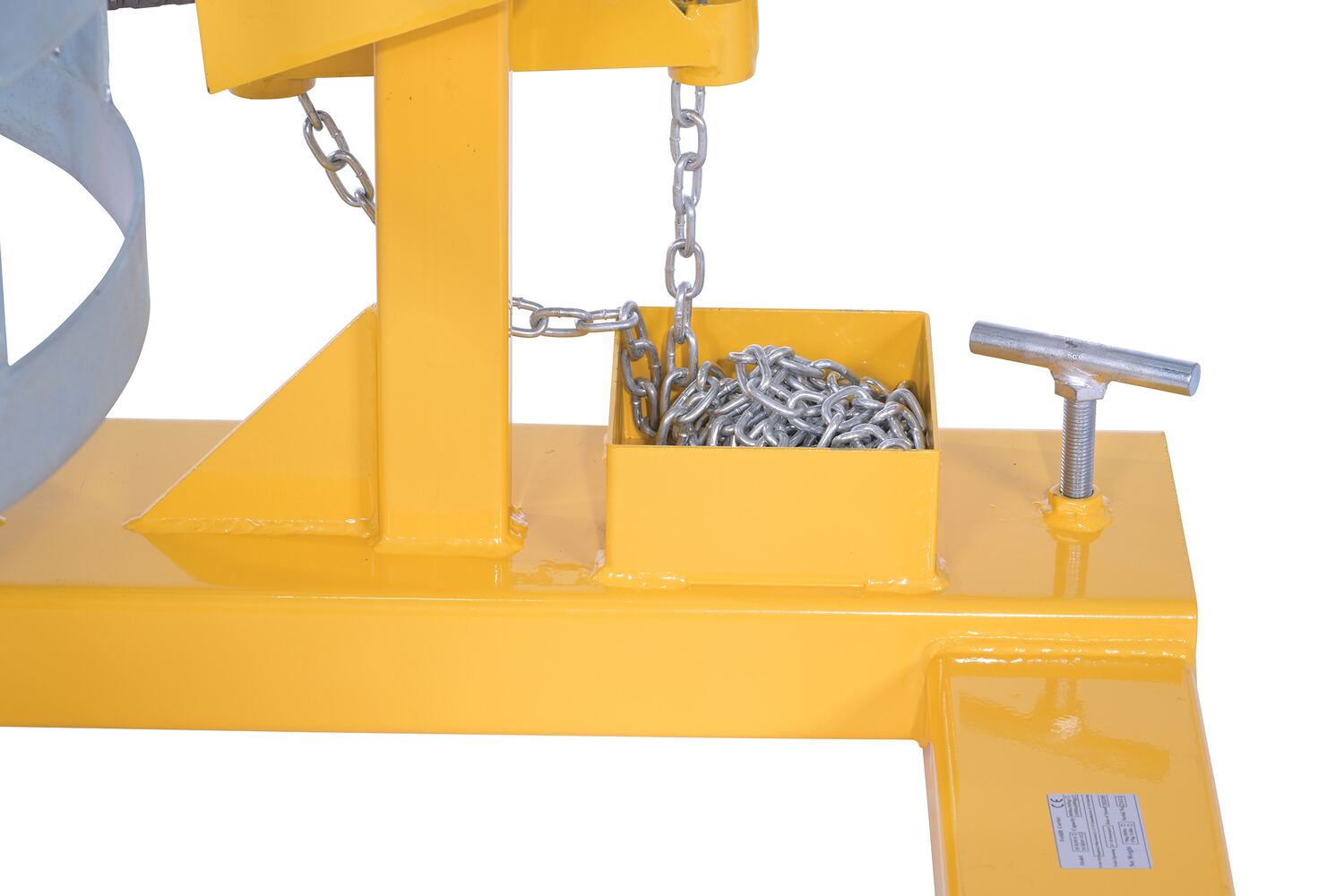

The Vestil Model DCR-205-15 Steel Fork Truck Drum Carrier/Rotator allows forklift operators to efficiently transport and rotate 55-gallon steel drums. A durable chain locking system keeps drums secure, while a 15 ft. chain enables controlled drum rotation directly from the operator’s seat. The unit includes a bung nut wrench for convenient opening and closing of drums. Drums must be full to rotate at rated capacity. Complies with OSHA General Industry rule 1910.178 and ANSI B56.1 standards.
  • Model Number: DCR-205-15
  • Capacity: 1500 lbs
  • Compatible Drum Size: 55 Gallon
  • Compatible Drum Material: Steel
  • Power Source: Manual
  • Maximum Rotation: 360°

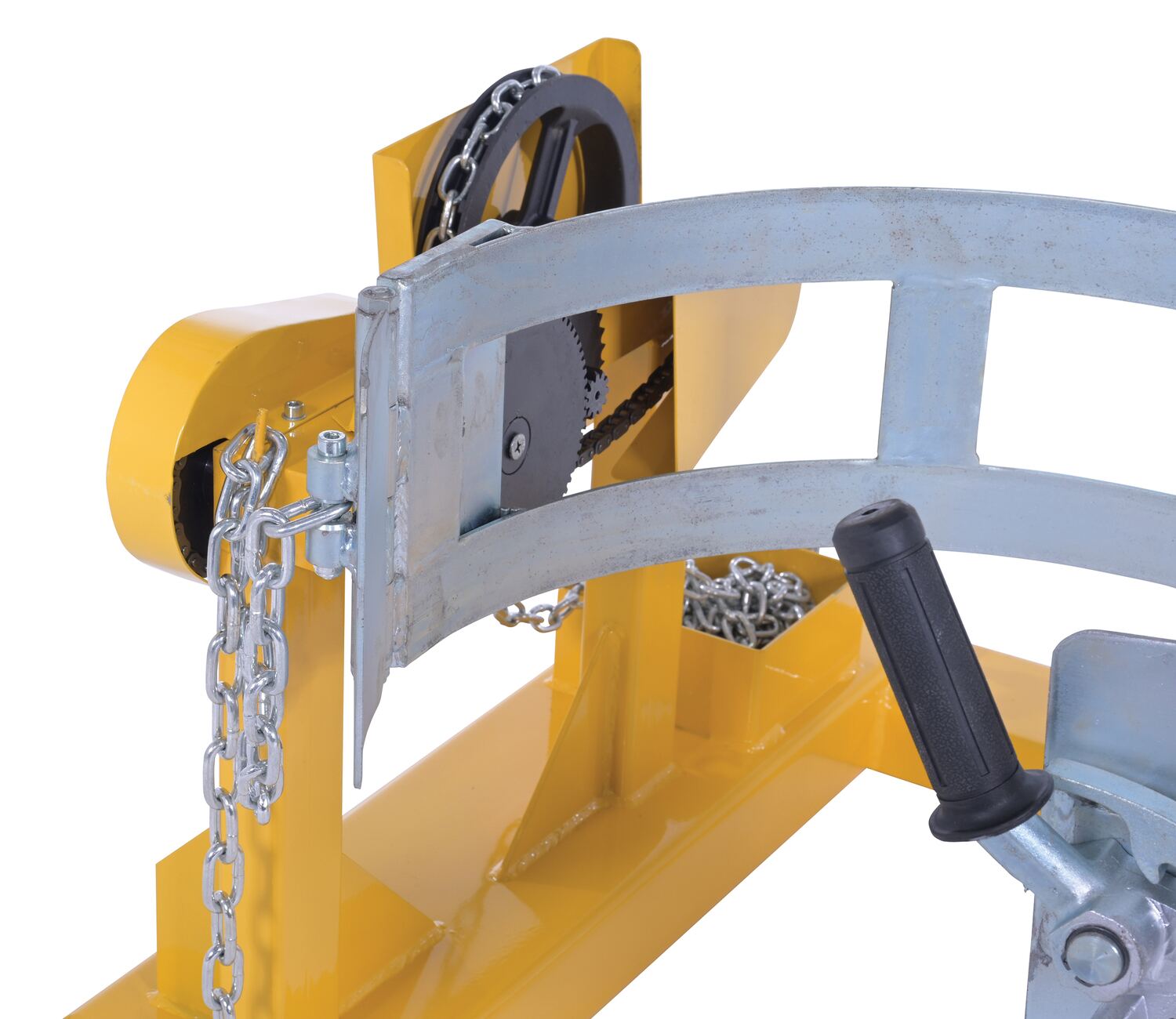

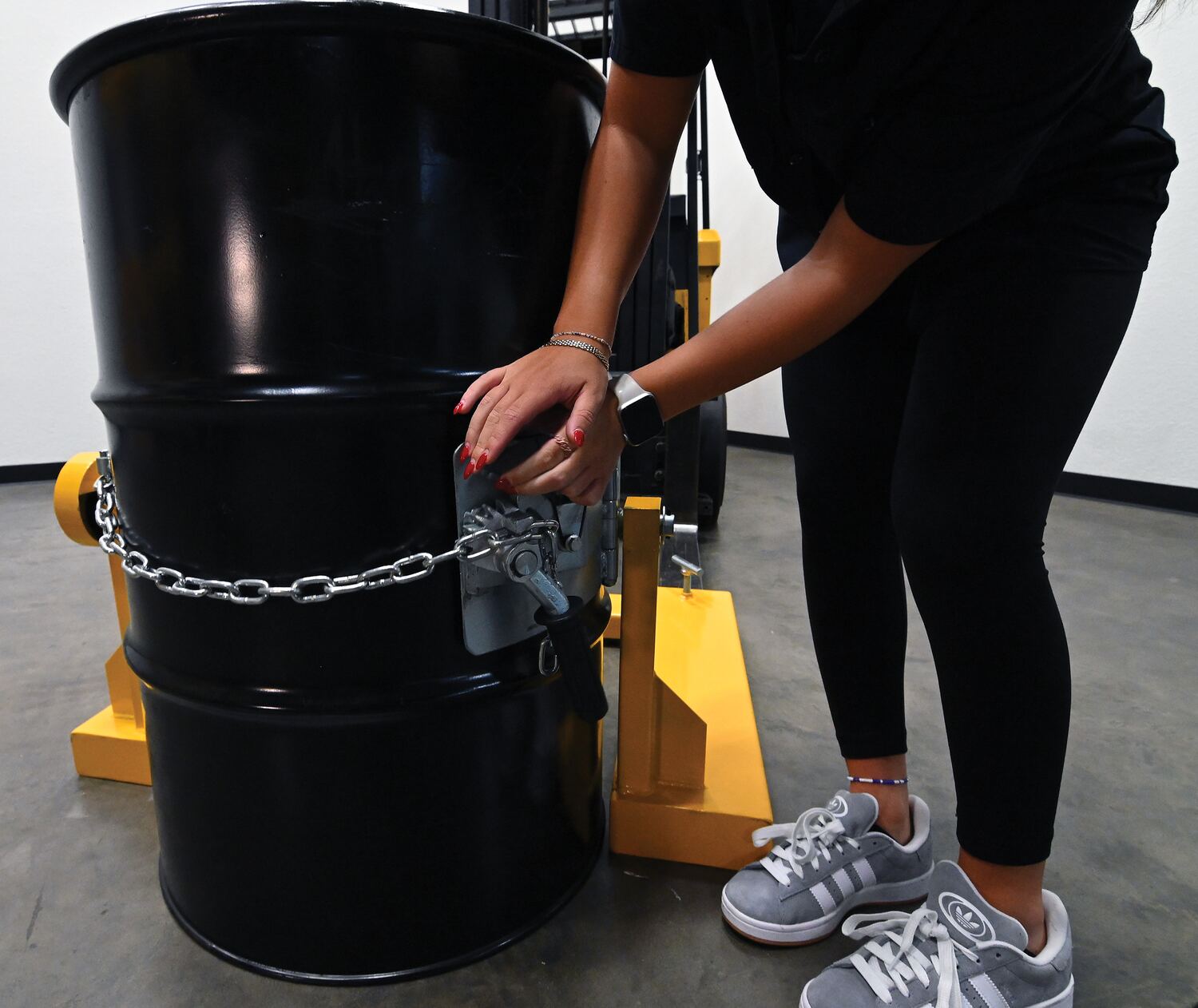

  • Drum Restraint Method: Chain
  • Drum Restraint Chain Length: 33 in
  • Safety Chain: 56 in

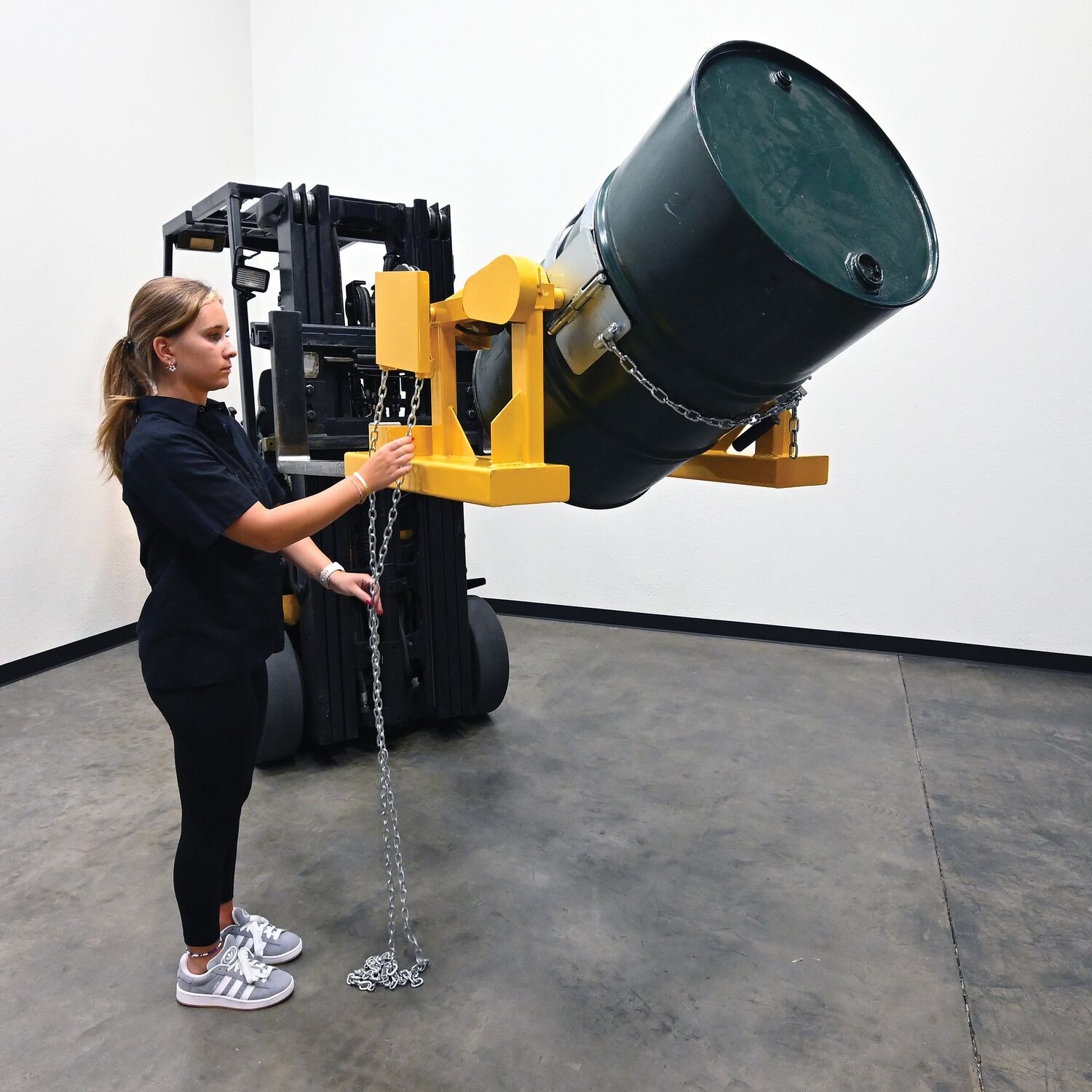

  • Rotation Chain: 15 ft

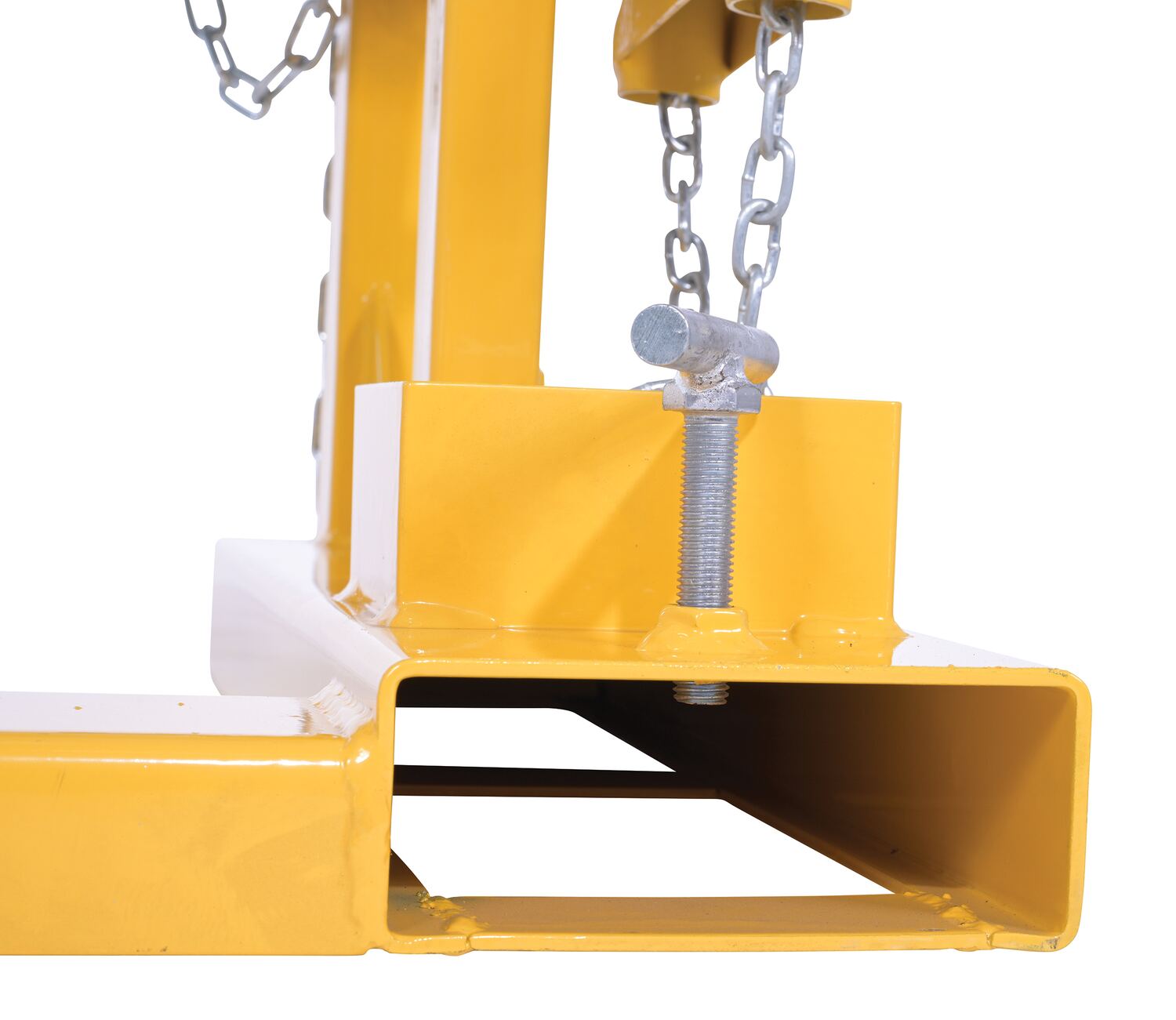

  • Fork Pocket Height: 2.625 in
  • Fork Pocket Width: 7 in
  • Fork Pocket Centers: 31.375 in

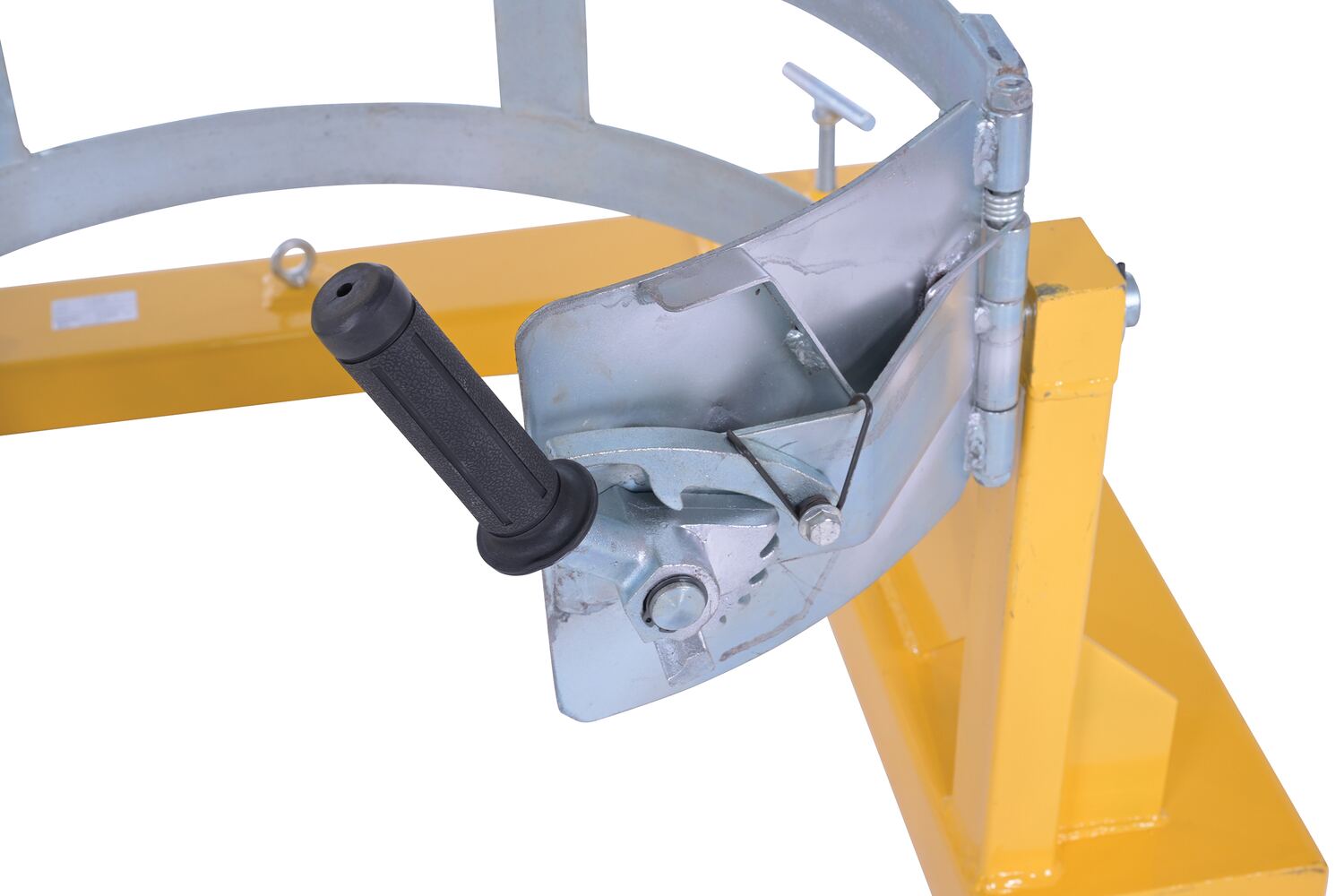

  • Crank Turns per 90° Rotation: 10
  • Drum Cradle Finish: Zinc Plated
  • Overall Length: 38.625 in
  • Overall Width: 38.75 in
  • Overall Height: 25.9375 in
  • Weight: 151 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days – Limited Parts
