Steel Fiber & Plastic Drum Adapter Carrier/Rotator – For 30 Gallon and 55 Gallon Drums – FDA-800 – Vestil

SKU: FDA-800
$198.63
Estimated Lead Time:4-5 Weeks

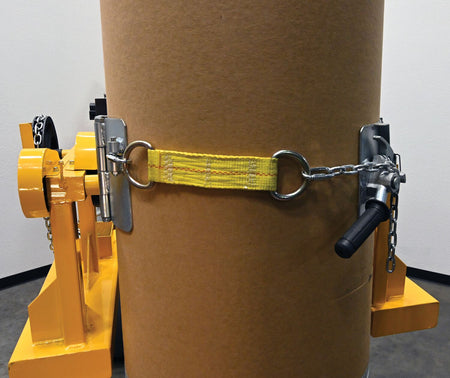

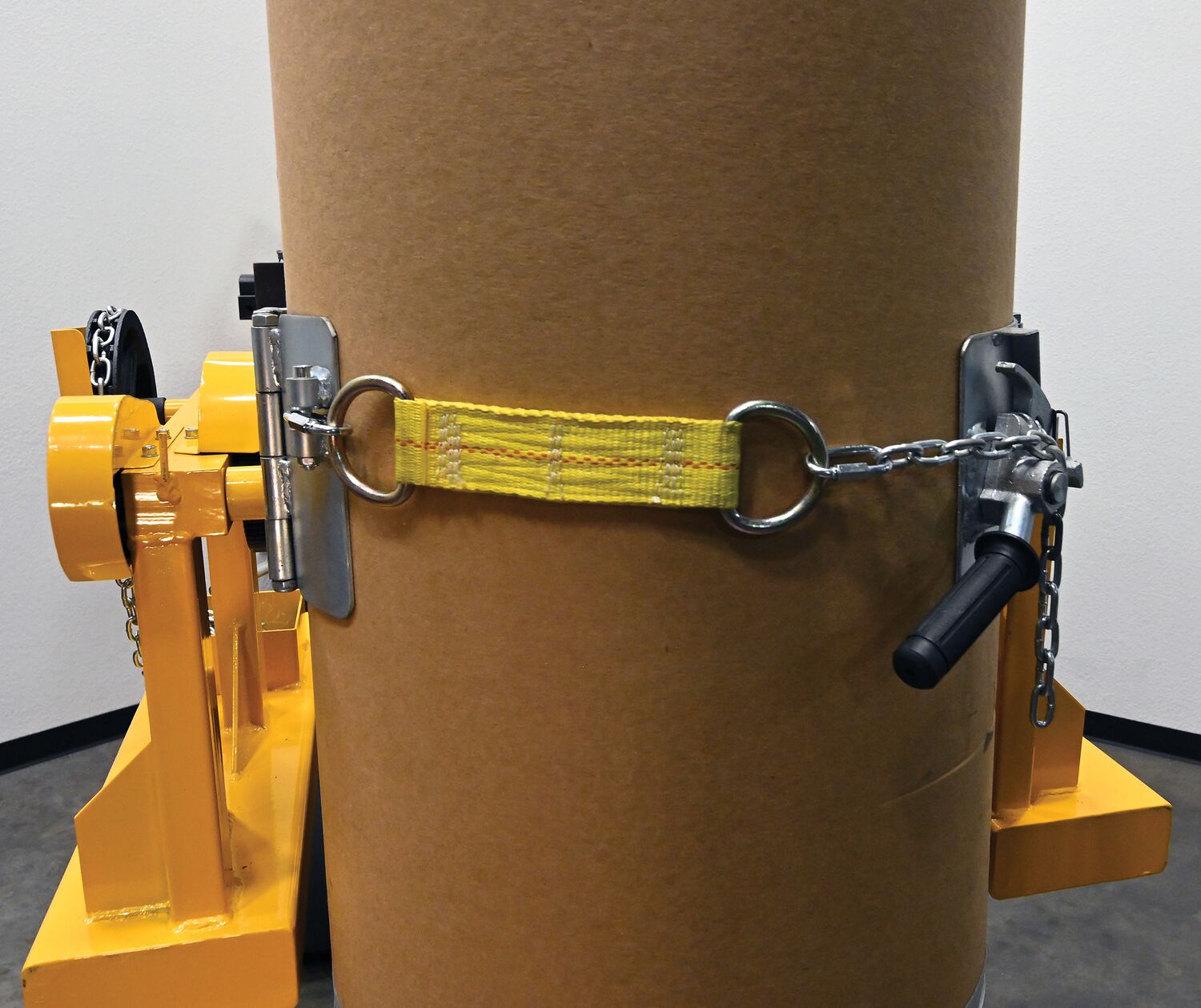

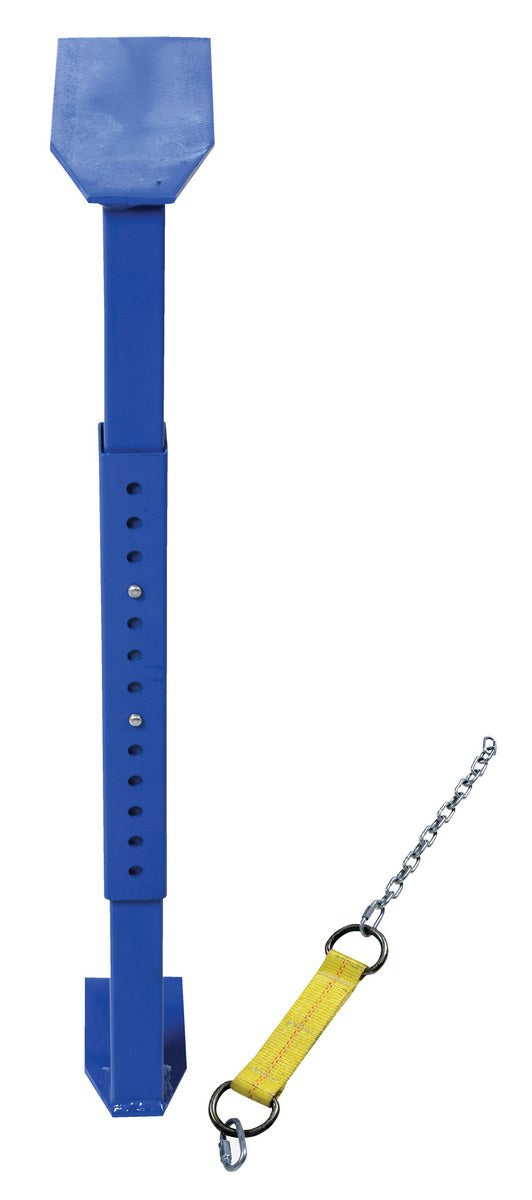

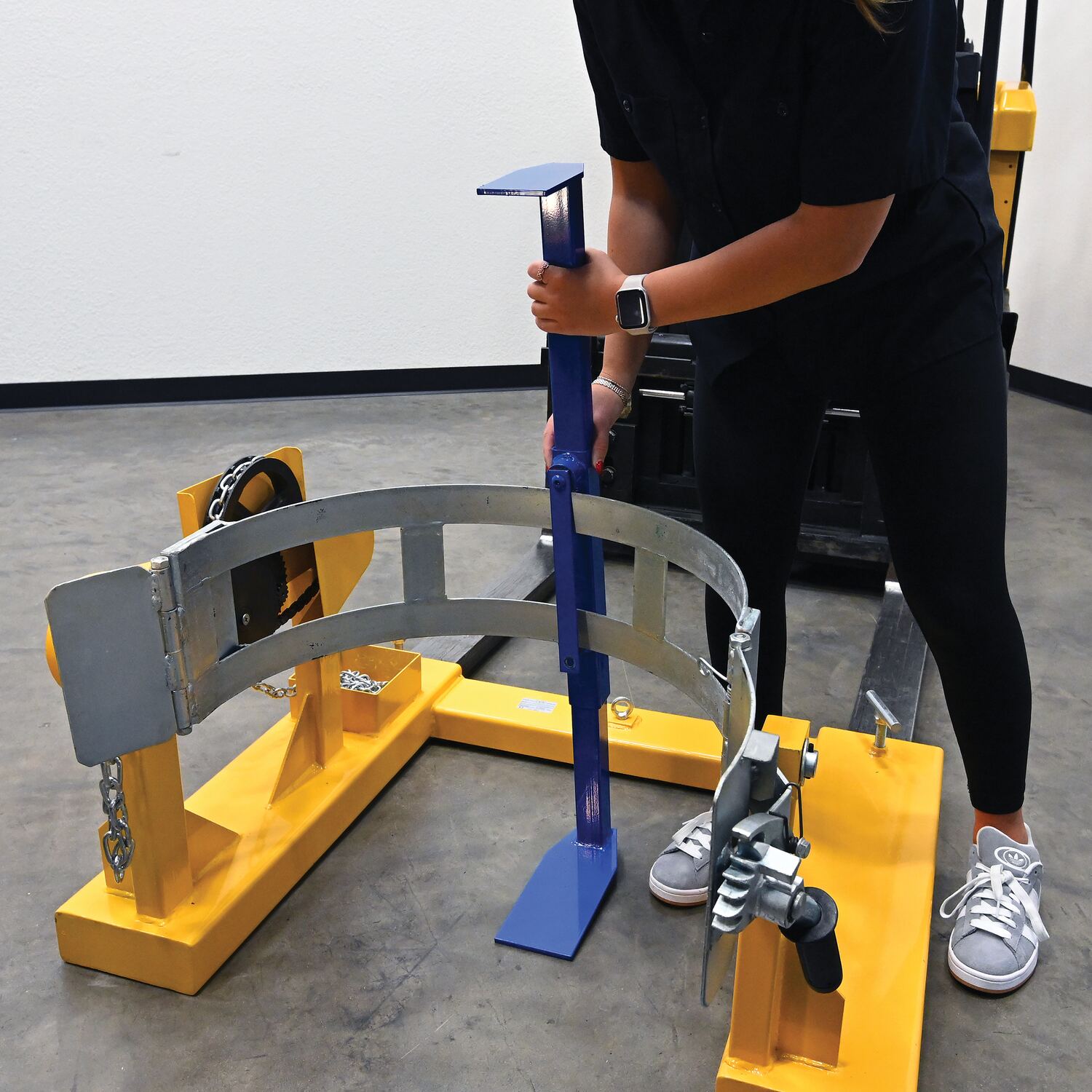

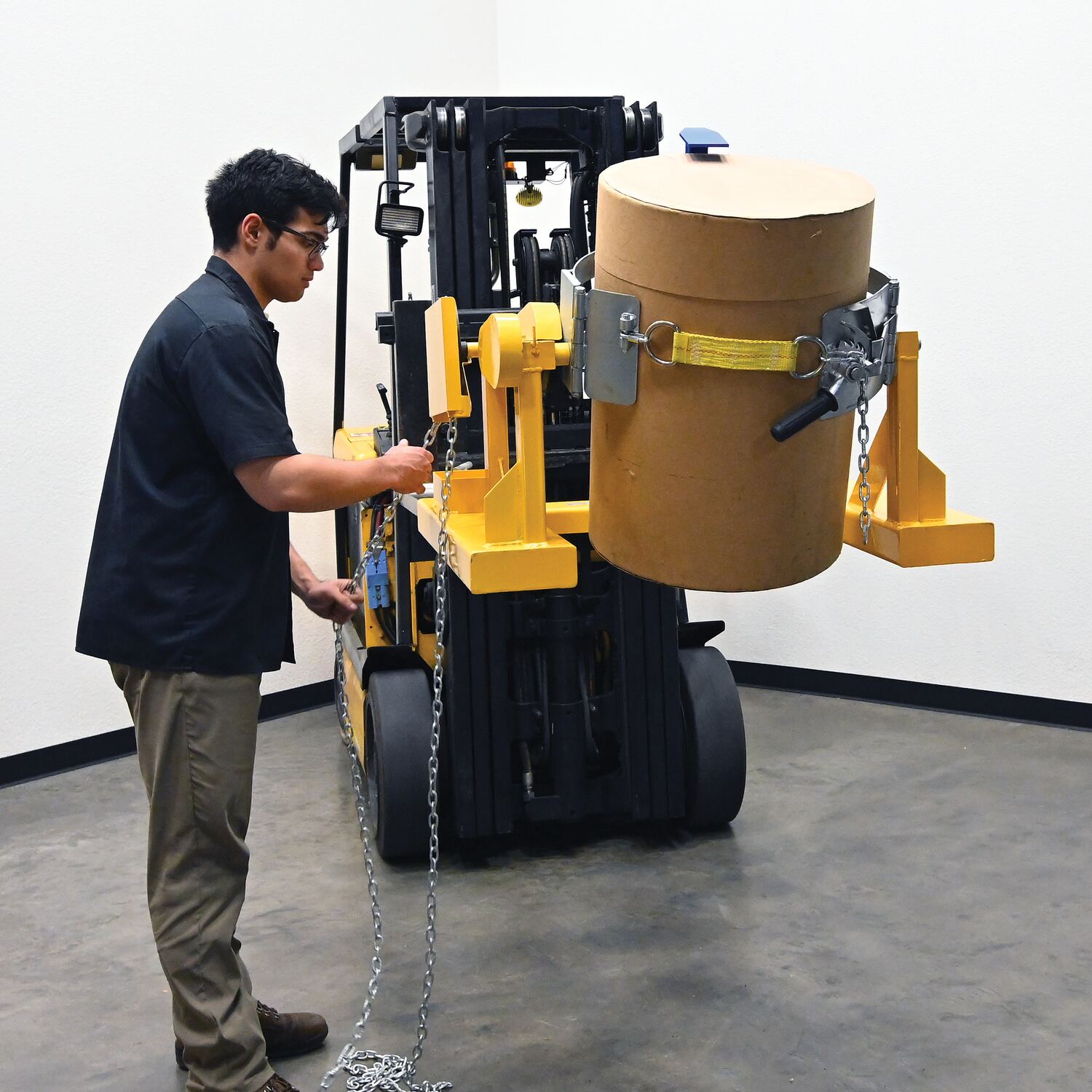

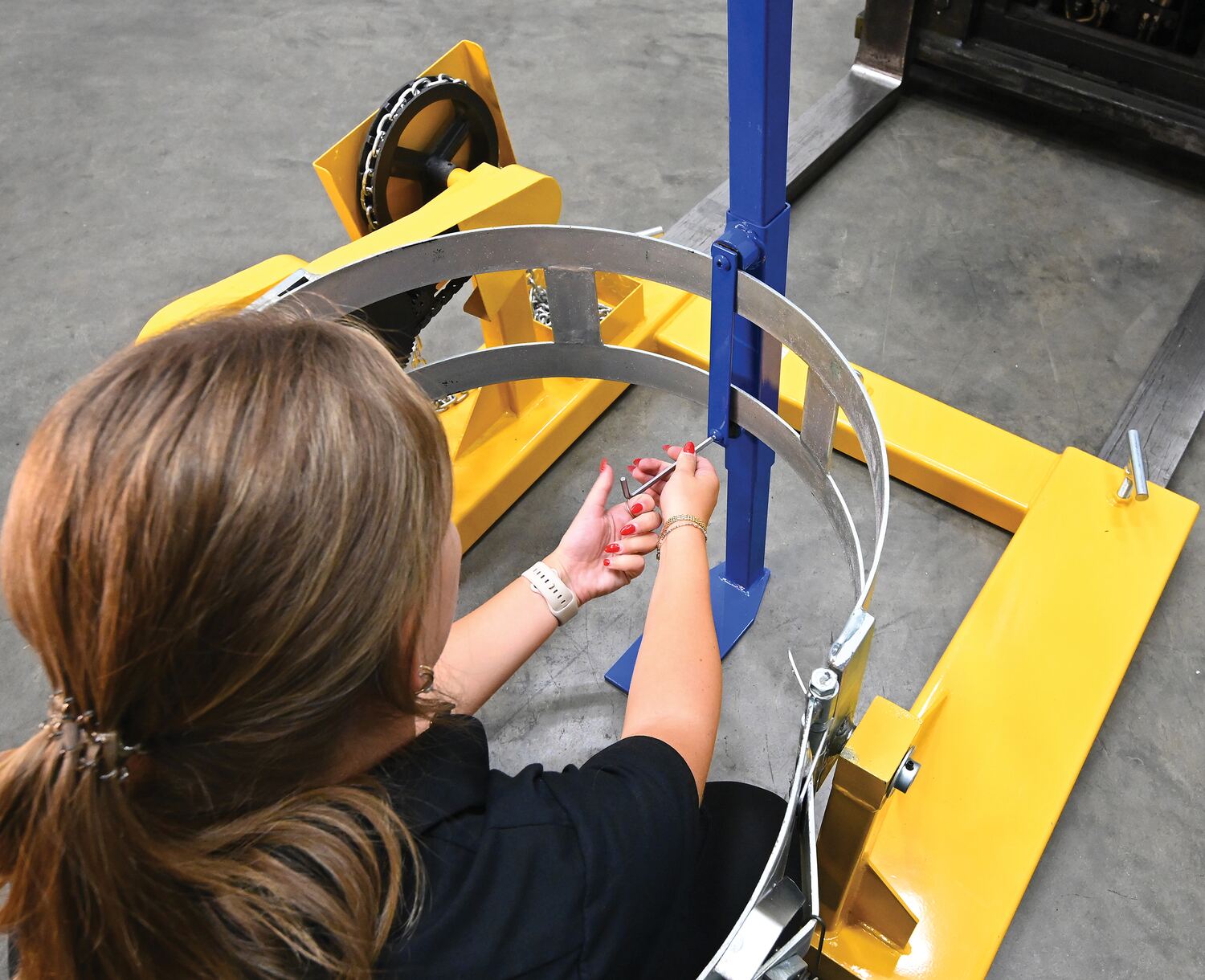

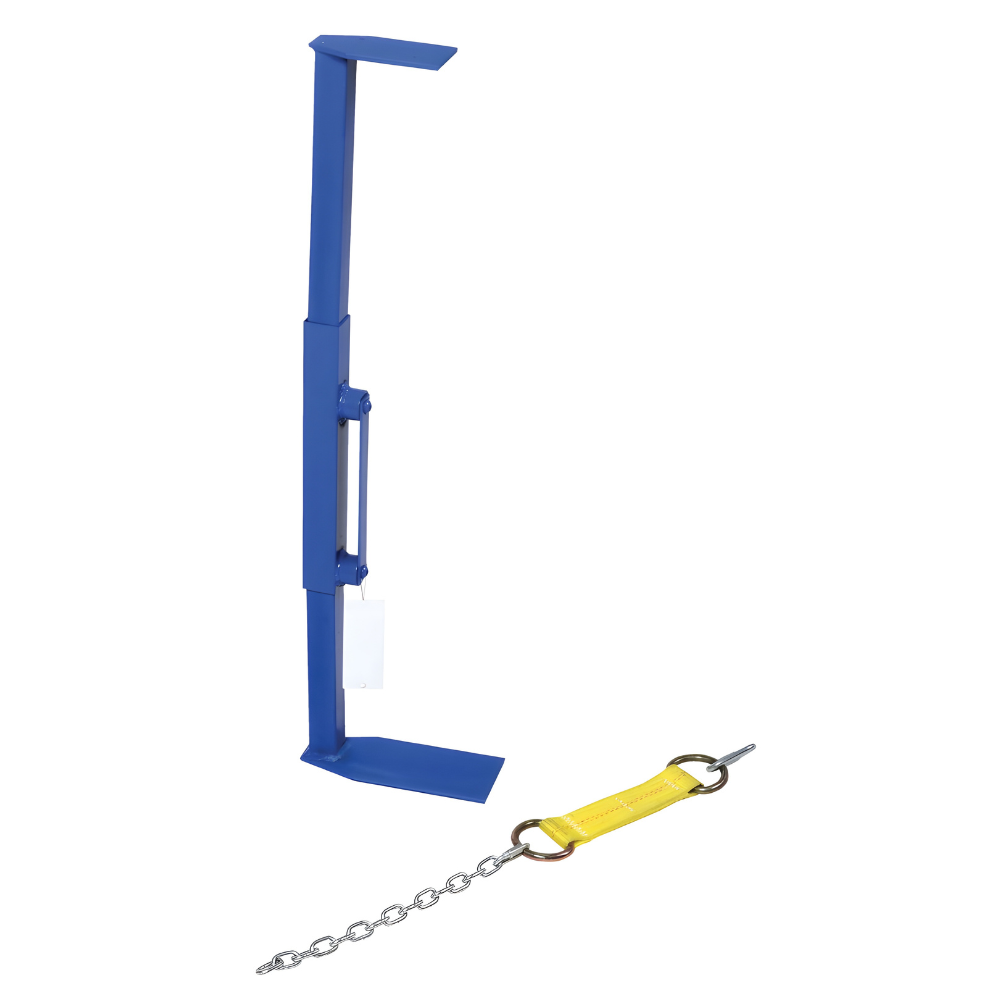

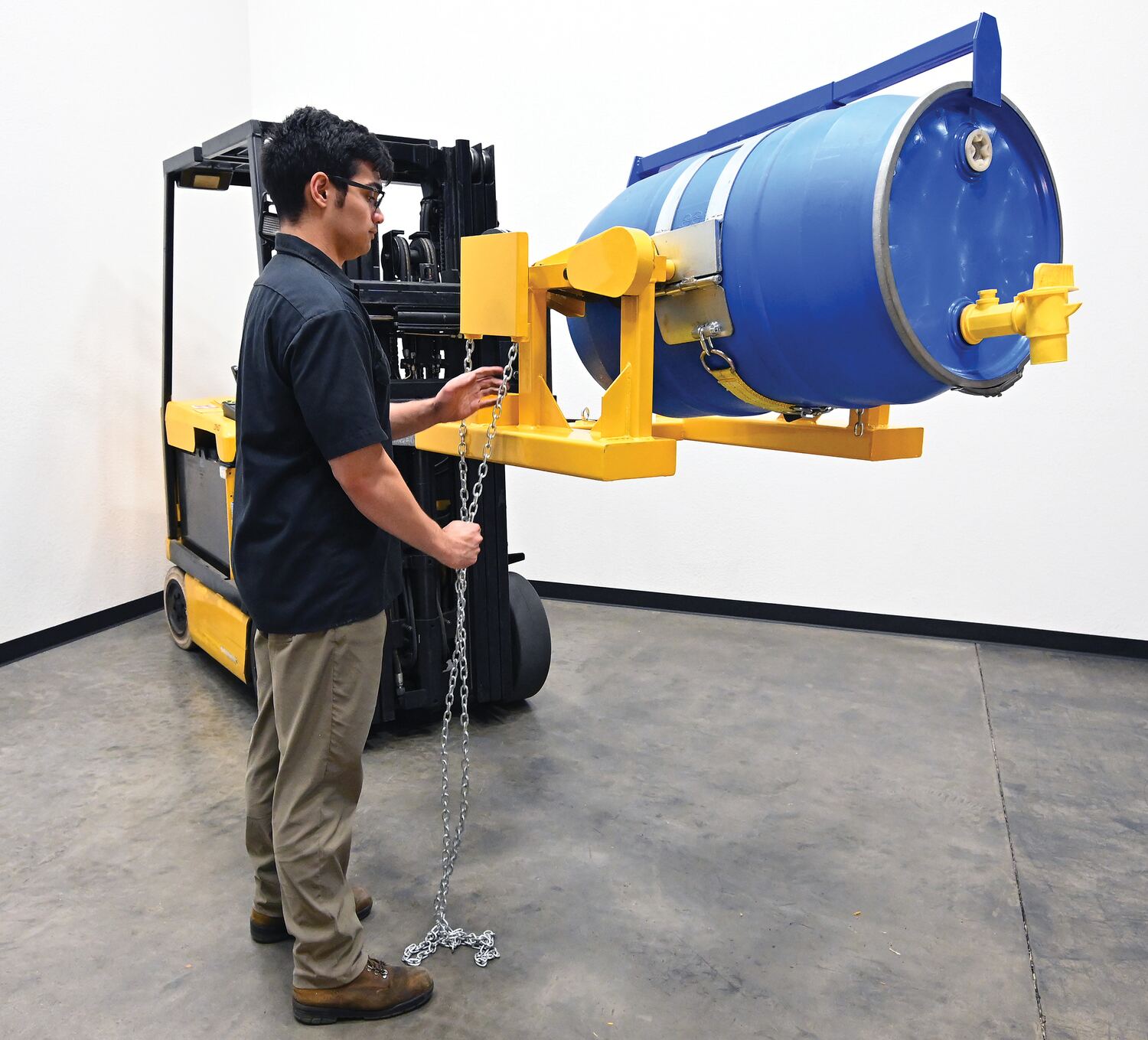

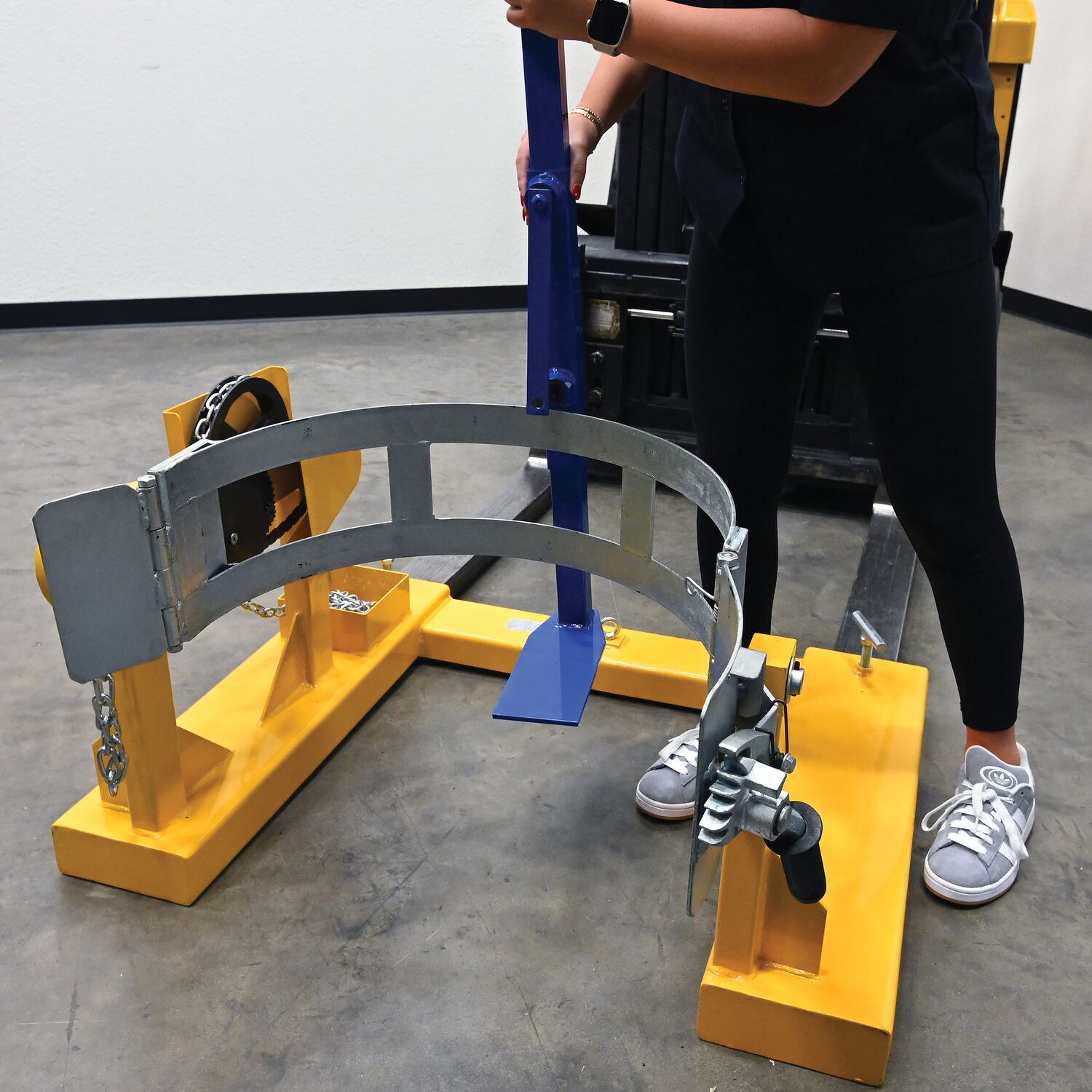

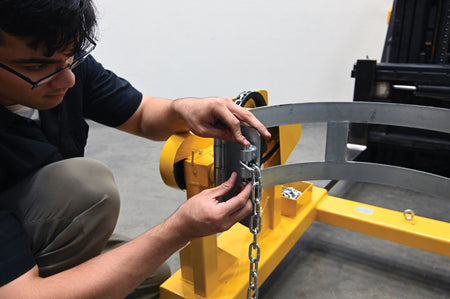

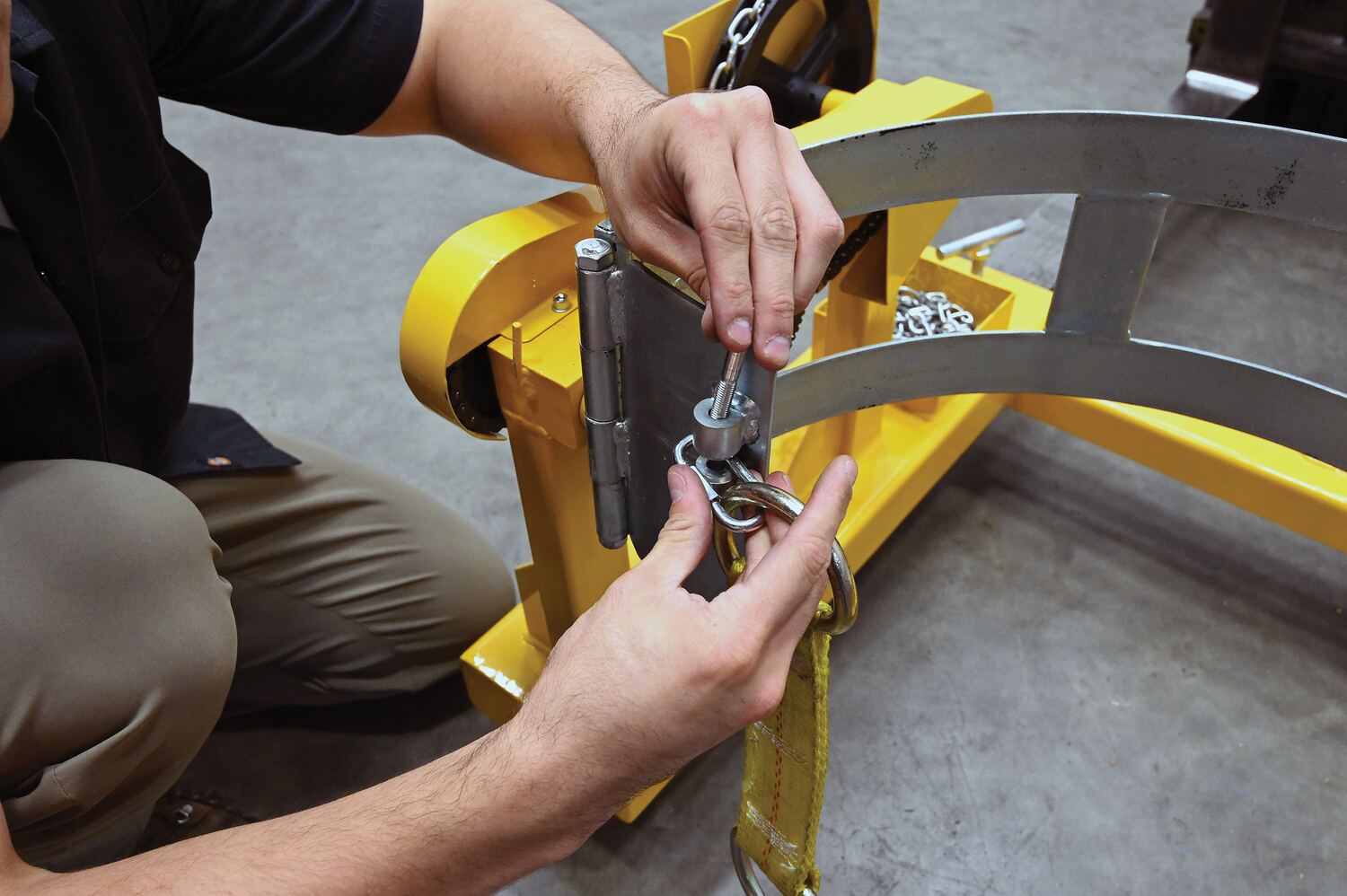

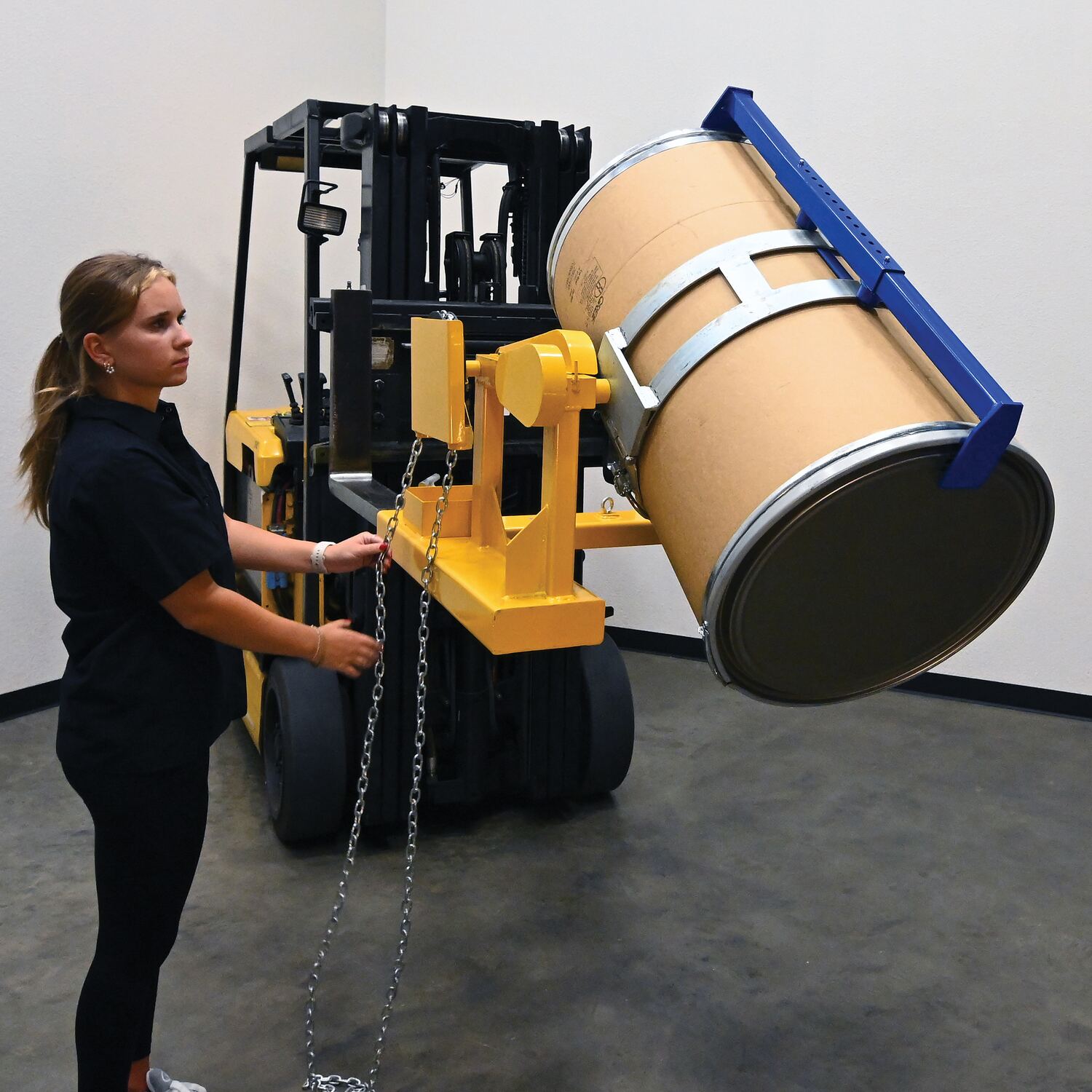

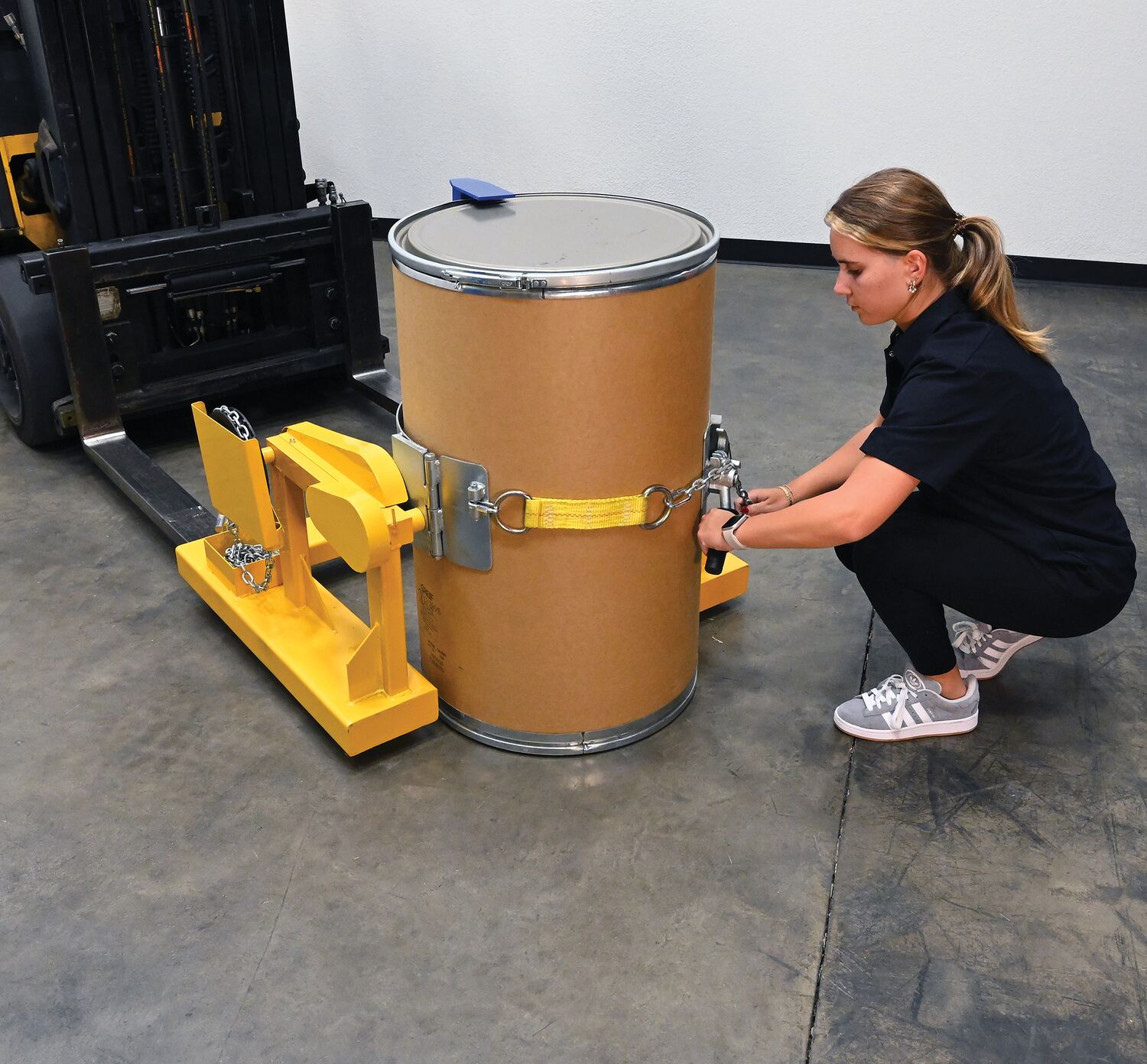

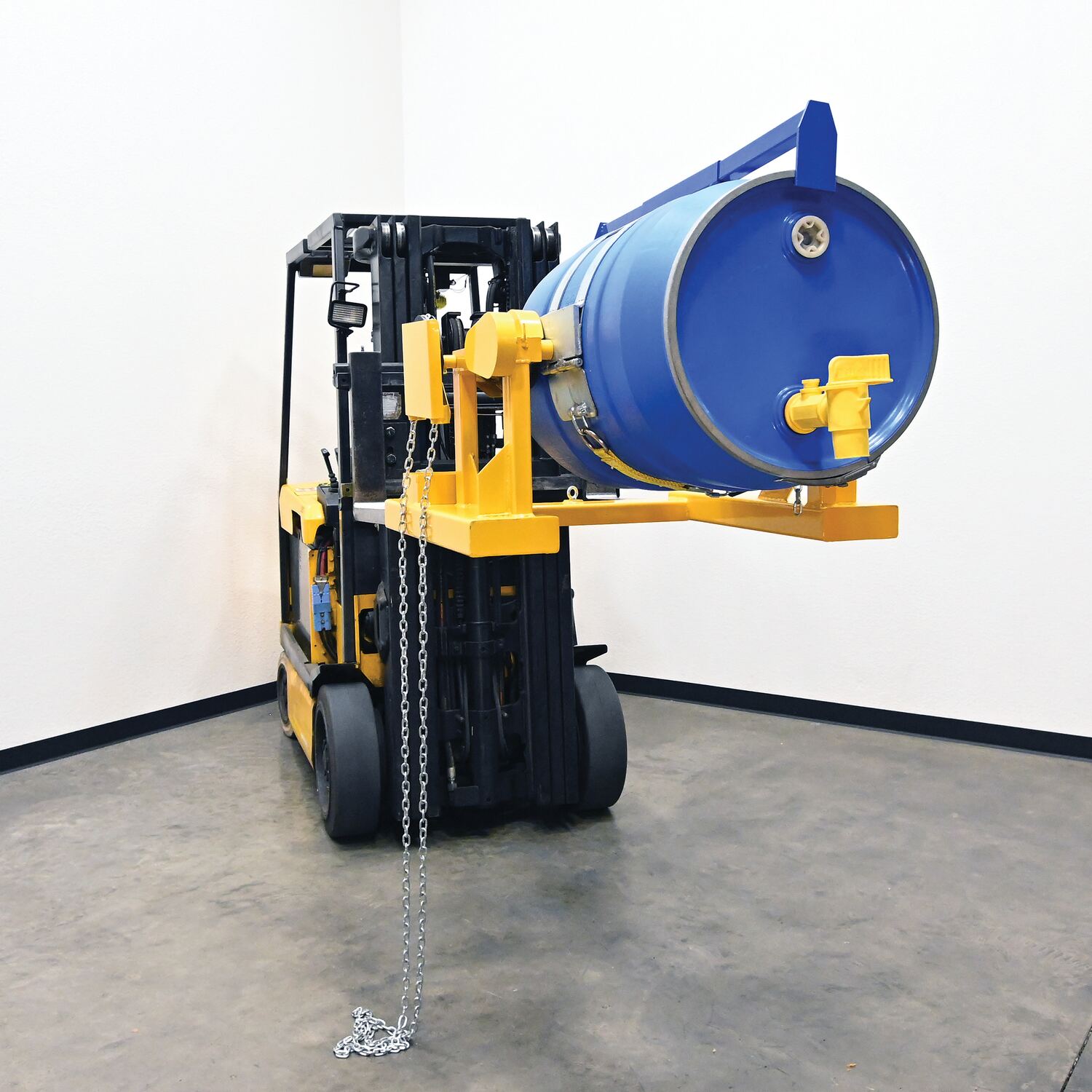

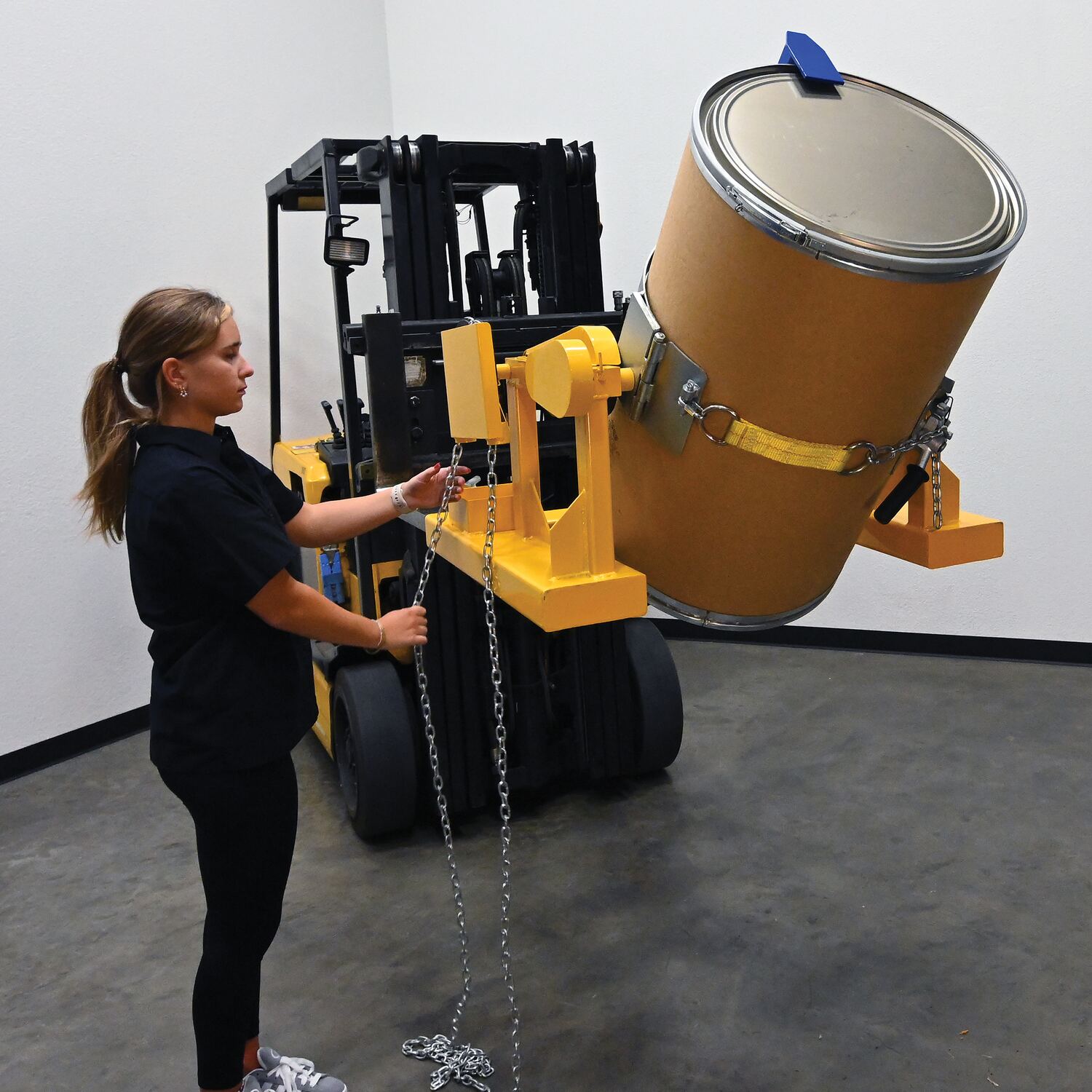

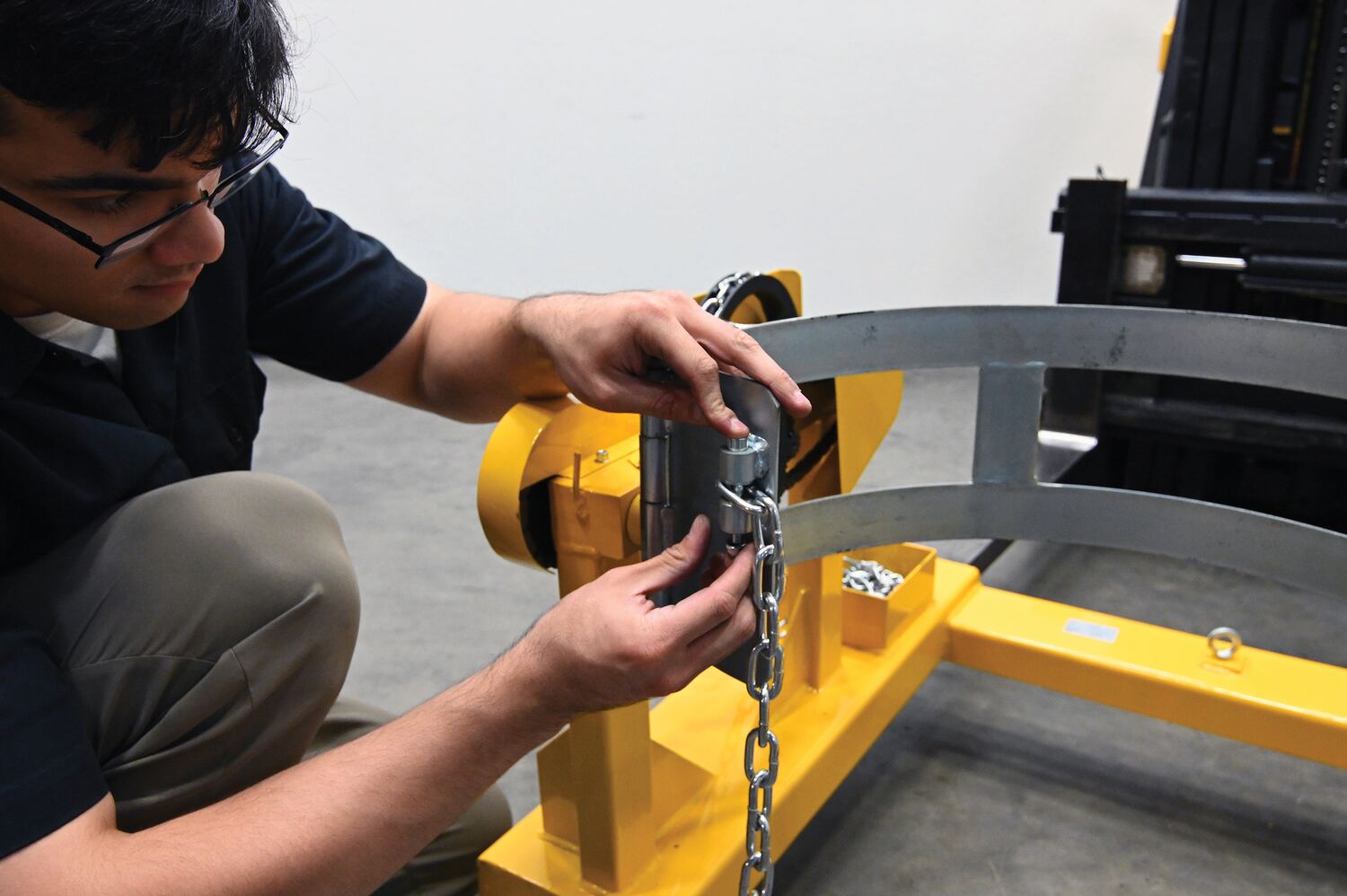

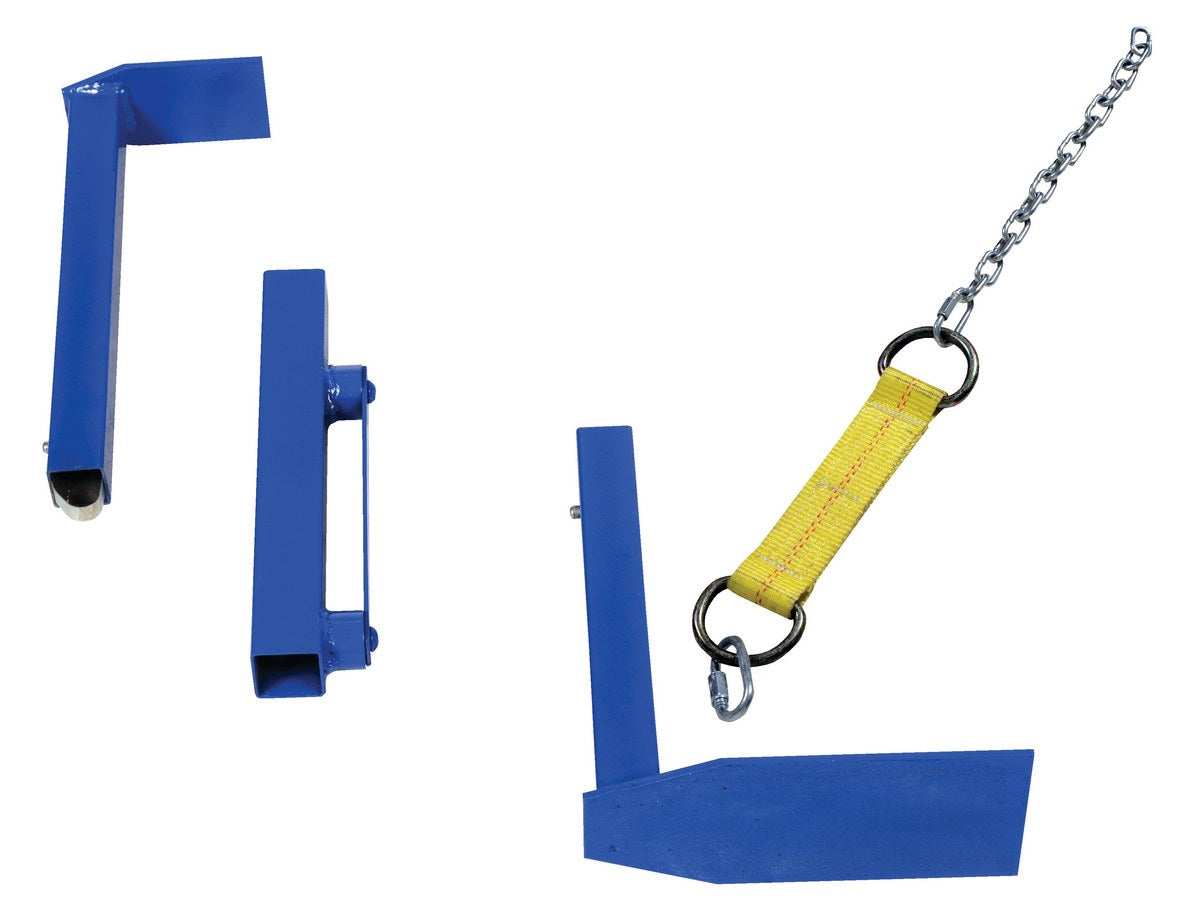

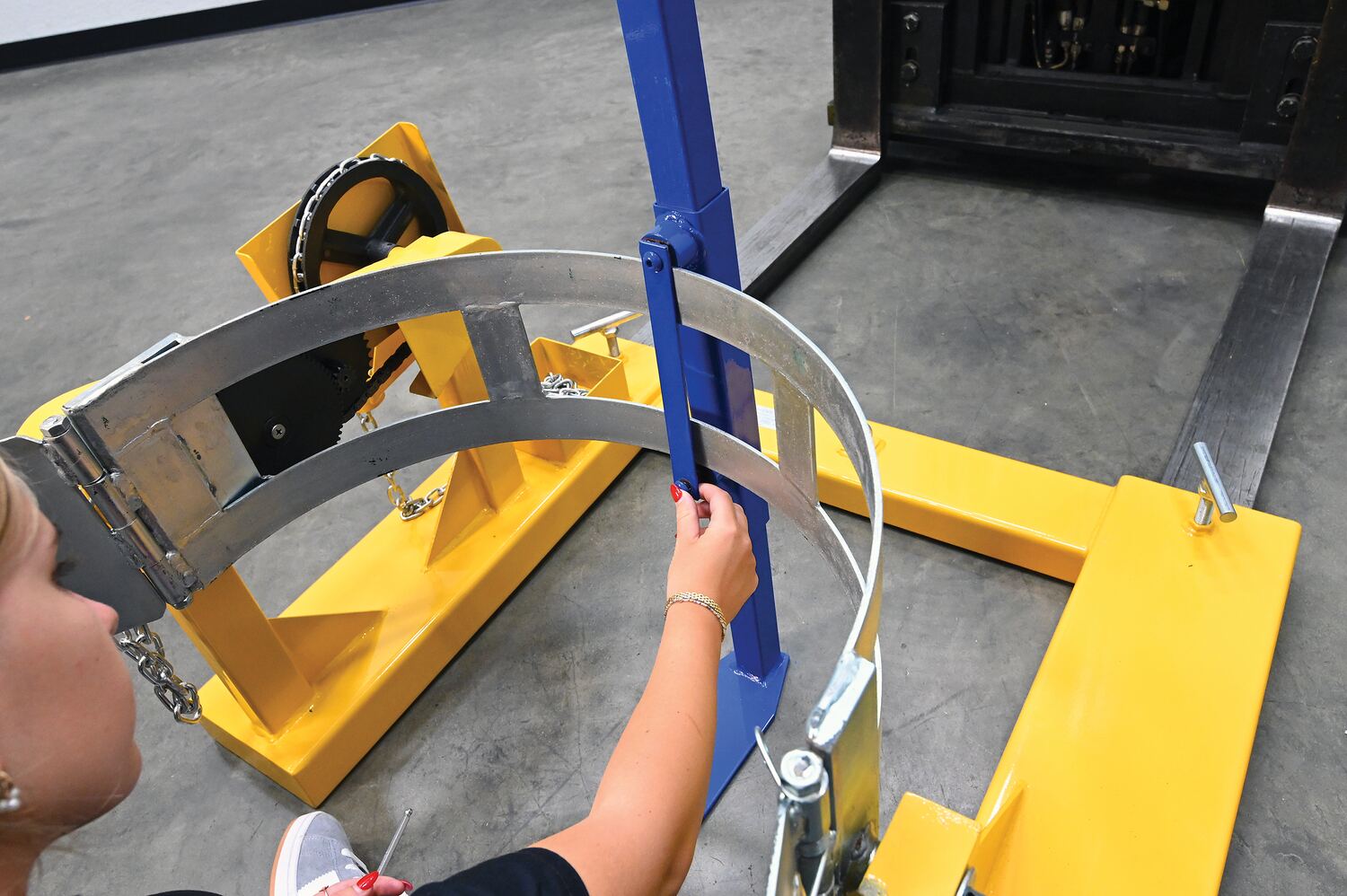

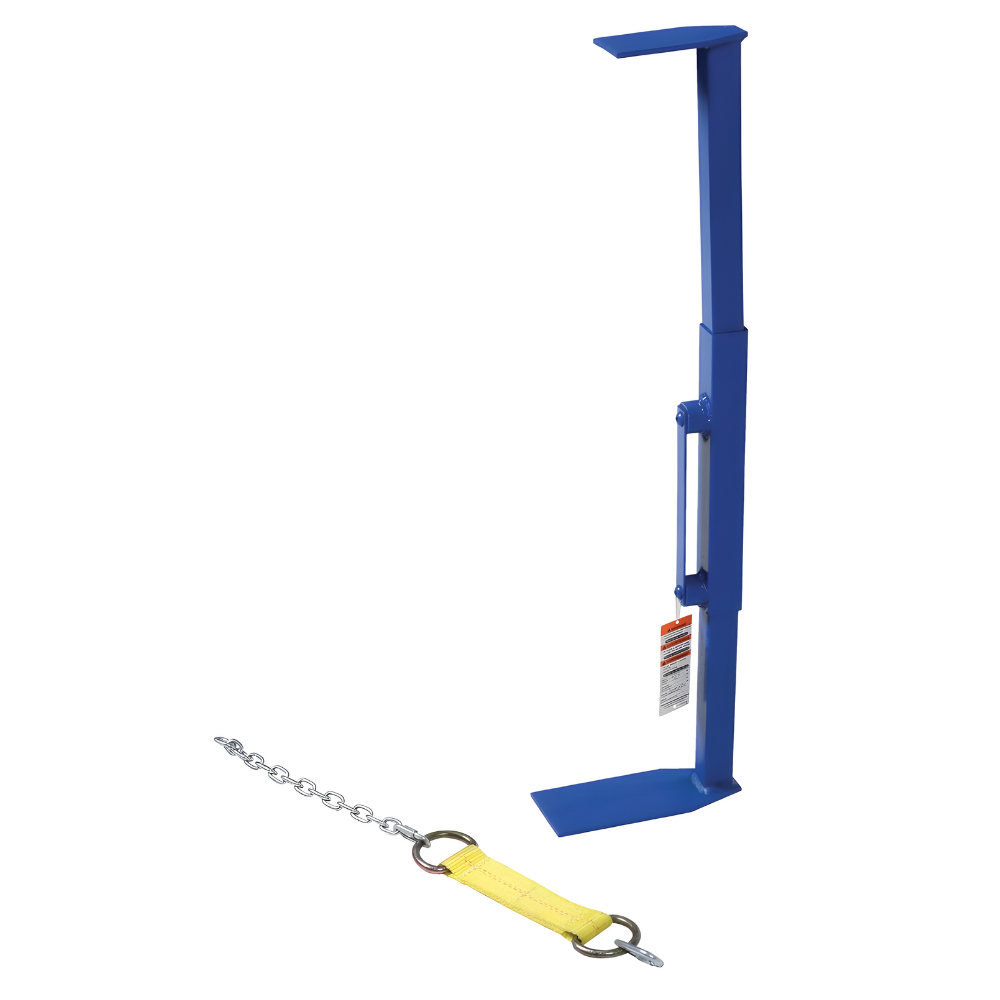

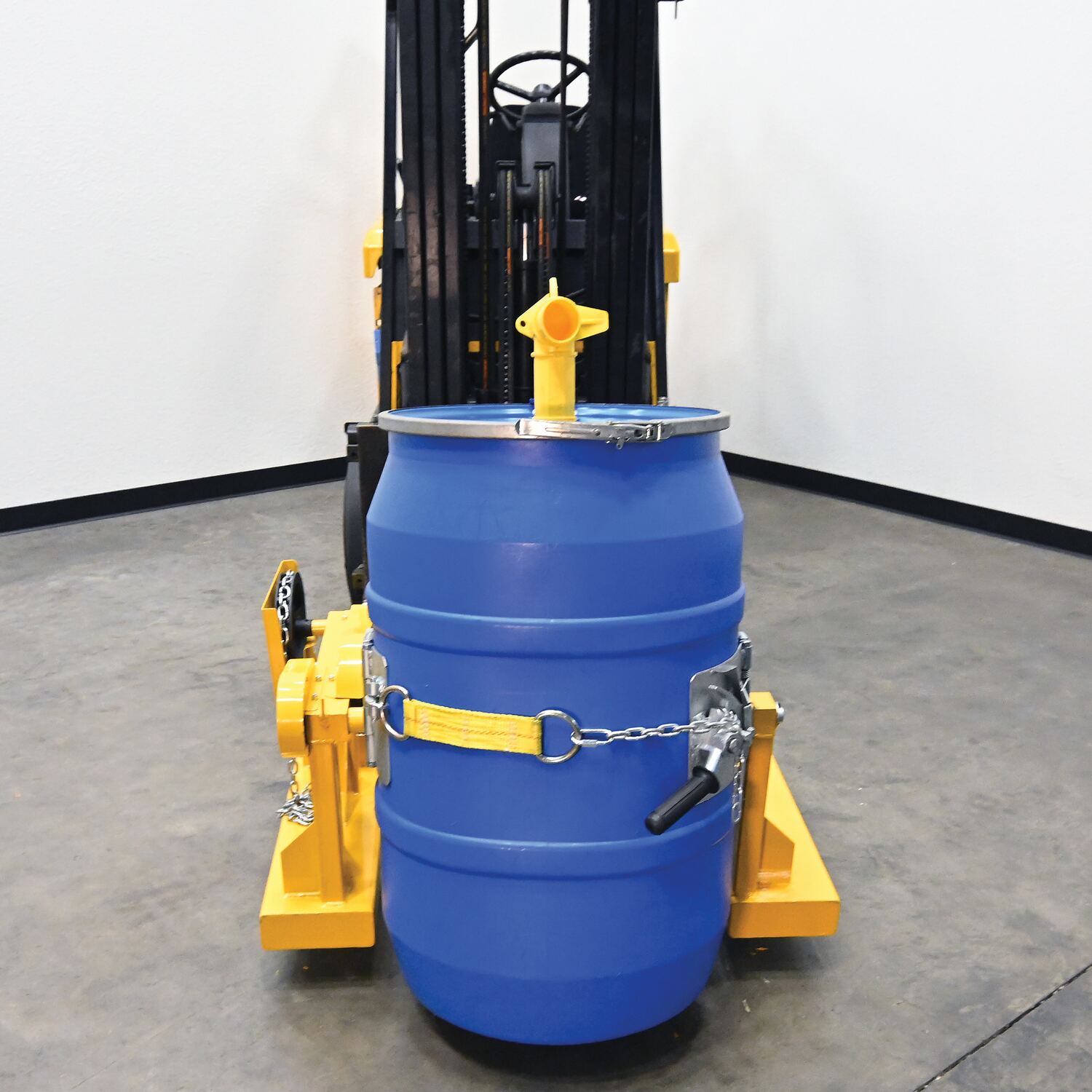

The Vestil Model FDA-800 Steel Fiber & Plastic Drum Adapter Carrier/Rotator is designed to securely hold and support fiber and plastic drums. This versatile adapter comes complete with both an adjustable arm and a high-strength nylon strap, allowing operators to handle both 30-gallon and 55-gallon drums with ease. Built for use with compatible stackers and carrier/rotators, it provides reliable drum handling for open or closed head designs. Constructed of steel with a durable blue powder coat finish, the adapter offers rugged use in industrial environments.
  • Model Number: FDA-800
  • Capacity: 800 lbs
  • Material: Steel / Nylon
  • Color / Finish: Blue / Yellow, Powder-Coated
  • Compatible Drum Sizes: 30 Gallon & 55 Gallon
  • Compatible Drum Materials: Fiber & Plastic
  • Compatible Drum Head Design: Open or Closed
  • Overall Length: 10 in
  • Overall Width: 4 in
  • Overall Height: 36.75 in
  • Minimum/Maximum Arm Length: 28.75 – 36.75 in
  • Minimum Drum Diameter: 12 in
  • Maximum Drum Diameter: 21 in
  • Drum Height Range: 28 – 36 in
  • Strap Length: 8 in
  • Chain Length: 15.1875 in
  • Quick Link Length: 0.25 in
  • Weight: 14 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days – Limited Parts
