Steel Economy Portable Drum Lifter/Rotator/Transporter – DRUM-LRT-EC – Vestil

SKU: DRUM-LRT-EC
$2,113.84
Estimated Lead Time:1-3 Days

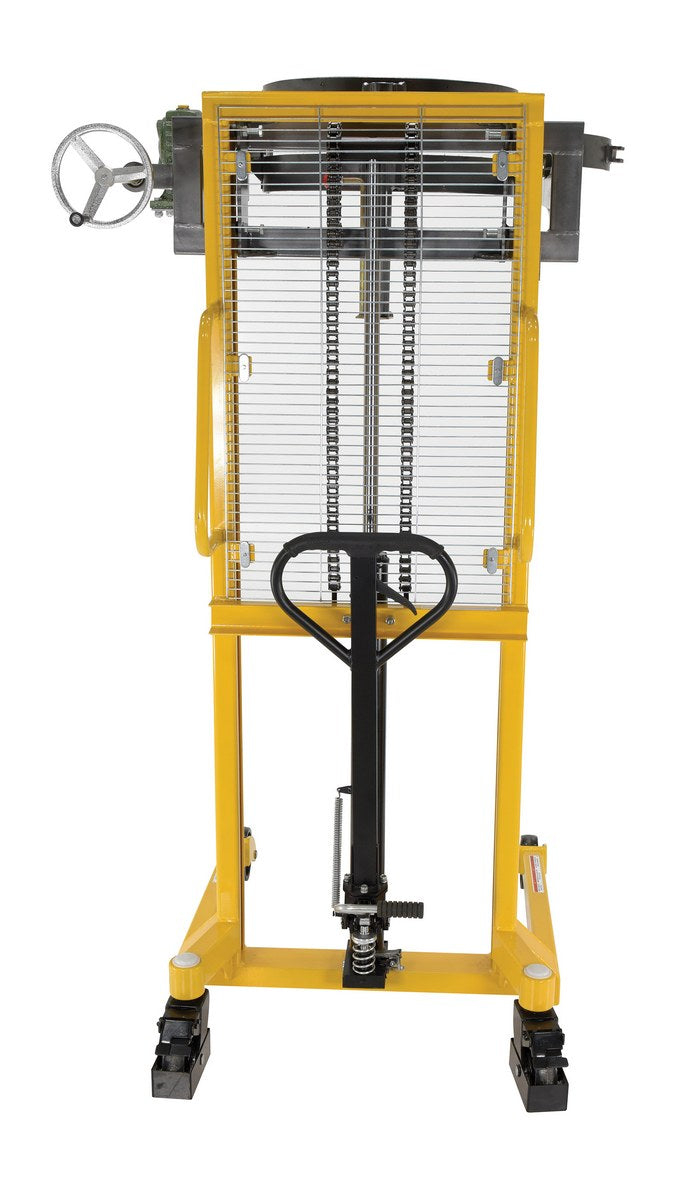

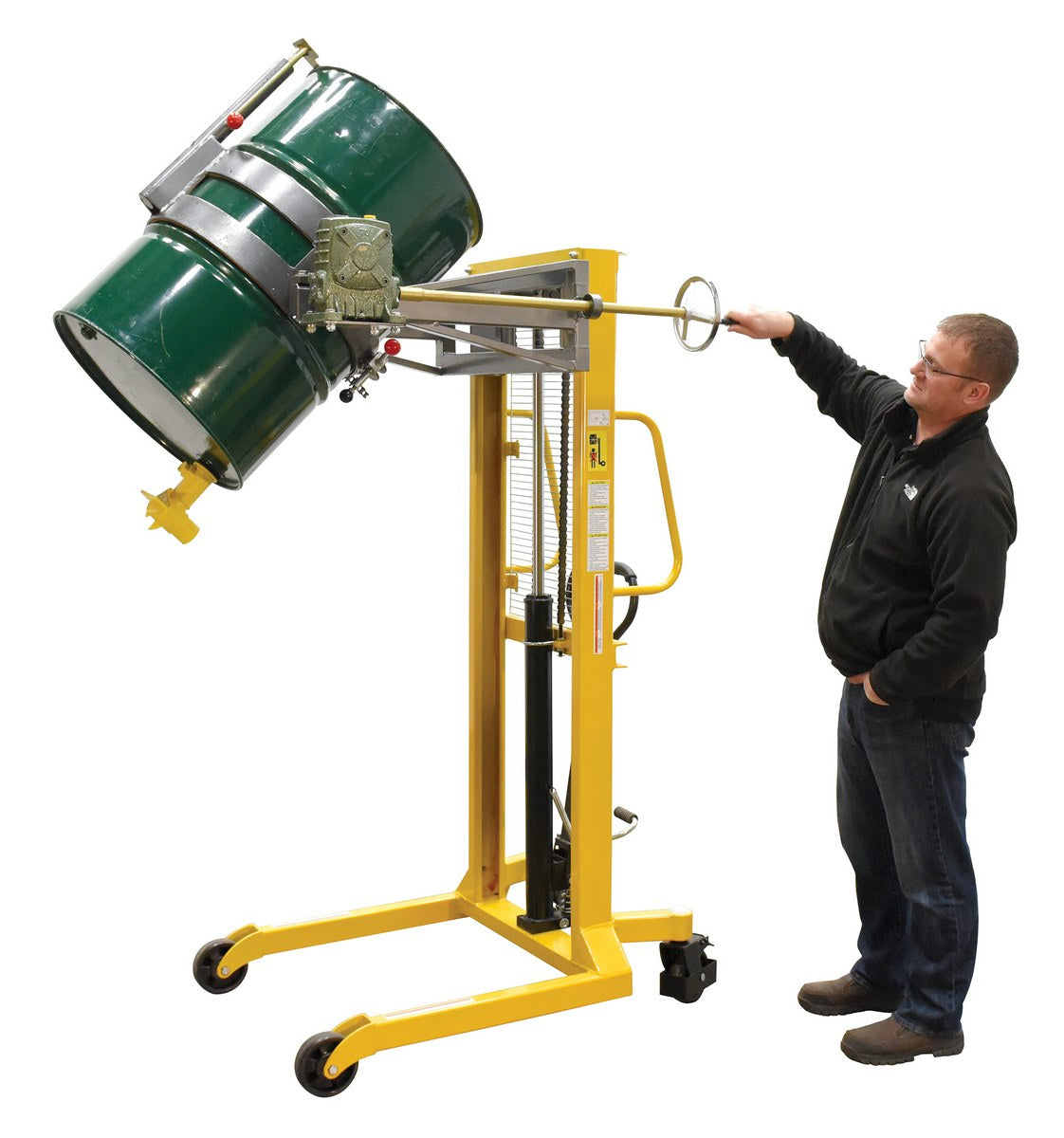

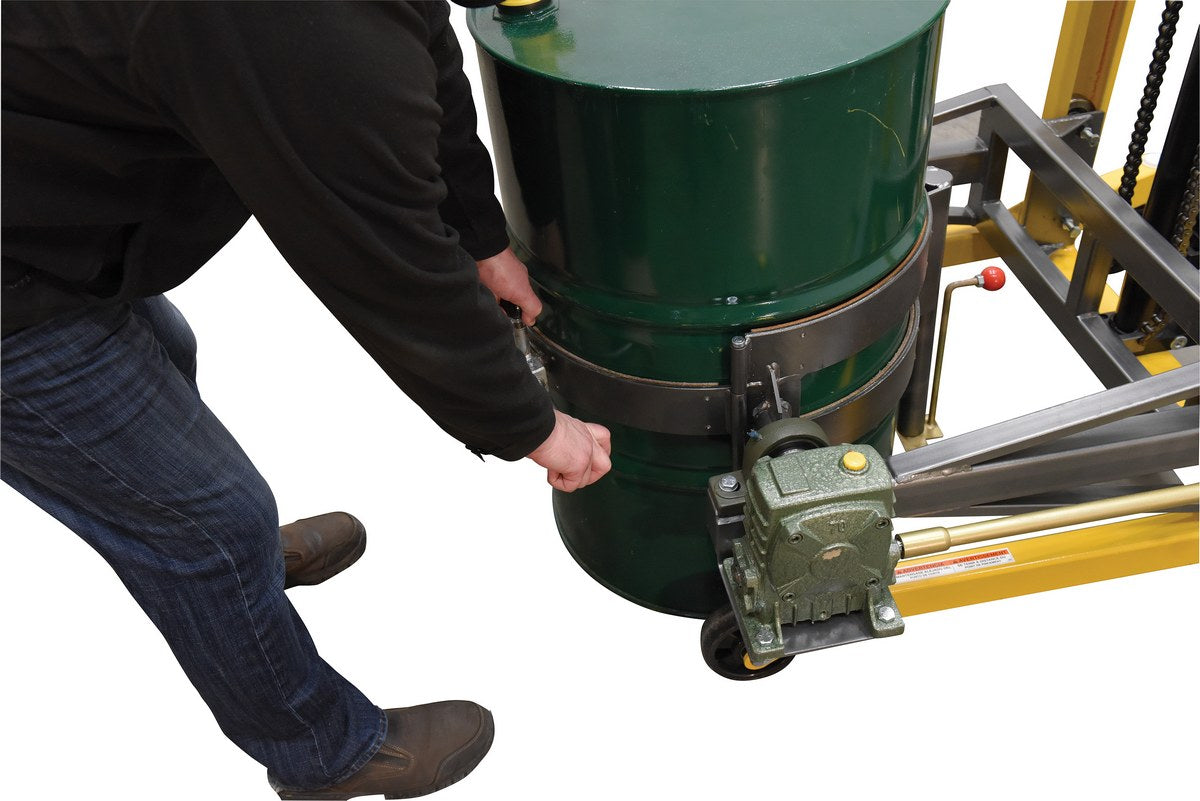

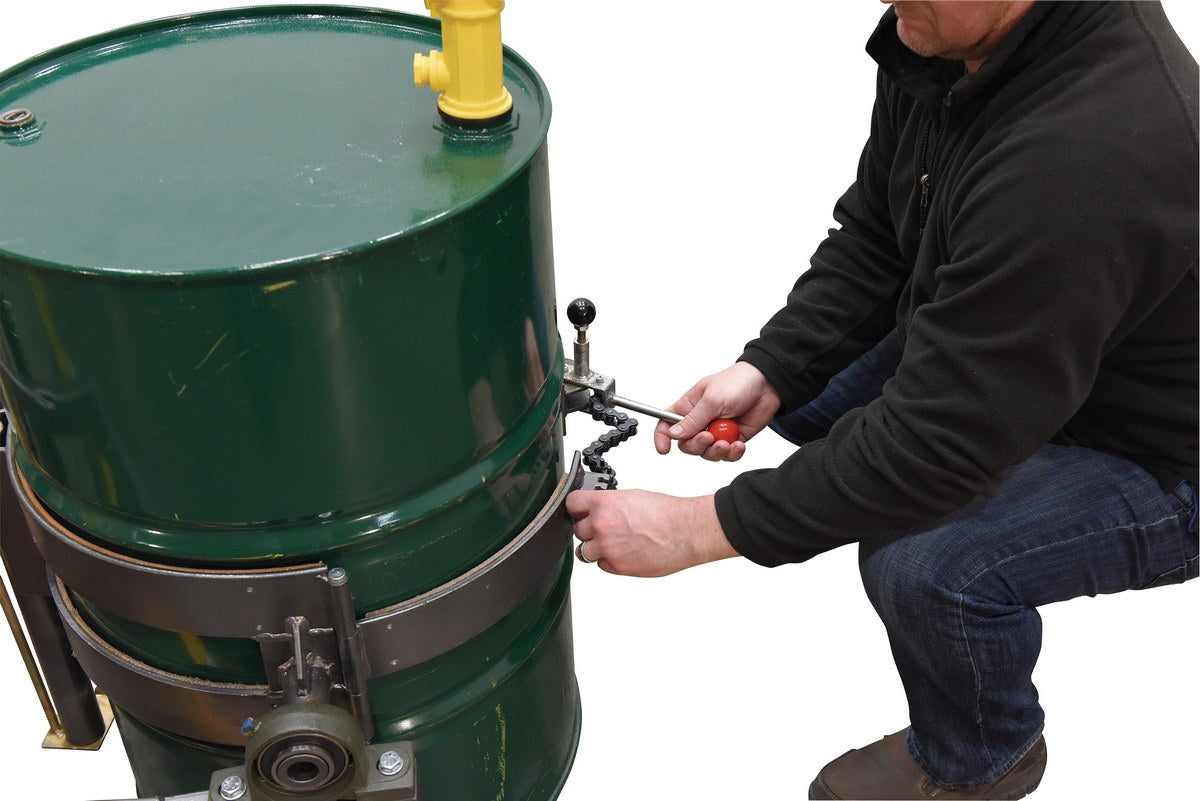

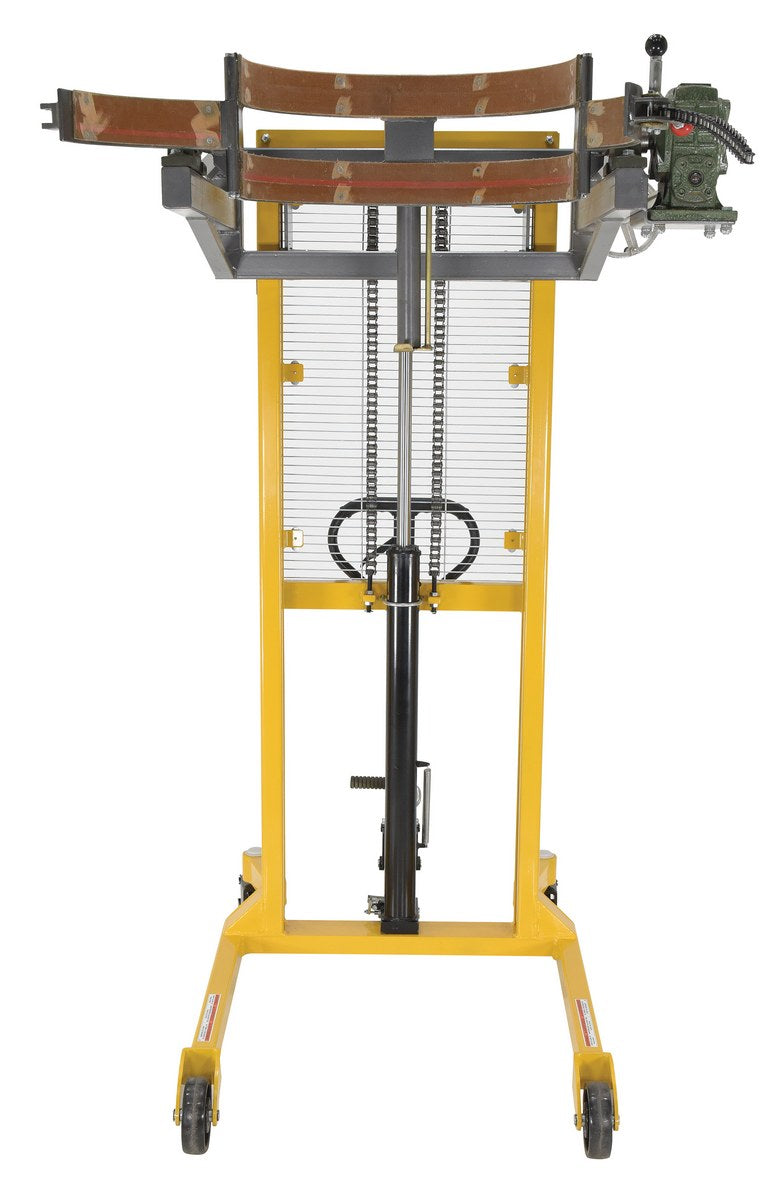

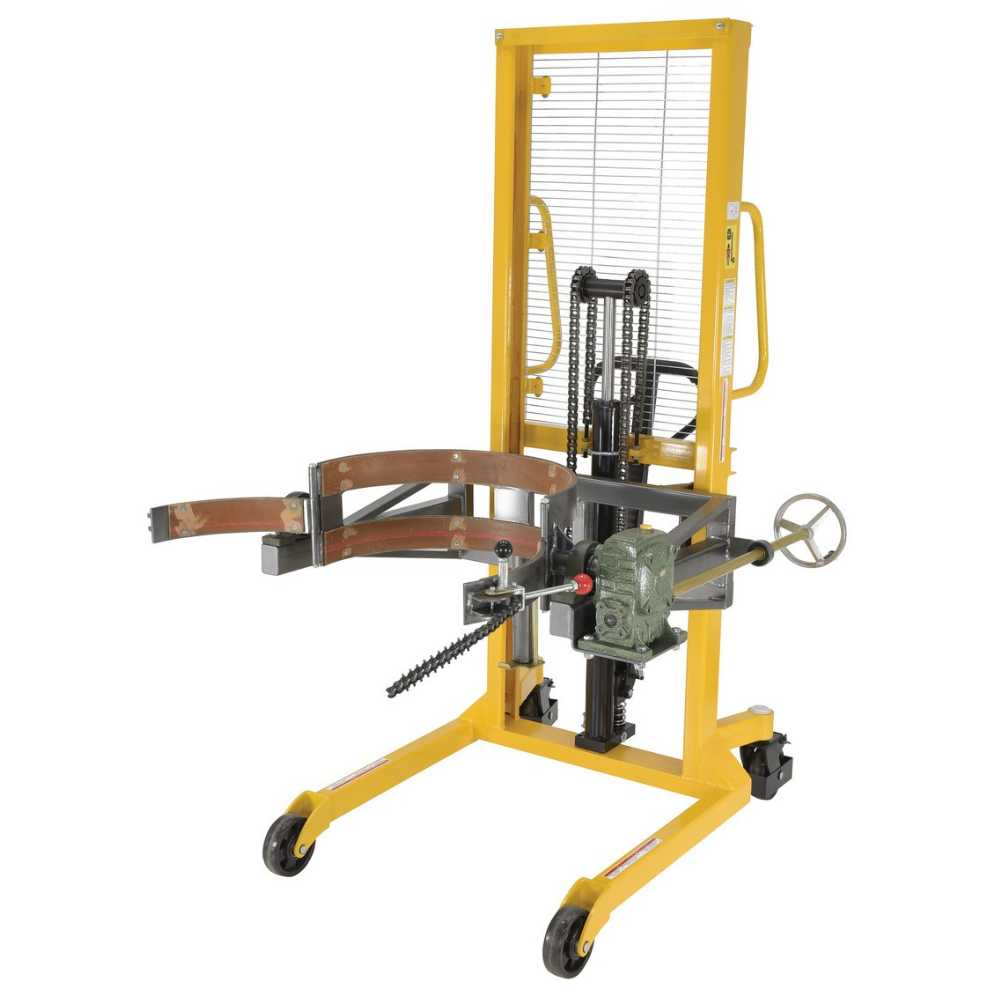

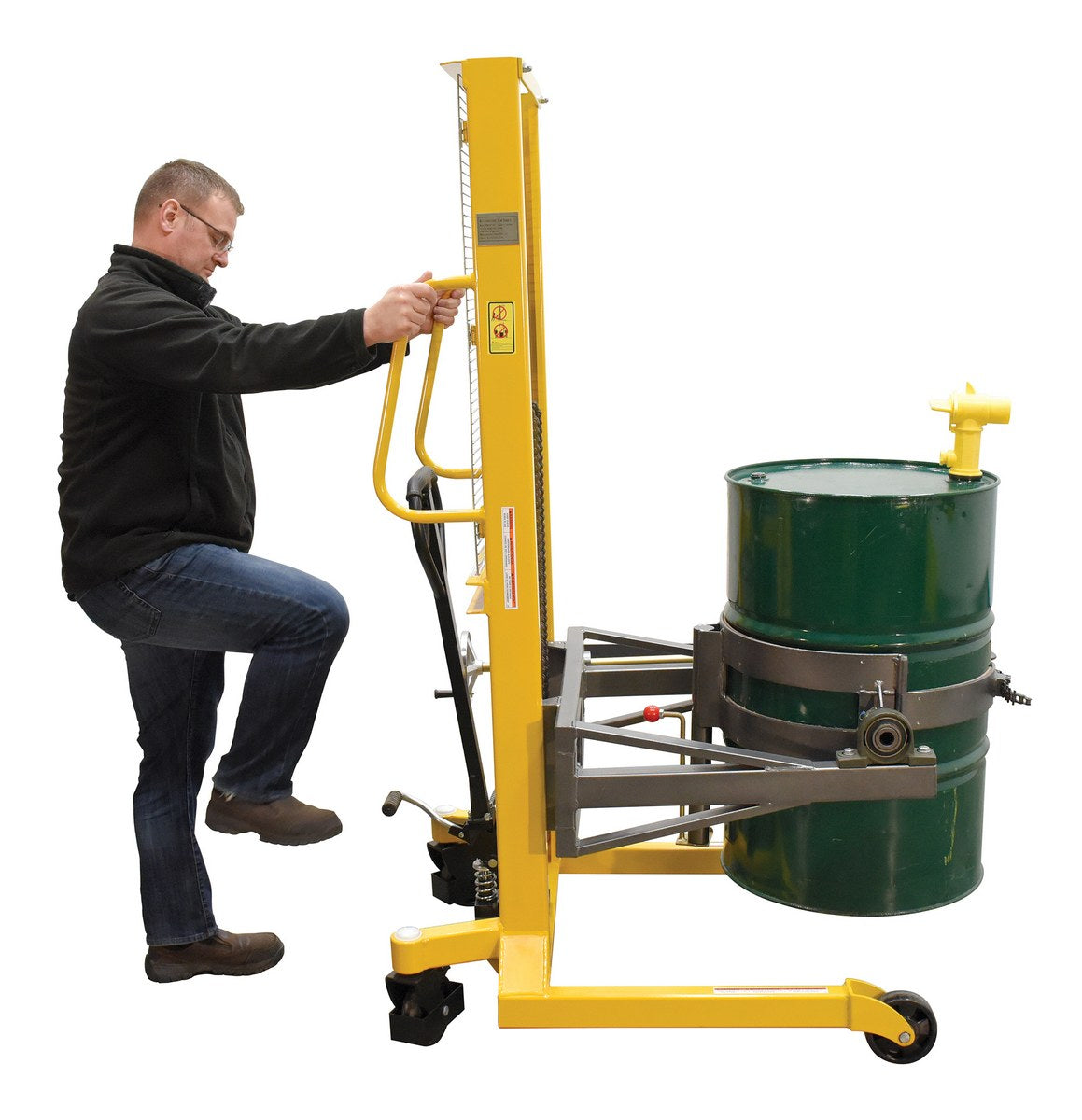

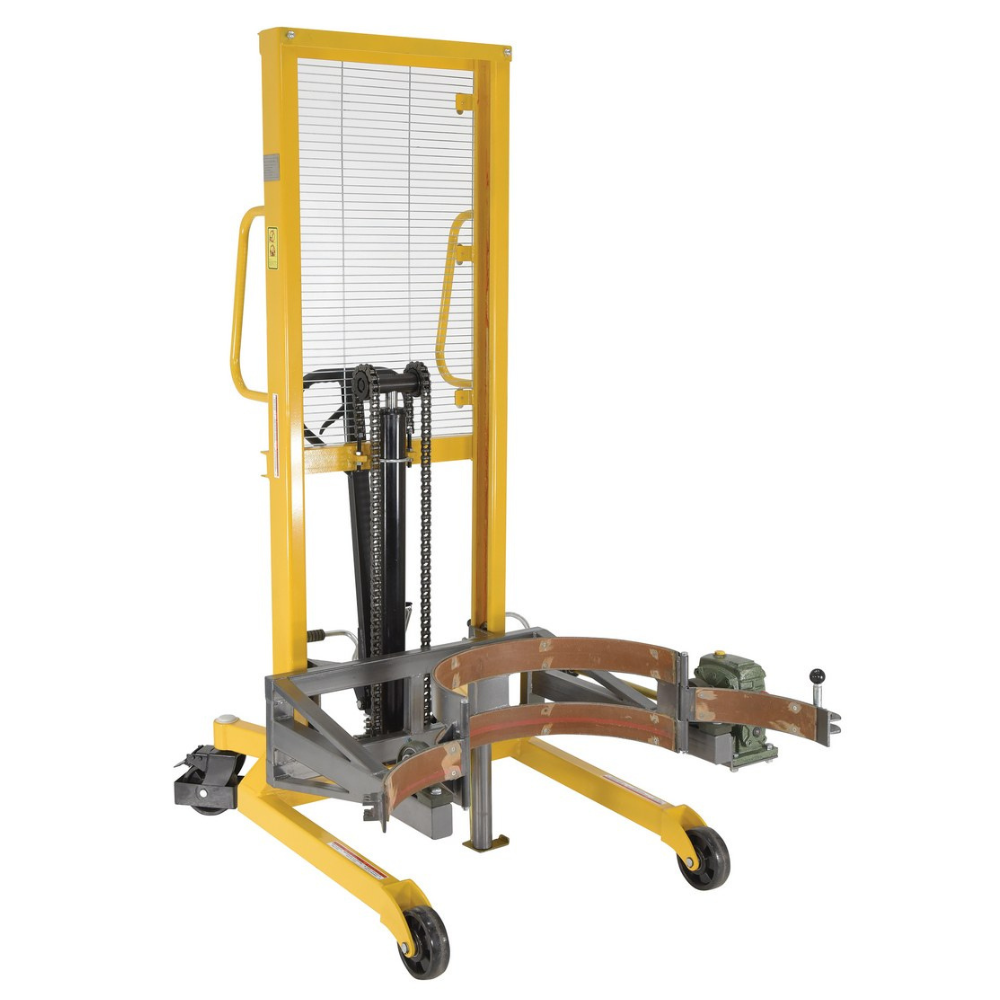

The Vestil Model DRUM-LRT-EC Steel Economy Portable Drum Lifter/Rotator/Transporter is a versatile manual unit for lifting, rotating, and transporting 55-gallon steel drums. Designed for warehouse and industrial environments, it allows drums to be securely locked in a vertical position to prevent spills, or tilted horizontally for draining through a faucet. The clamp-style cradle grips the drum firmly, while a manual hand crank provides controlled tilting up to 120°. Drums are raised using either a hand or foot pump, and the unit complies with ANSI B56.10 safety standards.
  • Model Number: DRUM-LRT-EC
  • Capacity: 550 lbs
  • Compatible Drum Size: 55 Gallon
  • Compatible Drum Material: Steel
  • Drum Restraint Method: Clamp Style Cradle
  • Lift Height (Vertical): 59 in
  • Lift Height (Horizontal/Dump): 63 in
  • Tilt Range: 120°
  • Rotation (Hand Crank): 180°
  • Inside Straddle Dimension: 26.5 in
  • Power Source: Manual (Hand or Foot Pump, Hand Crank Tilt)
  • Number of Casters: 4 (2 Rigid, 2 Swivel with Brakes)
  • Caster Size/Material: 6 in x 2 in Poly-on-Steel
  • Legs: Fixed
  • Overall Length: 52.125 in
  • Overall Width: 31.5 in
  • Overall Height: 77.1875 in (max 82 in)
  • Weight: 410 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days – Limited Parts
