Steel DC Powered Portable Hydraulic Drum Dumper – 72" Dump Height – 750 Lb. Capacity – HDD-72-7-P-DC – Vestil

SKU: HDD-72-7-P-DC
$5,141.10
Estimated Lead Time:6-8 Weeks

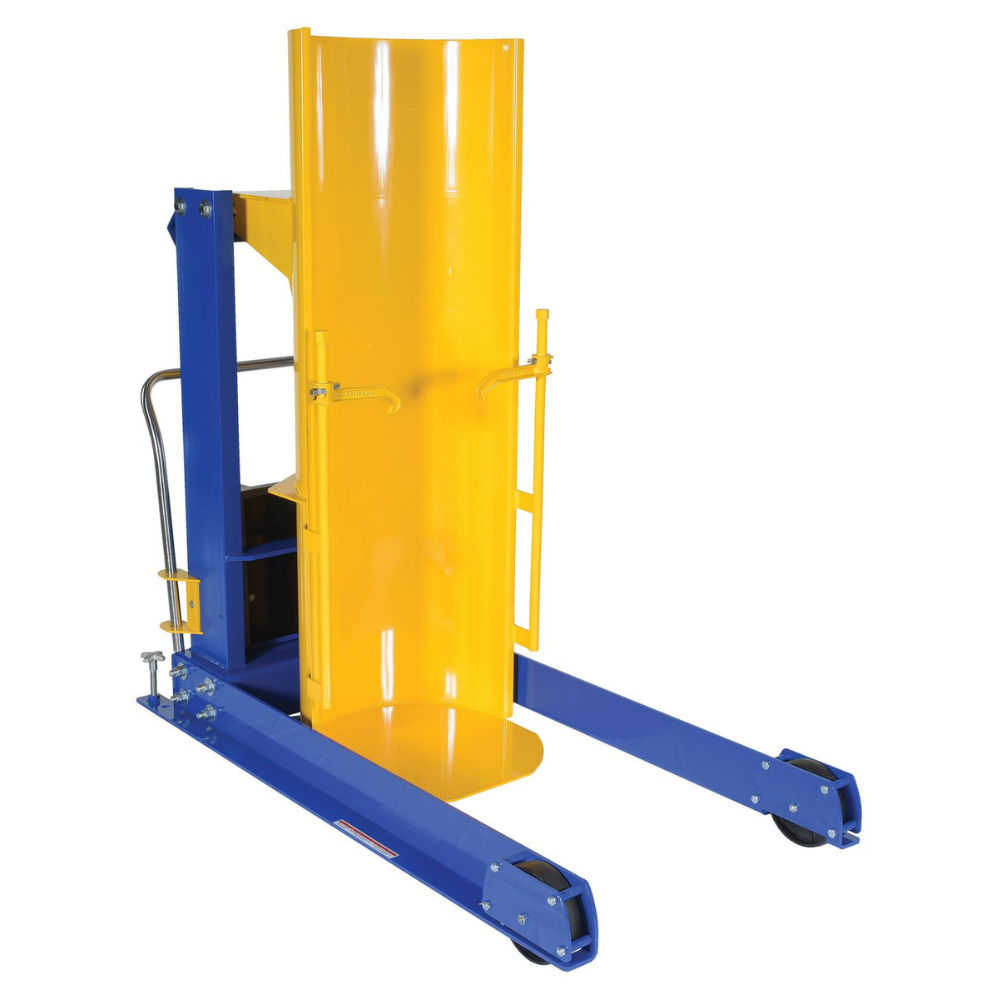

The Vestil HDD-72-7-P-DC Hydraulic Drum Dumper provides a reliable and efficient solution for handling and dumping heavy drums up to 750 lbs. Powered by a 12V DC lead-acid battery, this unit offers portability and convenience for material handling operations. Its 72" maximum dump height and 45° dump angle allow for controlled and precise emptying of drums.

Compatible with both 30- and 55-gallon drums (steel, plastic, or fiber), the dumper is built with a solid steel chute for rugged use. Safety features include an upper travel limit switch, an emergency brass safety velocity fuse in the cylinder, and adjustable vertical drum restraints to secure drums during operation. The unit is mounted on casters with floor lock screws for stable positioning during use.
  • Model Number: HDD-72-7-P-DC
  • Capacity: 750 lbs
  • Maximum Dump Height: 72 in.
  • Dump Angle: 45°
  • Accepted Drum Sizes: 30 & 55 Gallon
  • Accepted Drum Diameter Range: 16.5 – 23.5 in.
  • Accepted Drum Height Range: 27.5 – 39.5 in.
  • Overall Dimensions: 92"L x 36"W x 96"H
  • Level Height: 95.25 in.
  • Rotated Height: 157.5 in.
  • Handheld Control: 2-function pendant with 18–90 in. coil cord
  • Handle Height/Diameter: 38" / 1.25"
  • Power Source: 12V DC Lead Acid Battery (included)
  • Casters: (2) 6" x 2" Swivel & (2) 8" x 2" Rigid – Glass Filled Nylon
  • Assembled Weight: 961 lbs

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
