Steel Adjustable Floor Lock – 8-1/4 to 11-1/2 In. Height – FL-ADJ-810 - Vestil

SKU: FL-ADJ-810
$66.08
Estimated Lead Time:1-3 Days

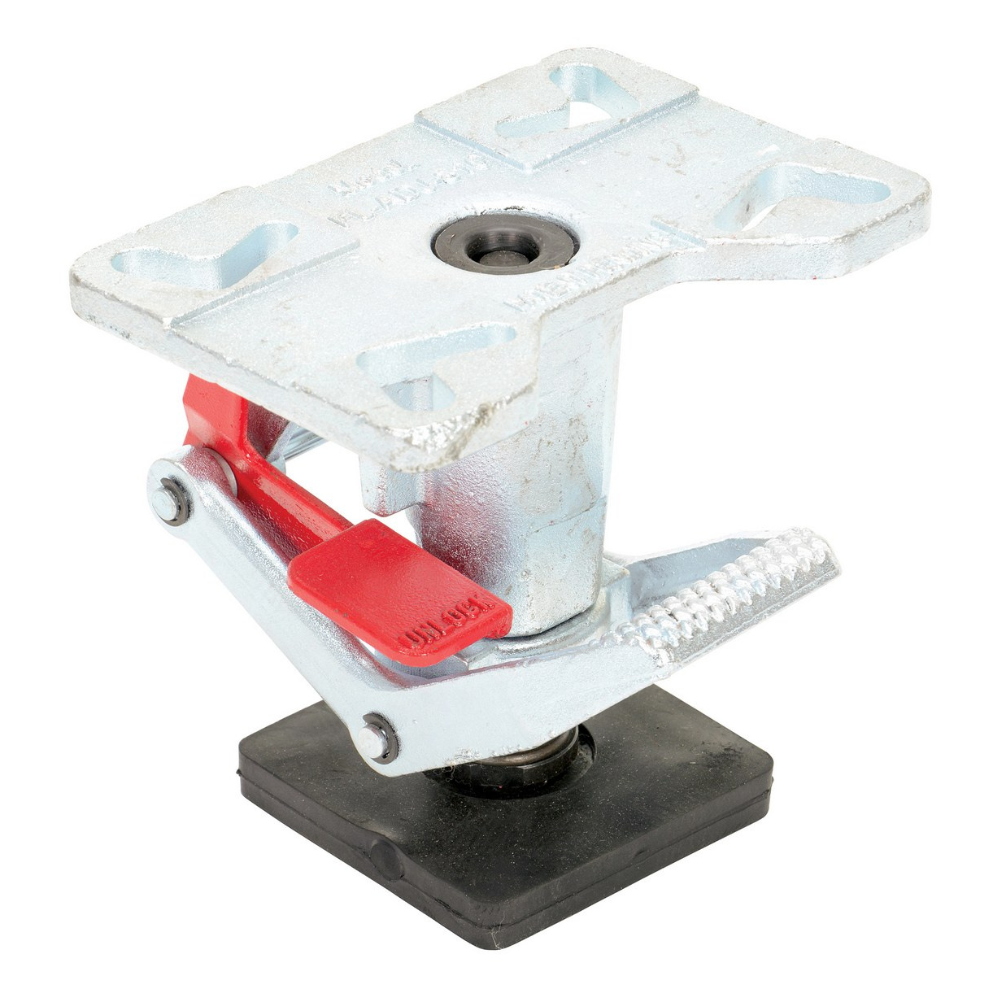

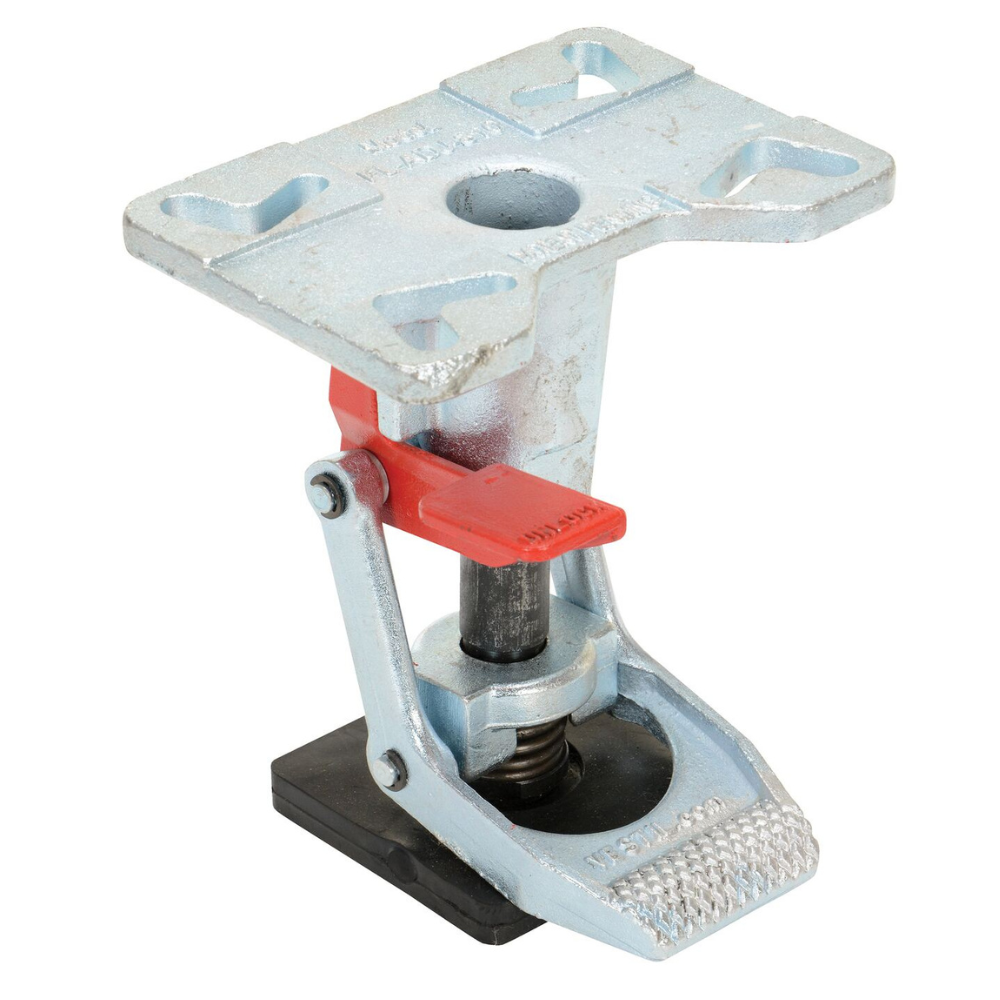

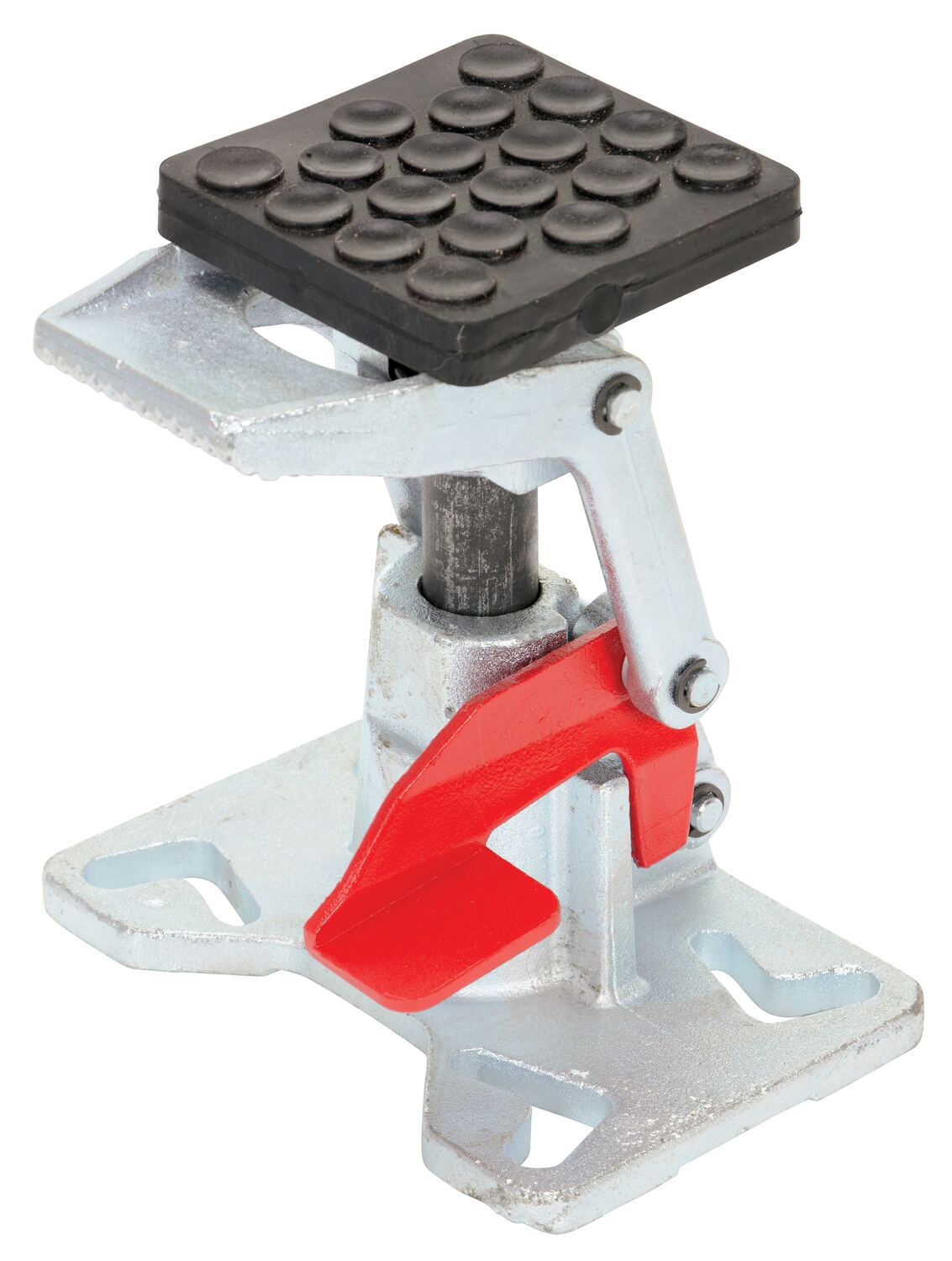

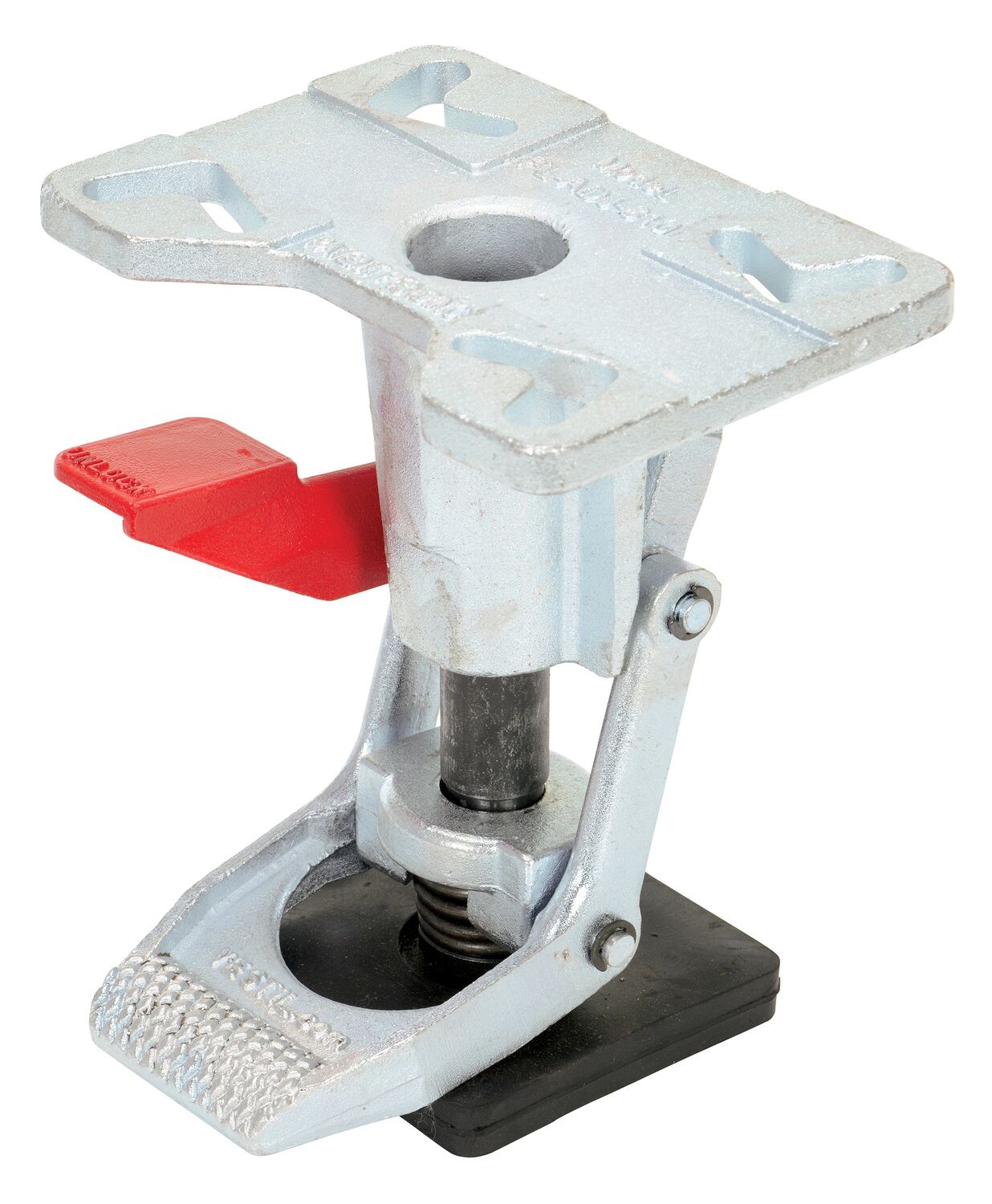

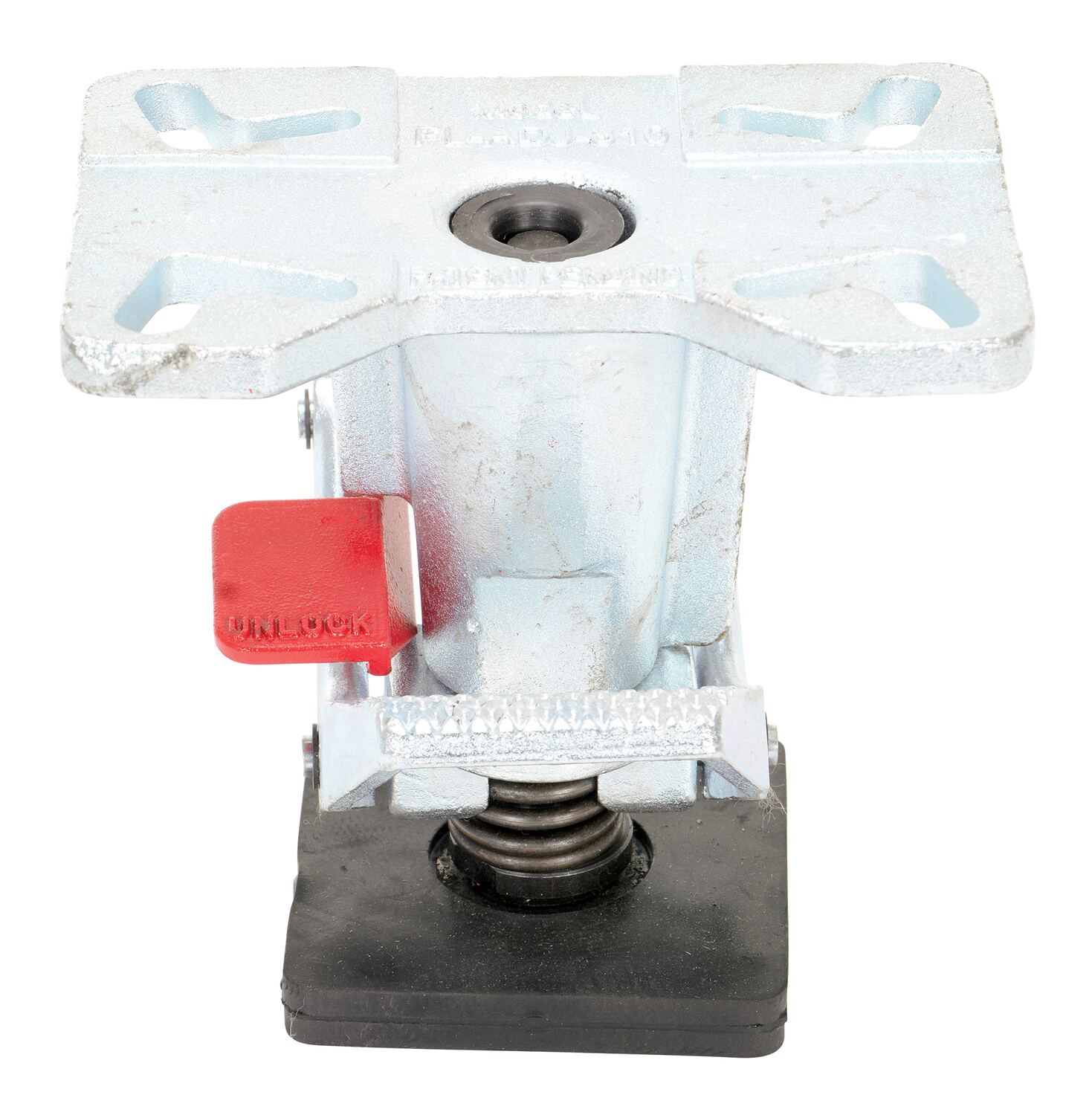

The Vestil FL-ADJ-810 is a steel adjustable floor lock designed for carts with casters of varying heights. Its adjustable height foot pad ensures uniform locking and safer unlocking force, providing better ergonomic operation. The bottom pad includes suction cups for extra grip and stability. This lock maintains proper function even as springs and pads wear over time.
  • Model Number: FL-ADJ-810
  • Extended Height: 8-1/4 to 11-1/2"
  • Retracted Height: 6-1/4 to 9-1/2"
  • Used with Caster Size: 6 to 8"
  • Top Plate Width / Length: 4-1/2" × 6-1/2"
  • Mounting Bolt Diameter: 3/8"
  • Mounting Plate Thickness: 3/8"
  • Assembled Dimensions (W × D × H): 6.6875" × 6.5" × 11.5"
  • Assembled Weight: 8 lb
  • Material: Heavy-duty Cast Steel

Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days (Limited – Parts)
