Steel Adjustable Floor Lock – 6-1/4 to 8 In. Height – FL-ADJ-46 - Vestil

SKU: FL-ADJ-46
Regular price $60.56
Estimated Lead Time:1-3 Days

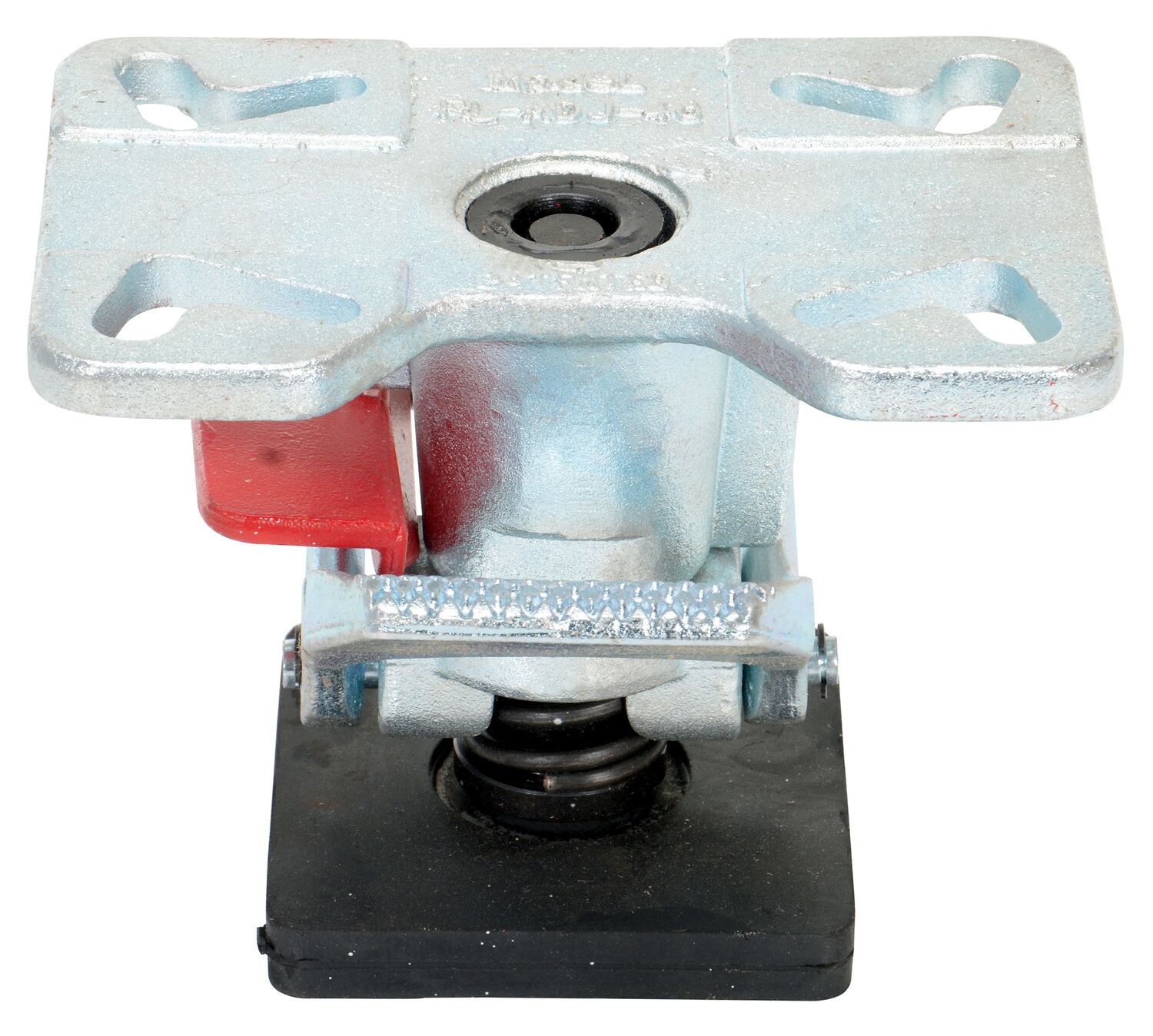

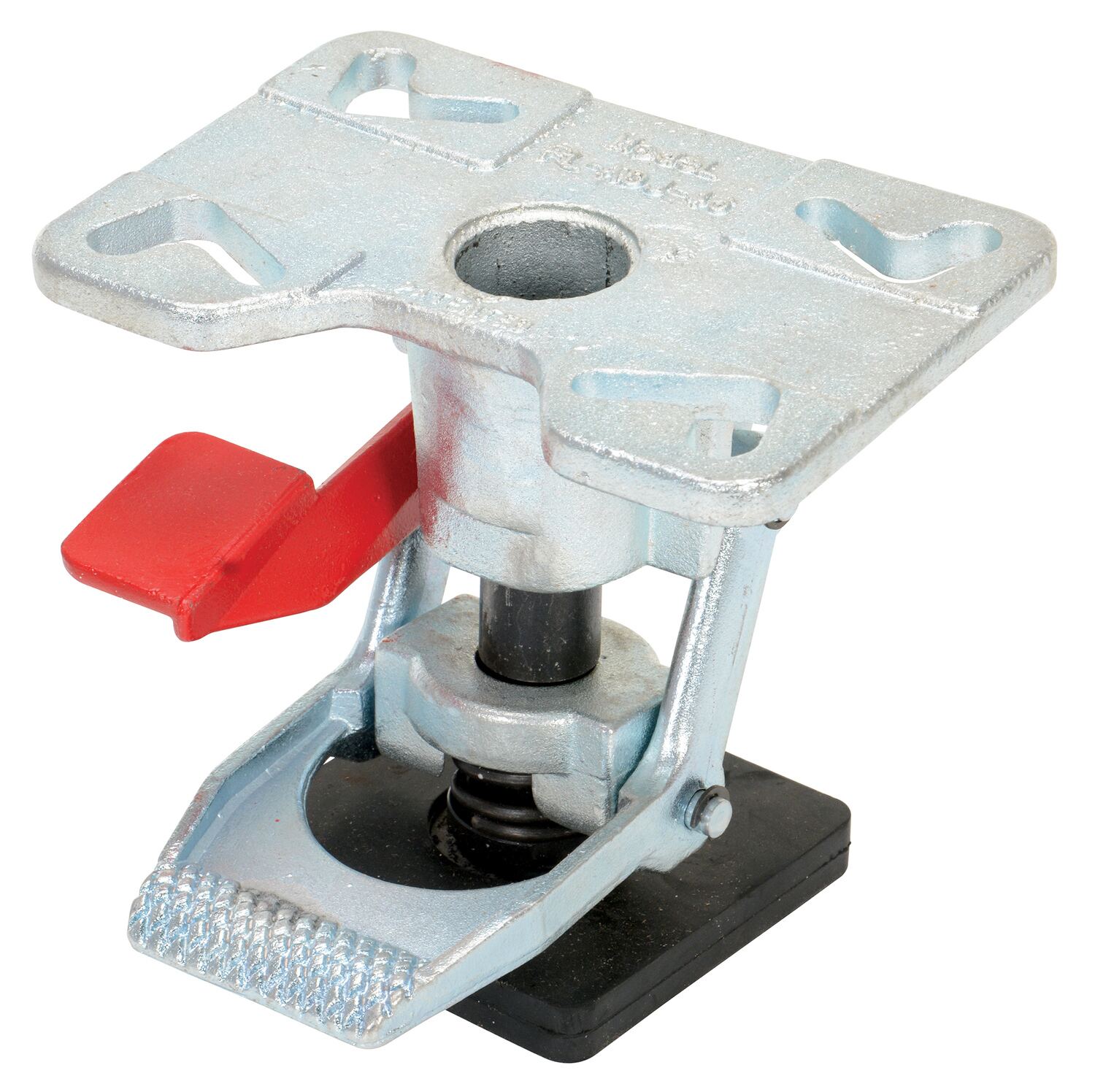

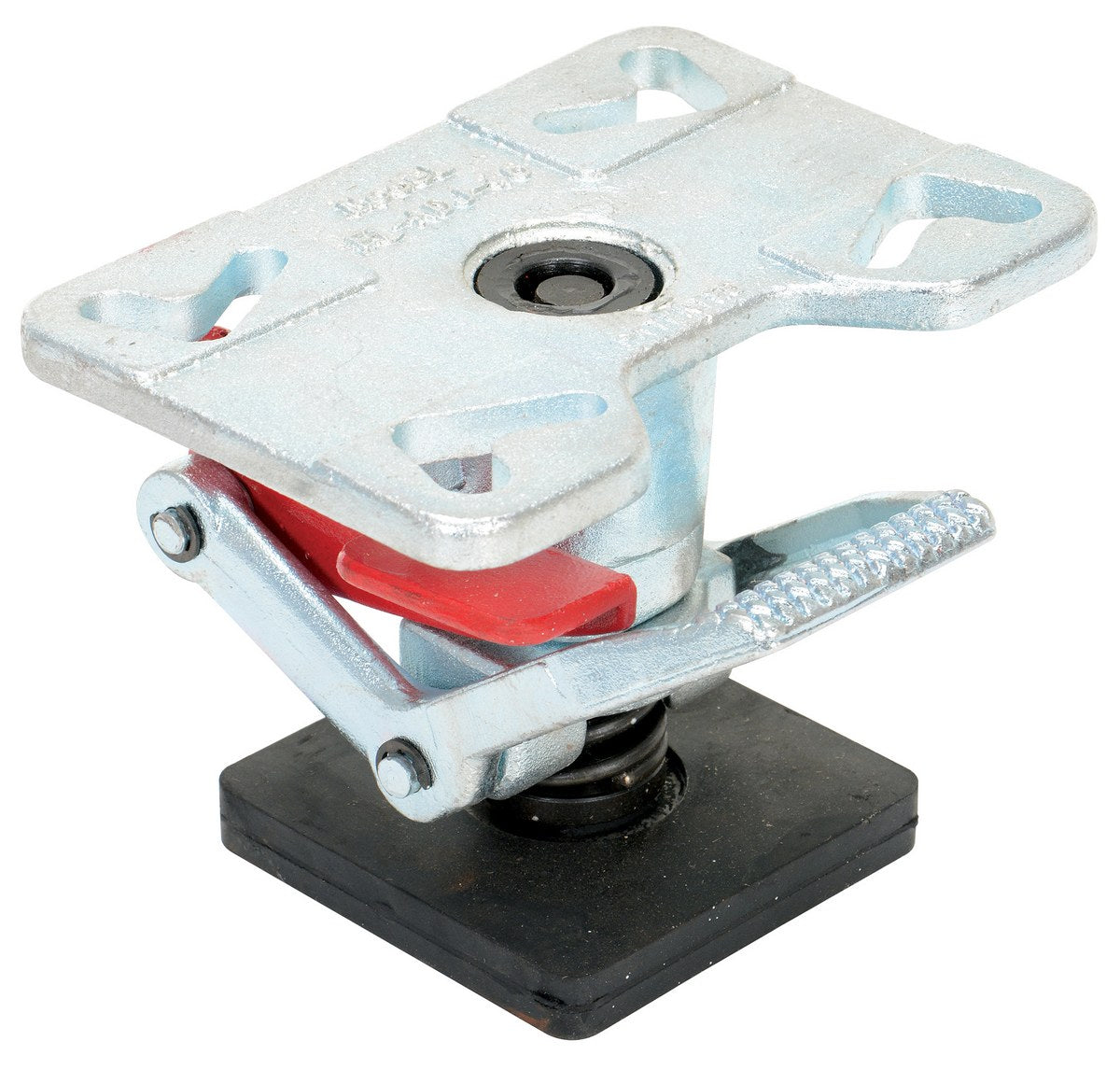

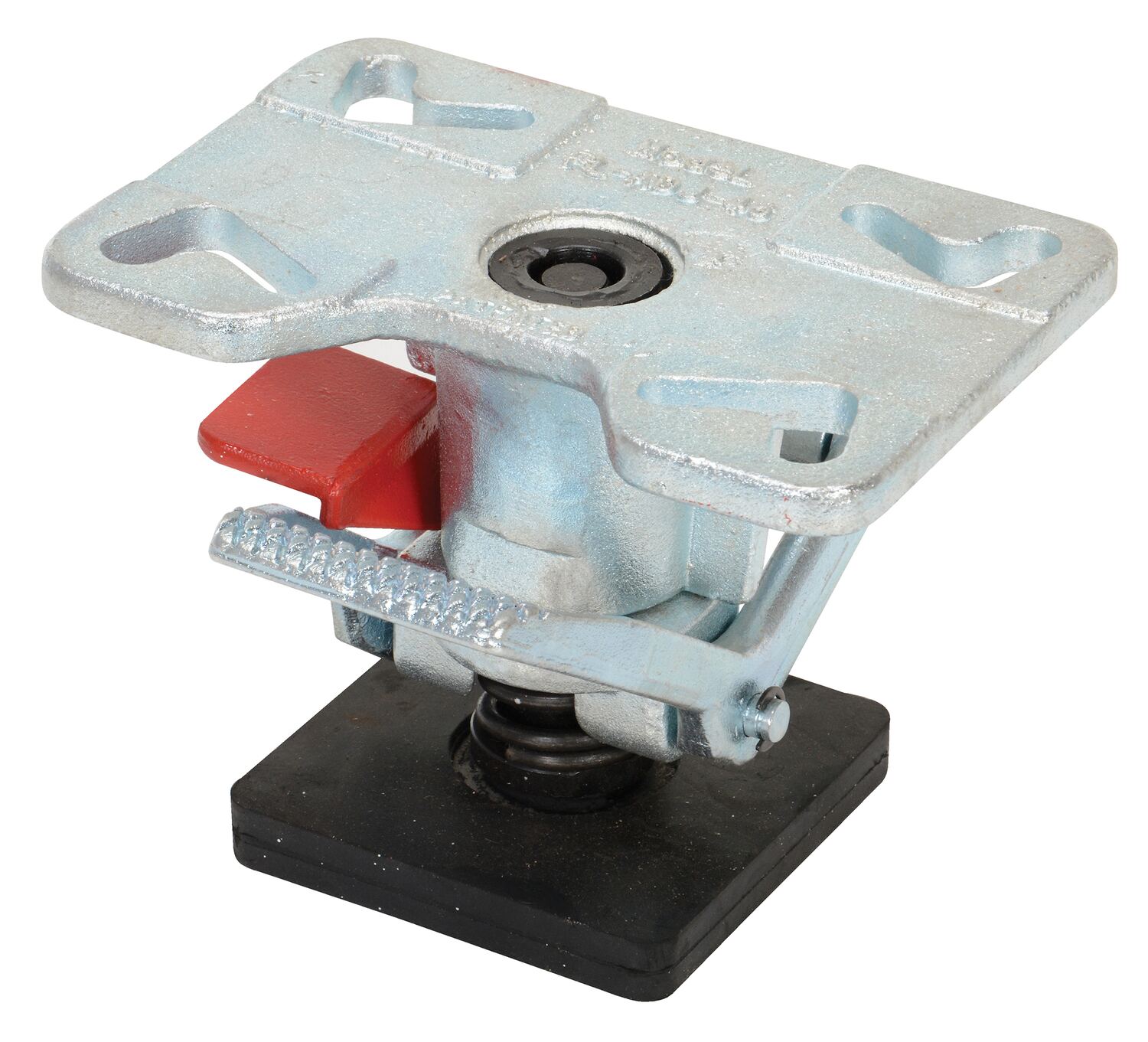

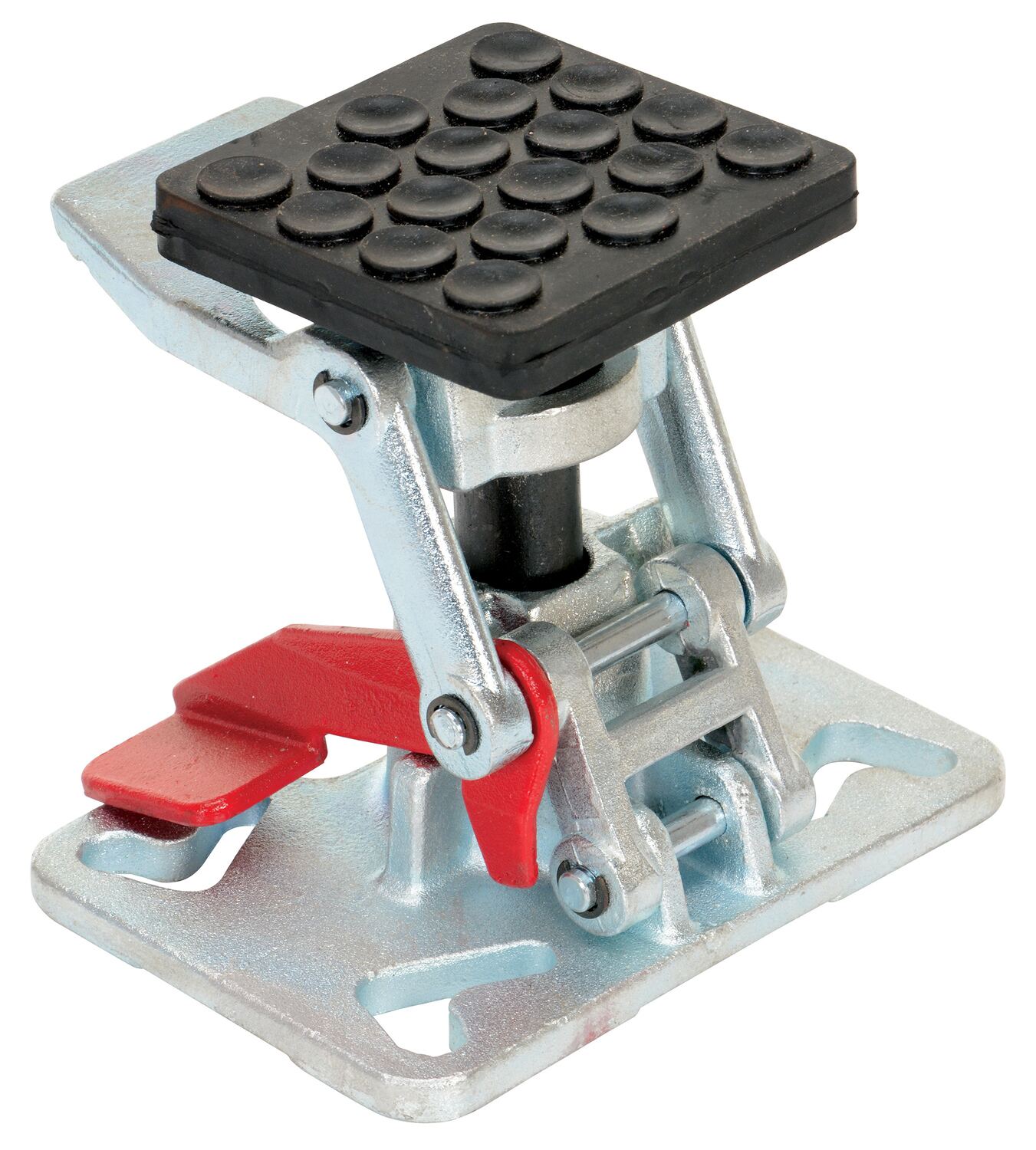

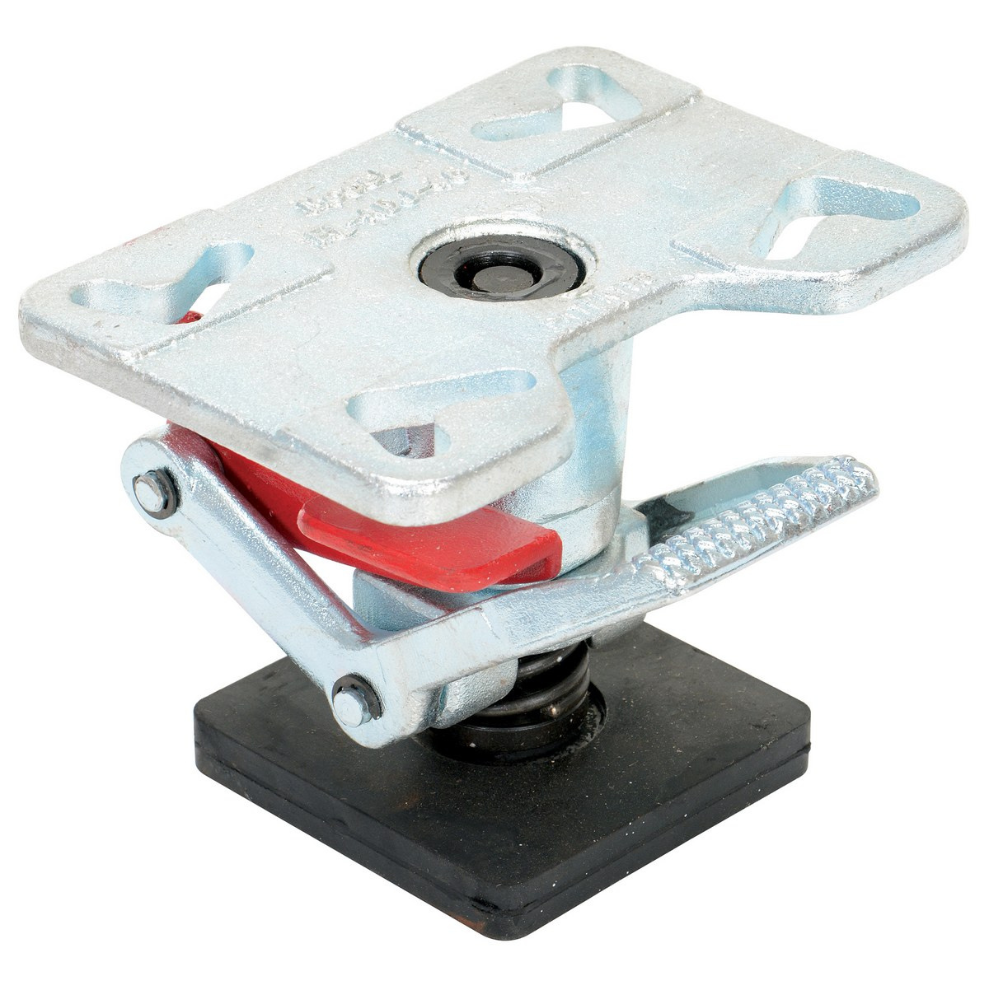

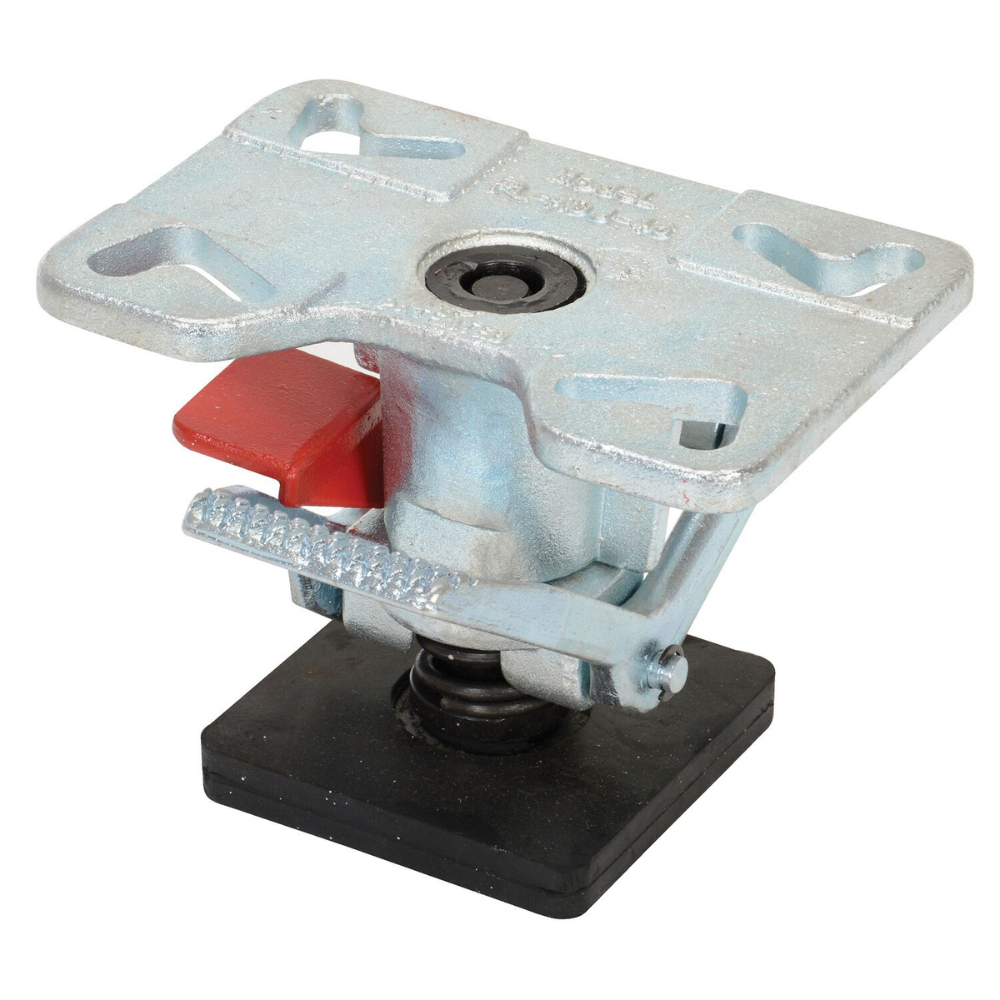

The Vestil FL-ADJ-46 is a steel adjustable height floor lock designed for platform trucks, fixture dollies, or other castered equipment. The lock features a height-adjustable foot pad, allowing it to work on carts with different caster heights. Its adjustable design ensures uniform locking and safer unlocking force, improving ergonomics and maintaining performance as springs and pads wear over time. The bottom pad includes suction cups for extra grip and stability.

  • Model Number: FL-ADJ-46
  • Extended Height: 6-1/4 to 8"
  • Retracted Height: 5-1/2 to 7-1/4"
  • Used with Caster Size: 4 to 6"
  • Top Plate Width / Length: 4-1/2" × 6-1/2"
  • Mounting Bolt Diameter: 3/8"
  • Mounting Plate Thickness: 3/8"
  • Temperature Rating for Rubber: 33–110°F
  • PFAS: PFAS Free
  • Assembled Dimensions (W × D × H): 5.625" × 6.5" × 8"
  • Assembled Weight: 9 lb
  • Material: Heavy-duty Cast Steel

Manufacturer Warranty: 90 Days (Limited – Parts)
