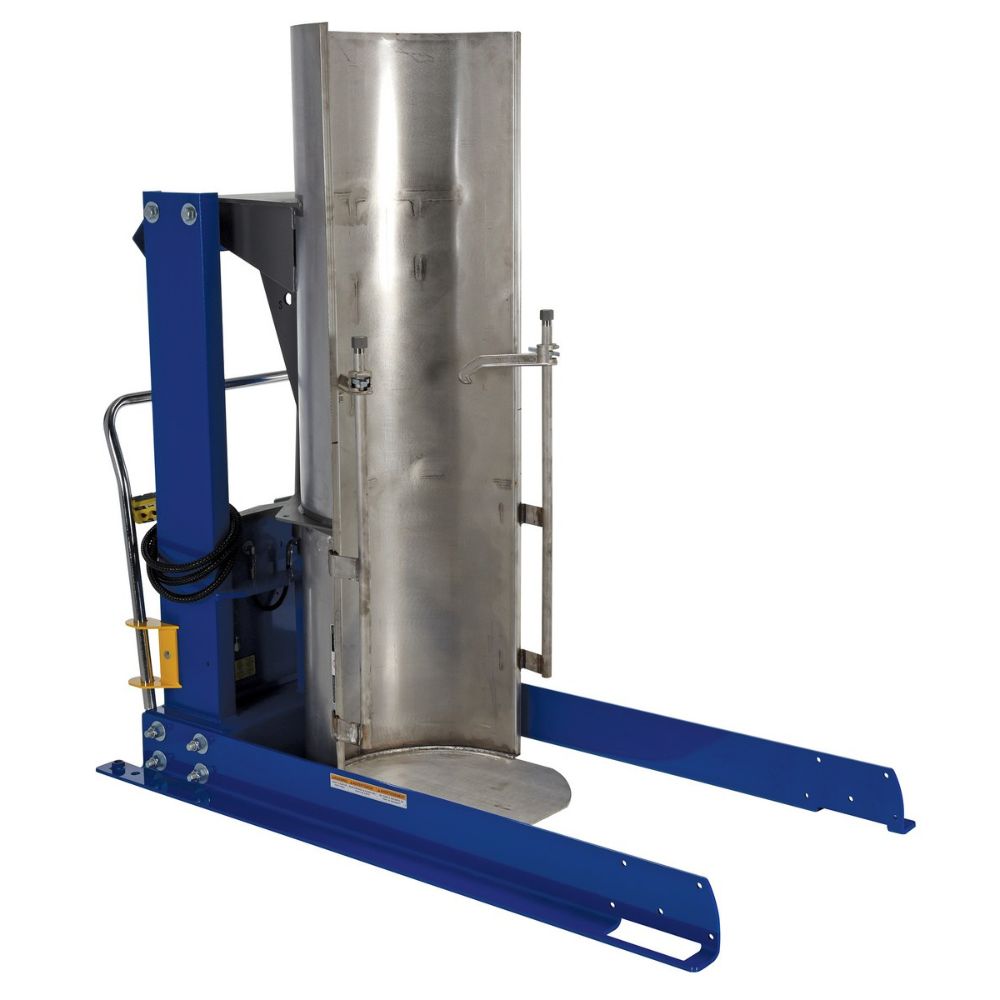

Stainless Steel Stationary Hydraulic Drum Dumper – 72 In. Dump Height – 750 Lb. Capacity – HDD-72-7-S-SSC – Vestil

SKU: HDD-72-7-S-SSC
$7,599.10
Estimated Lead Time:7-9 Weeks

and efficient drum handling in industrial settings. With a 72-inch dump height and 750 lb. capacity, this unit is designed for 30- and 55-gallon steel, plastic, or fiber drums. Built with a rugged steel frame and stainless steel chute, it includes critical safety features like an upper travel limit switch and brass velocity fuse. Operated with a handheld control on a coil cord, the dumper allows drum rotation to be stopped at any point, ensuring precision and operator safety.
  • Model Number: HDD-72-7-S-SSC
  • Capacity: 750 lbs
  • Compatible Drums: 30 & 55 Gallon – Steel, Plastic, Fiber
  • Overall Dimensions: 92"L x 36"W x 95.25"H
  • Assembled Weight: 875 lbs
  • Overall Lowered Height: 95.25"
  • Overall Raised Height: 157.25"
  • Maximum Dump Height: 72"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, 115V, Single Phase, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Cylinder Size: 2.5" Diameter x 18" Length
  • Chute Diameter: 24"
  • Chute Reach: 13.5"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
