Stainless Steel Stationary Hydraulic Drum Dumper – 72 In. Dump Height – 1,500 Lb. Capacity – HDD-72-15-S-SSC – Vestil

SKU: HDD-72-15-S-SSC
$8,712.55
Estimated Lead Time:7-9 Weeks

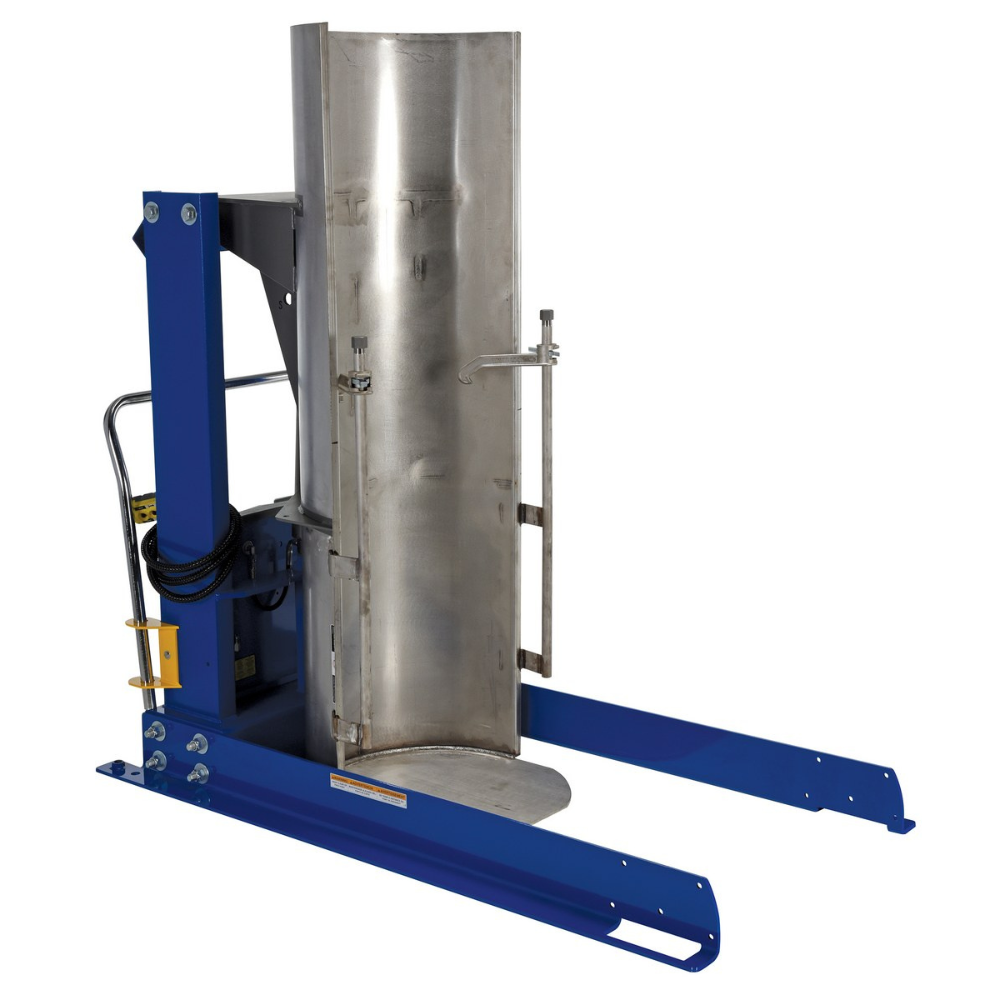

The Vestil HDD-72-15-S-SSC Stainless Steel Stationary Hydraulic Drum Dumper is designed for safe, efficient, and heavy-duty drum handling. With a 72-inch dump height and a 1,500 lb. uniform capacity, this stationary unit is perfect for high-capacity industrial applications. Built to handle 30- and 55-gallon steel, plastic, or fiber drums, it features a solid stainless steel chute, a heavy-duty 3/4 HP motor, and adjustable drum restraints. Safety is built in with an upper travel limit switch, emergency brass safety velocity fuse, and durable all-steel frame construction with stainless chute finish. The dumper is operated with a handheld control on a coil cord, allowing precise and reliable operation.
  • Model Number: HDD-72-15-S-SSC
  • Capacity: 1,500 lbs
  • Compatible Drums: 30 & 55 Gallon – Steel, Plastic, Fiber
  • Overall Dimensions: 92"L x 36"W x 95.5"H
  • Assembled Weight: 875 lbs
  • Overall Lowered Height: 95.5"
  • Overall Raised Height: 157.25"
  • Maximum Dump Height: 72"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, 115V, Single Phase, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Cylinder Size: 3" Diameter x 18" Length
  • Chute Diameter: 24"
  • Chute Reach: 13.5"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
